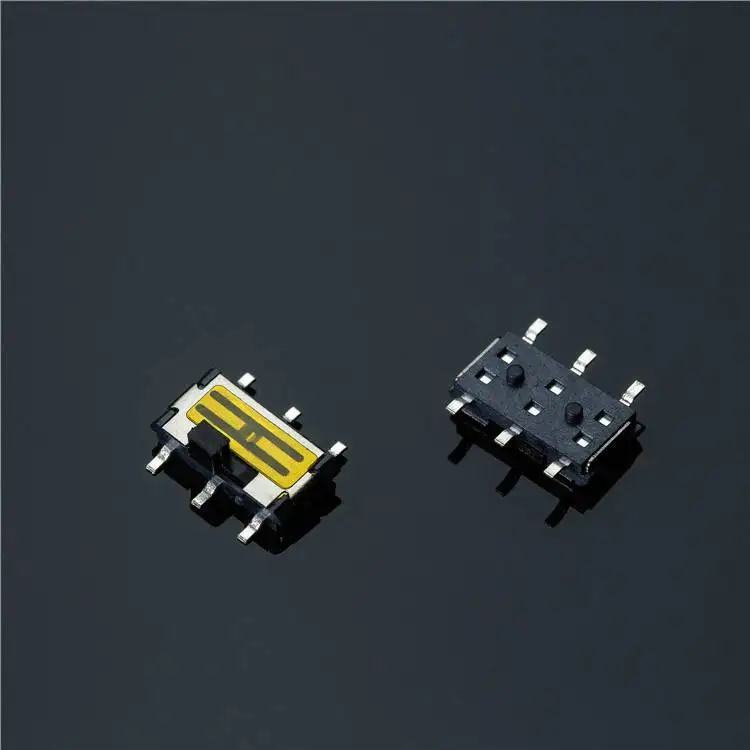

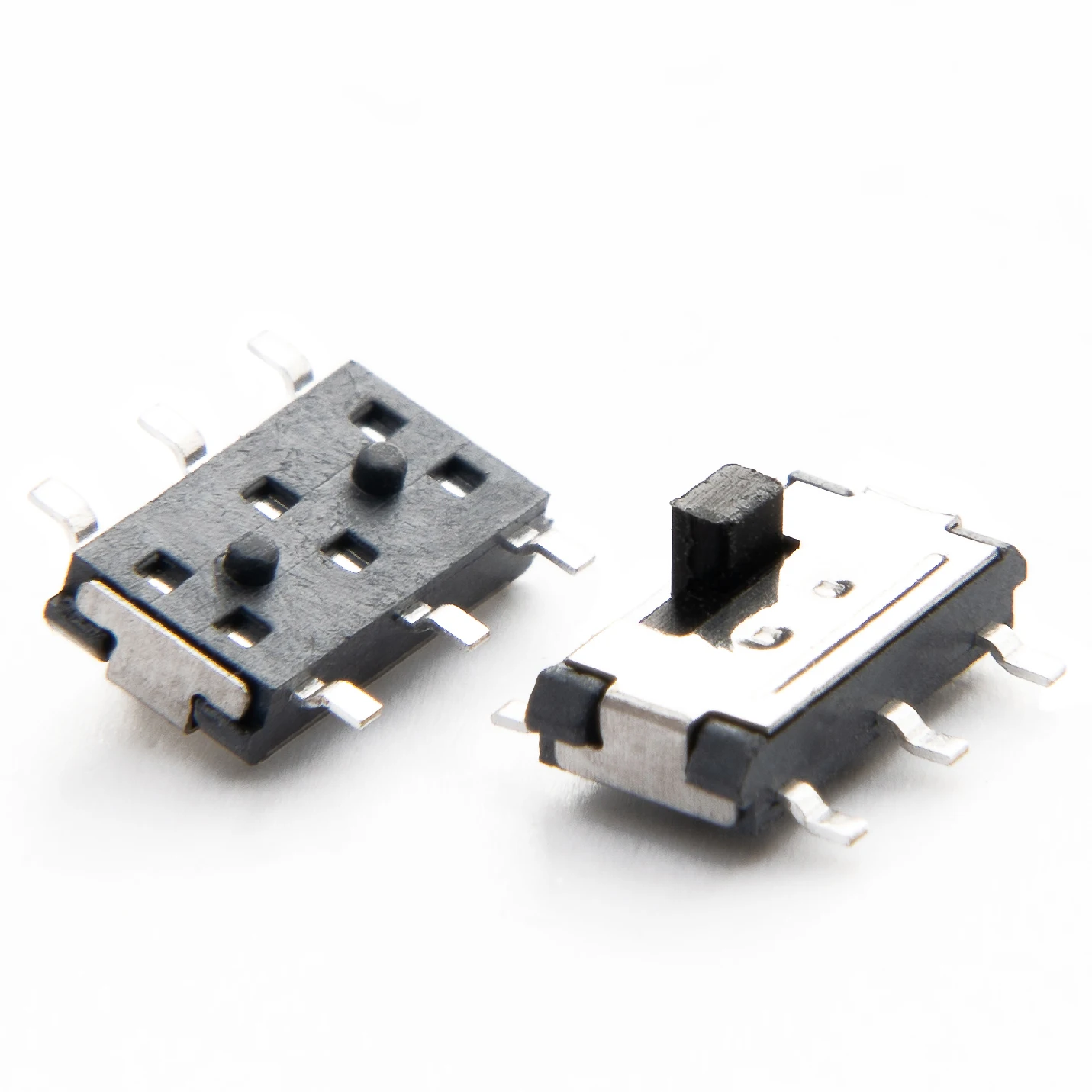

Miniature slide switch 12v mini micro switches 2 position mini 6 pin push switch

Product Overview

Description

Product Description



toggle switches 2 pin, momentary switch for smt, miniature micro switch slide switch defond slide switch smt smd mini slide switch mini slide switch Miniature slide switch 12v mini slide switches 2 position mini digital slide switch LY-SS08

Specification



Specification
Items	Standard
Rating	300mA  4V DC
Insulation resistance	100 MΩ max.  100V DC
Dielectric strength	250V AC for 1 min.
Contact resistance	70mΩ max.
Operating temperature range	-10°c to + 70℃
Lifetime	10,000 Cycles min.
Operating force	120 ± 50gf 2C-2P: 180 ± 50gf
Travel	1.50 ± 0.2mm

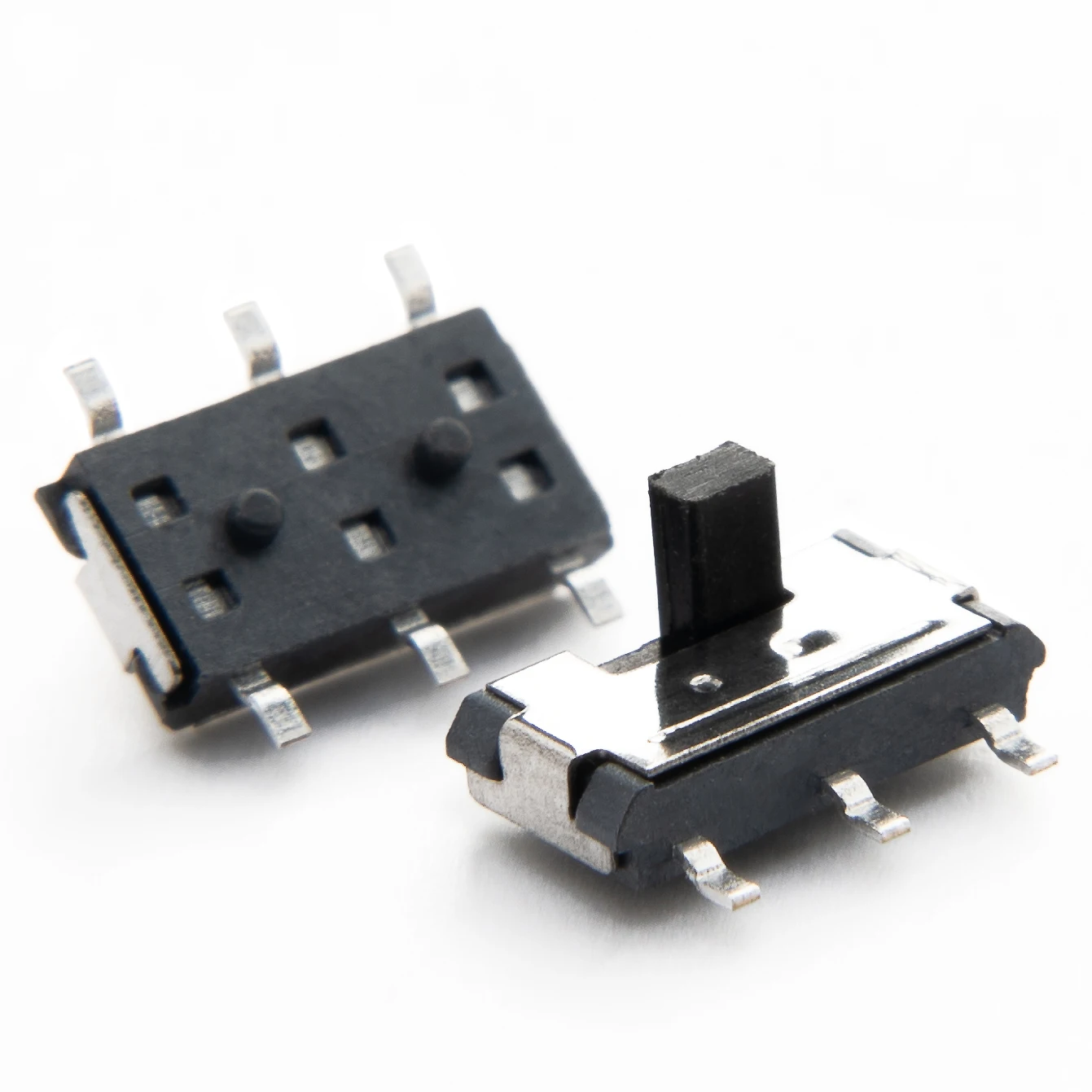

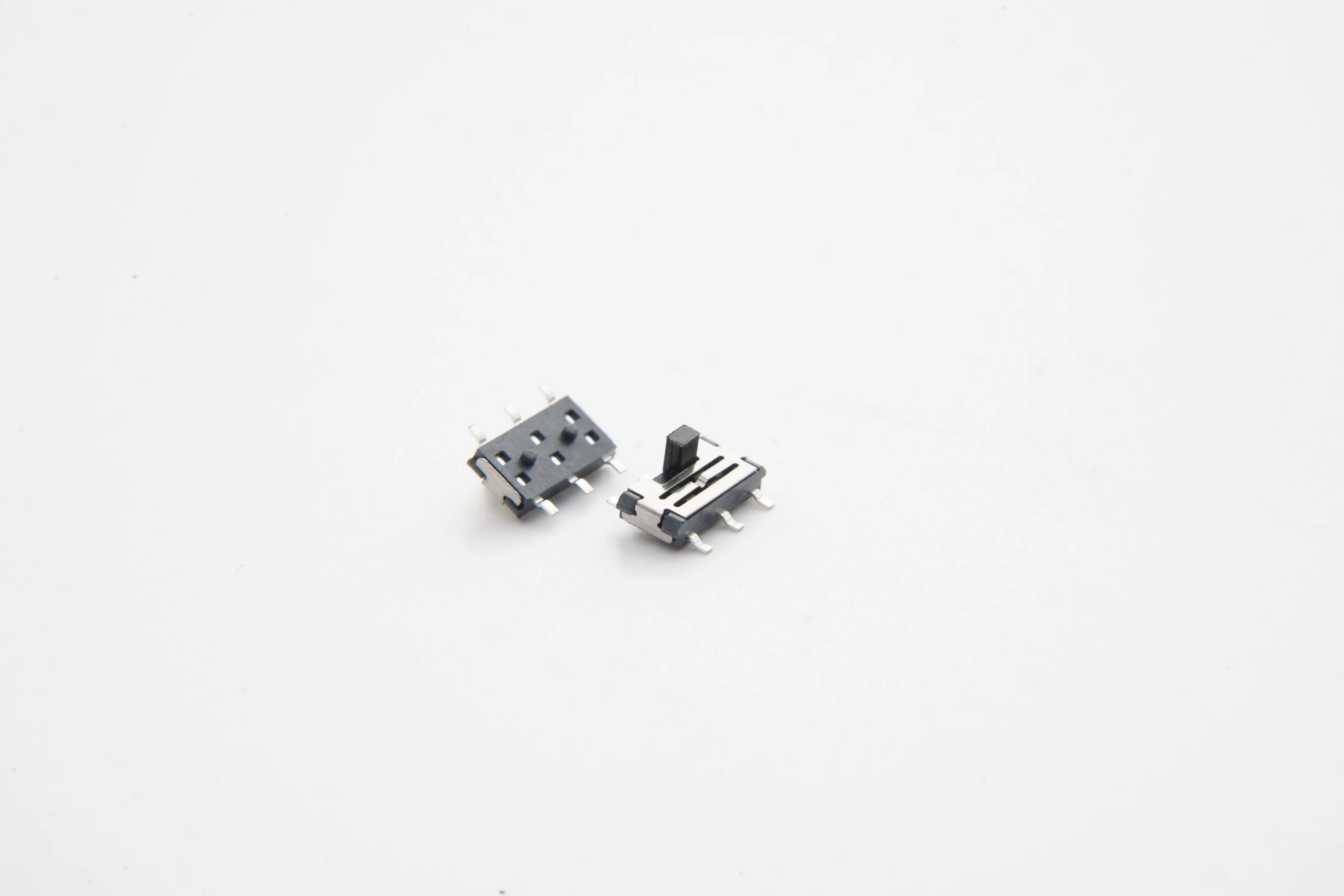

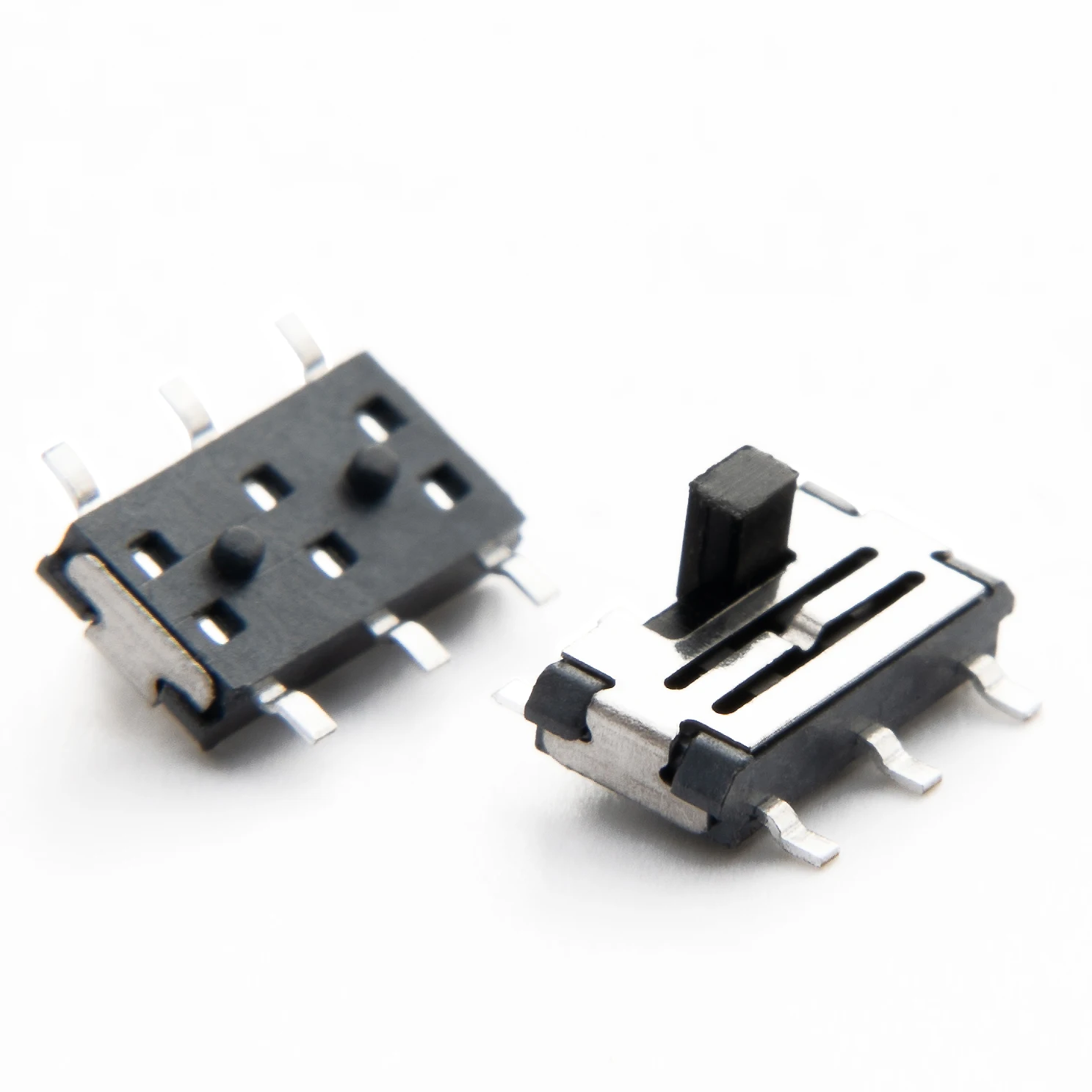

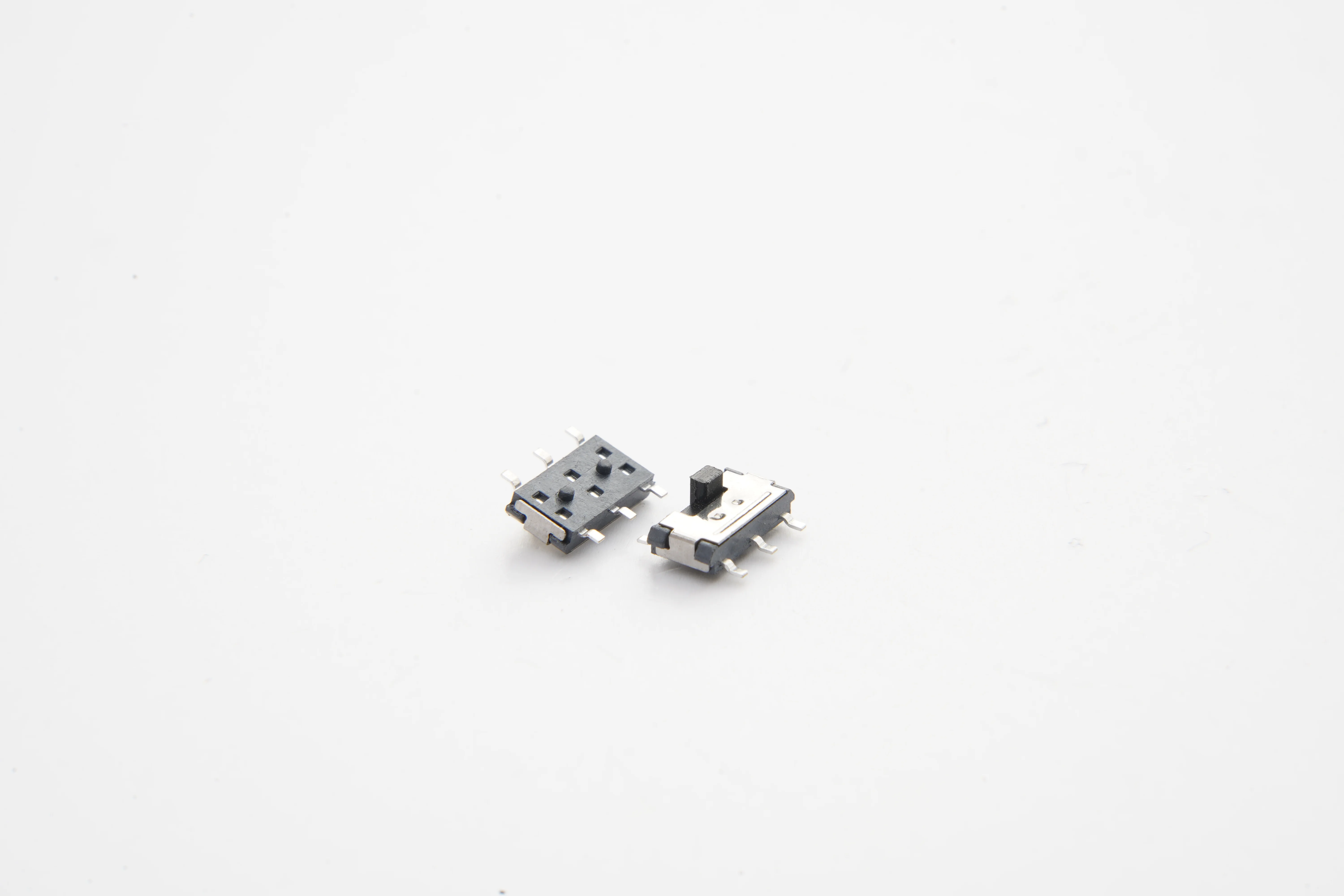

Pictures

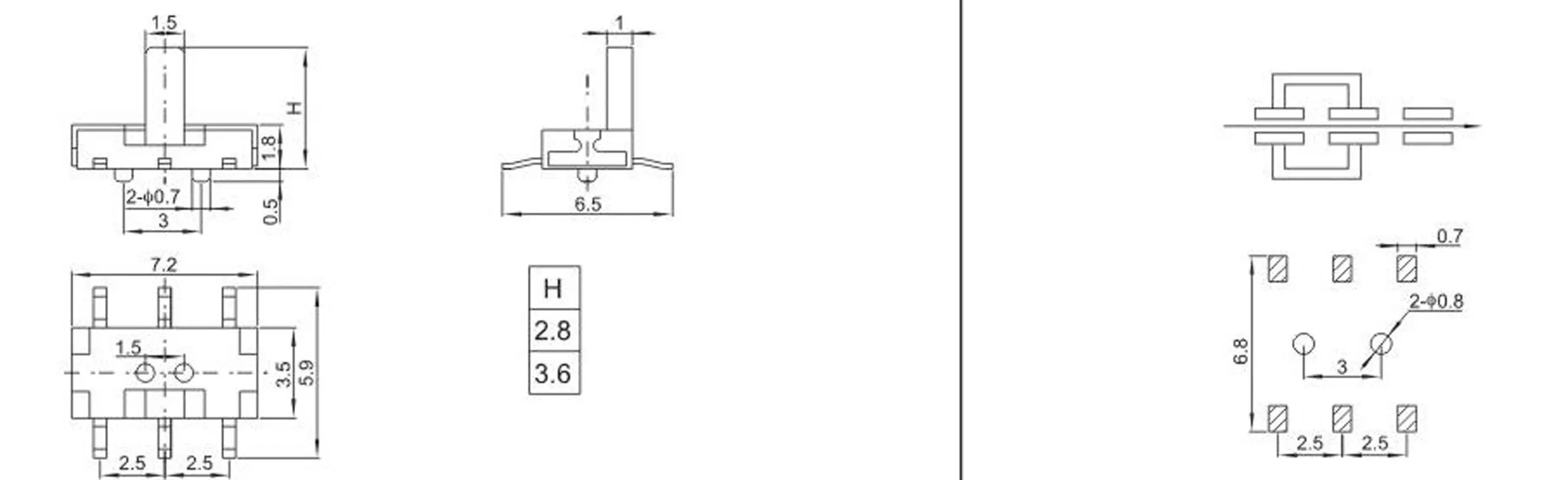

Drawing













Why Choose Us? Our Advantages

1. Since 1989, more than 20 years’ experience of Manufacture.

2. Variety of Type, Provide Professional Products with more than 2,000 type.

3. Original manufacturer with direct factory price, Competitive & Professional.

4. High Standard management for quality control.

5. Small order acceptable: 1,000 pieces.

6. Safe payment terms: T/T and Paypalare available.

7. Prompt Delivery & Lowest shipping cost : We can get low discount from DHL, Fedex, UPS, TNT, EMS, etc.

8. OEM, ODM available.

9. Got good reputation both at home and abroad. Longterm Supplier for Customers' reference.

10. Excellent Service, Smooth export procedure.



About Us

MOQ	1000 pcs
Price Term	FOB Shanghai/Ningbo
Payment Terms	♦T/T, Paypal ♦full payment done before delivery
Delivery	♦UPS, DHL, FEDEX,EMS ♦Select the most economic and efficient way ♦Sent the tracking number to u after delivery
Samples	♦Free samples will be sent on request. ♦The samples lead time is within 1-3 days after u confirmed
Packing	♦Inside: plastic bag / tape & reel / vacuum formed box ♦Outside: carton (neutral packing)



Applications

1. Operation of telecommunication equipment as mobile phones


2. Compact, portable units as camcorders, portable audios, car radios

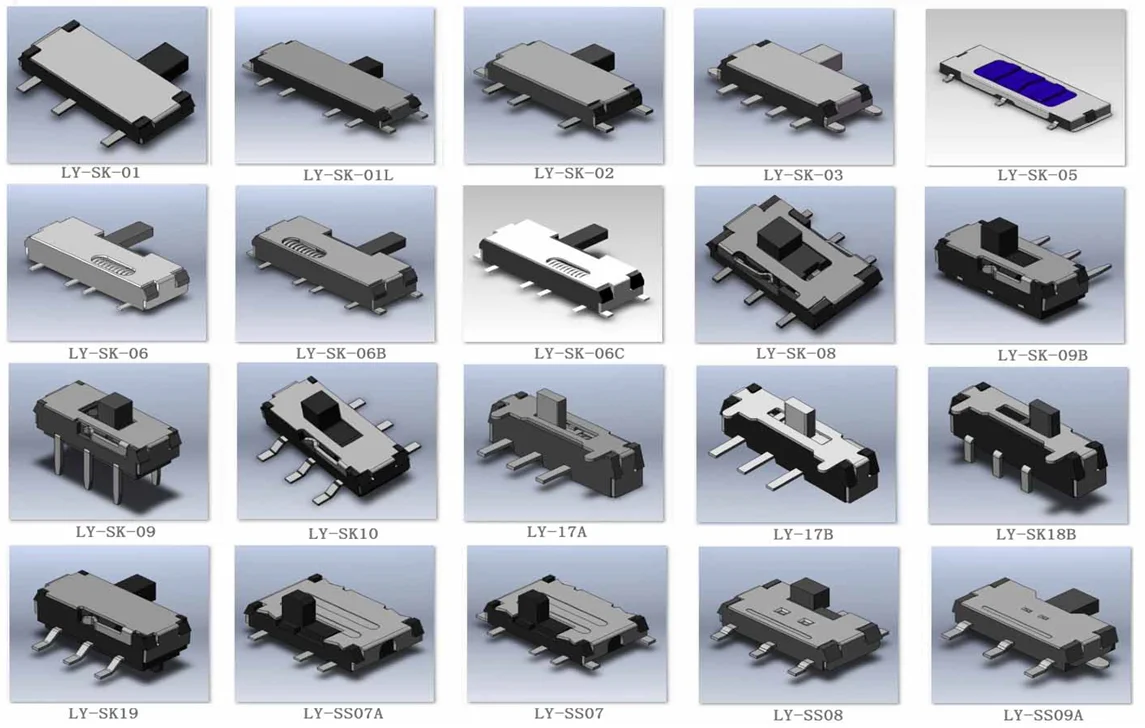

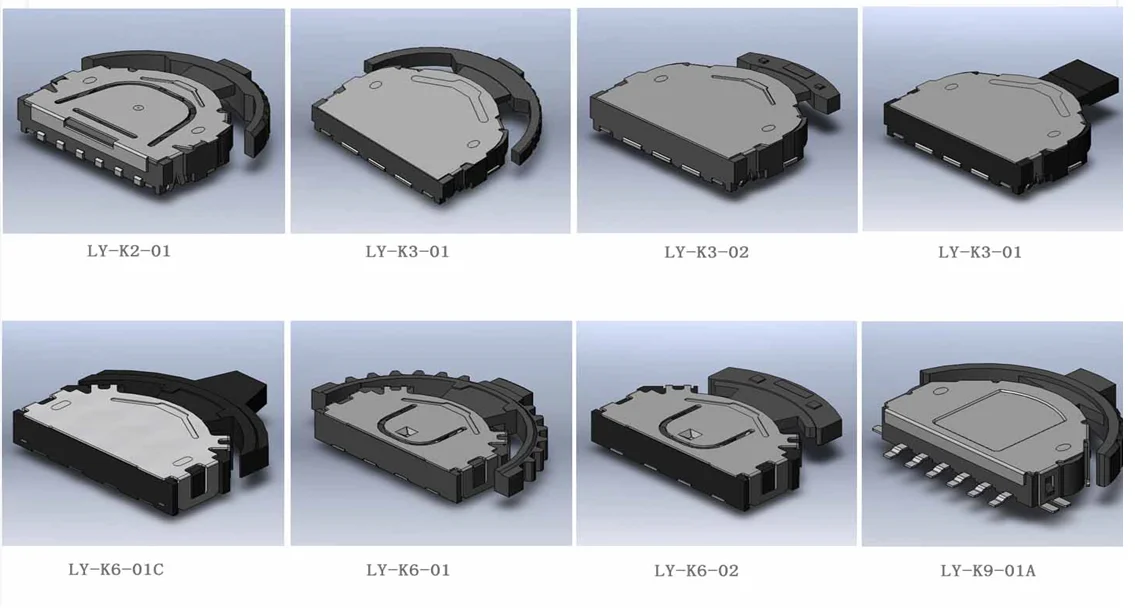

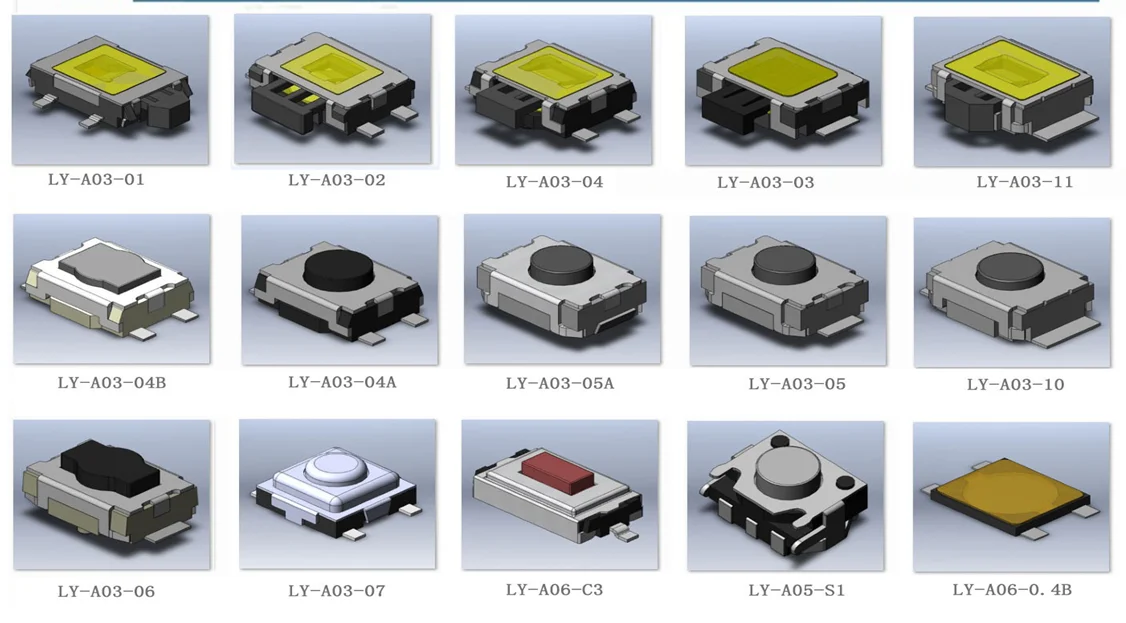

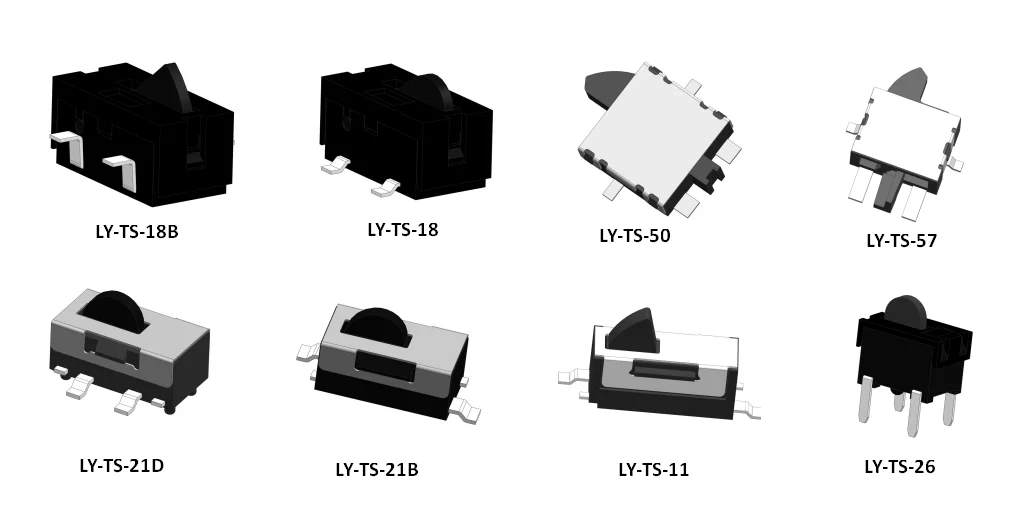

Related Products
