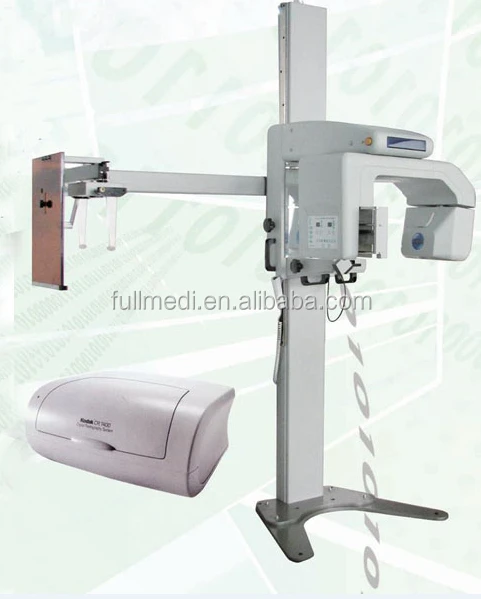

FM-CR Panoramic High Frequency CR X-ray for hospital
Panoramic Parameters
Panoramic
Ceph
Focus film distance
51cm
158cm
Time of exposure
19s
mAs from 2 to 35(12 feet)
Normal position
Functional items
Adult (19 s)
Children (16 s)
Left side (10 s)
Right side (10 s)
Middle (10 s )
Mouth open and close TMJ (4*3.2s)
Frontal Teeth(12 s)
Frontal Sinuses(18 s)
Side face
With soft tissued filter
Cooling and time out
Automatically controlled
At most 6 min
Automatically controlled
At most 60s
Film dimensions
15*30cm flat box
18*24cm
X-ray Parameters
Power Supply: 220V,50/60Hz,10A (It can be adjusted as customer’s require.)
Mains Resistance: <1.5ohm at 220 V
X-ray generator:High frequency dc at 20 kHz
Anodic Voltage:60-86 kV, Constant Potential
Anodic Current:4-10 mA,Direct Current
Focus size:0.5*0.5mm
Inherent Filtration:2.5 mm Al

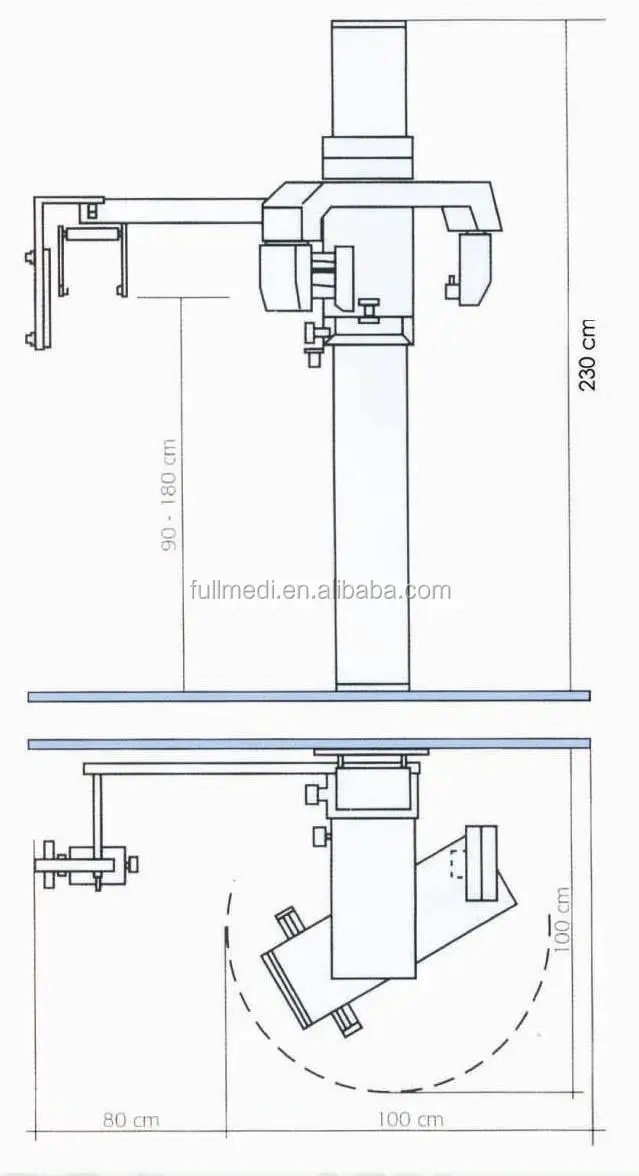

Column Height:230cm
Displacement :90 cm,from 90 to 180 cm
Vertical Movement: Manual Adjustment
Patient Positioning: Manual Carriage Adjustment
Centering Light Lateral
Centering Chin rest
Reference with bite wing
Imaging Parameters of Digital Sensor ipan:
Color Depth
12bits (4096gray scale)
Pixel size
96micrometer
Resolution
4lp/mm
Scan Time
10–20sec(depending on host machine)

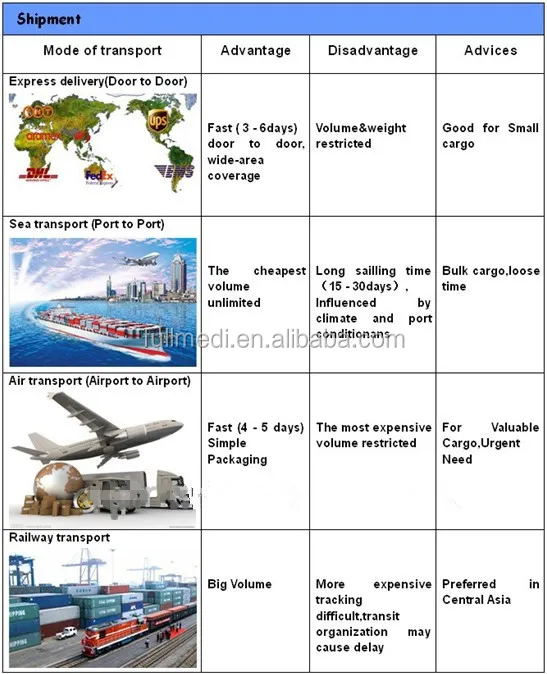

Packaging & Shipping
Our Services
I. Warranty service We offer one year warranty & lifelong service.Some of products have two years warranty.
II. Extend Service If you have any problem,we will response in 12hours by email,tel or fax. We provide spare parts for ten years.
Company Information
Full Medical Co., Ltd. is a specialized supplier of Medical and Health Care Products, adhering to the principle of "Professional takes you to satisfaction". Better Offer, Better Quality, Better Price!
Main Products: Hospital Equipment, Surgical Room Equipments, Diagnosis Equipments, Ultrasonic Equipments, Radiology Equipments, Dental and Dental Equipments, Electronic Equipments, Ward Nursing Equipments, Labrotory Products and Medical Consumables etc.
Our goal is to become your most reliable partner to promote your development. The company focus on quality, all products comply with ISO or CE or FDA certification.
FAQ
I. How to order ?
II. Training We provide customers free training in our factory.The accommodation charge should be borne by customers.
III. Freight policy 1. Within Warranty:The customer should be borne freight & insurance charges when the equipment is shipped to FULLMEDI for service (this includes custom charges). FULLMEDI should be borne the freight & insurance charges from FULLMEDI to the customer. 2. After Warranty:The customer is responsible for any freight & insurance charges for returned product.
