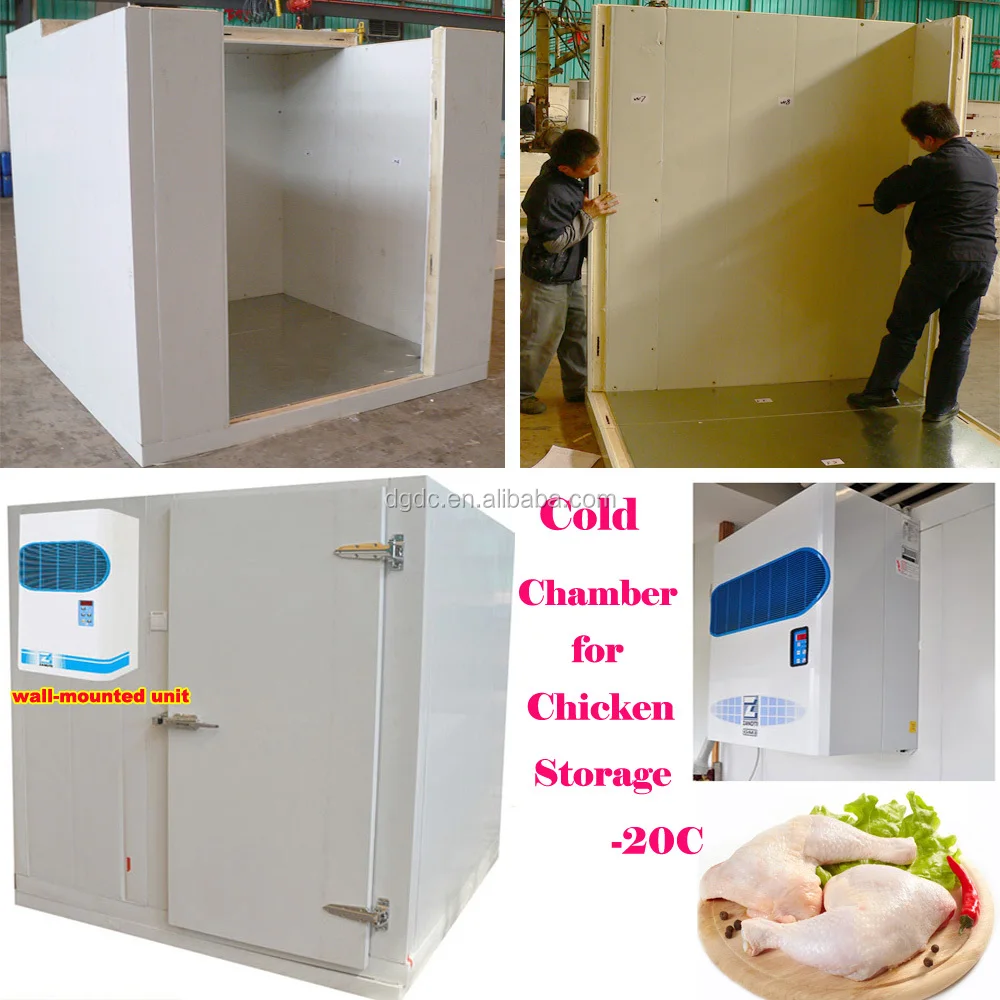

Chicken Cold Chamber With Wall Mounted Unit

Product Overview

Description

chicken cold chamber  with wall mounted unit



Dachang company is located in Dongguan, China, the manufacturer of  cold chamber  , we can design all kinds of cold chamber   base on client's requirement . We have been in this business line more than 20years, we have wide experience in designing cold chamber  for clients from different areas . Such as  dairy products,   Vegetable and Fruit,  beverage,ect .



Following is one of our client's order of the  cold chamber



External Dimension	L2000*W3000*H2200 (mm)
Panel	100mm polyurethane insulation panel,43kg/m3, fire retardant
Steel cover	painted galvanized steel
Panel connection	cam lock type, use hexagonal key to assemble and disassemble
door	800*1900mm hinged door
Temp.of room	-20 Celsius degree
Purpose of cold room	to storage   Vegetable and Fruit
Refrigeration unit	ZANOTTI  Drop-in Unit
power	2600W
Place to assemble	indoor
Voltage	380V/50HZ OR 220V/50HZ



 cold chamber  panel Testing Specification

No.	Inspection Item	Unit	Technology requirement	Inspection result
1	Density	kg/m3	32~50	43
2	Compressing strength(10%deformation)	Kpa	≥ 160	200
3	Bending Stregth	Kpa	≥ 245	331
4	Absording rate	%	≤ 4	3
5	Heating coefficient	W/m.k	0.024	0.021
6	Average burning time(vertical)	S	≤ 30	3
7	Average burning height(vertical)	s	≤ 250	250









Our  cold chamber   panel advantage :

1.  energy-saving :

Compare with other suppliers' cold storage room , our walk in cooler can save at least 12.5% power consumption .

2. Durable :

 Walk In Cooler  surface steel sheet is  purchase from Baosteel and POSCO which are the biggest steel factories in the world, we promise the panel will not fade in 20 years

 3. safe : panel with  fire retardant



  cold chamber     Installation :

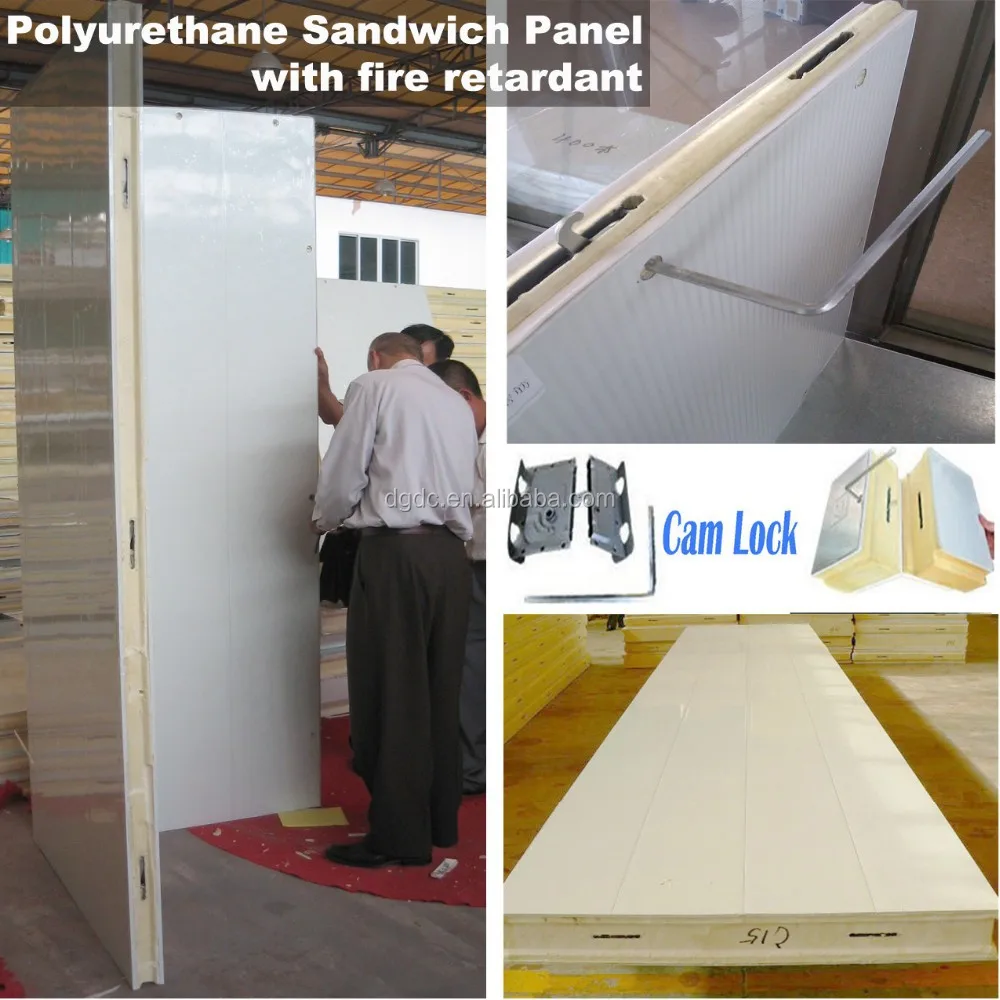

Every panel is  male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

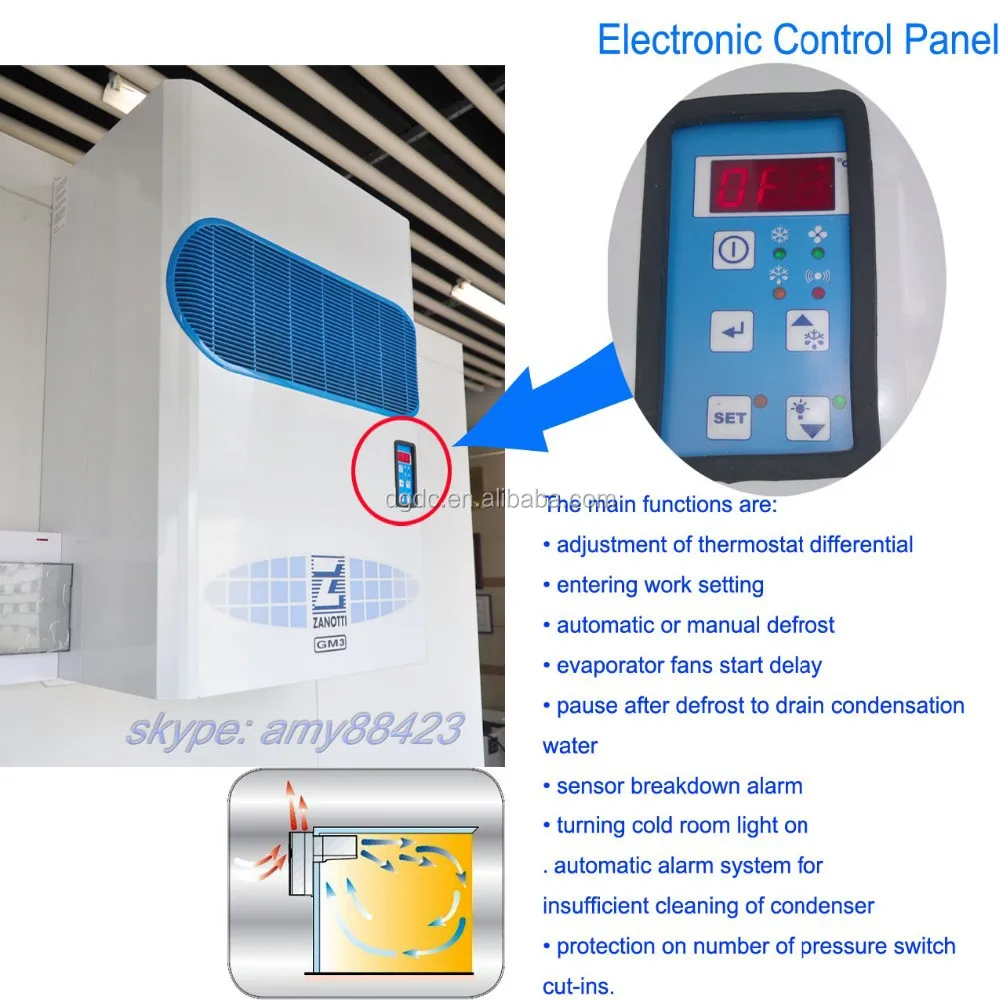

cold chamber   condensing units : Zanotti Monoblock condensing unit

Advantage :
1). Adopt imported Hermetic piston type compressor
2). Imported branded MAVIB,EBM Fan
3).Capillary expansion system , Refrigerant Gas R404a
4).Intelligent automatic defrosting system ,which can save much more energy consumption.
5).Easy to install , just need to hang on the panel outside wall .
Do not need any other expansion valve ,copper pipe and Electrical Cabinet any more .

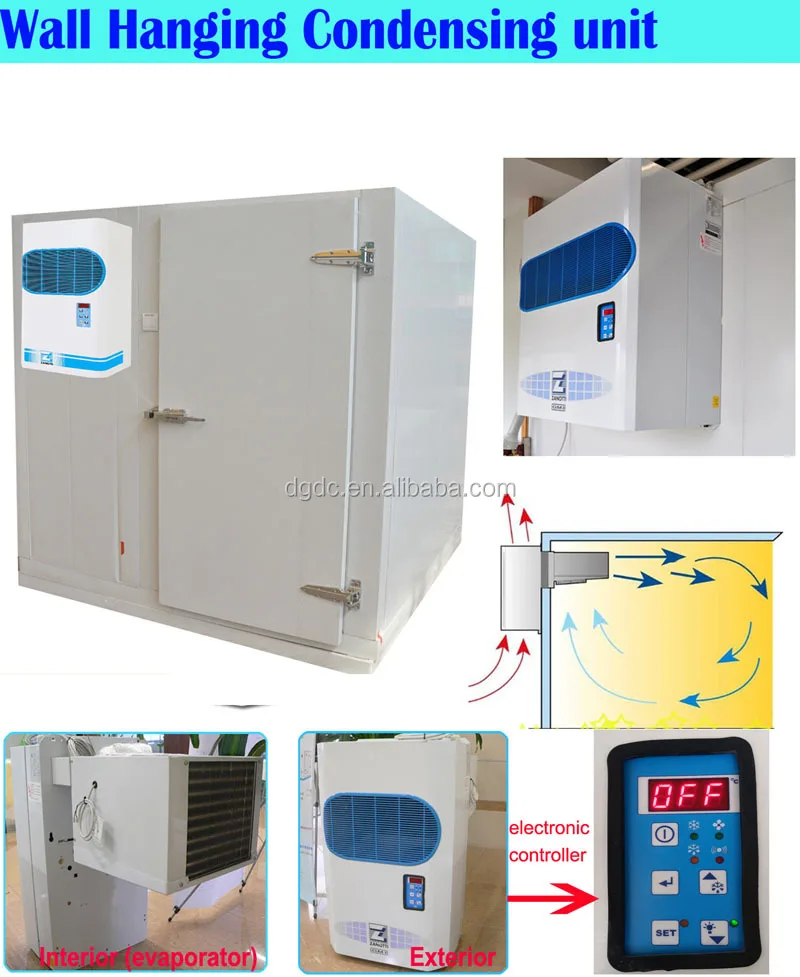

wall hanging Monoblock condensing unit for the Walk In Cooler . It's easy to install and attractive appearance . It's The Italy brand refrigeration unit ,which has more 50 years experience .

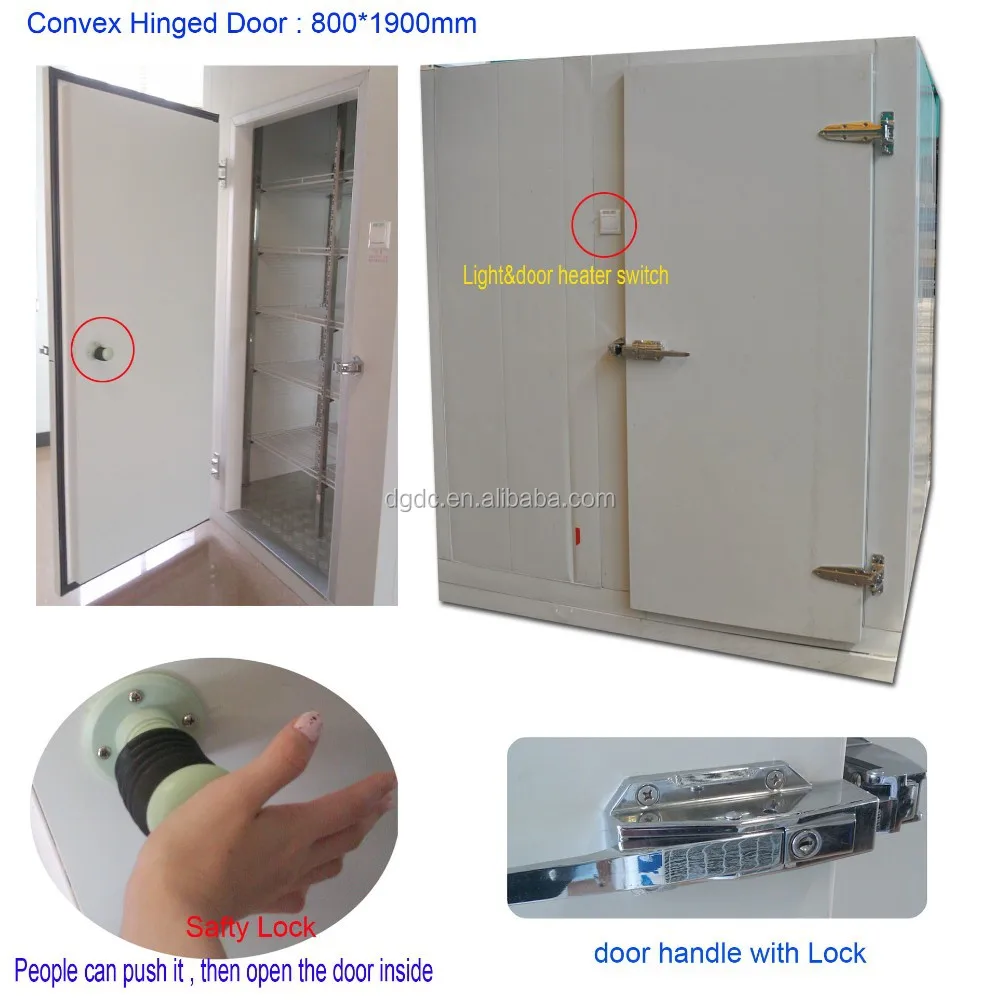

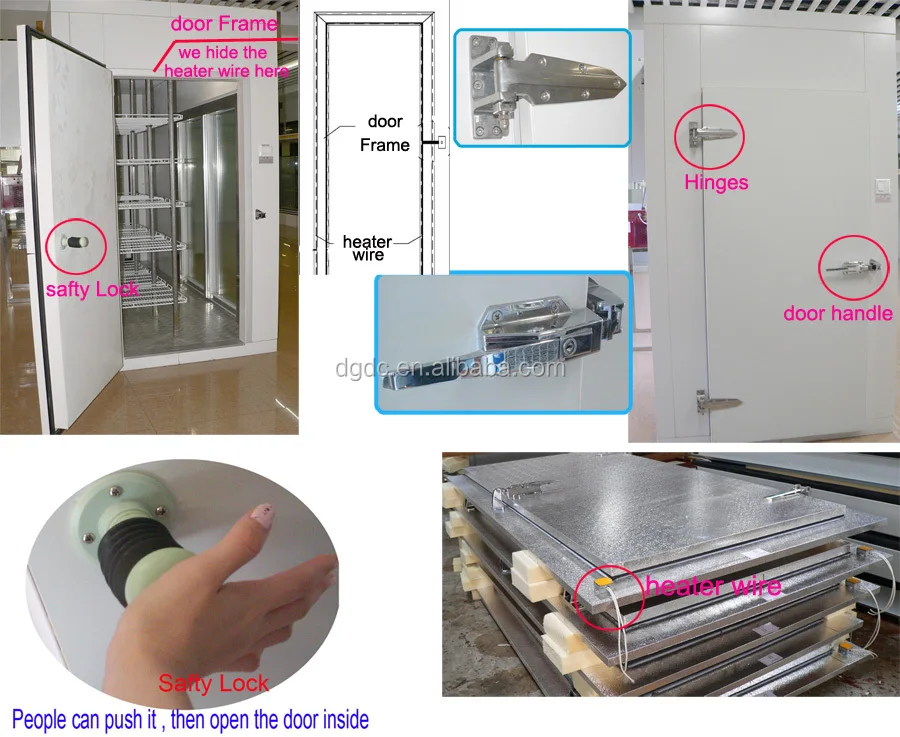

cold chamber  door :W800*H1900 mm











cold chamber   floor for your reference









 Dachang Refrigeration Electrical & Mechanical Engineering Co.,Ltd is a famouse  manufacturer to do the cold room project .



All of our material is world  famouse brand ,such as  Baosteel  (China) or  POSCO (Korea )  brand steel . BASF    Foaming material,  Schneider brand contactor , Italy Evco brand temperature controller,ect

 we take pare in the domestic and foreign  refrigeration  exhibition every year .
