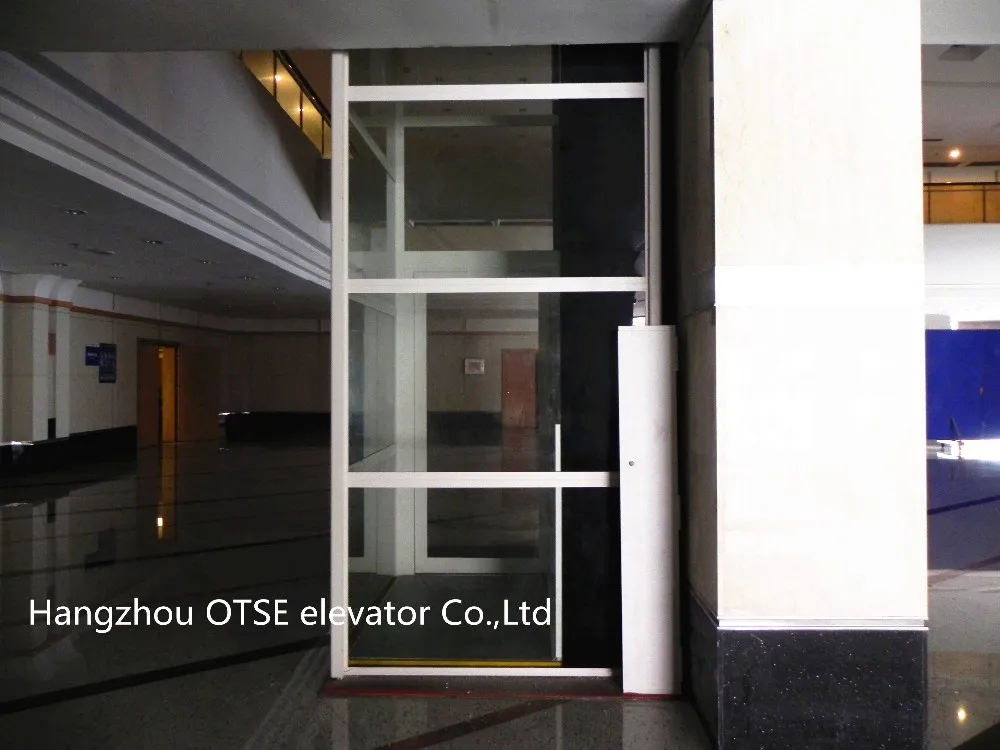

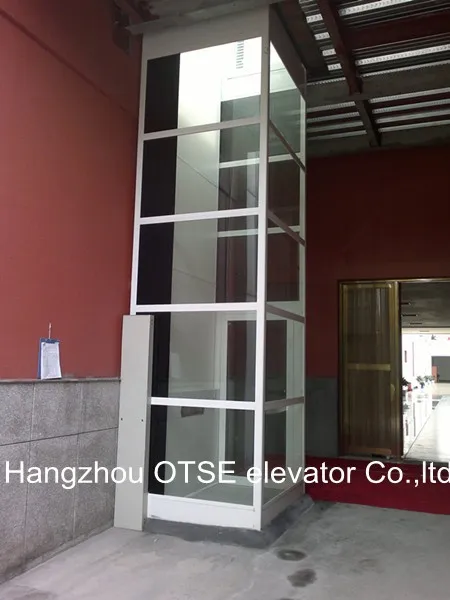

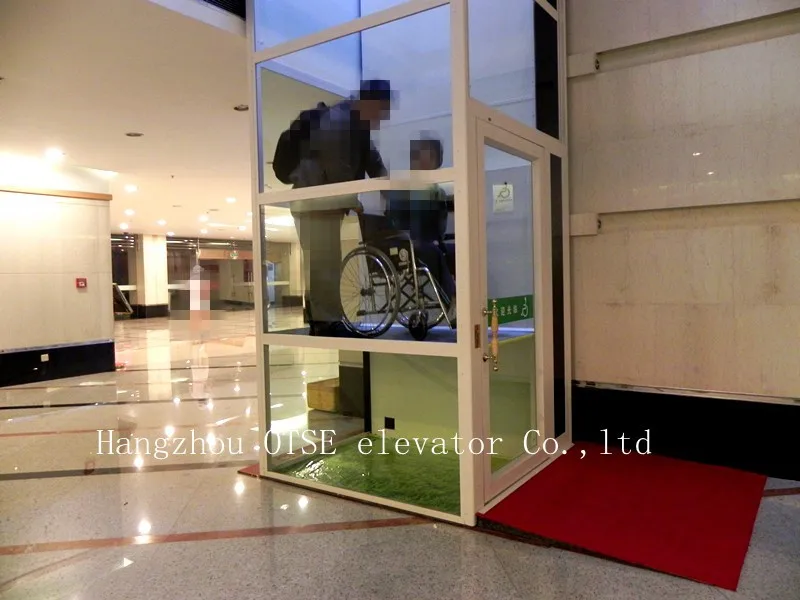

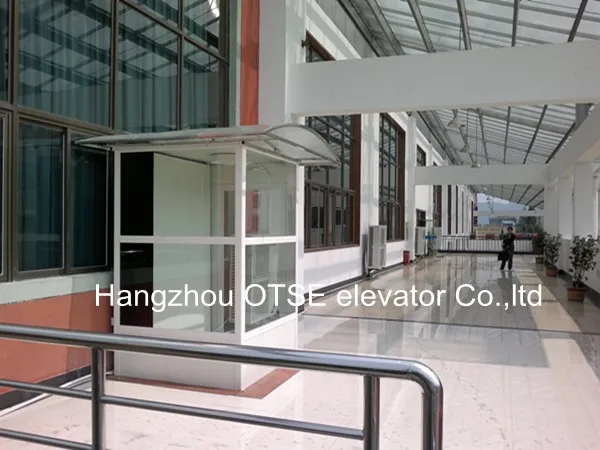

Platform lift screw drive lifts with manual open door

Product Overview

Description

Platform lift screw drive lifts with manual open door





 Compared with traditional elevator, the advantage for screw elevator is as follows

1. Cost is 20%~40% lower than that of traditional lift
2. It takes one week for installation.
3. It is unnecessary for hoist way construction
4. Hoist way space is 1.5*1.6, unnecessary for hoist way and machine room.
5. Aluminum alloy glass hoist way ,with the effect of sightseeing lift
6. Its screw and nut have self-locking function
7. It is widely used in drawing without reserved pit, hoist way and

machine room. It is more suitable for the installed drawing without

reserved pit, hoist way and machine room ,drawing with reserved hoist way

itself may also be installed.

8. Pit is only 50mm, uncessary to dig for pit



Here is the shaft requirememnts



Load	400kg	250kg
speed	0.15m/s	0.15m/s
lift height	12m	12m
stops	4 stops	4 stops
rated load	5 persons	3 persons
hoistway size (W*D)mm	1500 * 1600	1400 * 1450
door open size (W*H)mm	900 * 2000	800 * 2000
platform size  (W*D)mm	900 * 1420	800 * 1270
main control panel	CPM2B	CPM2B
