1. It is installed with close-table graphical colorful LCD touch screen and wireless remote control exposure, which makes the operator easy to use.
2. We incorporate the latest compact high-frequency and high-voltage X-ray generator, which ensure superior image quality, while the skin dose is low, to protect the patient better.
3. Adopt the technology of kV and mAs numeral closed loop control, real-time control of the microprocessor, which ensures the accuracy and repeatability of the output dose.
4. Be equipped with radiography parameter of multi-part, multi-posture, multi-body, adult -child physical characteristic, the operator can modify and save the parameter by himself, which makes the operation more conveniently.
5. First high power combined high frequency high voltage X-ray source and high frequency inverter power supply, which can reduce energy loss from outside HV generator and cable. It makes good quality X-ray, beautiful appearance and convenience.
6. Possess multiple automatic protection and fault clue function, which makes the operation safer and more reliable.
7. The radiography table can float in any direction, electromagnetic braking, position the patient more convenience and accuracy.
8. X-ray generator component can move round the axis of X-ray generator, cross arm and Pillar stand , be convenient with side and slanting direction projection and radiography of patient on the stretcher.
9. Be equipped with the chest stand, which is used in the radiography of the head, chest, belly, pelvic cavity, backbone and periphery.
10. Control console of graphic program controlled LCD touch screen is optional, which can set the radiography parameter and exposure in another room.
High Frequency X-ray Specification
Item
FM-160X
FM-160
Output power
15kW
25kW
Power supply
220V 50Hz,
Capacity: ≥20kVA
380V 50Hz,
Capacity: ≥40kVA
Main inverter frequency
40kHz
X-ray tube
Rotary anode, dual-focus,
Large focus: 0.6mm,
Small focus: 0.3mm,
Anode thermal capacity:
212kJ (300kHu)
Tube thermal capacity:
900kJ (1200kHu)
Rotary anode, dual-focus,
Large focus: 1.3mm,
Small focus: 0.6mm,
Anode thermal capacity:212kJ (300kHu)
Tube thermal capacity: 900kJ (1200kHu)
Rotary anode speed
3000rpm
Tube current
200mA
Tube voltage
40kV-125kV
mAs
0.4-360mAs
Table radiography grids
Grid density:103L/INCH;Grid ratio:10:1;
Focusing distance:120cm;Stationary type:15"×18"
Chest stand radiography grids
Grid density:103L/INCH;Grid ratio:10:1;
Focusing distance:150cm;Stationary type:18"×18"
Operation method
close-table graphic program controlled LCD touchable screen operation;
wireless remote control exposure
Table size
2000×760mm
Table height
≤700mm
Table transverse movement
≥210mm
Table longitudinal movement
≥325mm
Grids cassette holder movement
≥560mm
X-ray tube assembly center rotation
≥±90°
Rotation of the pillar
4×90°
Axial rotation
0-35°
SID
450-1200mm
Pillar movement along the table
≥1370mm
Limited time of analog light beam opening
About 30s
Film size
5"×7"-14"×17"(Table radiography)
Film size
5"×7"-17"×17"(Chest stand radiography)
Chest stand up and down movement
472~1470mm

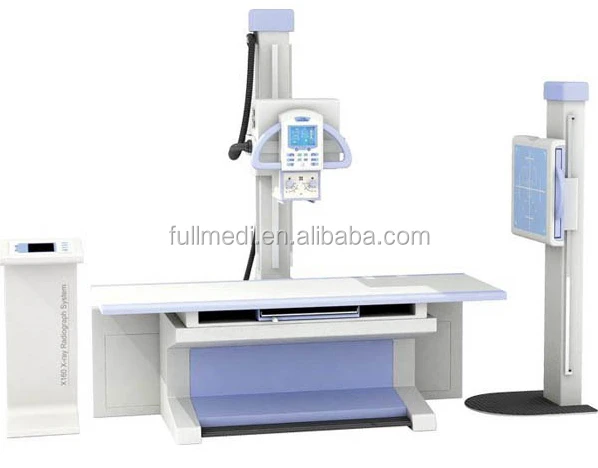

High Frequency X-ray Standard Configurations
1, new integral radiography table (with pillar) one unit
2, combined high-frequency high-voltage X-ray generator one set
3, Colored LCD touch screen control box one unit
4, Control system (with software) one set
5, Chest stand (with imported filter grids) one unit
Packaging & Shipping
Packaging & Shipping
Packaging
The High Frequency X-ray Machine was strong export package & suitable for deliver by air,
express or sea
Shipping
1. Express: Shipitby UPS/ DHL/ FEDEX/ TXT express which is door to door, you just
receive it at office (3~5 days)
2. Air: Ship it by air cargo which you need go to air port to takeit (2~7 days)
3. Sea: if High Frequency X-ray are large quantity and you are not in hurry, we can shipit by sea to
save freigth cost (about one month)
