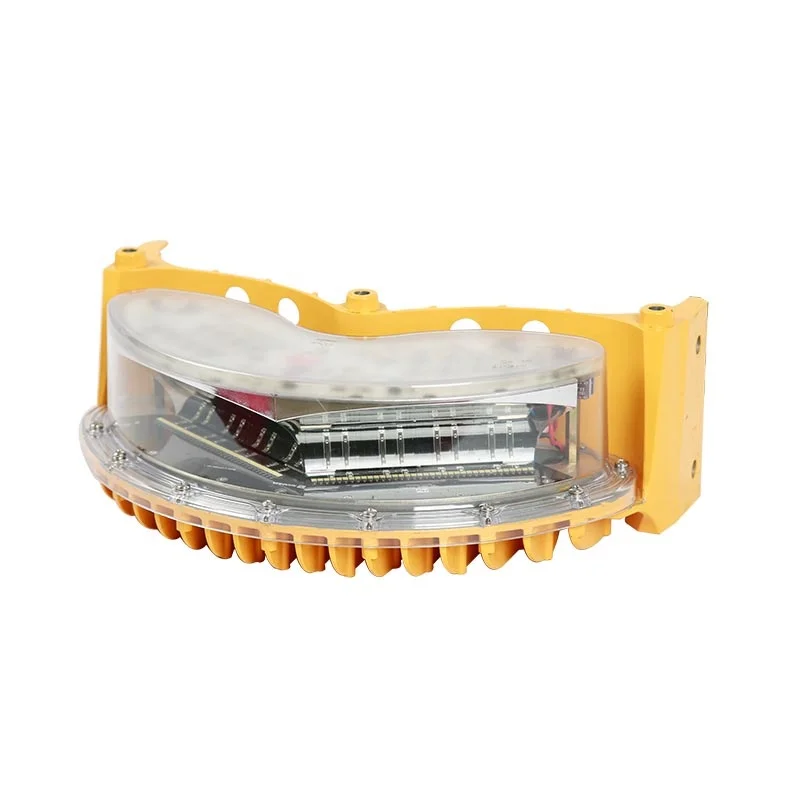

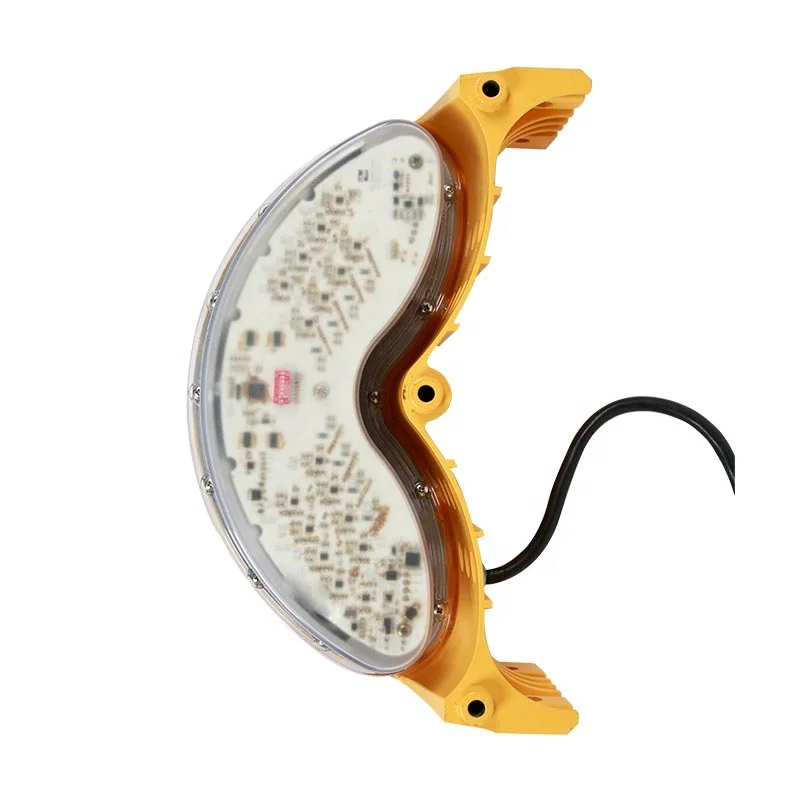

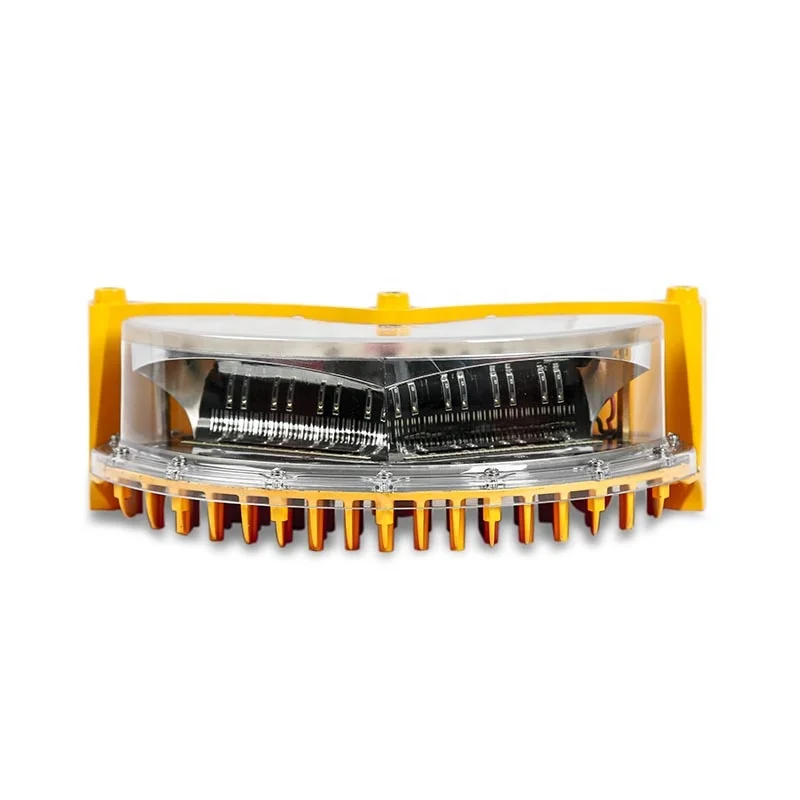

High Intensity flashing white obstruction light

Major functions&Features
Specifications
|
Standard |
FAA:Advisory Circular 150/5345-43GH;Specification for Obstruction Lighting Equipment. |
||
|
Electrical parameters |
Mechanical parameters |
||
|
Input Voltage |
AC200~240V/AC100~130V/DC48V optional(power box ) DC48V(Light head) |
Operating |
-40°C ~ +65°C |
|
Frequency |
50-60Hz(AC power box ) |
Ambient humidity |
0% ~ 90% RH(No condensation) |
|
Rated Power
|
With power box, 1 layer 85W(daytime) |
Storage |
-55°C ~ +70°C |
|
With power box,2 layers 150W (daytime) |
IP rate |
IP66(Light) IP65(Power box) |
|
|
With power box,3 layers 220W (daytime) |
Weight |
6Kg(One layer light head) |
|
| Surge Lightning Protection |
IEC61000-4-5 L- L 6kV |
7.3kg(Junction box) | |
|
IEC61000-4-5 L- G 6kV |
9.2Kg(bracket) | ||
| Electrostatic discharge | IEC61000-4-2 Contact discharge 8kV | 40Kg(AC power box) | |
| 11Kg(DC power box) ) | |||
| Meteorological | |||
|
Light source |
LED |
Intensity
|
270,000±25% cd(FAA-L856,Our Model: LH88FA) |
|
LED lifespan |
≥100,000h |
140,000±25% cd (FAA-L857,Our Model:LH88FB) |
|
|
Signal Type |
flashing |
200,000±25% cd (ICAO-Type A,Our Model:LH88AA) |
|
|
Flash Rate |
40FPM |
100,000±25% cd (ICAO-Type B,Our Model:LH88AB) | |
|
Horizontal Beam Spread |
120° |
200,000±25% cd (CAAC-Type A,Our Model:LH88CA) | |
| Vertical Beam Spread | 5° | 100,000±25% cd (CAAC-Type B,Our Mode:LH88CB) | |
| On/Off level | Night(<50Lx),Dawn(50-500Lx),Day time(<500Lx),Dusk(50-500Lx) | ||
