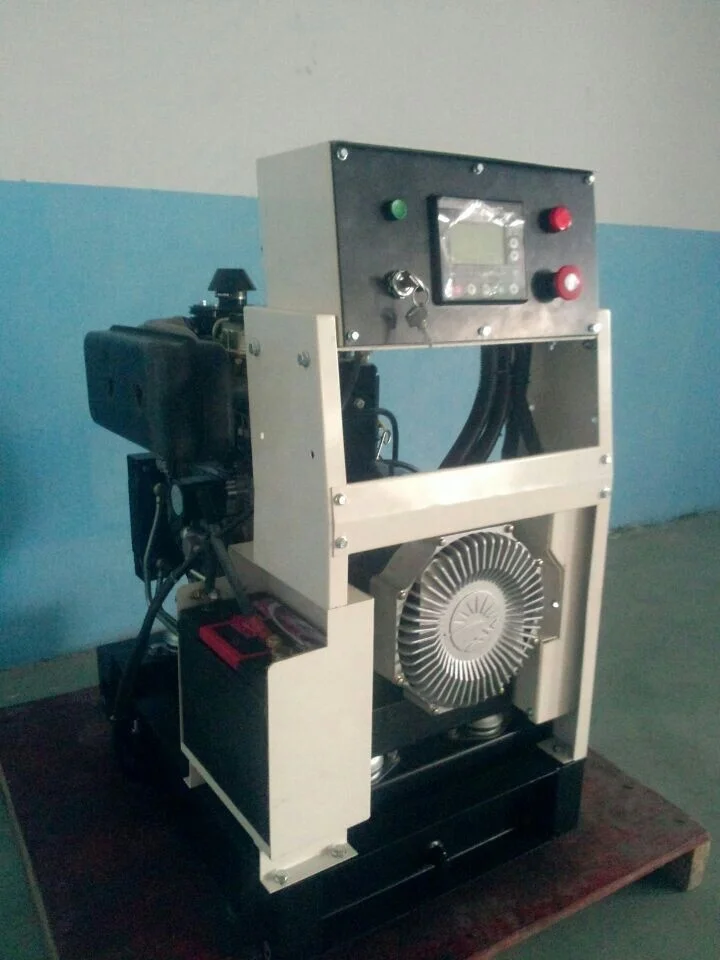

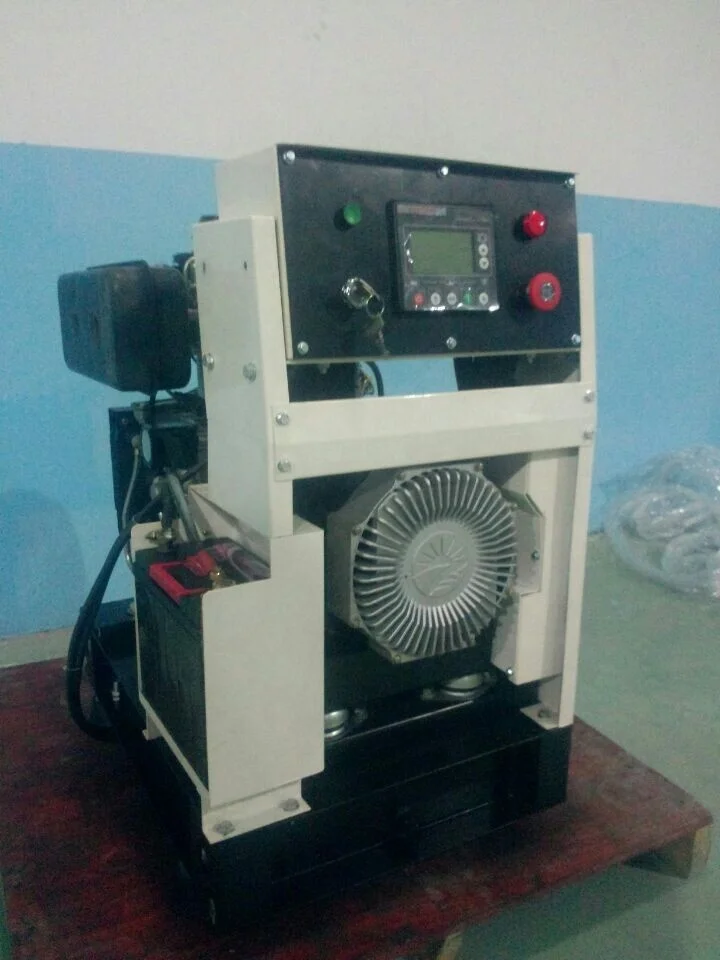

10kva powerful silent small genset

Product Overview

Description



Diesel Inverter Generator powered by HL292FE
GENSET	Open type model	W9900IC

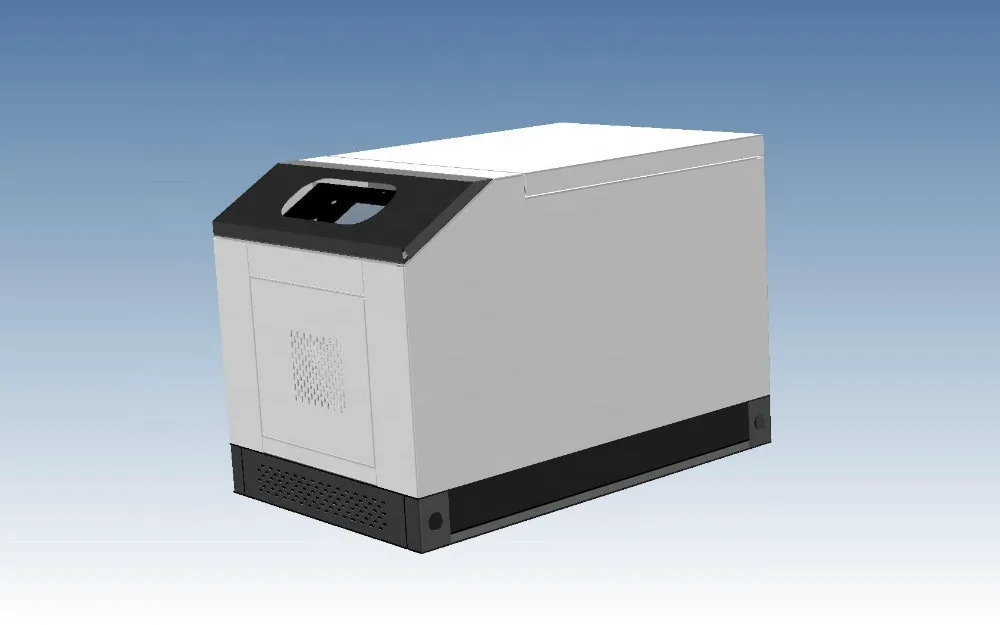

MODEL	Soundproof model	W9900ICS
Continuous output(kw)		10
Voltage(V)		230
Frequency(Hz)		50/60Hz @3000rpm
DIESEL ENGINE MODEL		HL292FE
Engine Characters		Two-cylinder ,vertical 4-stroke,air-cooled,diesel
Rated power/speed (KW/rpm)		13.5/3000
		14.5/3600
Bore(mm)xStroke(mm)		92x75
Displacement(cc)		997
Compression ratia		20.5
Max. torque     (N.M)		52/2000-2100
Lubricating system		Pressure splashed
Cooling system		Forced air-cooled
Direction of rotation		Counterclockwise viewed from PTO side
Fuel consumption rate (g/kw.h) Min/Max		247/ 265
Lube oil brand		SAE10W-30 or 15W-40
Lube oil capacity (L)		2.6
Starting motor		12V-1.7KW
Charging ststem		13V-10A
Accumulator capacity (V.AH)		Above 12V,45Ah

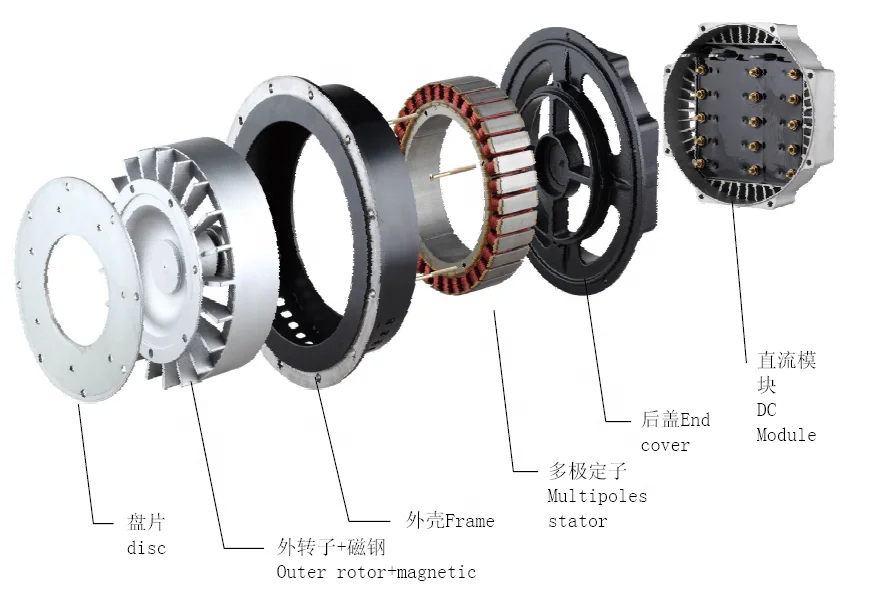

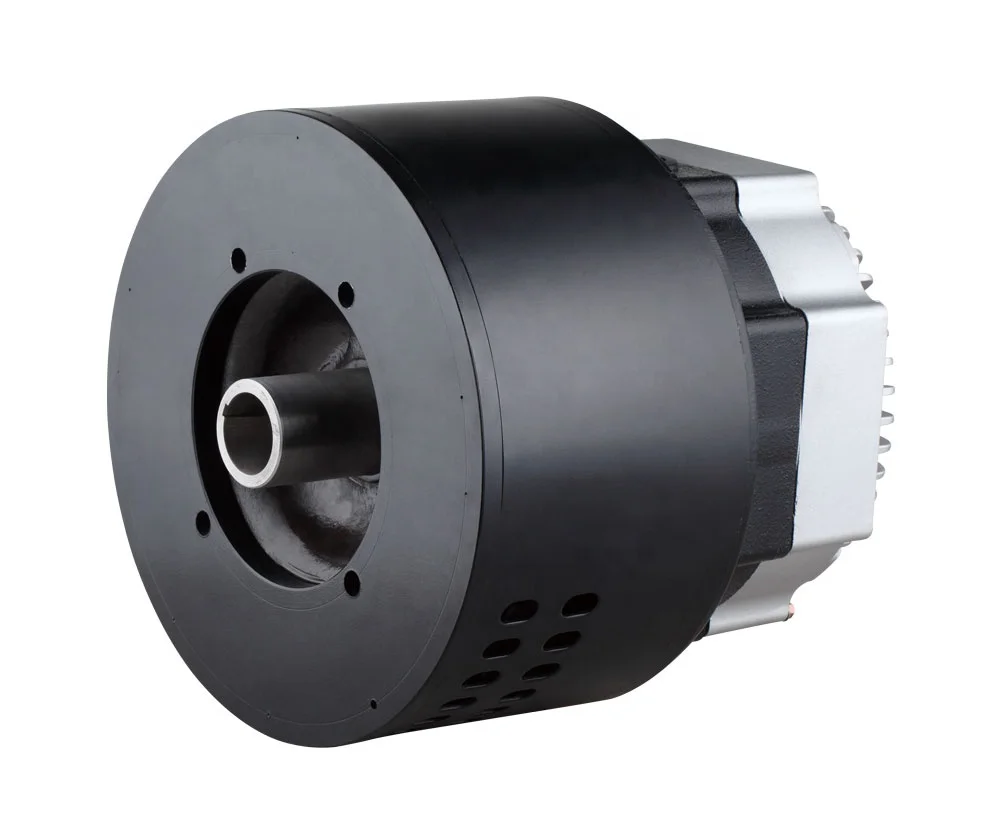

ALTERNATOR MODEL		W9900ID
Continuous output(kw)		10
Power Efficiency		≥90%
Voltage Regulation		±2%
Wave form		pure sine wave
wave form distortion		≤1.5%
Dimension(mm*mm*mm)		700*500*820/1100*750*800
