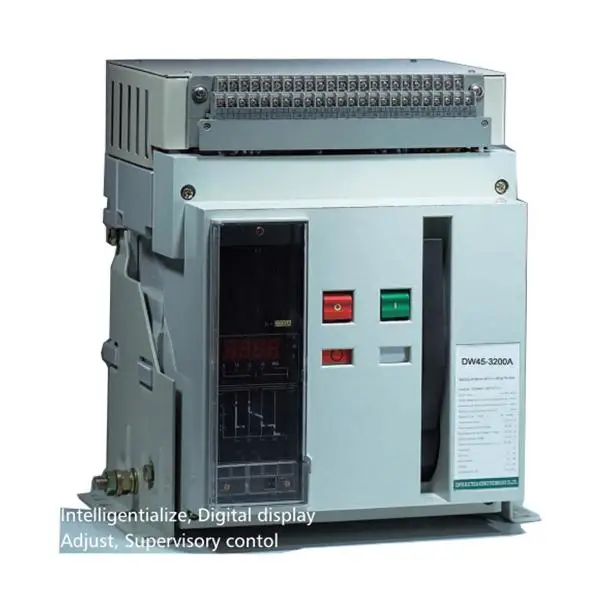

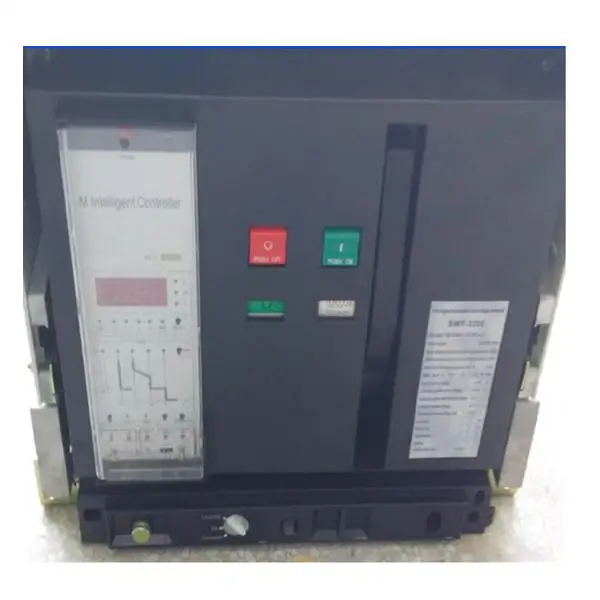

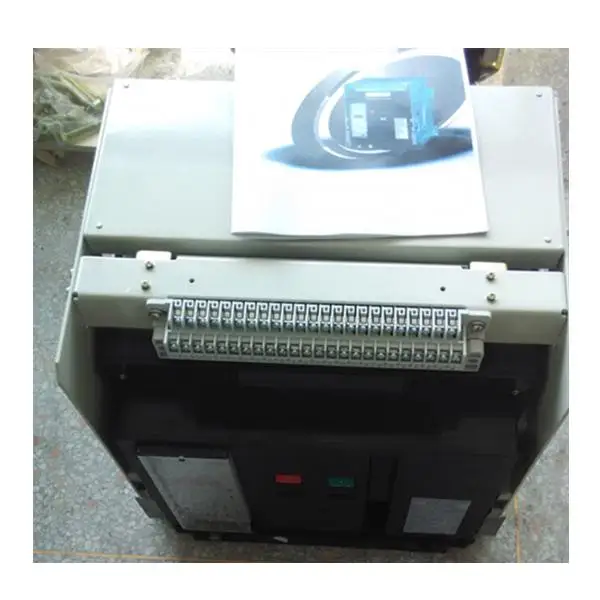

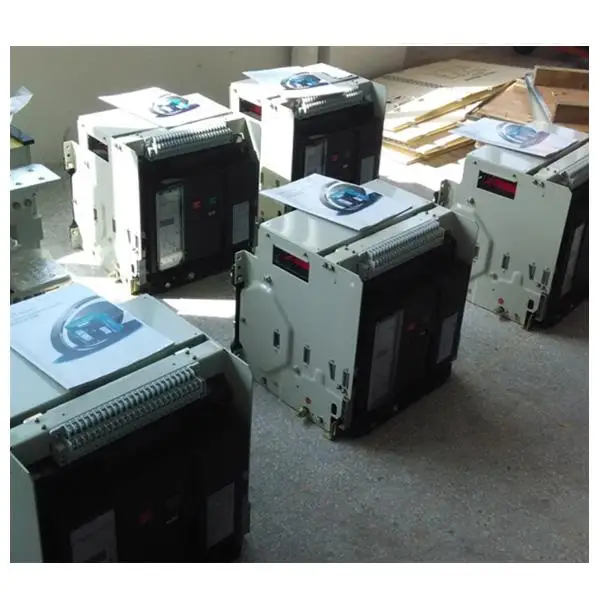

DW45 ACB,Intelligent circuit breaker



CE Indoor DC DW45 4 Pole 5000A Air Circuit Breaker Application

DW45 series intelligent breaker is applicable in the distribution network of AC 50Hz, rated voltage

of 400V and 690V and rated current from 630A~6300A, to distribute electric energy protection

circuit and prevent power equipments from harm of overload, under-voltage,short circuit and

single-phase earthing etc.

Provided with intelligent protecting function and precise selective protection, breaker can enhance

the dependability of power supply and avoid the unexpected power cut.

This product accords with the standard of IEC60947-2.

Frame size rated Current inm(A)	Rated Current InA	Rated Insulation  Votlage (V)	Rated limit short-circuit breaking Capacity Icu(kA)		Rated operating short-circuit  breaking  Capacity Icu(kA)		Rated short-time  withstand  Current IcwkA(1s)
			400V	690V	400V	690V
2000	630	690	80	50	50	40	50
	800
	1000
	1250
	1600
	2000
3200	2000		100	65	65	50	65
	2500
	3200
4000	3200		100	65	65	50	65/80
	3600
	4000
6300	4000		120	80	80	70	85/100
	5000
	6300



CE Indoor DC DW45 4 Pole 5000A Air Circuit Breaker Condition

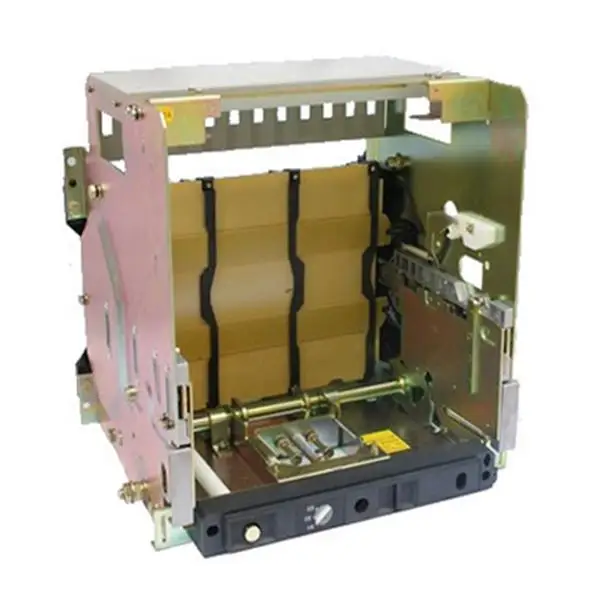

Installation mode:fixed type, drawable type.

Operation mode:motor operated, manually operated(for serving).

Pole number:three pole, four pole.

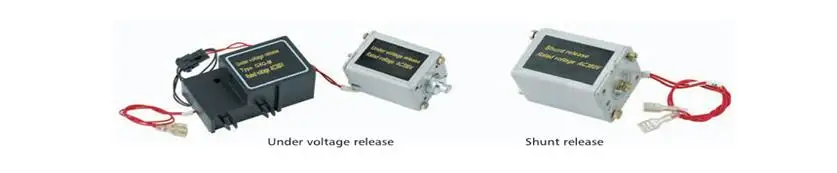

Release type:intelligent type over-current controller,under-voltage instantaneous(or time-delay) operation release:shunt release.

The properties of intelligent type over-current controller:

a.Long time delay over-current protection inverse time limit, short time delay over-current protection inverse time limited, short time delay over current protection fixed time limit, instantaneous.

b.Single-phase earthing protection function.

c.Presenting function:setting current lr,action current, setting time, action time.

d.Alarming function:overload alarming

e.Self-checking function:over-heat protection,microcomputer self diagnosing.

f.Testing function

g.Load monitoring function.

h.Thermal simulation function.

i.MCR function.

j.Fault memory function.

Ambient Temperature:

a.Temperature:40℃≥T≥5℃ average value for 24 hours≤35℃

Note:working condition of minimum temperature is -10℃ or -25℃, users must declare while ordering;

Working condition of maximum temperature exceed 40℃ or minimum temperature under -25℃,the users should consult with our factory.

b.Altitude:2000m.

c.Air relative humidity:50%, when the max temperature is 40℃ and can be more while the temperature is lower, monthly average temperature in the most humid month 25℃,monthly average maximum relative humidity 90%.

d.Pollution grade:3.

e.Installation type: the type of circuit breaker, main circuit, under-voltage tripping coil and supply transformer is IV,the type of other ancillary circuit,controlling circuit is.

F. Installation condition:installation of circuit breaker shall accord to the instruction,and the vertical gradient of  installation place should not exceed 5°.
