Стиральная машина для пластиковых бутылок/стиральная машина для пластикового лома/линия по переработке использованных пластиковых бутылок

Product Overview

Description

1. plastic bottle washing machine

2. plastic scrap washing machine

3. used plastic washing recycling line

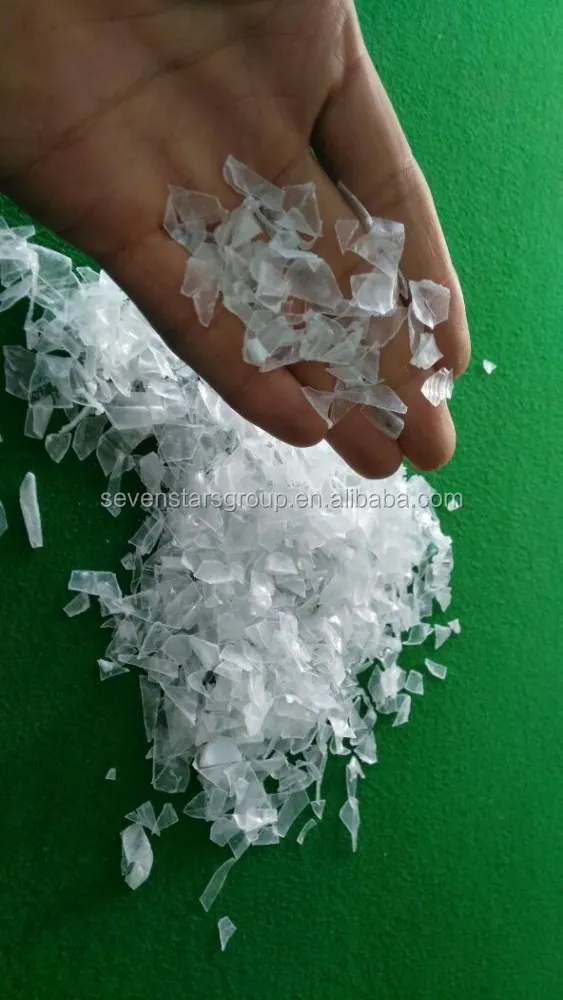

  recyle pet bottle scrap to produce pet flake



Product Description of  pet bottle recycling machine/plastic bottle recycling machine/pet bottle washing line



1. This mineral water bottle recycling mainly used for dealing with waste PET bottle, barrel etc.

2. To separate PET bottles to flakes from label, cap, oil, garbage.

3. This PET bottle washing machine is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.

4. Easy to operate,Full automatic.

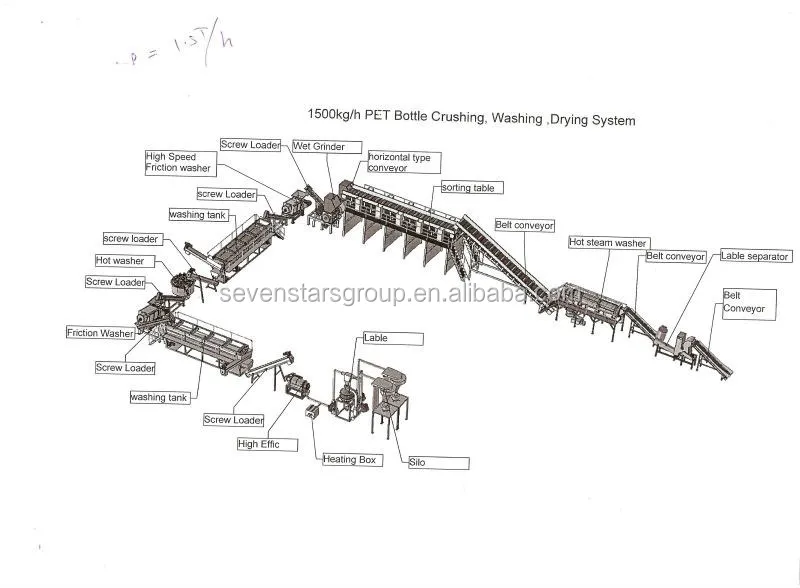

Conveying PET bottle→lable remover→ manual sorting table → wet crusher→screw loader →Hot washer→screw loader→high speed friction washer→screw loader→floating washer→screw loader→spray washer → dewater machine → pipe line dryer → label seperator → blower → hopper



Product capacity	300kg/h	500kg/h	1000kg/h	1500kg/h
Workshop(L*W*H)	40m*7.5m*6m	42m*10m*6m	70m*12m*6m	75m*15m*6m
Needed worker	3-4 persons	5-6persons	7-8persons	10-12persons
Water supply (recycle use)	2-3ton/h	3-5ton/h	7-10ton/h	10-15ton/h
Final product	Moisture: max 3% Bulk density: 0.3G/CM3 Particle size: 10-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm



common configuration of pet bottle recycling machine/plastic bottle recycling machine/pet bottle washing line :



No.	Equipment Name	Quantity	Comments
1	Belt conveyor	1 set
2	Bag opener	1 set	Optional
3	Belt conveyor	1 set
4	Trommel	1 set	Optional
5	Belt conveyor	1 set
6	Manual sorting conveyor	1 set	Optional
7	Belt conveyor	1 set
8	Crusher	1-2 sets
9	Screw conveyor	1 set
10	Washing tank	1 set
11	Screw conveyor	1 set
12	Cooking boiler or Horizontal Hot washer	1-2 sets
13	Screw conveyor	1 set
14	High-speed washer	1 set
15	Washing tank	1 set
16	Screw conveyor	1 set
17	Horizontal Dewatering Machine	1 set
18	Cyclone separator	1 set
19	Drying system	1 set
20	Label separator	1-2 sets	We can equipped with two label separators in the whole line, one at the beginning, another at the end
21	Final product silo	1 set
22	Control System	1 set



For more information please send your E-mail to me ,I will quote you as soon as possible.



 pet bottle prewasher used to sperate the sands and other small article



our new designed hot prewasher --very good washing effect



high quality label remover with air blower



label remover with water





L model belt conveyor , very good for operation





high quality pet bottle crusher





screw loader with friction washing function



 two layor stainless hot waser





 high quality two screw washing tank



high quality dewatering machine



hot air drying system

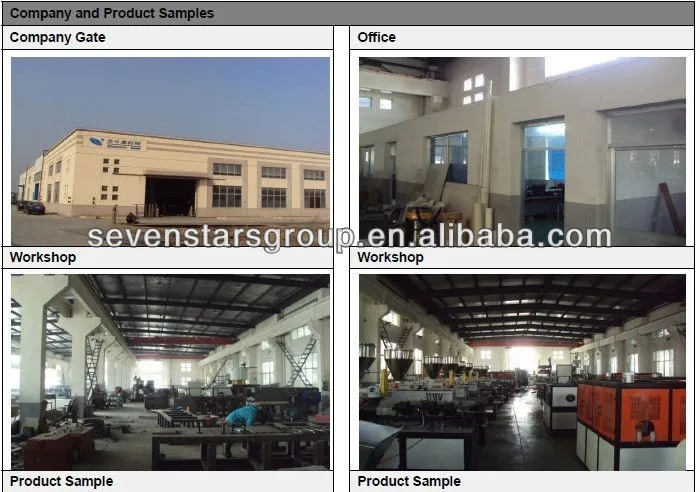

our factory





CE and ISO certificate







Frequently asked questions:

1.Are you manufacturer or trading company?

   Answer :we are manufacturer,all the machine ,we make it ourself to reduce the cost of our customer.



2.The quality of the machine is good?

   Answer:All the machines are manufactured with high quality, we choose our material very strict,

                  all the material come to our factory must pass the test

                  substandard goods are returned to the supplier.



3.Why choose us?

   Answe:That is a frequent question,we take strong attention to every detail in the manufacturing process,

                 the quality control in our factory is very strict,

                 all defective semi-manufactures must be treated again or reject.  all the machine must be checked out ,

                 then deivered to our customer.

                all about that pushing up the price, what we want to do is give our customer a good quality product

                with stable working and long lived.
