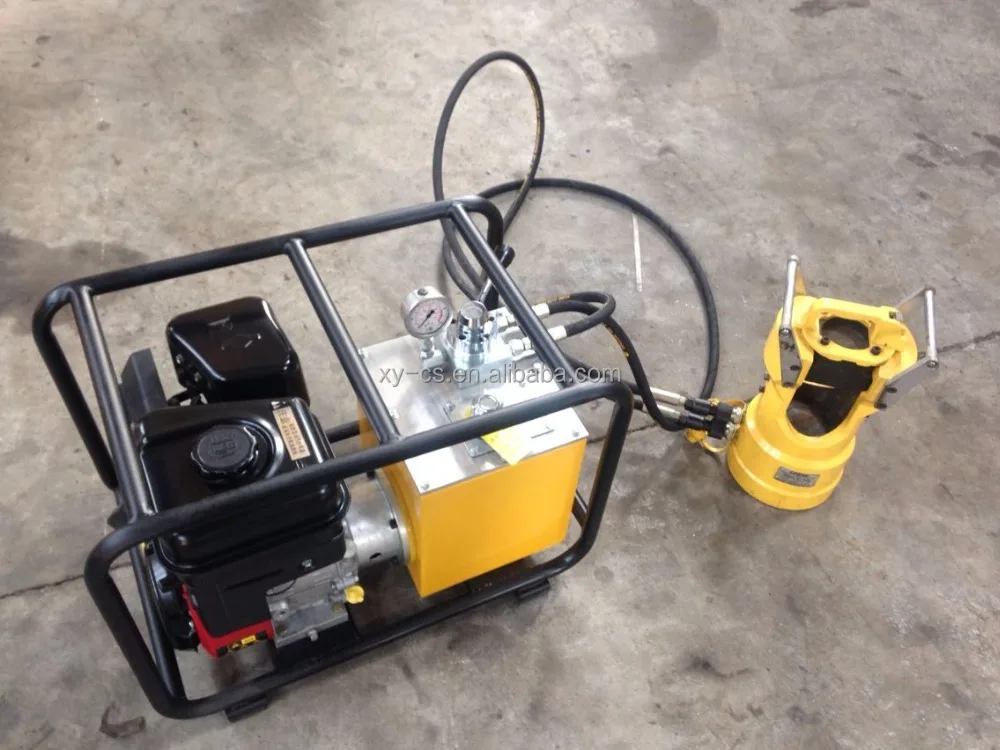

100 Ton Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine Pump

Product Overview

Description

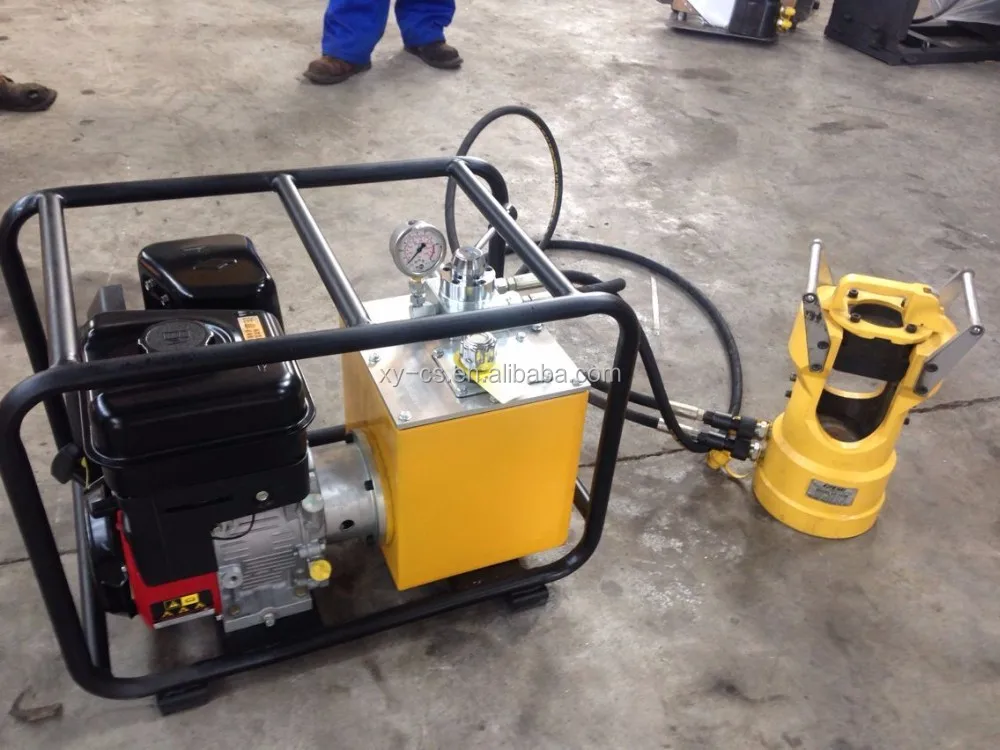

Motorized Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 tons 200 tons



Application

Applicable to inside and outside project of transmission and distribution room, such as professional use for all kinds of connection hardware / overhead cable,

10KV500KV high voltage cable casing, clamp bare terminal, six angle type die casting, tight and not easy to fall off, good electrical conductivity;

Continue the development of T64 titanium alloy materials, in order to reduce weight construction

Welcome Compression mould ordered



Characteristic

1.Compression mould can be replaced, quick and safe operation;

2.A separate structure, light weight, convenient operation;

3.Used for crimp of a variety of copper, aluminum wire connection, terminal and cable;

4.With the pump: EP-100, SR-100C2



Technical Data

Product Name	CO-100S double-acting heavy-duty hand hydraulic crimping tool
Output	100T
Application	Hydraulic Powered Pump Crimping Head
Crimping Capacity	16~71mm
Standard Dies	1 sets
Crimping Profile	Hexagon
Length	370mm
Single Acting	An external hydraulic pump is required
Weight	38 kgs
Tools introduction	CO-100S is a double-acting heavy-duty hydraulic tool, designed with detachable cap, two carrying handles, two quick couplers. After properly connected with an double-acting hydraulic pump (electric or gasoline type), CO-100S is capable of crimping Cu or Al Cable lugs, connectors onto cable up to Dia.equipped
Features	1) Remote control style for easy carrying to working place. 2) With quick coupler , these crimping tools can be easily connected with external pump. 3) Double acting design for quick ram retraction retract ram by hydraulic power is much quicker than spring or load. 4) Detachable die cap for easy dies installation and removal. 5) Wood carton or metal case package for well tool protection during delivery.



 Related Tools

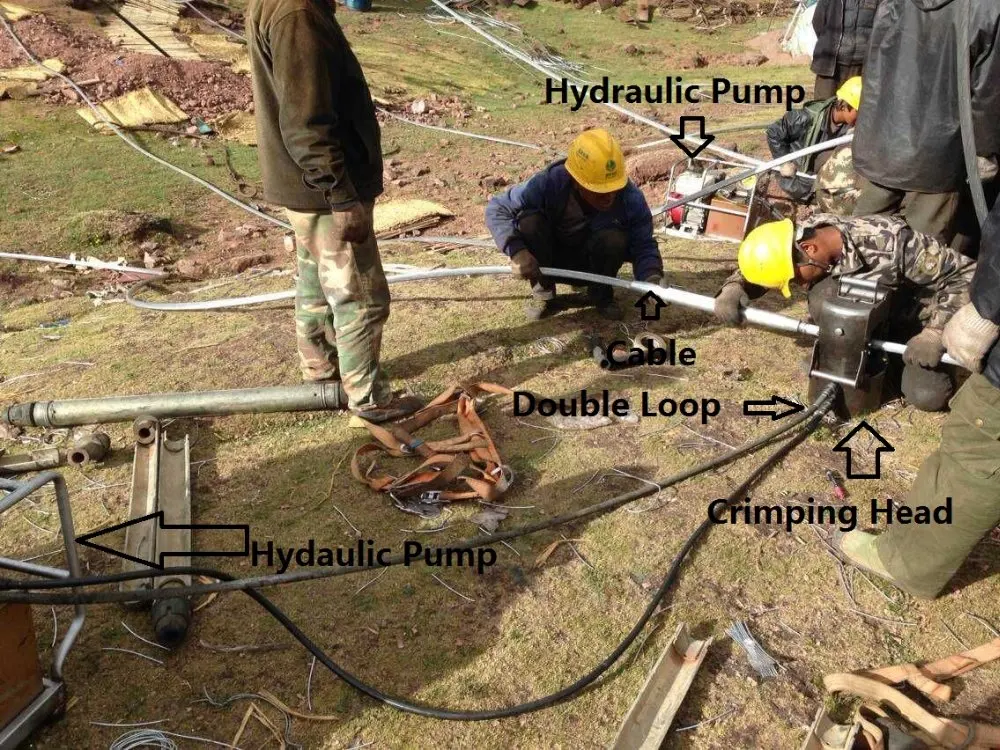

Application

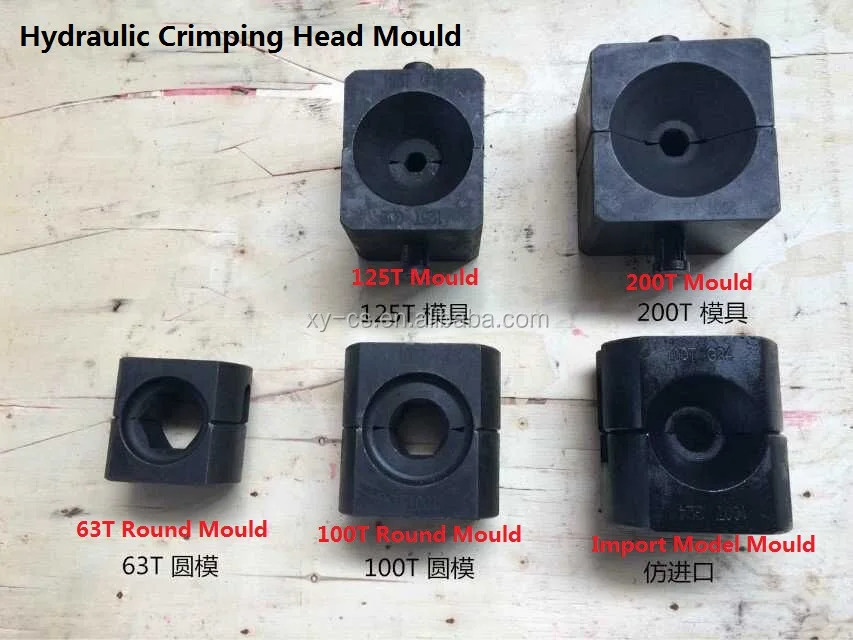

Mould







Please tell us the following information in your enquiry:

1. Applicable Range ?

2. Rated Pressure(T) ?

3. Quantity?

we'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
