HT105FB 9HP Hot Sale Agricultural Moto Huitian Tiller For Lands
- Category: >>>
- Supplier: Chongqing Huitian Machinery Manufacturing Co. Ltd. [Chongqing China]Chongqing
Share on (60141882474):
Product Overview
Description
123th Canton Fair
Booth No.:4.1Y17-18,Area A. from Apr.15th to Oct.19th,2015
Contact person:
Sophia Nie---Whatsapp/Viber/Moblie:+86 189 9636 7042

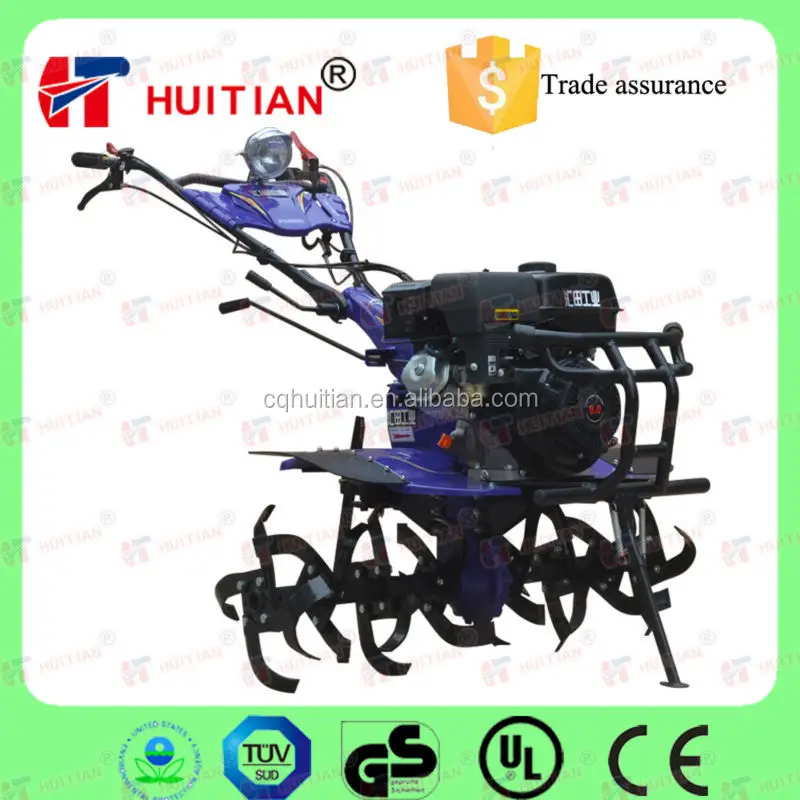

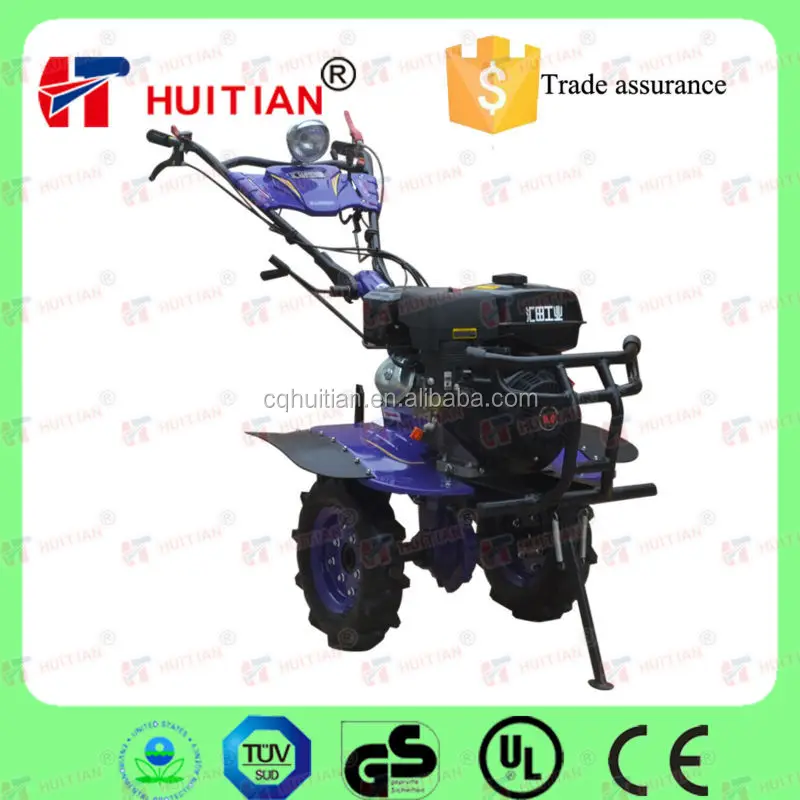

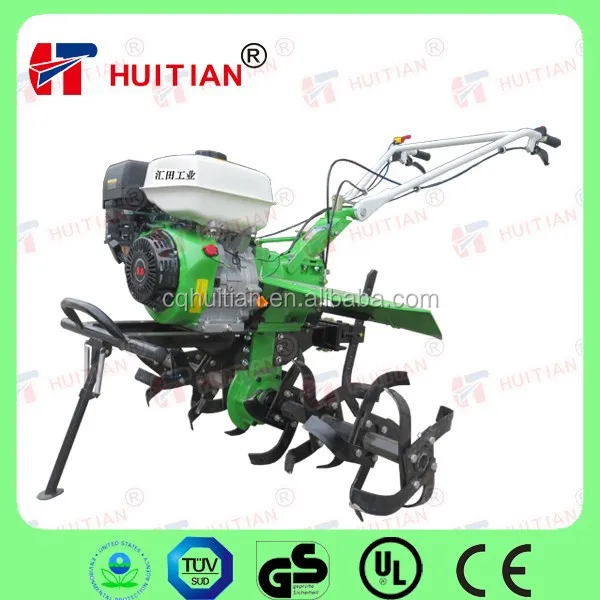

HT105FB 9HP Hot Sale Agricultural Huitian Tiller For Lands
Every set will be equipped 177FB gasoline engine or KM178F diesel engine ,couple of 4group x4pieces (32pieces) dry land blade,couple of 4.00-8wheel.
According to the soil texture,it can be equipped with corresponding tilling blades such as deep tilling blade, paddy wheel, anti-wrap tilling blade and so on.And adjustable depth and width.(picture in the below)

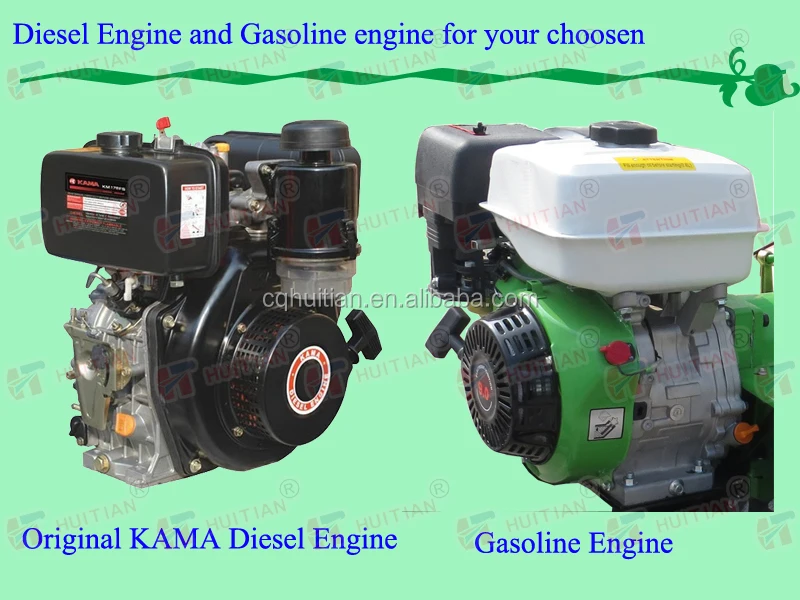

Diesel engine for your choose
Product show
1.What is the details of Huitian Tiller?
1.Safety and convenience controlling panel:
Left side is clutch saftety switch to aviod emergency by controlling clutch to stop the running tiller,especially useful in cold weather when it is difficulty to restart the flameout engine
Right side is handlebar shift lever to shift the lever more convenience.
2.Gasoline engine :With 9HP ,5800 Kiolwatt and big fuel tank 6L.
3.Safety bumper bar,protecting the engine by overall.
4.Safter reverse gear grip:You can’t move the reverse gear grip easily with the running machine,
so you don’t get hurt.
5.Handle bar Up-down adjustable. Different height of people in your family can use it easily.( Children is not allowed to use the machine).
6.Comfortable handle grip: With more friction.
7.Safer cluth grip: Avoid to get hurt when you forget taking shift lever to neutral.
8.Specially design mud fenders(with patent). Avoid splash soil and flying stones hurt to operator and machine. Safe to operate.
2.What is the specifications of Huitian Tiller?
| Model | HT105FB | ||
| Tiller | Transmission | Gear driving,straight connection | |
| Clutch | wet friction plate | ||
| Gear Shifting | -1,0,1,2 | ||
| Tilling Depth(mm) | 150~300 | ||
| Tilling Width(mm) | 1050 | ||
| Productivity(m2/h) | ≥400 | ||
| N.W./G.W.(kg) | 98/113 | ||
| Dimension(mm) | 980x560x840 | ||
| Tyre & blade | Tyre size | 4.00-8(standard); 4.00-10/5.00-12(optional) | |
| Blade | HT-7(standard); optional refer to blades series | ||
| Engine | Engine Model | 177FB | |
| Engine Type | single cylinder, vertical 4-stroke, air-cooled,gasoline | ||
| Bore x stroke(mm) | 77x58 | ||
| Fuel Tank Capacity(L) | 6 | ||
| Displacement(ML) | 270 | ||
| Max. Power HP(kw)/rpm | 9(5.8)/3600 | ||
| Starting | Manual start ; Electric start(optional) | ||
| Packing | 20’ GP/40'HQ capacity(sets) | 60 /144 | |
| Packing dimension(mm) | 980×560×840 | ||
| Package material | Carton box with iron frame/ wooden box | ||
3.How is the application of soil texture?
Sandy land, grass land ,dry land ,paddy land,soft land ,sloppy land,vegetable and garden land,hilly land and orchard soil and so on.
4.How about assembly line?
Firstly,assemble the shift gearbox;
Secondly,assemble the walking box;
Thirdly,assemble the chasis;
Fourthly,assemble gasoline engine and handle bar to the farm machinery;
Fifthly,assemble the wheel of tiller machinery.
5.What is the process of packing?
First,put farm machinery into the carton box with iron frame;
Second,close the carton ,and then bundled it with woven belt;
Third , with the forklift into the container;
Fourth,when all farm machineries in the container,waiting for departure.

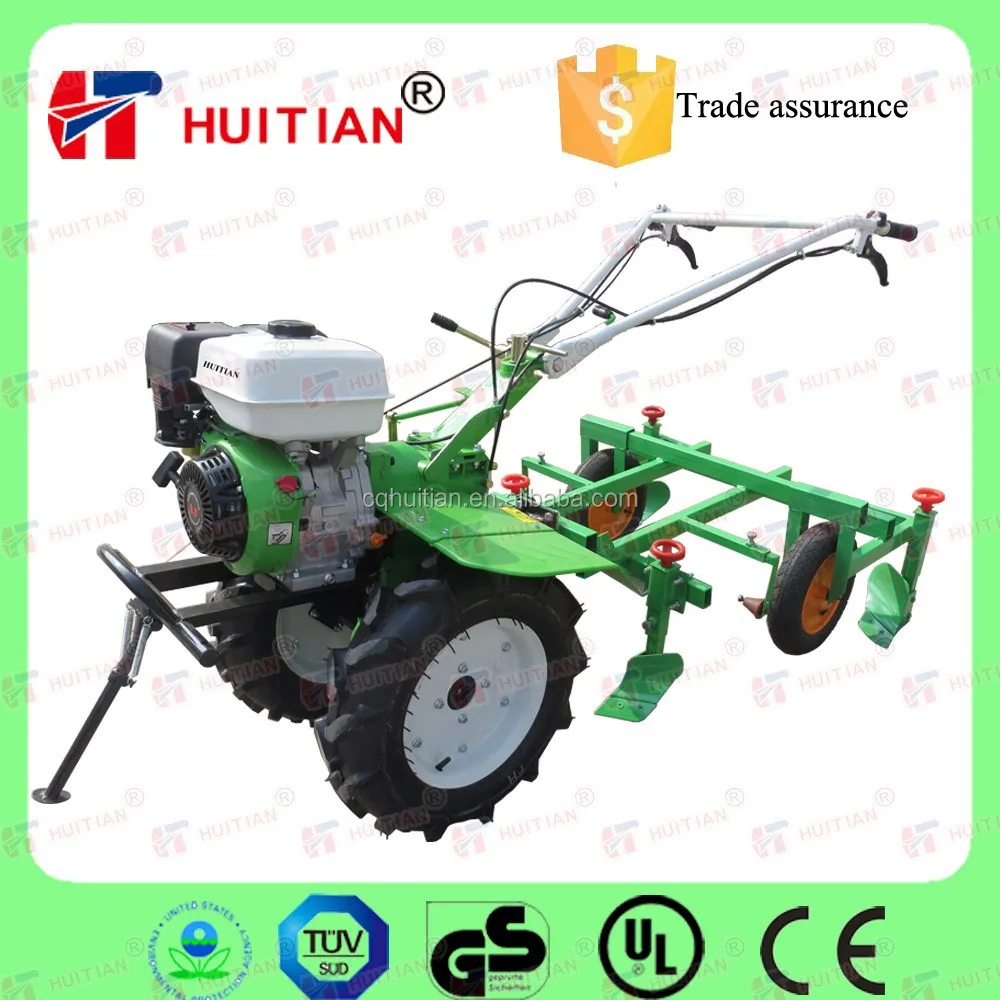

6.How many different attachments of 9hp rotary tiller

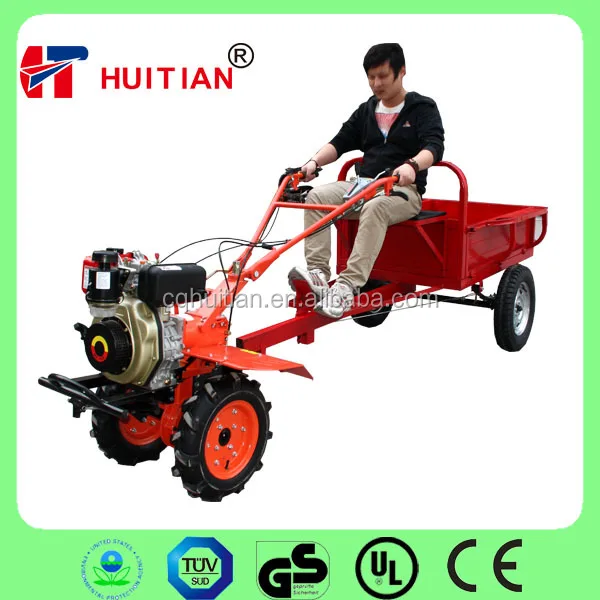

7.How about multi-functional new rotary tiller?
8.What is the different delivery?
By Express ( FedEx, UPS, DHL, TNT, EMS, etc... )
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
--- Disadvantage: Slow and you need to take the goods from your destination port by yourself.
Company information
1.How about our company?
---Business Type:Manufacturer,Trading Company
---Location:Chongqing,China(Mainland)
---Year Established:1994
---Factory Area:40,000 square meters
---Patent: patent utility model more than 36 pieces
patent apparence more than 24 pieces.
2.How about our letter of patent?
3.How about our factory?40,000 square meters
4.Why Choose Our Company? 1)20 Years Production Experience, We have patent utility model more than 36 pieces and patent appearances more than 24 pieces.
2)Alibaba Assessed 5 Years Gold Supplier.
3)Excellent R&D Team and Test Equipments.
4)11 assembling lines,6high pressure stamp beds,and 30sets testing machines,50kinds of products.
5)30 kinds of functions at least.
6)Trade Assurance Supplier(Click here)
5.Why Choose Our Products? 1)Strict quality control, defective rate within 1% .
2)CE/EPA certification supply.
3)OEM/ODM service acceptable.
6.FAQ
1. Q: Are you factory or trading company?
A: We are factory. We have 20 years producing experience.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Chongqing China.You can fly to Chongqing Airport. You are warmly welcome to visit us!
3. Q: Can I get some sample?
A: We are honored to offer you samples.
4. Q: What about the payment terms?
A: Usually, we accept T/T or L/C. 30% deposit first,70% balance against the copy of B/L.Or you can adopt Escrow by alibaba,you will have a guarantee for payment if we do not send goods.
5. Q: How long for delivery?
A: Usually, it takes 10-30 days after depositing, anyhow, it depends on the order details.
6. Q: What is the MOQ?
A: The MOQ is 1pc.
7. Q: What about the warranty?
A: 2 year warranty for whole products, except e-damage parts.
7.How to contact us? Send Your Inquiry Details to the Below. Then Click"Send"!!!
