0.08 mm enameled copper wire manufacturers for wireless charging coils

Product Overview

Description

  What is the copper enameled Wire specifications ? e.g. 2LOCKCS0.08(N)



Type		2LOCKCS  0.08			Standard	Huaye Finished product test standard
Sampling basis:MIL-STD-105E(Ⅱ)								Item Judgement
Test items		Techinical requirements		Test value
1.Appearance		To be smooth,no break and of uniform color		Smooth,no break and of uniform color				ok
2.Size	Conductor diameter	0.080 ± 0.002 mm		0.080				ok
	Insulated layer	≥ 0.005 mm		0.007				ok
	Self-bonding layer	≥ 0.006 mm		0.007				ok
	Overall diameter	≤ 0.101 mm		0.094				ok
3.Resistance		3.1330≤R≤3.7030 Ω/m(20℃)		3.426				ok
4.Elongation		≥ 18 %		22.5				ok
5,Soft breakdown		200 ℃  2min not breakdown		The film is ok in the test time.				ok
6,Heat shock		175 ℃ 30min		The film is ok in the test time.				ok
7,Jerk		not breakdown		The enamel is not chapped or lose adhesive properties.				ok
8,Stickness				In addition to the first and the last lap, the rest are not separated				ok
9,Scratch		Average≥  /  N ; Minimum≥  / N		Average≥  /  N ; Minimum≥  / N				/
10,Flexibility		≤   80°		38°				ok
11,Breakdown voltage		≥ 0.90 KV		1.58				ok
12,Soldering test		390±5℃2S		Solder uniformly,free from enamel residues				ok
13,Pinholes test		6m≤8		0				ok
14,Package		Meets the Standard of finished product		Marks,spools,cartons and weight meet the standard				ok

 Copper enameled wire properties

1)To match up with the features of ultrasonic wave coils, imported high purity oxygen free

copper and environmental protection enamel are adopted.

2)The possibility of breakage of wire and coating removal has been greatly reduced with

extremely high tensile strength and uniformity of the film.

3)High resistance to bending make it match up with the technology of ultrasonic wave

flocking process and all kinds of PVC materials with different thickness.

4)Good quality of coils is guaranteed even in high speed of winding.



Product photo:

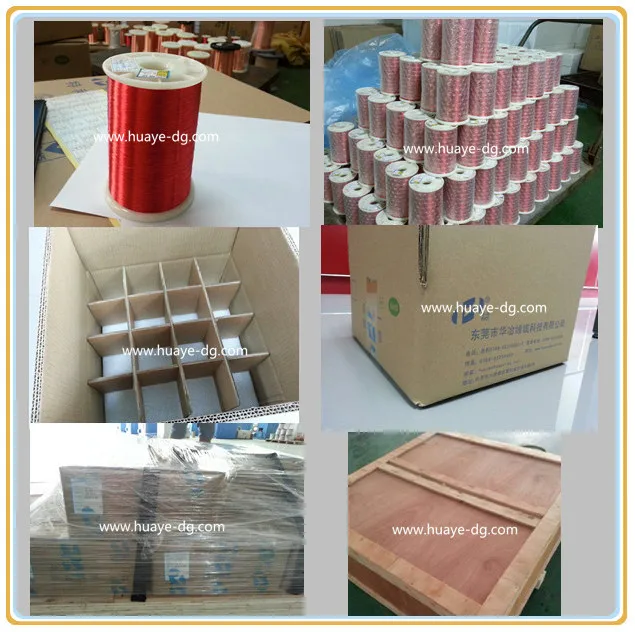

Packing: Inner packing: Plastic Spool of PT-15,PT-10.PT-4,PL-2,PC-1 according to wire size

                Outer packing: Carton box and styrofoam or as customer required

Shipping: Sample time: Nearby 3-5days, distance 5-7days. Production time:7-30 days

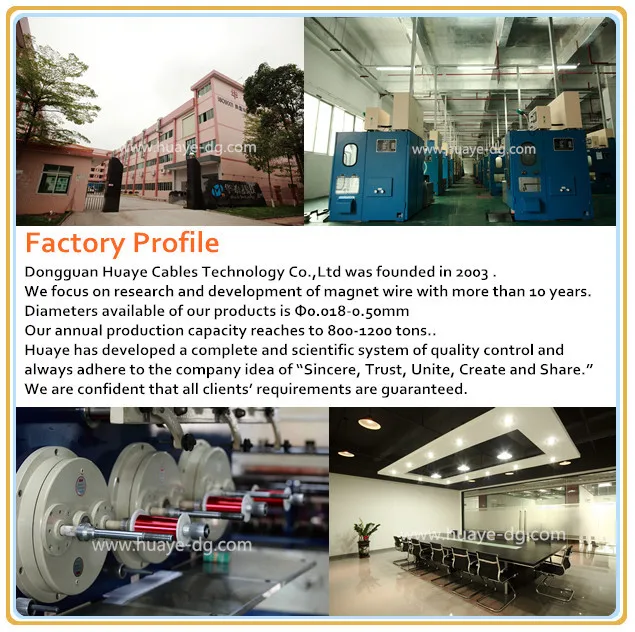

1.We are a factory manufacturing enamel magnet copper wire best production capacity,best quality

control,best service.

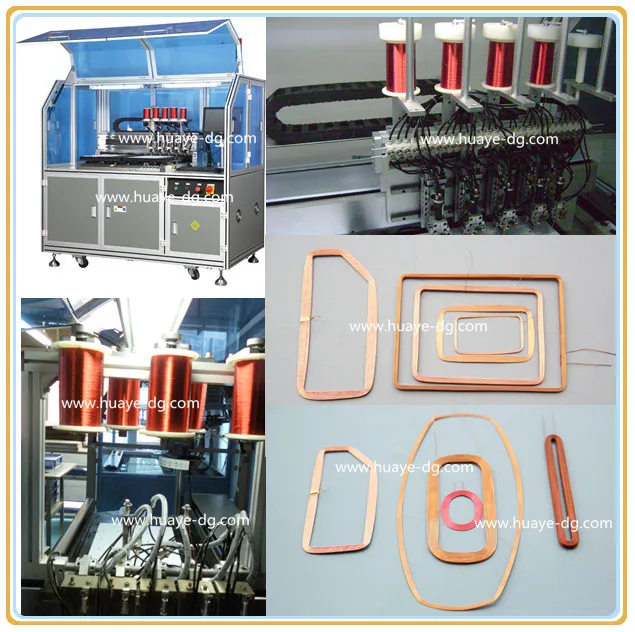

2.We supply 70% of the smart card(ID)antenna and contactless IC card coils manufactures of China,

strong research and development ability allows us to produce varios kinds of copper wire to meet different requirements of the RFID technology.

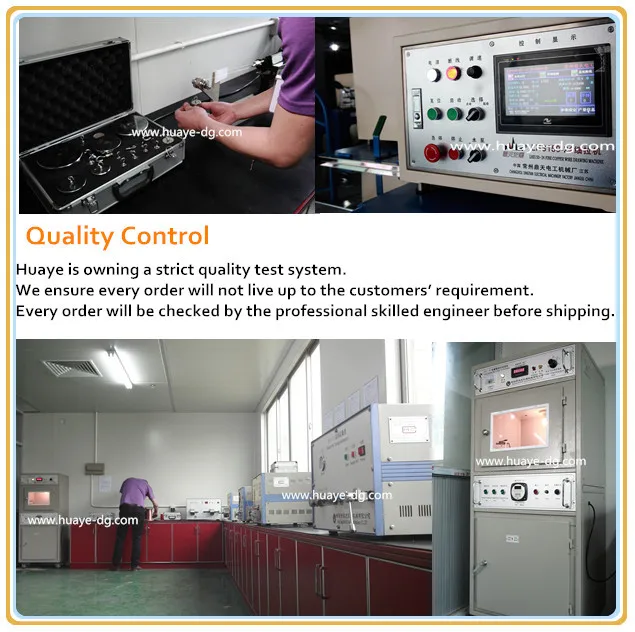

3.Quality assured,refund guarantee due to quality issue.

4.Shipping on time,competitive factory direct price,free sample for customers to test the quality.
