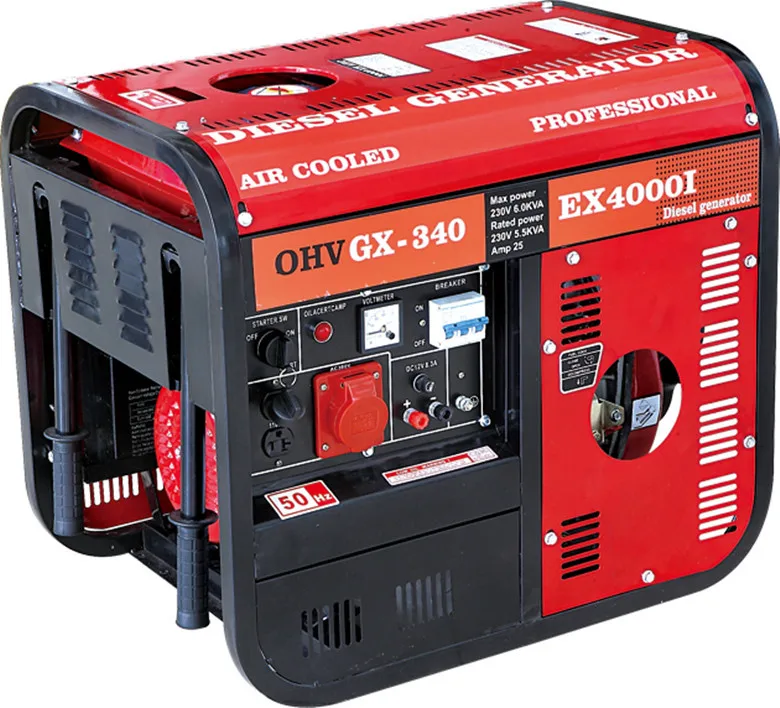

electric diesel generators 5000 watts,diesel generator price list

Product Overview

Description

electric diesel generators 5000 watts,diesel generator price list

























- Technical Data:



Model		Economical type
		5GF
Generator	Type	Revolving field type 2 pole generator
	Frequency (Hz)	50	60
	Cont. Output (KW)	4.2	5
	Voltage (A.C)(V)	230	240 (120)
	Current (A.C)(A)	18.3	20.8 (41.7)
	Engine speed (r/min)	3000	3600
	Phase	Single phase
	Power factor (COSΦ)	1
	Excitation system	Controlled constant self-excitation
	D.C output V/A	12V/8.3A
	Operation capacity	12 hour constant operation
	Coupling pattern	Straight shaft coupling
Model		186FG
Engine	Type	Direct injection vertical, 4-cycle, air-cooled diesel engine
	Displacement cc (cu.in)	406(24.78)
	Max. output (KW/rpm)	6.6	7.35
	Cont. output (KW/rpm)	5.9	6.6
	Starting system	Recoil start/ Electric start
	Governor system	Centrifugal weight system
	Fuel	Diesel light fuel (BS-AL or equivalent)
	Fuel tank capacity (L)	5.5L
	Lube oil capacity (L)	1.65
	Bore×Stroke	86×70
	Protection system	Low oil, warning system/Stop device (not for L-series)
Unit	Noise level at 7m dB (A)	85
	Dimension (L×W×H) (mm)	745×480×615
	Dry weight (kg)	95















Product Option





Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.



Oil alert:Oil level under the level line,the engine stops working automatically.



Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.



Fuel meter:Show the varietal of fuel accurately.
