Product Overview

Description

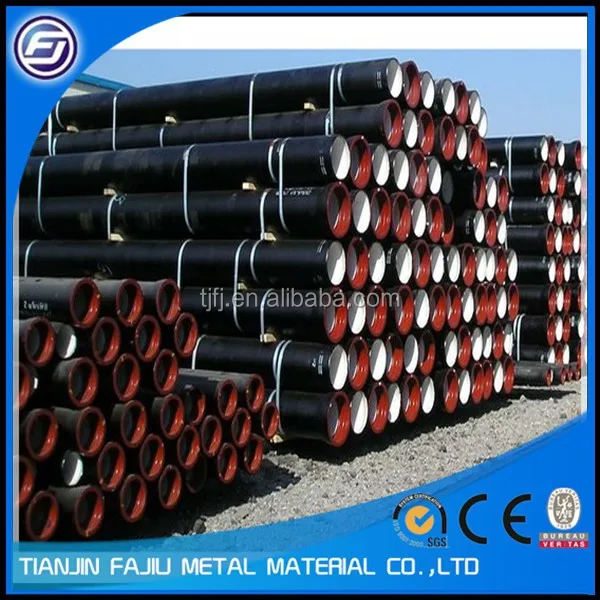

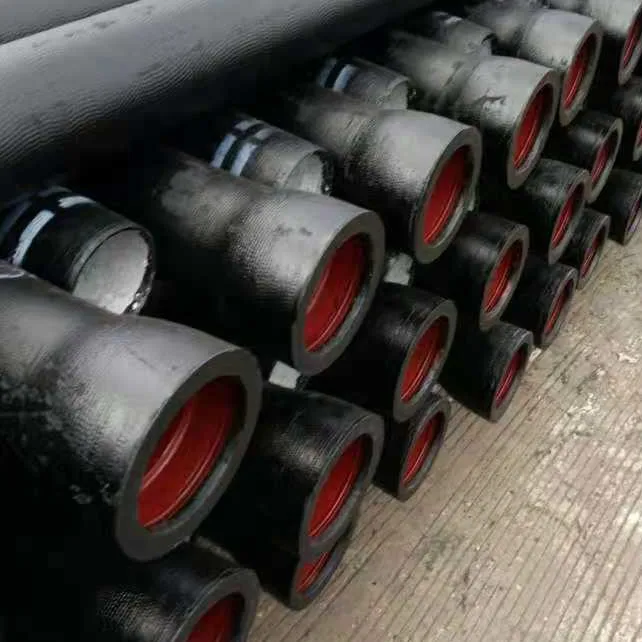

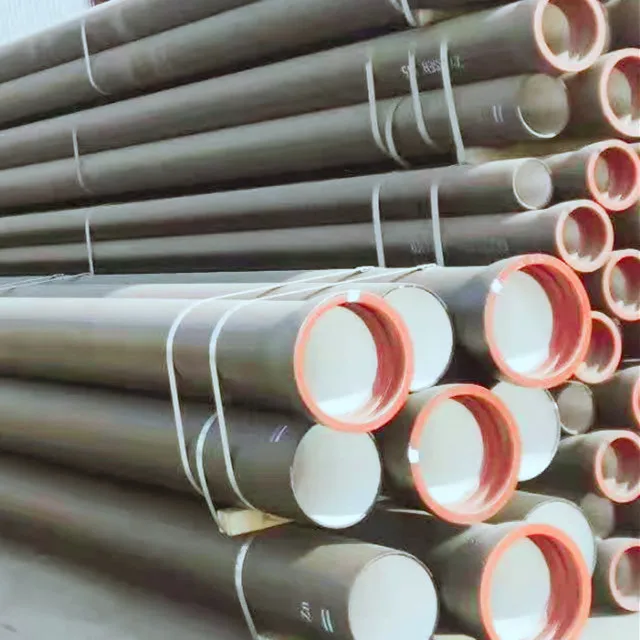

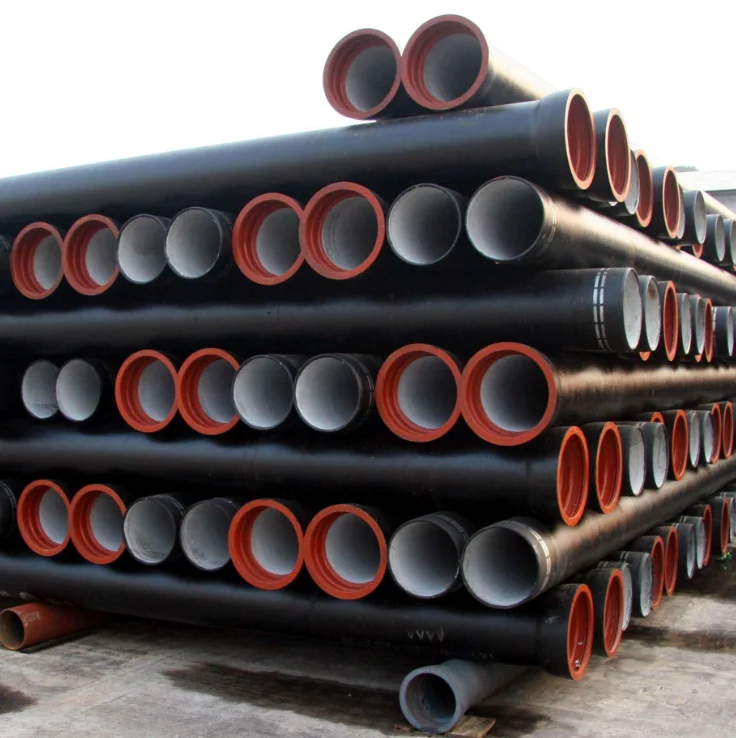

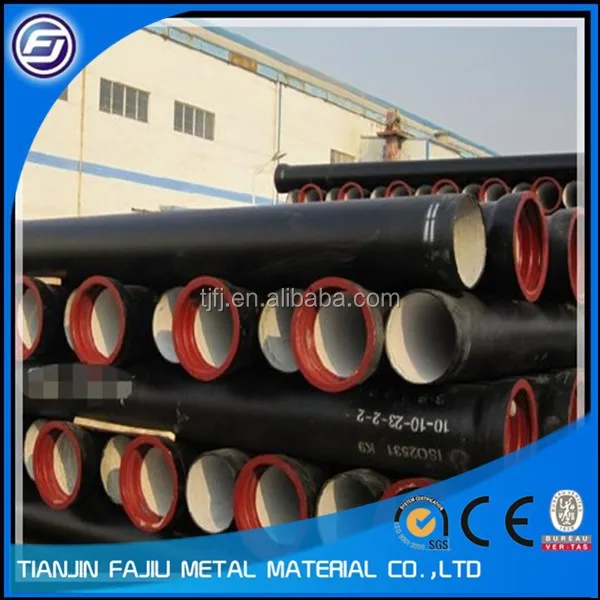

Ductile Iron Pipe ISO 2531 / EN 545 K9, K7, C Class

1) The standard of pipe: ISO2531:1998, K9

2) Effective length: 6m

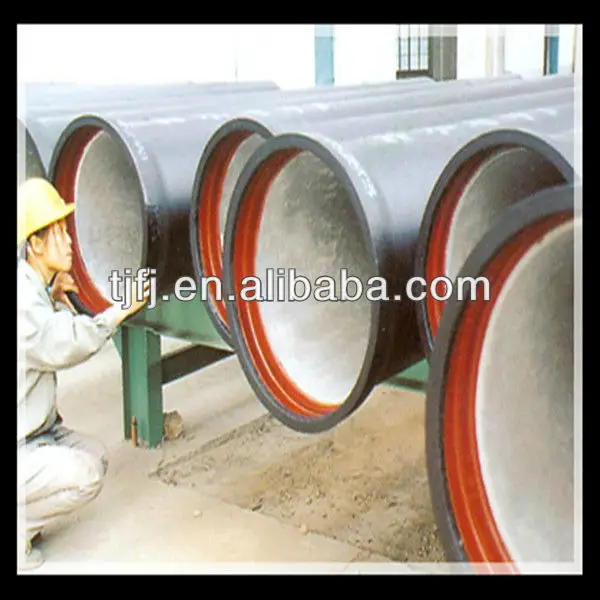

3) Inner cement line: Portland cement line as per ISO4179

4) Zinc coating: at least 130g/m² as per ISO8179

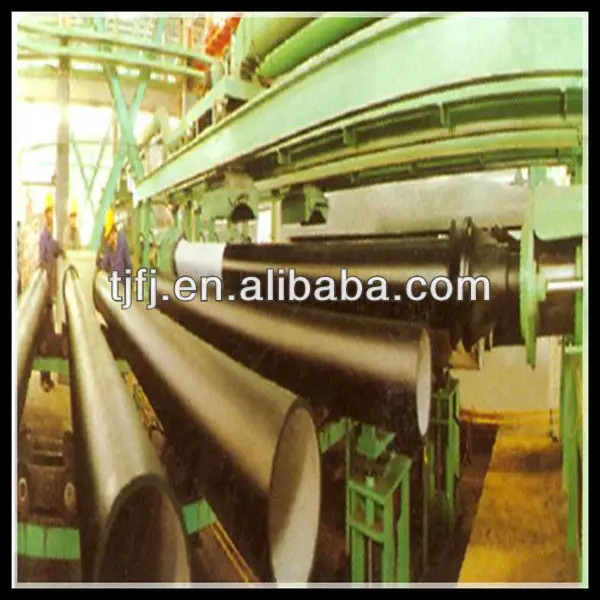

5) Bitumen painting: at least 70um as per ISO8179

6) With 100% quantity of NBR ring, or SBR ring, or EPDM ring as per ISO4633

7) DN80mm-800mm

8) High strength, lighter than grey iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life tome about 100 yeas

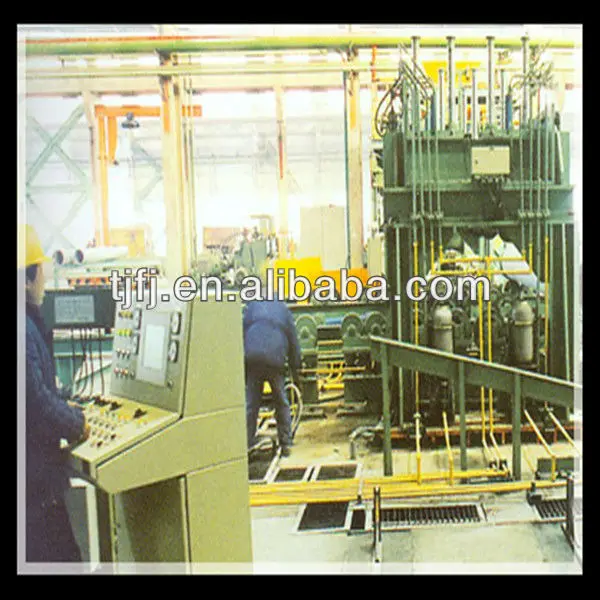

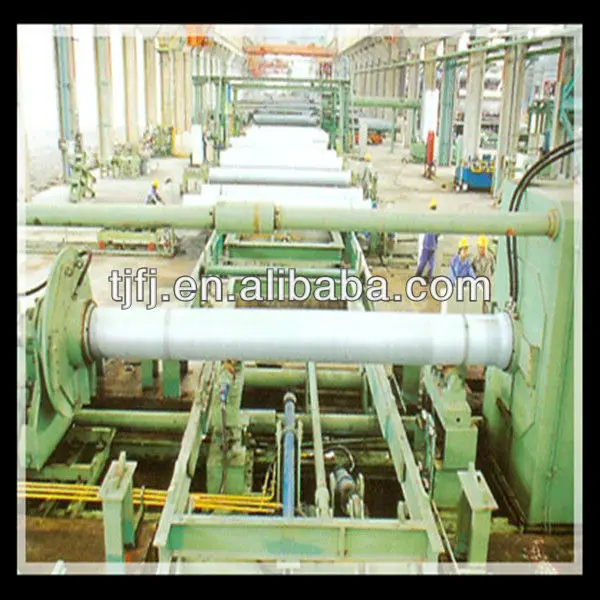

9) Produced by Hangzhou chunfeng machine

10) Checked by automatic inspection equipment

11) Composition:

Chemical composition
Chemical composition	Ductile Cast Iron Pipe (%)	Grey iron pipe (%)	Steel pipe (%)
C	3.5-4.0	3.2-3.8	0.1-0.2
Si	1.9-2.6	1.4-2.2	0.15-0.4
Mn	0.15-0.45	0.4-0.6	0.3-0.6
P	≤0.06	≤0.3	0.02-0.03
S	≤0.02	≤0.1	0.02-0.03
Mg	0.03-0.06

12) Feature:

Mechanical properties
	Ductile Cast Iron Pipe	Grey Iron Pipe	Steel Pipe
Tensile Strength(Mpa)	≥420	150-260	≥400
Yield Strength(Mpa)	≥300	No Confirmation	No Confirmation
Bending Strength(Mpa)	≥590	200-360	≥400
Elongation (%)	≥10	Neglected	≥18
Brinell Hardness(HBS)	≤230	≤230	About 140

13) T type mechanical joint

14) Packing: in bulk or container



Ductile iron pipes for water conveyance:
Product standards: BS EN545:2002, ISO2531:1998



1) Pipes are supplied in standard length of 5.5/6.0m, short length pipes as per respective standards can be supplied
2) In addition to Class K9 pipes, We also supplies K7, K8, K10, and K12 classes of pipes
3) The thickness can be determined by the formula-e=K (0.5+0.001DN)
4) PFA (allowable operating pressure) is the internal pressure, exclusive of surge, that a component can safely withstand in permanent service
5) PMA (allowable maximum operating pressure) is the maximum internal pressure, including surge, that a component can withstand for a relatively short duration, when either fixed above ground level or laid and back-filled underground in order to measure the integrity and leak tightness of the pipe.





K9 Thickness Ductile Iron Pipe Specification:













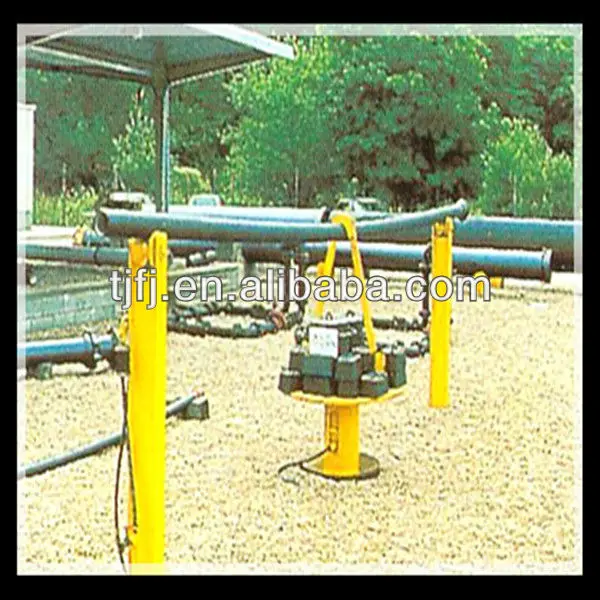

2. Destructive test





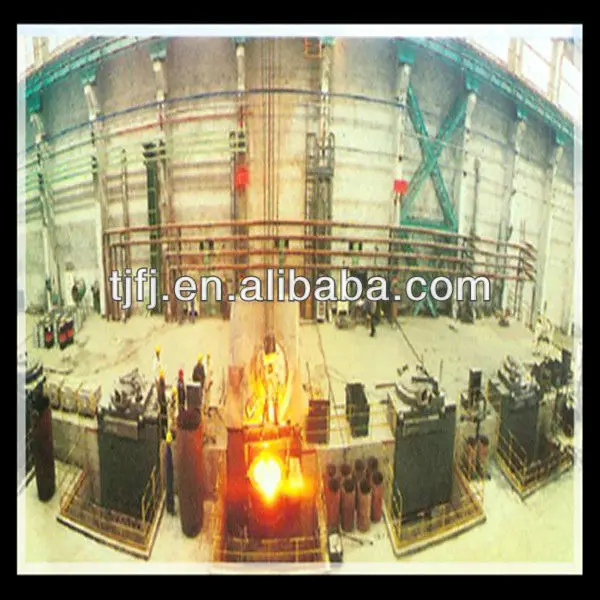

3. Spheroidizing





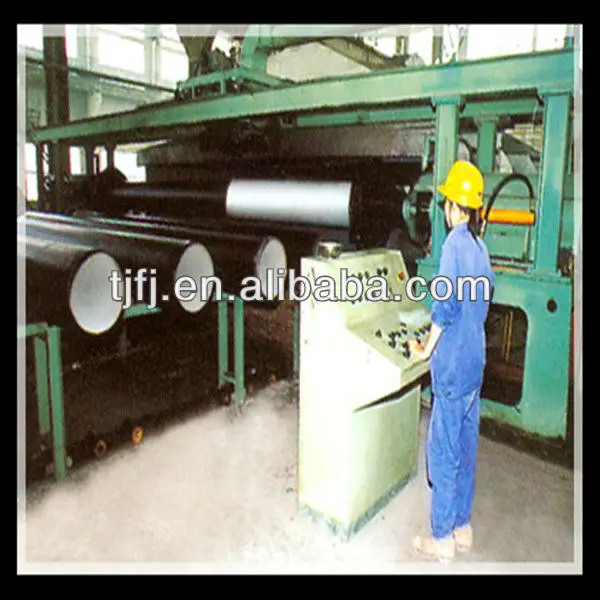

4. Cement lining





5. Water pressure test





6. Annealing charging





7. Flattening test

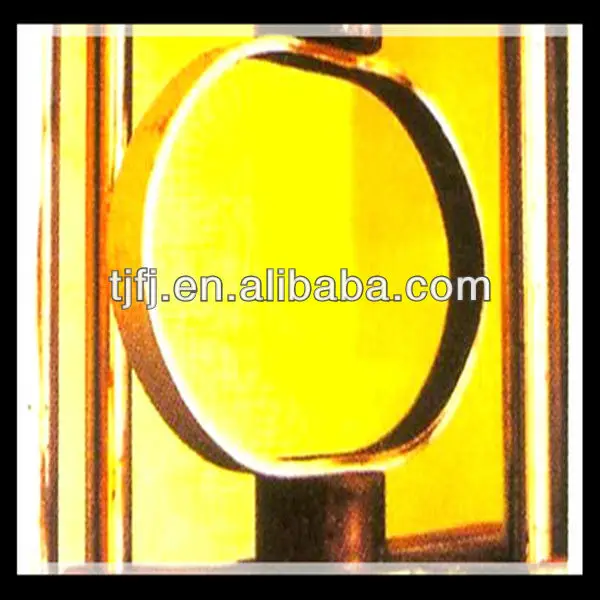

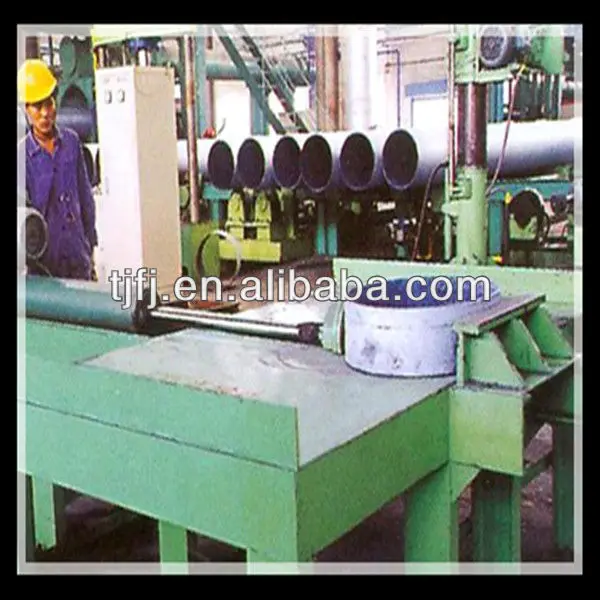

8. Pressure ring test





9. Final inspection
