Chinese Manufacturer Cheap LMI Tilt Sensor Inclinometer for Load Moment Indicator
- Category: >>>
- Supplier: Shanghai Zhichuan Electronic Tech Co. Ltd. [Shanghai China]Shanghai
Share on (60142184208):
Product Overview
Description
Chinese Manufacturer Cheap LMI Tilt Sensor Inclinometer for Load Moment Indicator
What is Features of our LMI tilt sensor?
Industrial device entirely, reliable performance
Shockproof
High cost performance
Protection grade: IP67
What is Specifications of our LMI tilt sensor?
Item | Test condition | Min. | Typ. | Max. | Unit |
Measuring range | Single axis | -10 |
| +80 | ° |
Resolution |
|
| 0. 1 |
| ° |
Non-linearity | VCC=12V |
| ±0.4 |
| %/ FS |
Sensitivity |
| 44.0 | 44.4 | 44.8 | mV/° |
Repeatabilty |
|
| 0.2 | 0.3 | ° |
Zero temp drift | -40---+85°C |
| 0.03 |
| °/°C |
Power supply |
| 8 | 12 | 30 | V(DC) |
Operating current | VCC=12V | 30 | 40 | 45 | mA |
Zero output voltage |
| 0.940 | 0.944 | 0.948 | mV |
Operating temp |
| -40 |
| +85 | °C |
Housing size |
|
| Φ113*49 |
| mm |
What is Packing Information of our LMI tilt sensor?

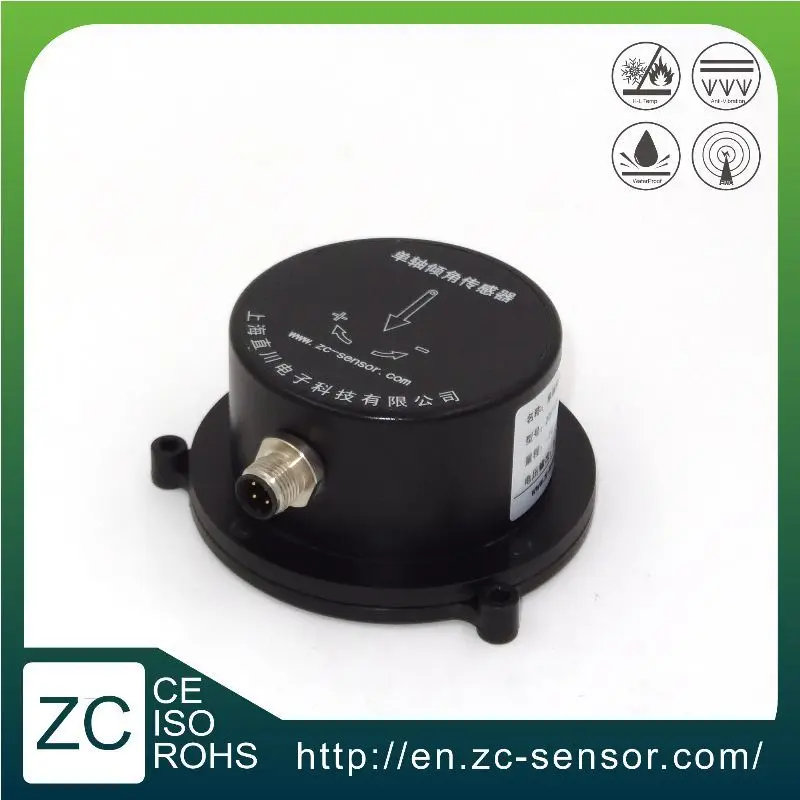

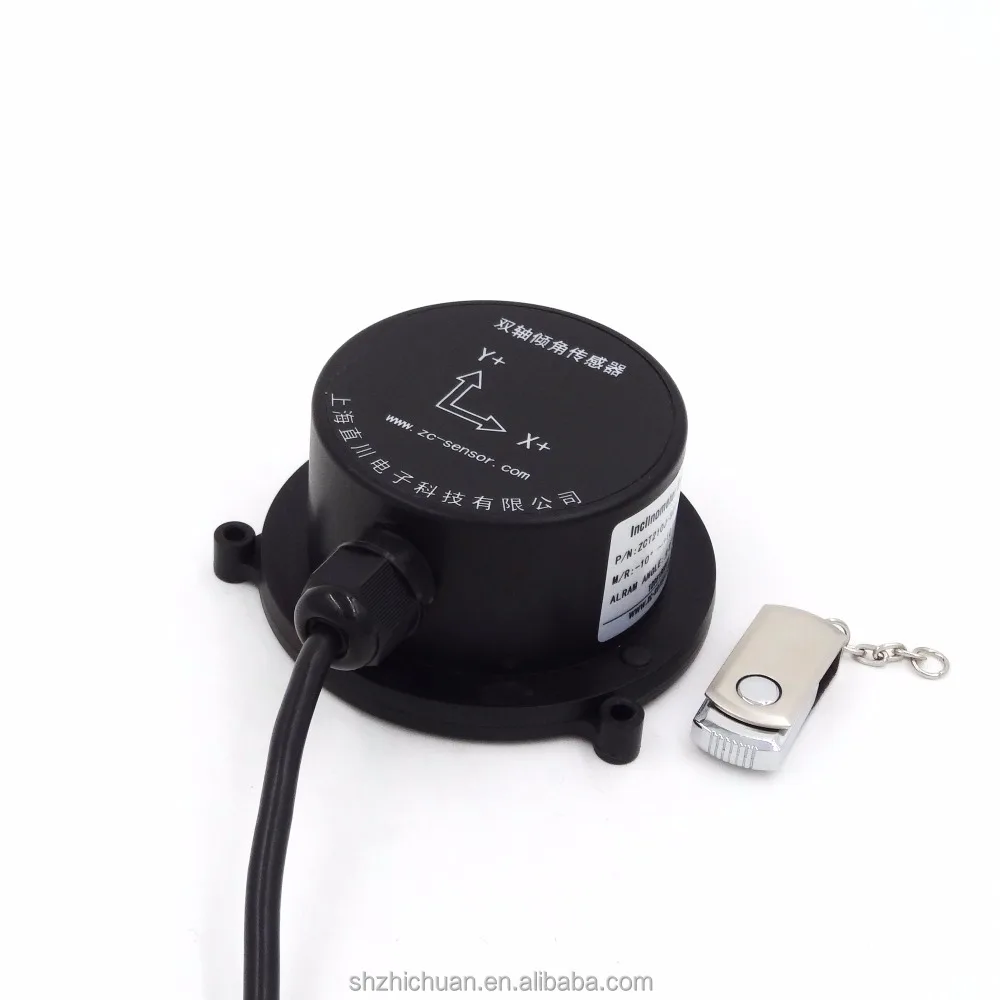

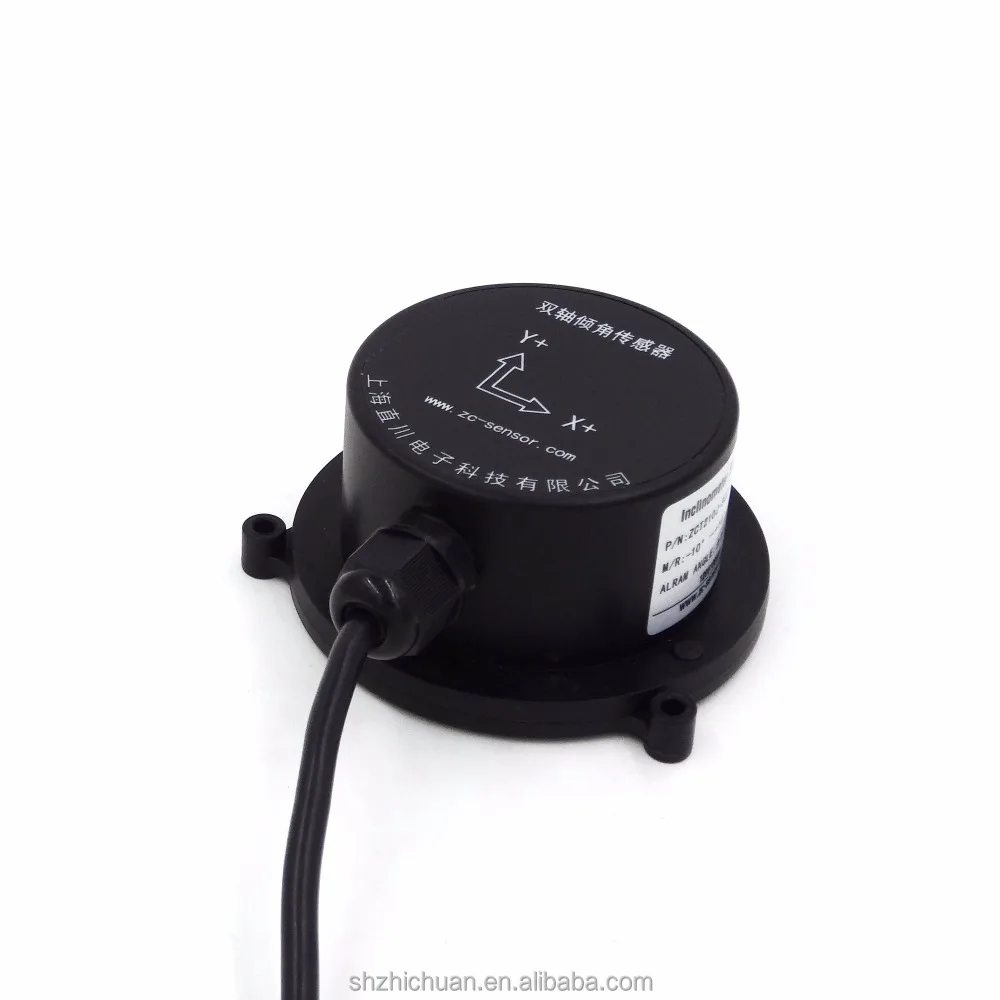

Product Photos
Our Certifications
Company View
What is Our Advantages?
1. Rapid response on any inquiry.
2. Competitive price.
3. Professional inspection department to guarantee quality.
