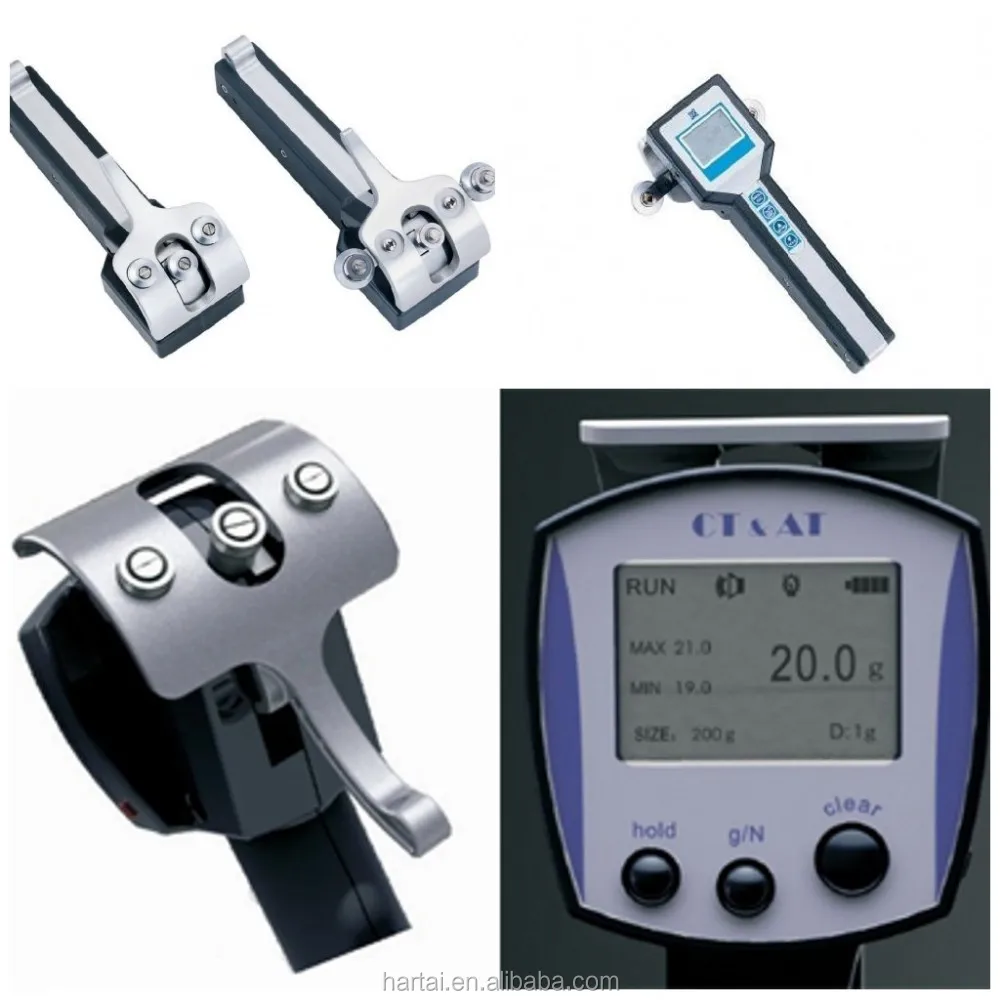

widely use tension measurement tensionmeter high precision digital yarn tension meter

Product Overview

Description

widely use tension measurement tensionmeter

high precision digital yarn tension meter





 2.It can be widely used in wire,  strip processing  time of   tension measurements (such as: yarn, steel wire, copper wire, copper strip, tape, film, fiber-optic cable, carbon fiber lines, etc.).



3.Tension meter can be connected to computer and thermal printer through datatransmission lines.







Features:

1. Excellent quality, compact size, Accurate reading.

2. Exclusive embedded micro controller LSI Circuit, full digital design for high reliability & versatility.

3. Very effective and convincing usage (Low power consumption) of battery power.

4. Easy for carry and easy handy operation ensures risk free & efficient tachometer that ensures the requirement of every kind price RPM measurement.



Model	DTM101	DTM501	DTM102	DTM502	DTM103
Measurement Range	0.1-100gf	0.5-500gf	1-1000gf	0.01-5kgf	0.1-10kgf
Resolution	0.1-1g	0.5-1g	1-10g	0.01(kg or N)	0.01(kg or N)
Unit	g,cN	g,cN	g,kg,N,lb	kg,N,lb	kg,N,lb
Steel Wire(diameter mm)	<0.06	0.01-0.15	0.05-0.25	0.2-0.6	0.4-0.8
Brass Wires(diameter mm)	<0.1	0.05-0.25	0.1-0.4	0.3-1.0	0.5-1.2
Yarn,String(diameter mm)	<0.1	0.05-0.25	0.1-0.4	0.3-1.2	0.5-1.4
Precision	±1%R.C.			±2%R.C.
Size (mm)	(W)59×(D)78×(L)183			(W)100×(D)78×(L)183
Weight	320g			350g

 Package of the DTM tension meter:
