Produce 2.0mm 2.5mm 3.2mm 4mm 5mm Welding Electrodes factory
- Category: >>>
- Supplier: Tianjin Innovation-Steel Stainless Steel Trading Co. Ltd.
Share on (60142847823):
Product Overview
Description
Welding Electrode is the metal strip when gas welding or electric welding filled in the junction. Electrode material is usually the same as with the material of the workpiece.
Low carbon steel welding, AC and DC welding technology, excellent performance, very stable arc, transport tune with ease, little spatter, slag good fluidity, easy to remove slag shell, then arc easy, solder wave surface detail and beautiful, can perform a full range of welding, especially for sheet metal welding, weld joints and irregular spatial position of difficult operations can be satisfied with the weld. Change the product is suitable for welding vehicles, construction, shipbuilding, machinery manufacturing low-carbon steel. Especially for small pieces of sheet metal and short welds require intermittent welding and smooth surface of the capping.
E6010
This electrode is used for all position weding using DCRP.It produces a deep penetrating weld and works well
on dirty,painted and rusted steel.
E6011
This electrode shares the same character with the E6010 type,but can be used with AC and DC currents.
E6013
This electrode can be used with AC and DC currents also.It produces a medium penetrating weld with a superier weld bead appearance.
E7018
This electrode is well known as a low hydragen electrode and can be used with AC or DC.
The electrode can produce welds of xray quality with medium penetration.
E308-16,E308L-16,E309,etc.All 300 series is for stainless steel welding work.
Chemical composition of melting metal(%)
| C | Mn | Si | S | P |
| ≤0.12 | ≤1.60 | ≤0.75 | ≤0.035 | ≤0.040 |
Reference Current
| Diameter | 2.0 | 2.5 | 3.2 | 4.0 |
| Current | 90-120 | 120-150 | 170-200 | 210-250 |
Features:
AWS E6013 mild steel welding electrodes is carbon steel welding electrode covered with high titania
potassioum type coating.Both AC and DC can be applied,and it is applicable for all-position welding,including vertical-down welding.It shows a very good welding performance with small scatters,easy restrike and very good weld shape.
Application:
It suitable for welding low carbon steel structures and low carbon galvanized plate especially applicable for vertical-down welding and intermittent welding.
A-8-1.Specifications
Type | china electrode |
Diameter | 2.0,2.5,3.2,4.0,5.0mm |
Length | 200,300,350,400,450mm |
Brand | Golden bridge welding rod |
Current | 60-90, 90-120, 120-150 |
| Color | gray,white,black,red |
Application | metal strips for gas welding or eletric welding |
| Weight | 5kgs/box 20 kgs/carton |
Packing | 15kgs/spool 1 spool/carton stone bridge brand packing or as your requirement |
Payment terms | T/T or L/Cetc. |
delivery time | Normally within 7 days after getting your deposits or according to customer's quantity. |
MOQ: | 50kg |
A-8-2.Chemical composition and Mechanical properties
Chemically modified electrodes are electrodes that have their surfaces chemically modified to change the electrode's physical, chemical,electrochemical, optical, electrical, and transport properties.
These electrodes are used for advanced purposes in research and investigation

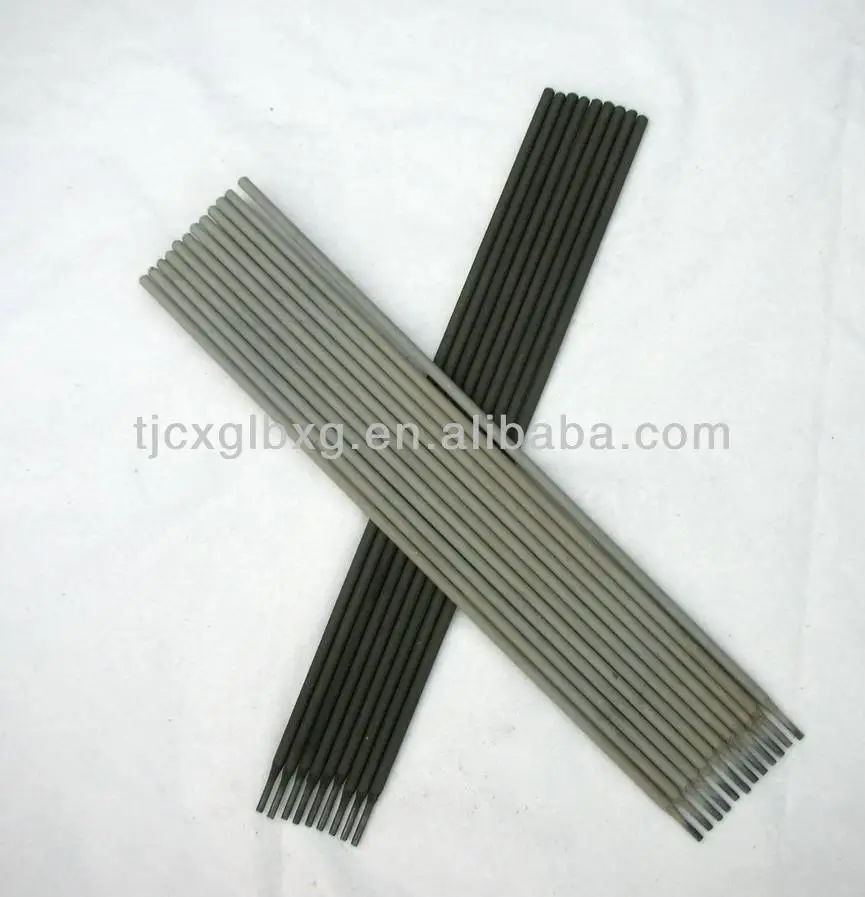

A-8-4.Products Show
A-8-5. Application
What is welding electrodes used for?( Wikipedia, the free encyclopedia)
Electrodes are used to provide current through nonmetal objects to alter them in numerous ways and to measure conductivity for numerous purposes. Examples include:
- Electrodes for fuel cells
- Electrodes for medical purposes, such as EEG, ECG, ECT, defibrillator
- Electrodes for electrophysiology techniques in biomedical research
- Electrodes for execution by the electric chair
- Electrodes for electroplating
- Electrodes for arc welding
- Electrodes for cathodic protection
- Electrodes for grounding
- Electrodes for chemical analysis using electrochemical methods
- Inert electrodes for electrolysis (made of platinum)
- Membrane electrode assembly

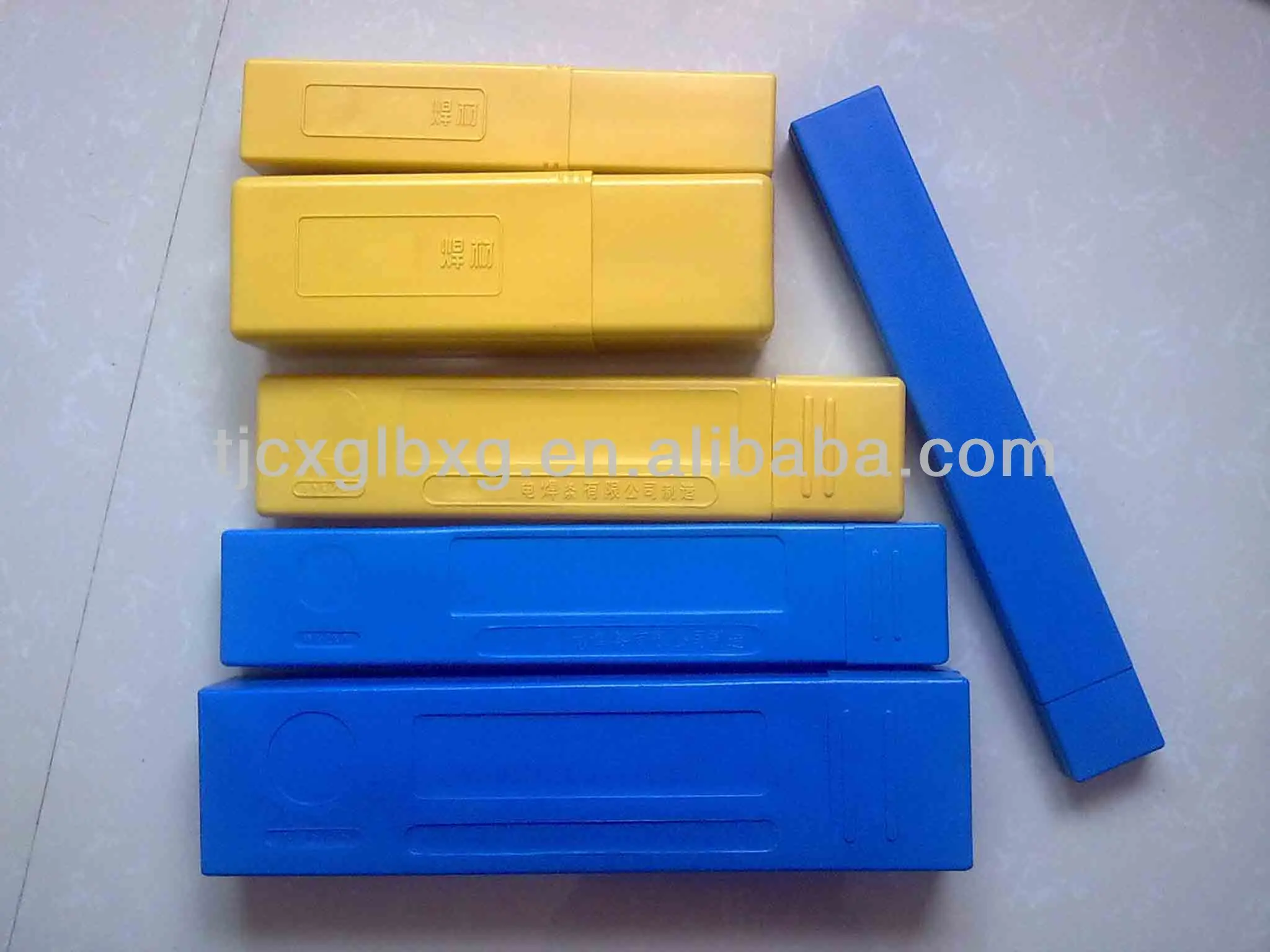

A-8-6. Packing and Transport
- Port Name:Tianjin,China
- Longitude: 117'58'47 "E Latitude: 38'56'20 "N
- Standard export sea-worthy package , bundled wooden box or be required;
The inner size of container is below:
20 ft GP:5.8m(length)x 2.13m(width)x 2.18m(high) about 24-26 CBM
40 ft GP:11.8m(length)x 2.13m(width)x 2.72m(high)about 68 CBM
A-8-7. Trade Term & Delivey time
- L/C
- West Union
- Face to Face Cash
- T/T :30% T/T in advance and the balance 70% before shipment
- Delivery time: Within 3~8 days after your deposit, or depend your quantit
A-8-8.Processing Services
NOTE: We can provide the following stainless steel coil processing services
Wiredrawin Pasted with film Skiving Plate Shears Bending Electroplating
Laser Cutting Water Jet Cutting Plasma Cutting Polish Embossing Device Punching Welding

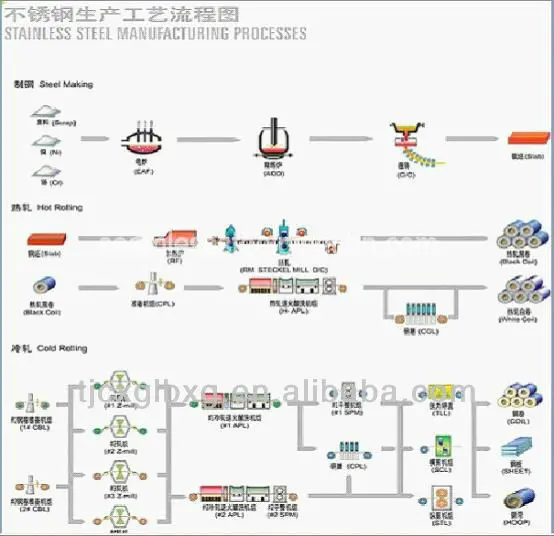

B-3-1. Production process and quality control
The process of steelmaking has undergone many changes in the 20th century based on the political, social and technological atmosphere.
In the 1950s and 1960s, demand for high quality steel encouraged the steelmaking industry to produce large quantities.
Large, integrated steel mills with high capital costs and limited flexibility were built in the U.S. (Chatterjee, 1995).
Integrated steel plants produce steel by refining iron ore in several steps and produce very high quality steel with well controlled chemical compositions to meet all product quality requirements.
Our company.`s quality control program meets and exceeds the requirements set forth by the ASME (American Society of Mechanical Engineers) and the NBIC (National Board of Boiler and Pressure Vessel Inspectors). SFI has been recognized and authorized by the ASME since 1988 to apply the "U" Stamp and by the NBIC since 1993 to apply the "R" Stamp.
B-3-2. Authentication & Certificate Quality
ISO9007:2008 BV SGS RHOS
B-3-3. One-Site Inspection
Inspection & Testing
In-house checks and inspections are performed by QC staff, production supervisors, and leadmen.
Third party inspection is readily available for ASME, NBIC, CE marking, and Ministry of Manpower - Singapore.
Water Fill Testing
Hydrostatic testing services as required.
Liquid Penetrant Testing
SFI has certified liquid penetrant procedures (color contrast and fluorescent) meeting the requirements of the ASME.
Liquid penetrant examiners are certified on these procedures to meet the same.
In-House Radiography
SFI provides its own non-destructive testing services (radiography) in-house with three Level 2 certified x-ray technicians on staff.
C-4-1. The reason why you Choose us & About us
- ISO Audited company.
- We offer competitive price with best service.
- We can provide stainless stee processing services.
- We have win high reputation based on best quality products.
