Product Overview

Description

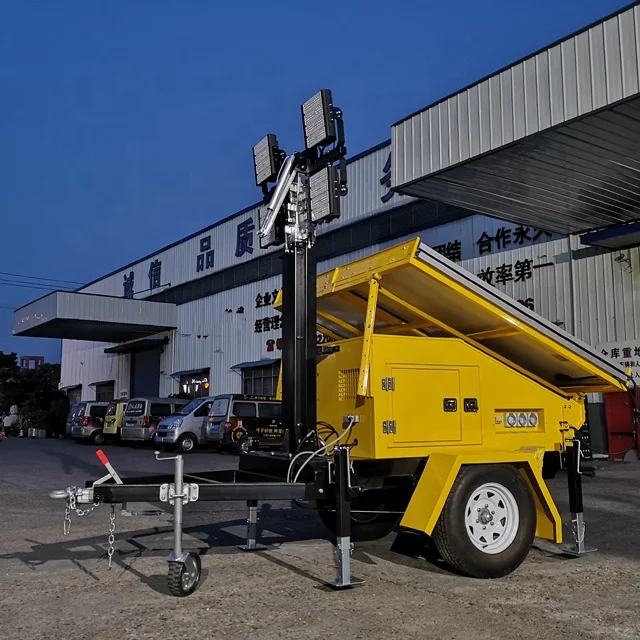

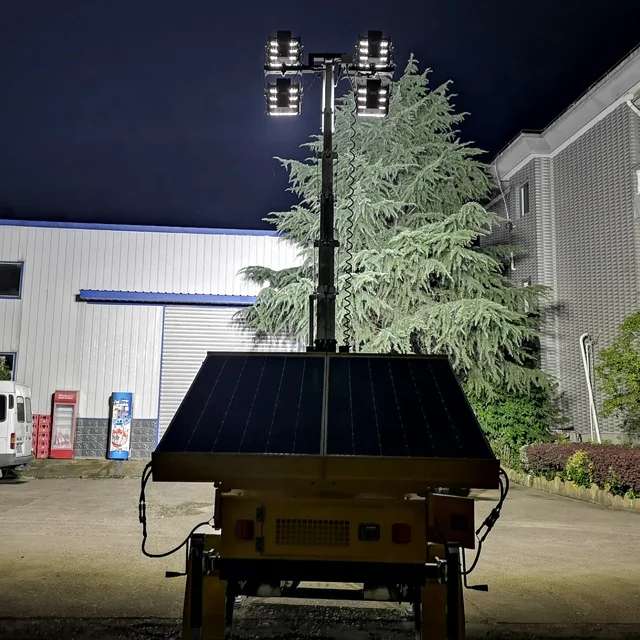

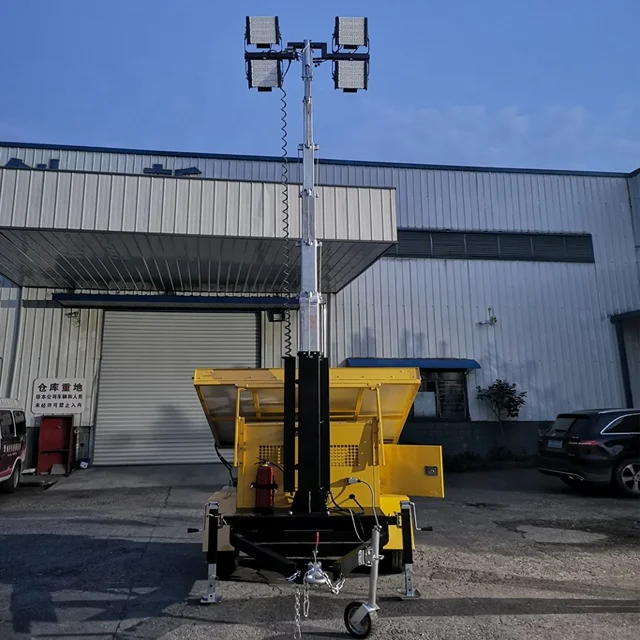

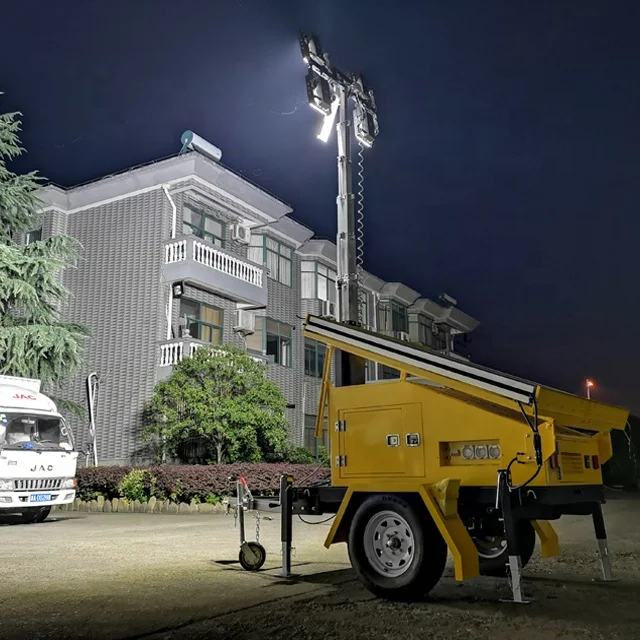

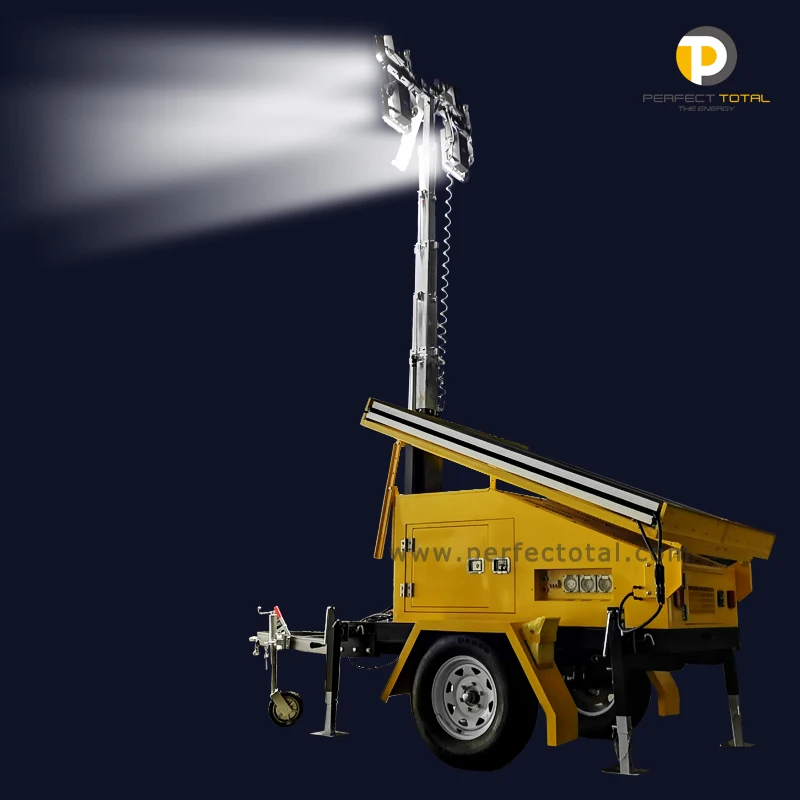

SOLAR LIGHTING TOWER  GREEN ENERGY











Description





Description





Model		PT-MLT1
Light Tower Size  LxWxH mm	Solar panels closed	2200x1060x2500
	After packaged	2250x1110x2500
	Gross weight	1200Kgs
LED	Watts	4x300W , Total 1200W
	Lumens ( lm)	180000lm
	Voltage	AC220-240
	Temp. Code	5500K white color
	Light Angle	45degree and 60 degree
	Lights tilting	DC24V Electrical
Battery	Capacity	8x250AH
	Voltage	DC12V
	Type	AGM  Maintenance free
Mast Hydraulic	Height (meters )	9
	Stages	6
	Material	Steel with Galvanized
	Wind load	110Km/hr
	Lift System	Hydraulic ( electrical )
Solar Array	Watt	4x350W ( total 1400W)
	Type	Monocrystal
	Voltage	DC36V
	Size of each panel LxWxH (mm)	1650 x 992 x 50
Trailer	Size   LxWxH (mm)	2200x1060x1500
	Standing legs	4 legs adjustable to different level height and angles for uneven ground
	Jockey Wheel	Diameter 24.5mm , Hard wheel
	Tyres and Axle	2 x R185C, 15" , Single Axles
	Hitch	50mm Ball movable hitch with AS Certificated
	Steel	All steel to be done dip Galvanized then to do powder coating , 5 years would not color fading, 20 years would not rust
	Brake	Mechanical system
Approach Speed		90Km/Hr
Solar controller		60Amps MPPT
Charging time By sunshine  ( Hr)		8
Lighting time (Hr)		40
Container load Quantity Pcs	40'HQ	7



































1. Please list power, frequency,voltage details to us that we can recommend best generator to you.



2. Do you have any dealers at Overseas?

    Yes. We have dealers at Manila,Bacolod,CEBU at Phillippines as well as at Australia ( perth), Vrigin Islands, Saudi Arabia ( Dammam ) and DUBAI.



3. What kind Payment you can accept ?

    30% T/T inital payment of deposit, 70% T/T against goods ready or BL Copy.

    100% Irrevocable at sight L/C



4. How about warranty service ?

    We can courier all parts to you during warranty time .
