6 Color Bag Flexo Printing Machine BOPP Plastic Film Flexo Printing Machine
- Category: >>>
- Supplier: Hangzhou Xianghuai Machinery Technology Co. Ltd.
Share on (60142895519):
Product Overview
Description
MASS_APP4_1619_BEGIN
MASS_APP4_1619_END

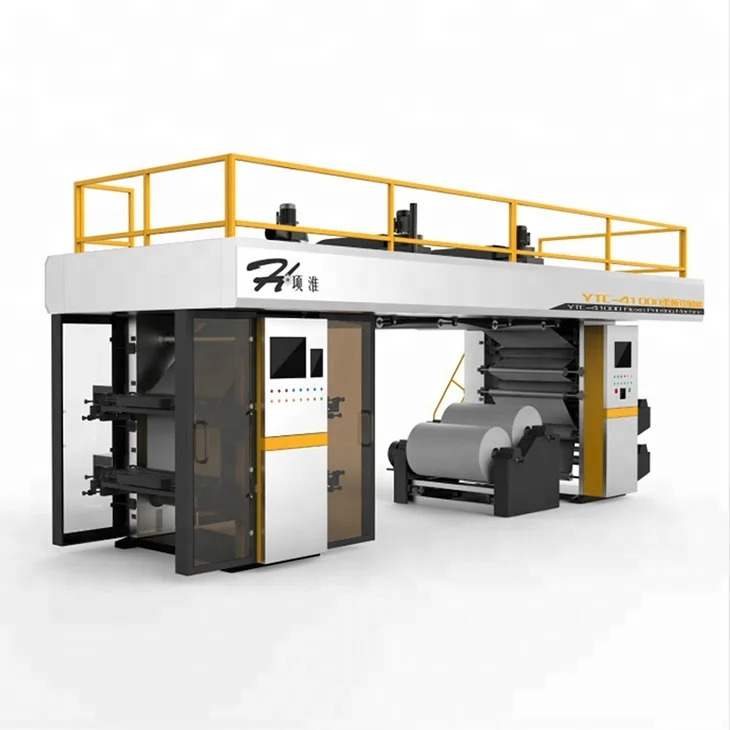

High Speed 6 Color Flexo Printing Machine
1.Features:
1.Easy-operation,accurate color register,high preformance,75mm thickness cast iron wall,good stability.
2.The meter counter can set printing quantity according to the requirements. Stop the machine automatically
at the quantity or when the material is cut off.
3.Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

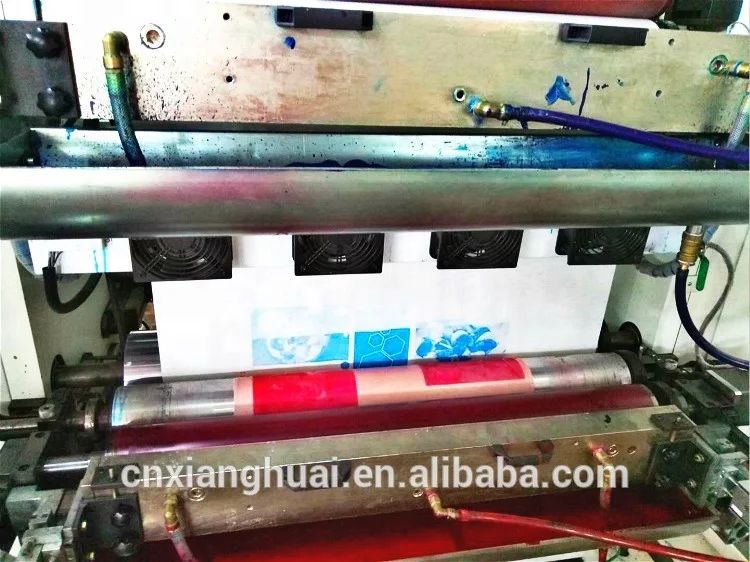

4.The printing ink is spread by the anilox cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stop.
6.360°continuous and adjustable longitudinal register device.
7.The frequency control of motor speed adapts to different printing speeds.
8.There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy
operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control,magnetic powder clutch for rewinding tension control.
2,Main Parameter:
Technical Parameter: | |
Model: | XHYT-B61200mm |
Printing Color: | 6 Colors |
Max. Width of Material: | 1200mm |
Max. Width of Printing: | 1160mm |
Length of Printing: | 200-1100mm |
Machinery Speed: | 10-160m/min |
Printing Speed: | 10-150m/min (according to the printing materials) |
Register Precision: | Transverse:+-0.15 Longitude:+-0.15 |
Thickness of Plate (including the glue) | 2.28mm,1.7mm (according to the guest) |
Anilox Roller: | Ceramic anilox roller |
Heating Power: | 36KW |
Total Power: | 48KW |
Machine Weight: | 7200KG |
Machine Dimension:(L×W×H) | 5600*2800*3000mm |
Power: | Voltage:380V,3PH,50HZ |

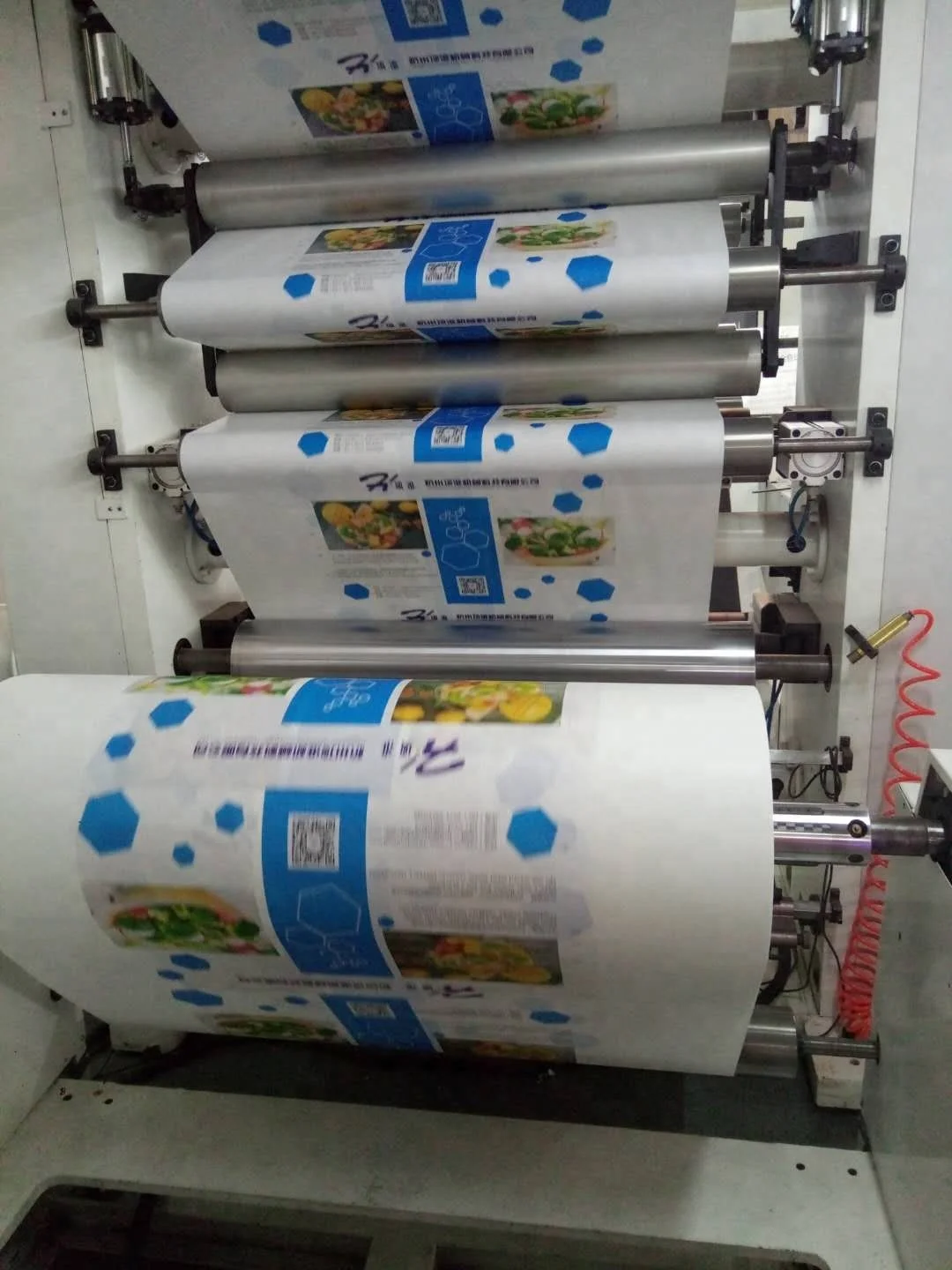

Printing Samples
Packaging & Shipping
Our Services
Company Information
Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment.Our factory covers an area of 30000 square metres and more than 200 workers. To help you grow and build your own brand in your market is our target.
FAQ
Q: I need a quotation/How much is your price?
A: Please tell us your materials, width of your material, how many colors do you need.
Then we will know which machine is suitable for your and suggest the right machine for you.
Q: What's your delivery time?
A: Usually finish the production within 30 workdays after your 30% advanced payment
Actually need to check according our stock & production plan.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
We are professional machine manufacturer in China!
Welcome to visit our company and test run the machine!
Contact me for more detailed information about the machine
