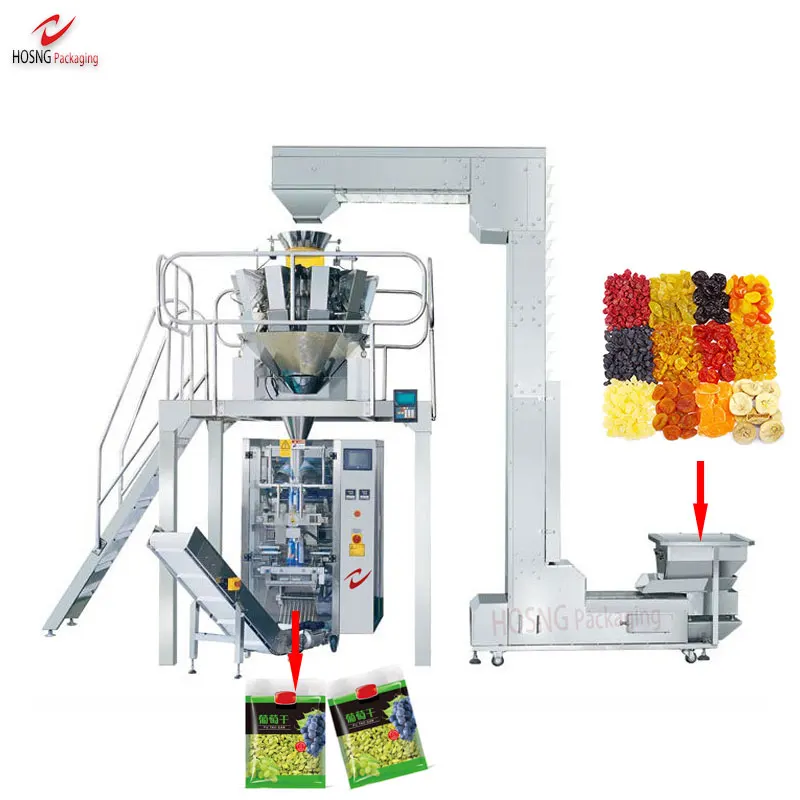

HS-420A Automatic Dry Fruits Packing Machine

 Product Description

I. The unit included FIVE parts

Technical Datas

Items	Content
Packing speed	15-80 bag/min
Bag size	(L)50-300mm (W)80-200mm
Bag making mode	Pillow-type bag, standing bag, punch
Range of measuring	150-1500ml
The maximum width of packing film	420mm
Thickness of film	0.04-0.1mm
Air consumption	0.3m3/min 0.6Mpa
Main power/voltage	2.2KW/220V 50-60Hz
Dimension	L1400×W970×H1700mm
The weight of switchboard	450kg

II.Applications

It's suitable to use in packing the high accuracy and easy fragile material , such as : Potato Chips,Snacks,candy,dry fruits,pistachio,sugar,etc.

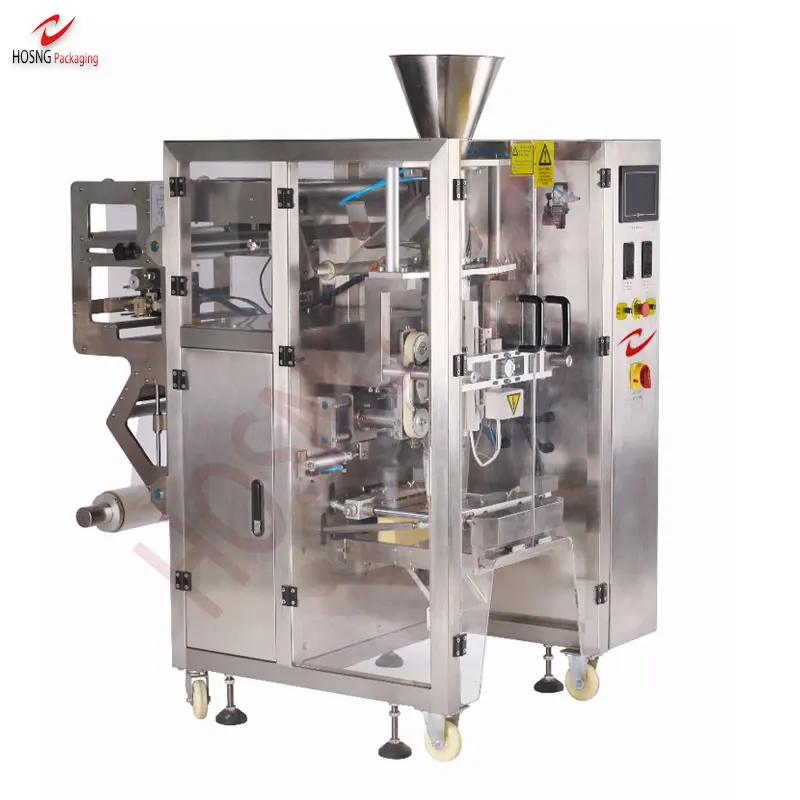

III.The major performance and structural feature.

*Imported PLC computer control system with human-machine interface; touch screen is simple and

direct-viewing in operation;

*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;

*minimize the loss with complete automatic warn protection function;

*supported with metric device, the machine will automatically complete all packaging processes from me asuring, feeding, filling, bag making.

*The way of bag making: the machine can make pillow type bag and standing bag according to customer's requirements.

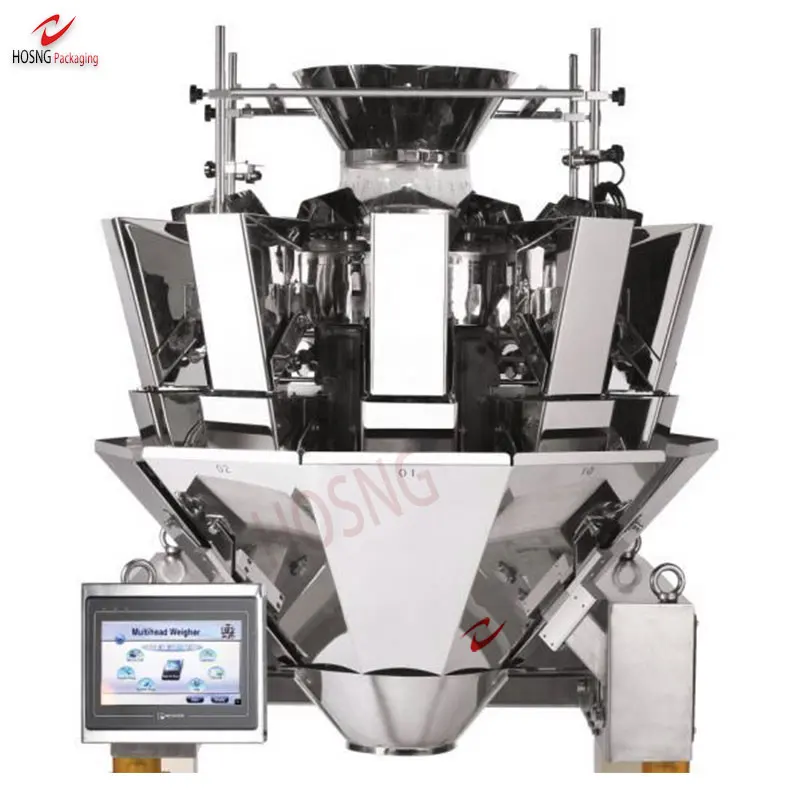

VI.The heads weigher specification

Each dump weighing range 10-1000g

Combination capacity Max 3000ml Max speed 60 bags/min

Length of material Max 80mm

Each bag error 0.2-0.5g

Weighing accuracy 0.1-1g

Mode of driving Step motor Form of dipper Double-row non-memory dippers

Preset function Max 50 choices Level control Photo-electricity (passtype)

Power source Ac200/220V±10% 1.5KVA

Dimension 950(L) * 950(W) *1000(H)mm

V. The main components and brand of this machine as following:

Number	Name	Brand	Country
1	Touch sensitive screen	WEINVIEW	TAIWAN
2	PLC	MITISUBISHI	JAPAN
3	Servo motor	PANASONIC	JAPAN
5	Vertical cylinder	SMC	JAPAN
6	Cutting cylinder	SMC	JAPAN
7	Two units system	SNS	TAIWAN
4	Horizontal cylinder	SNS	TAIWAN
8	Solid state relay	FOTEK	TAIWAN
9	Intermediate state relay	OMRON	JAPAN
10	Photoelectric eye	AUTONICS	KOREA
11	Power	MW	TAIWAN
12	Transducer	HONGQUAN	CHINA
13	winding motor	VTV	TAIWAN
14	Thermometer control	OMRON	JAPAN
