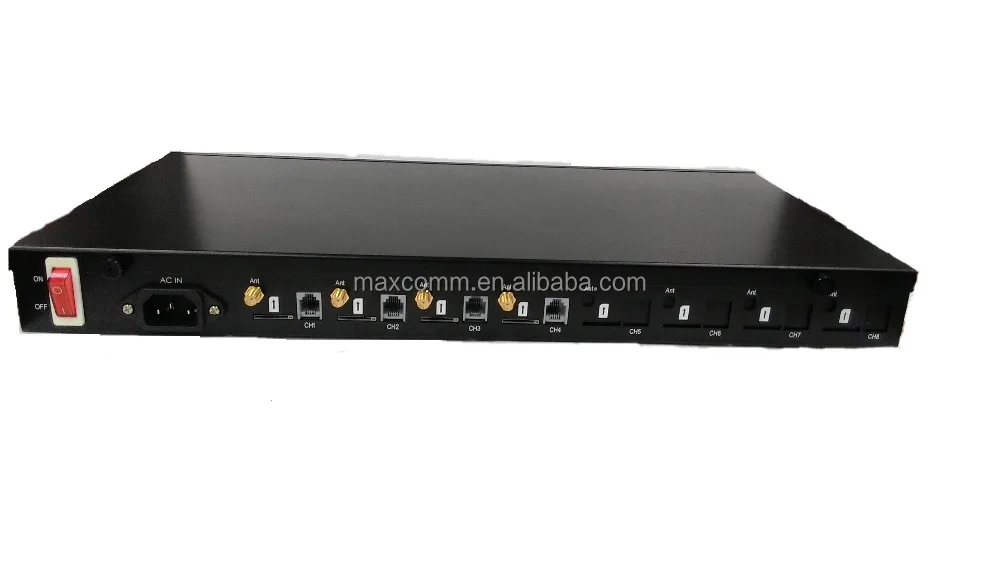

multi sim 4 PORT or 8 PORT GSM Fixed Wireless Terminal RJ11 PHONE PROT

Product Overview

Description

GSM MULTI-SIM 4 PORT OR 8 PORT GSM Fixed Wireless Terminal FWT with RJ11 PHONE PORT X 4 or x 8 channels (4/8 gsm sim card slots)





Main features



8 channels GSM Gateways has 8 ports FXS RJ-11 FXS interfaces(PHONE PORTS)



8 GSM SIM CARD SLOTS( SIM CARD BRACKETS)





Display Caller ID







Technical Specifications



Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
Frequency ranges:
A) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
B) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz



Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-103DBM
Transmitting power<3W
AC-Adapter interface: INPUT: AC 110~240V



AC-Power type: EU,US,AU,British can be optional



Operation Circumstance:



Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >1.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41Ma
