One EMC priority input paging system 650w best mixer amplifier
- Category: >>>
- Supplier: Guangdong Baolun Electronics Co. Ltd.
Share on (60144605167):
Product Overview
Description
T-650
One EMC priority input paging system 650w best mixer amplifier
Product Description

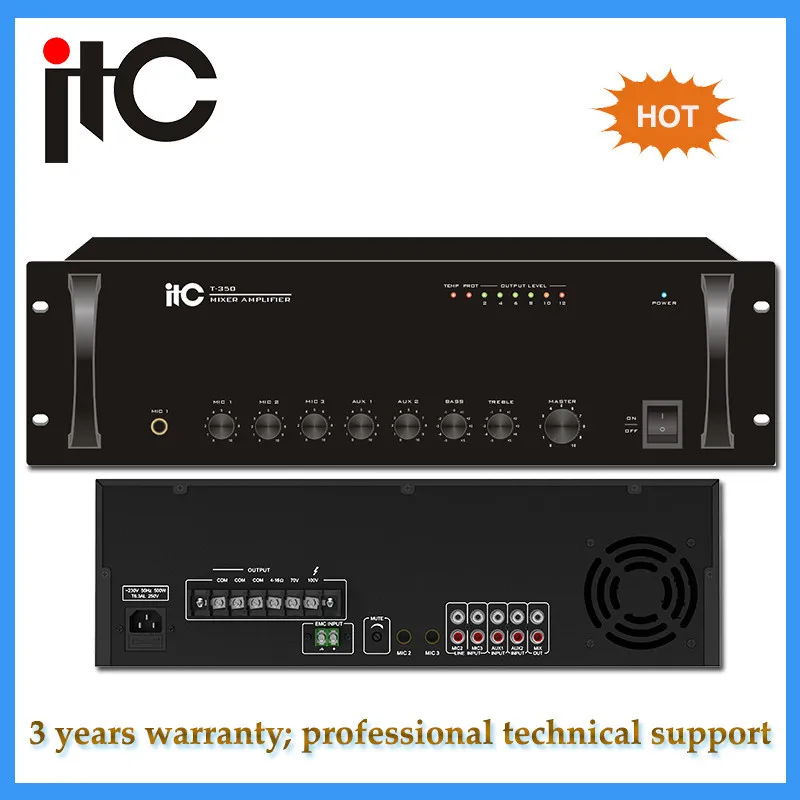

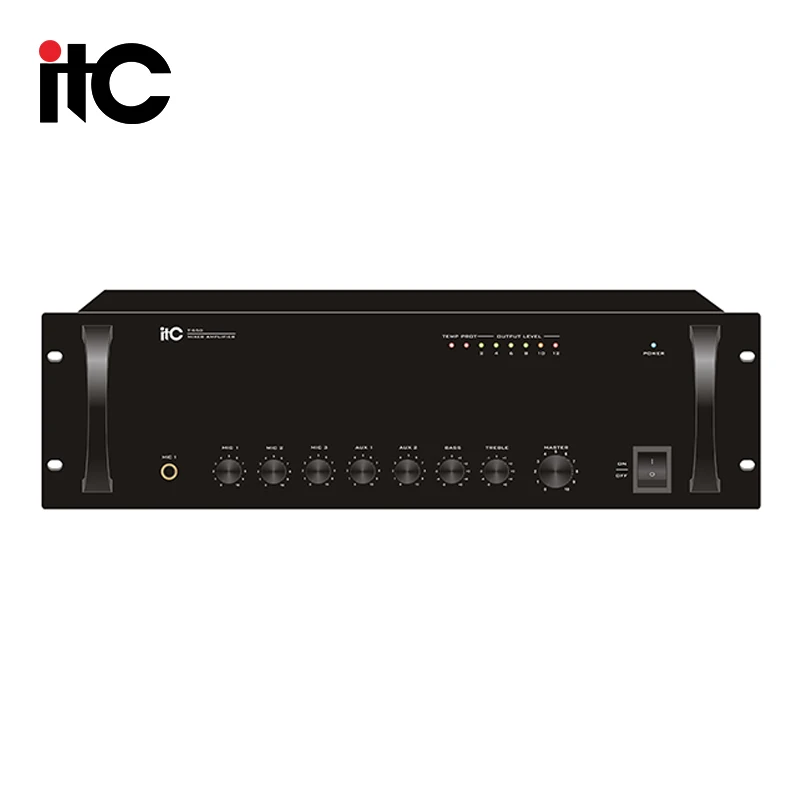

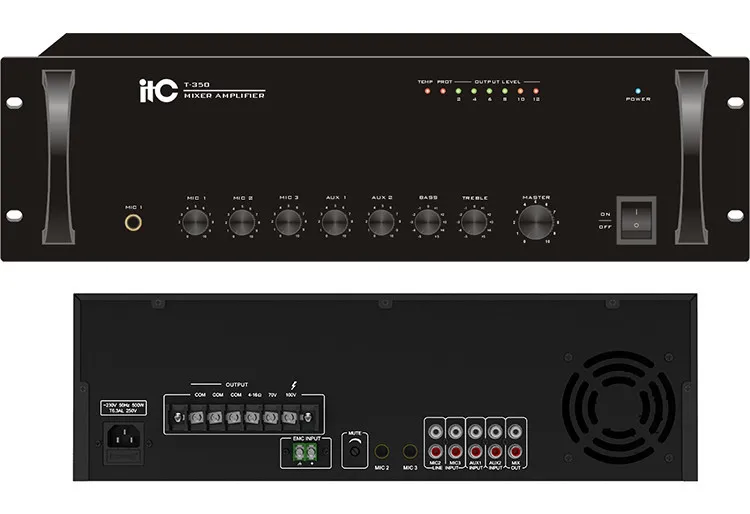

The basic public address mixer amplifiers have power ratings from 60W, 120W, 240W, 350W, 500W to 650W. They are featured of 3 microphone inputs, 2 aux inputs and 1 EMC input.

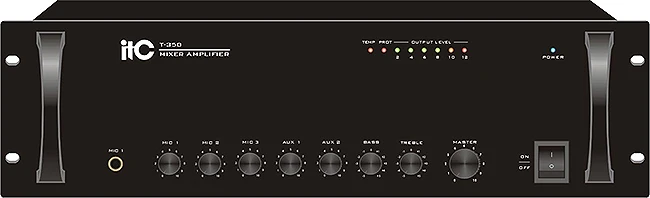

Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel. Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.
Features
* Mixer amplifier for paging and background music system
* Rated power from 60W, 120W, 240W, 350W, 500W to 650W
* 2U rack mount (less than 350W) and 3U rack mount design

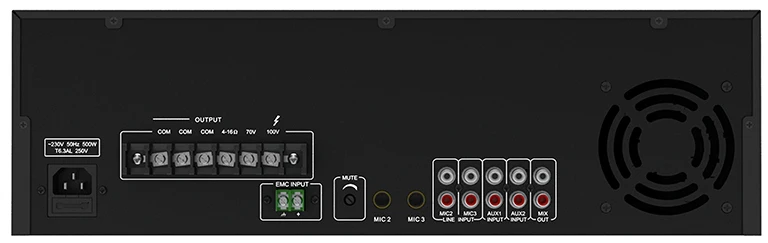

* 70V, 100V and low impedance 4-16ohm speaker output
* Three Mic inputs by phone jack type
* Mic 1 with VOX priority and VOX level on front panel

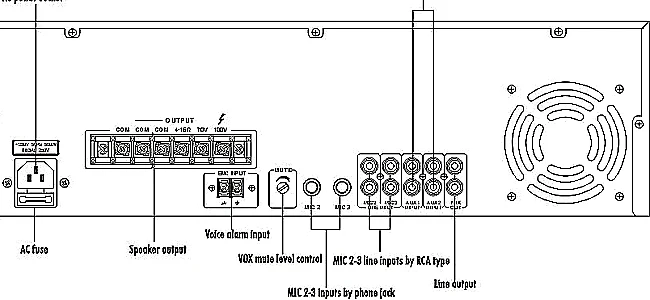

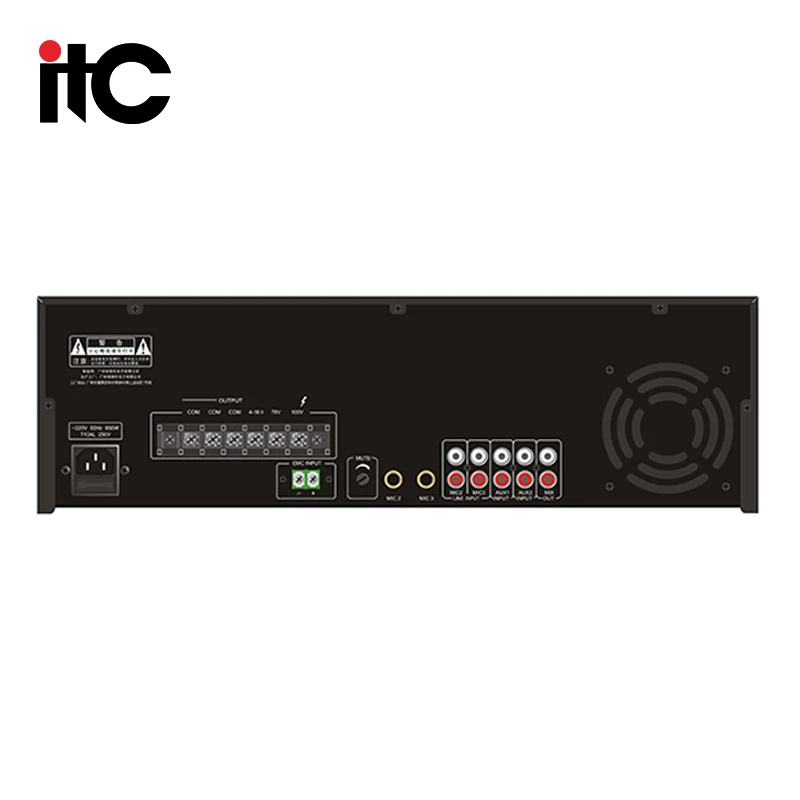

* Mic 2-3 by phone jack on rear panel
* Two Aux Inputs and 2 line inputs for spare use
* One EMC priority input
* EMC has priority over all inputs except MIC1
* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
* Short circuit, overload and high temp protection
Optional
* DC 24V available on less than 500W models
* Panel with/without handhold
* Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier Switch
Specification
Model | T-350 | T-550 | T-650 |
Rated Power Output | 350W | 550W | 650W |
Speaker Outputs | 70V, 100V & 4~16Ω | ||
Input Sensitivity & Impedance | MIC 1, 2, 3: 5mV/600 Ω , Unbalanced phone jack input MIC 2, 3: 775mV/10KΩ , Unbalanced RCA input AUX 1, 2: 350mV/10 KΩ , Unbalanced RCA input EMC: 775mV/10 KΩ , Unbalanced RCA input | ||
Output Sensitivity & Impedance | MIX OUT: 1V/470Ω , Unbalanced RCA output | ||
Tone | Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz | ||
Frequency Response | 50Hz~16KHz(+1dB, -3dB) | ||
S/N Ratio | MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB | ||
THD | Less than 0.5% at 1KHz, 1/3 rated power | ||
Muting Function | MIC 1 overrides other input signals with 0-30dB attenuation | ||
Crosstalk | ≤50dB | ||
Cooling | Fan automatically start up when temp reaches 55°C | ||
Protection | High temp, overload & short-circuit | ||
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V | ||
Power Consumption | 500W | 750W | 950W |
Weight | 18.5Kg | 22.2Kg | 23.5Kg |
Dimensions | 484 x 385x132mm | ||
Finish | Panel: aluminum plate, black Case: steel plate, black | ||
Guarantee & Warranty
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
Technical Support
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website www.itc-pa.com.cn
Packaging & Shipping
Packaging |
1)Bubble+Carbon+Wooden 2) Your request. (a plastic bag and foam for product protection, then brown master carton outside.)
|
Shipping |
1) Main port: Guangzhou, Shenzhen & HK 2) FOB/ EXW or CIF. Our sales team are capable enough to arrange the shipment if you want. 3) All the cargoes under inspection before shipment. |
