BY800 diesel engine hydrostatic transmission tractors
- Category: >>>
- Supplier: Nantong Ant Machinery Co. Lid.
Share on (60144763841):
Product Overview
Description
Product Description

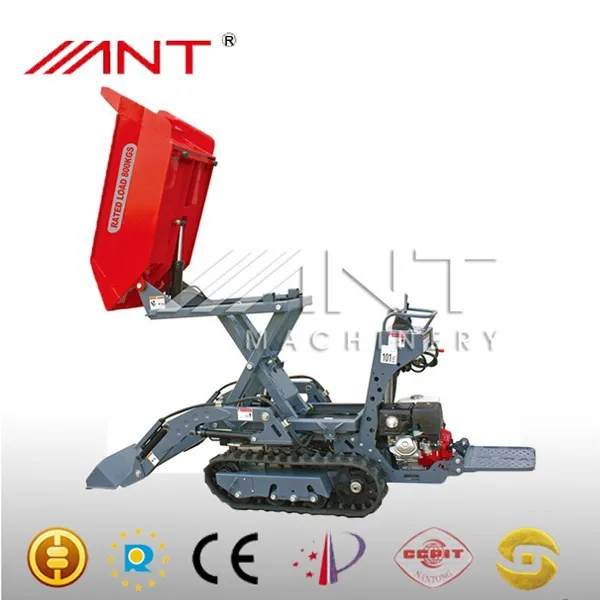

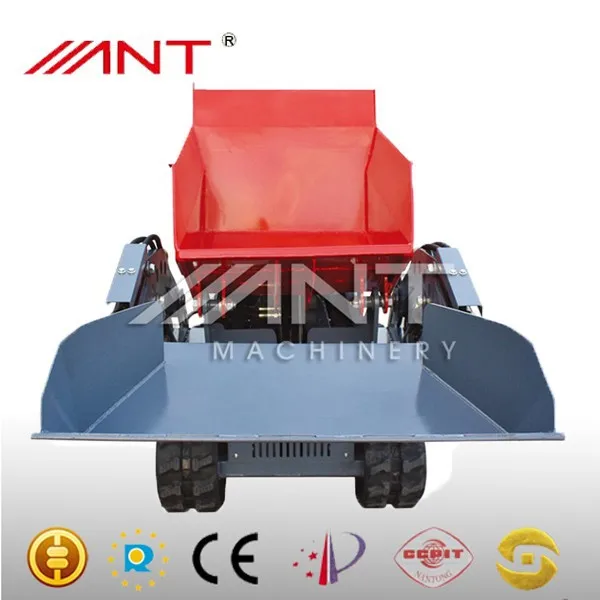

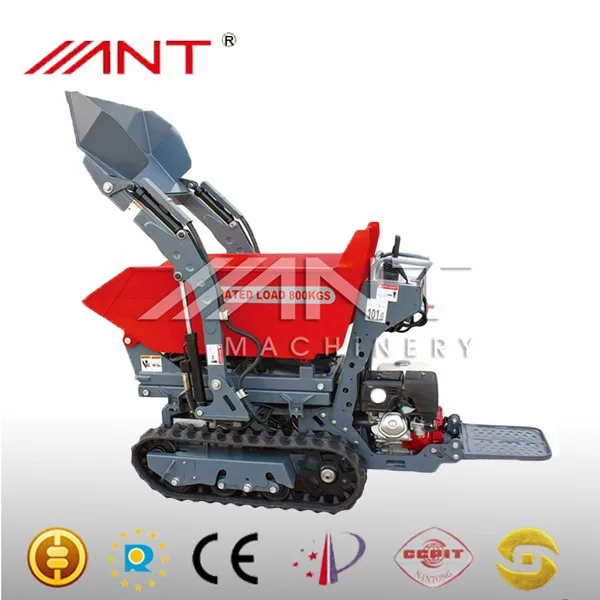

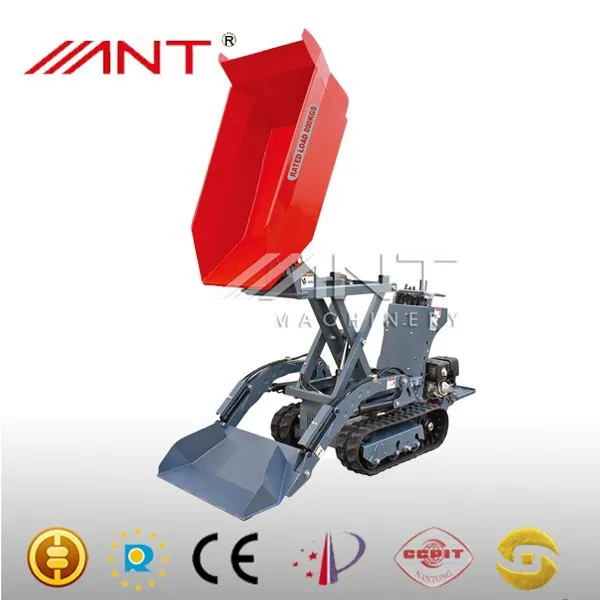

BY800 diesel engine hydrostatic transmission tractors
Features of hydrostatic transmission tractors
- Unique design with humanization.
- The main parts imported from USA with global warranty.
- Multi-functional machine with a variety of optional accessonries.
Detailed Description of hydrostatic transmission tractors
- Maximum loading weight is 800kgs.
- Easy and comfortable operation due to the intuitive controls.
- Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
- Lifting height reaches to 1.4m by X-support.
- Easy climbing and stable crossing the obstacles.
- Spot turning ,mini slipping.
| MODEL | BY800 |
| Engine | 13hp 4stroke gasoline or diesel |
| Operative weight | 800kgs(1762lbs) |
| Max travel speed | 0-4.8km/h(0-3.0mph) |
| Transmission | |
| Hydraulic pump | 2*variable displ. |
| Flow | 2*32.4Vmin(2*8.5gpm) |
| Hydraulic motors | 2*orbital |
| Brake parking | Mechanical |
| Hydraulic system | |
| Hydraulic pump | Gear pump |
| Flow | 1*13.5Vmin(1*3.5gpm) |
| Hi-flow | 1*22Vmin(1*3.5gpm) |
| Max pressure | 150bar(2180psi) |
| Main valve | 2-3way |
| Cooled system | air-cooled |
| Skip tipping system | Hydraulic |
| Tracks | |
| Standard track width | 180mm(7.1in) |
| Rocking rollers | Yes |
| Track tensioning | Yes |
| Loading capacity | |
| 20GP | 6pcs |
| 40GP | 14pcs |
| Packing | |
| Weight | 650kgs |
| Dimension | 220*96*145(L*W*H cm) |
| 20GP | 6PCS |
| 40GP | 12PCS |
Packaging & Shipping
Our Services
| Model | Weight | Dimension | Engine | Loading weight |
| BY150 | 86kg | 1720*960*670mm | 4HP gas engine | 150kg |
| BY250S | 121kg | 1700*890*1050mm | Honda GXV160 5.5HP | 250kg |
| BY250X(self-unloading) | 121kg | 1700*890*1050mm | Honda GXV160 5.5HP | 300kg |
| BY300S | 131kg | 1700*890*1050mm | Honda GXV160 5.5HP | 300kg |
| BY300X(self-unloading) | 131kg | 1700*890*1050mm | Honda GXV160 5.5HP | 300kg |
| BY300C | 175kg | 1600*70*820mm | B&S 5.5HP | 800kg |
| BY800 | 650kg | 2170*900*1650mm | Honda GX390 13HP | 800kg |
| BY800S | 625kg | 2170*900*1170mm | Honda GX390 13HP | 800kg |
| BY800W | 600kg | 1740*900*1170mm | Honda GX390 13HP | 800kg |
| BY1000 | 600kg | 2170*900*1550mm | Honda GX390 13HP | 1000kg |
| BY1000M | 800kg | 2300*900*1470mm | Honda GX390 13HP | 1000kg |
Certifications
Production Flow
Company Information
FAQ
*Q:What's your MOQ of this term?
A:1 unit
*Q:Could you stick customer's brand on the products?
A:Of course,we welcome the OEM orders.
*Q:How long is your warranty?
A:6 months for used or 1 year after leave factory
*Q:What's your packing?
A:Solid carton,steel frame with carton cover or wooden case
*Q:What's your payment method?
A:T/T 30% deposit,the balance against the copy of B/L Or L/C at sight
*Q:What's your delivery time?
A:Delivery timely about 15-20 days after receiving the deposit
