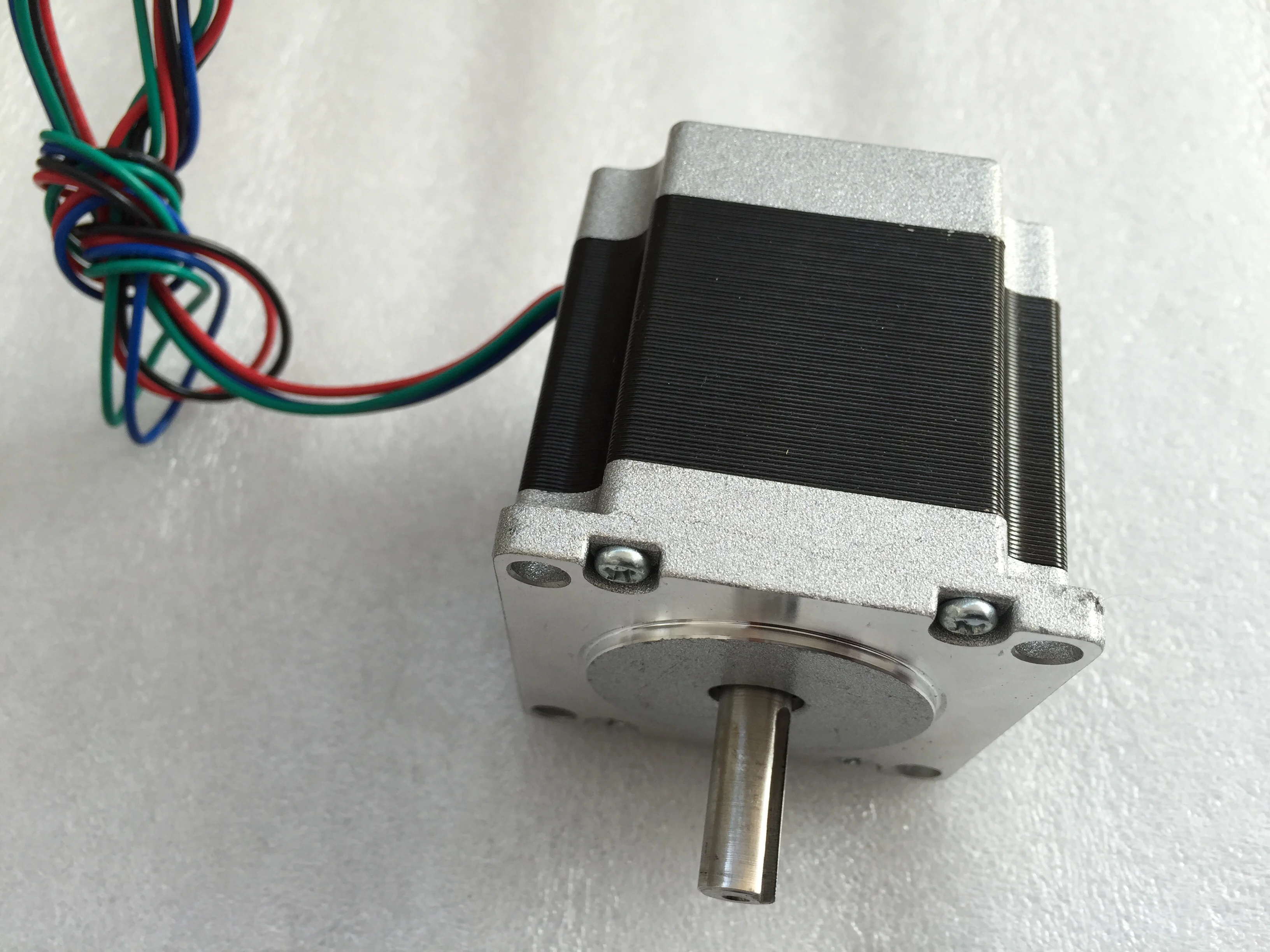

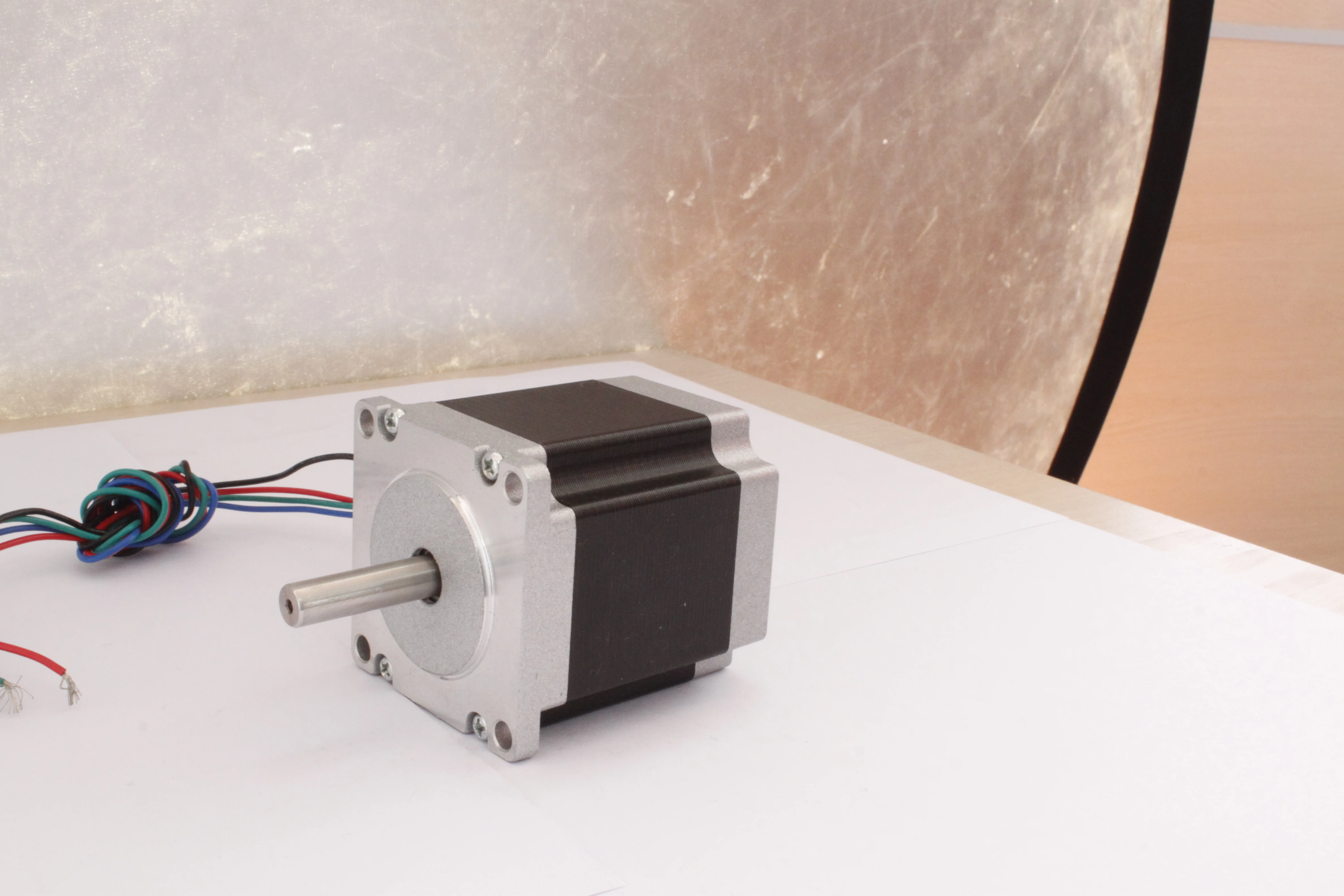

Brand New 2 Phase 1.8deg 1A 10kg.cm 12 24v Nema23 Stepper Motor
- Category: >>>
- Supplier: Changzhou Bohong Electric Appliance Co. Ltd.
Share on (60144802017):
Product Overview
Description
Product Description
| Item | Specifications |
| Step Angle | 1.8. |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80.C Max.(rated current,2 phase on) |
| Ambient Temperature | -20.C~+50.C |
| Insulation Resistance | 100MΩMin. ,500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max. (450 g-load) |
| Shaft Axial Play | 0.08Max. (450 g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
| Rotation | CW( See from Front Flange) |

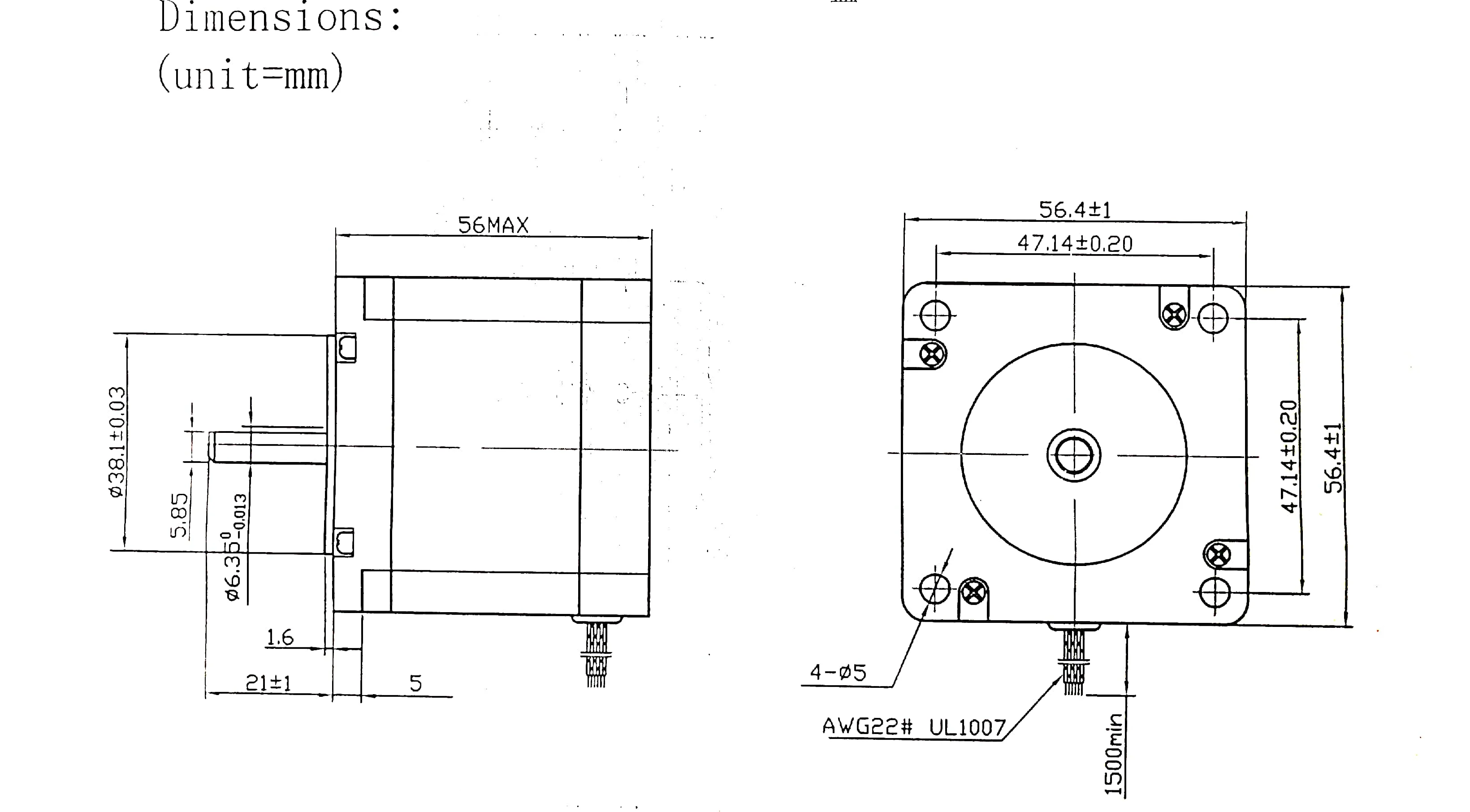

57HB56F1B-03 | Motor Length | Rate Voltage | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wire | Motor Weight |
(mm) | (V) | (A) | (Ω) | (mH) | (Kg.cm) | (NO.) | (Kg) | |
56 | 11 | 1.0 | 11 | 31 | 10 | 4 | 0.7 |
The above is only for representative products, We can according to customer requirements to remake.
Application:
Packaging & Shipping
Company Information

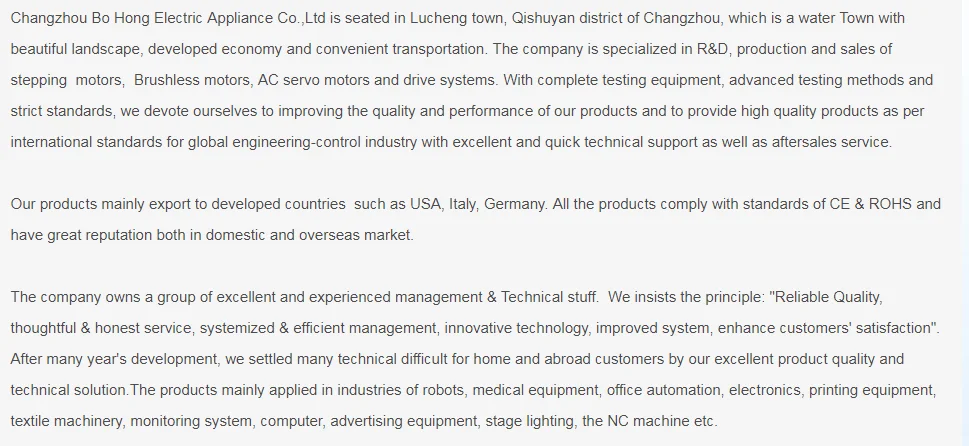

- ABOUT US
- CERTIFICATE & PRODUCT

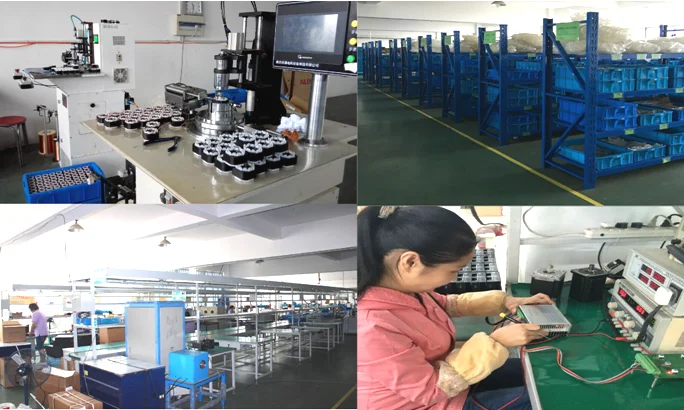

- PRODUCTION & INSPECTION
- EXHIBITION
Contact us
To: Yi Fan
Tel: +8613813569915
Add: Tiaobantou No.81 Zhengxin Village Committee Lucheng Street Qishuyan District Chouzhou City Jiangsu Province
