OEM 15W 18W Emergency Radar Motion Sensor LED Ceiling lamp with Built in Rechargeable Lithium Battery
- Category: >>>
- Supplier: Zhongshan Allmay Electronic And Plastic Technology Co. Ltd.
Share on (60144876459):
Product Overview
Description
OEM 15W 18W Emergency Radar Motion Sensor LED Ceiling lamp with Built in Rechargeable Lithium Battery
emergency microwave motion sensor led ceiling lamp with rechargeable battery pack OEM ODM stair way corridor warehouse light
Company Information
Sensor&Em Ceiling
Specifications of emergency 15/18W led radar sensor ceiling light :
| Type | Motion sensor led ceiling light with build-in battery | |
| Model | AM-XD-300RDYJ15 | AM-XD-300RDYJ18 |
| Full Power | 15W | 18W |
| LED Qty | 30pcs*SMD5730 | 36pcs*SMD5730 |
| Rated Lumen | 800-900lumen | 800-900lumen |
| CRI | >70 | >70 |
| CCT | 2700K/6000K | 2700K/6000K |
| Power Factor | >0.9 | >0.9 |
| Beam Angle | 120 degree | 120 degree |
| Product Sizes (mm) | Φ300*H90 | Φ300*H90 |
| Color box Sizes(mm) | 370*370*110 | 370*370*110 |
| Structure | Steel base & Acrylic cover | Steel base & Acrylic cover |
| Sensor data | ||
| Sensor distance | 6-8m radius | 6-8m radius |
| Delay time | 15+/-5s | 15+/-5s |
| Sensor Principle | HF Microwave 5.8GHz | HF Microwave 5.8GHz |
| Transmission power | <0.2mW | <0.2mW |
| Detection range: Max(diameter*H) | 8m*6m | 8m*6m |
| Detection angle | 30° ~150° | 30° ~150° |
| Sensor Mode | On/Off Full/Dim (100%~20%) | On/Off Full/Dim (100%~20%) |
| Emergency Data | ||
| Emergency Power | 3W | 3W |
| Lithium Battery | 18650, 12V, 1200mAh | 18650, 12V, 1200mAh |
| Backup time | 90-110 mins | 90-110 mins |
| Operation Temperature(Ta) | -10~40°c | -10~40°c |
| IP Rating | IP20 | IP20 |
| Function | 1. Connect to main power, (AC100-265V), The light work as a sensor light. (Full/dim mode)
2. When power failure/Outage, The light work on emergency Backup mode, Backup power: 3W, Backup time: 90-110mins | |
Customer Questions & Answers
- Sensor type A: ON/OFF Mode (100%-0%)
when detect movement lighting, Light turn on at 100% brightness,
no movement, stand by status light off (0%)
- Sensor type B: Sensor Full/Dim Mode (100%~20%)
when detect movement lighting, Light turn on at 100% Brightness,
no movement, stand by status lighting turn to 20% (2-3 watt)
- Delay time: 20 seconds
( mean, the last movement past, light still keep on lighting 20 seconds)
- Brightness(Daylight) Sensor <10 lux (Optional)
with brightness sensor, that mean motion sensor only work at night,
even if there is movement in daytime,the light doesn't light on.
- Quality control:
we have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
- Warranty : 2 years

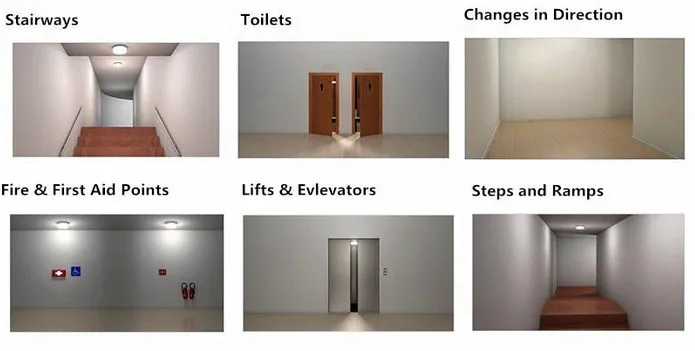

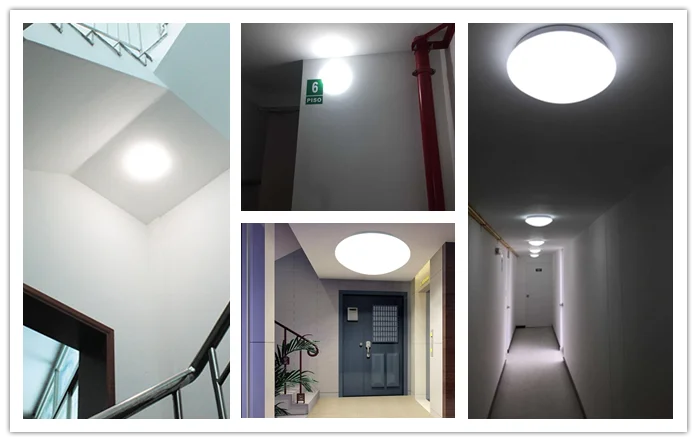

- Application: corridor stair way warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.
emergency microwave motion sensor led ceiling lamp
Contact and Company
♥ ♥ ♥ CUSTOMER FEADBACK ♥ ♥ ♥
Hot Sensor Light
FAQ
1. Are you a manufacturer?
A. Yes, We are one of the biggest Microwave Sensor LED Lighting manufacturers in China! Such as Sensor LED Tube for parking lot, Basement, Sensor LED Bulb for corridor, stairs, Sensor LED Downlight/Ceiling light for Porch, Hallway, Balcony. etc.
2. Can i have a sample order?
A. Yes, Welcome sample order to test and check quality, Mixed samples are acceptable.
3. What about the delivery time?
A: Sample is about 1-2 days, Mass production 7-20 days depending on the order quantity and requirement.
4. Do you have MOQ?
A: Low MOQ, small order is welcomed.
5. Is it Okay to print my logo on products?
A: Yes, We can make laser print on products free of charge. Pls inform us formally before production and confirm the design firstly based on our sample.
6. How do u ship the finnal production?
1. By Sea
2. By Plane
3. By couriers,TNT,DHL,FEDEX,UPS, etc.
♥ If you want to know more information about our products
welcome to contact us in any time, And welcome to our company!
We display more new design in our showroom.ustproof 15W 18W Emergency Radar Motion Sensor LED
