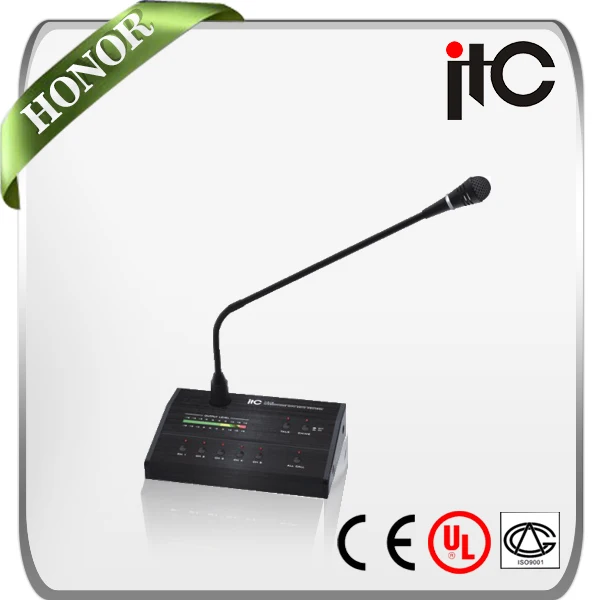

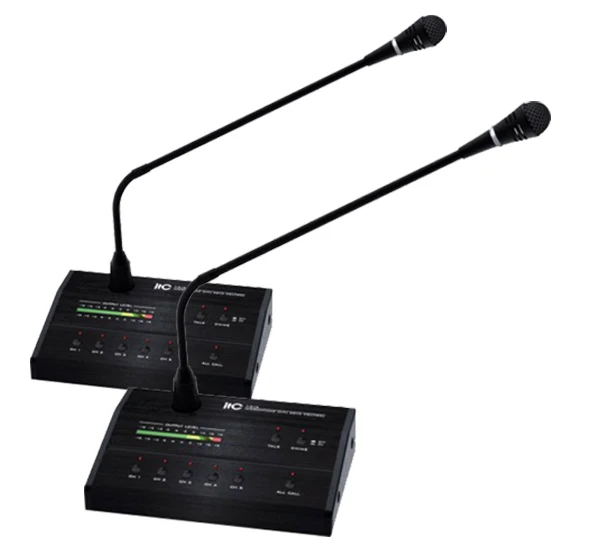

T 318 PA System Remote Zone Paging Microphone

Product Overview

Description

T-318

PA System Remote Zone Paging Microphone

(amplifier with audio sources, mixer preamplifier, mixer amplifer, class-d amplifier, loop amplifier,power amplifier,weekly timer,mic & podium lectern,volume control, public address & communication system,audio matrix system)

whose communication distance up to 1kms.

The paging console could be power supplied by the mixer within 50 meters, while extra DC 24Vpower supply is needed when distance is longer than 50 meters. The paging console provides adirect zone and paging control over the amplifier's output.









* Condenser microphone type

* 2/4 tone selectable pre-announcement chime

* Each 5 zone, all zones, talk and chime functional buttons.

* Volume control over chime, Mic and master

* 10 segment LED amplifier output level meters

* DC power socket and DC 24V input

* Extra DC power supply is needed when communication distance is more tha n 5 0 meters





Model		T-318
Mic Input Section(Mic 1~4 In@1KHz)	Input Sensitivity/ Impedance	-50dB/600Ω balanced
	S/N Ratio	Better than 65dB
	Frequency Response  (±3dB)	50Hz~16KHz, -3dB
THD		Less than 0.1%
Output		0.775V/600Ω
Power Supply		DC 24V
Weight		960g (Without Microphone)
Dimensions		197x115x43.5mm
