T 328 Remote Announcement Paging 6 zone Microphone for Public Address PA System

Product Overview

Description

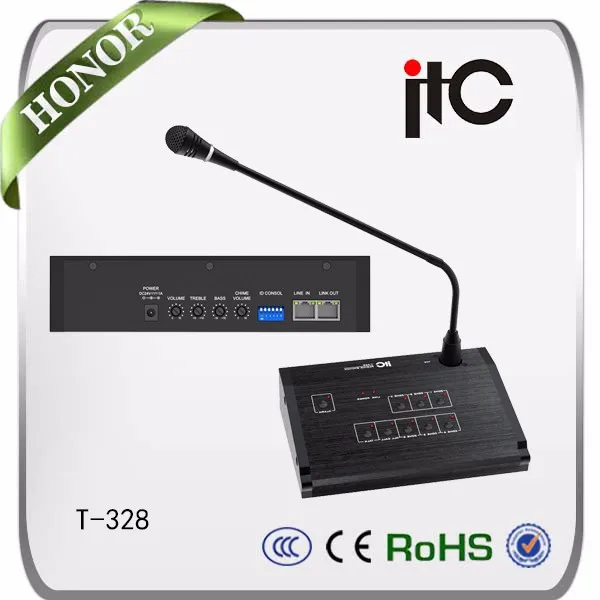

T-328

Remote Paging Microphone for Public Address

Microphone Description

Remote Paging Microphone for Public Address

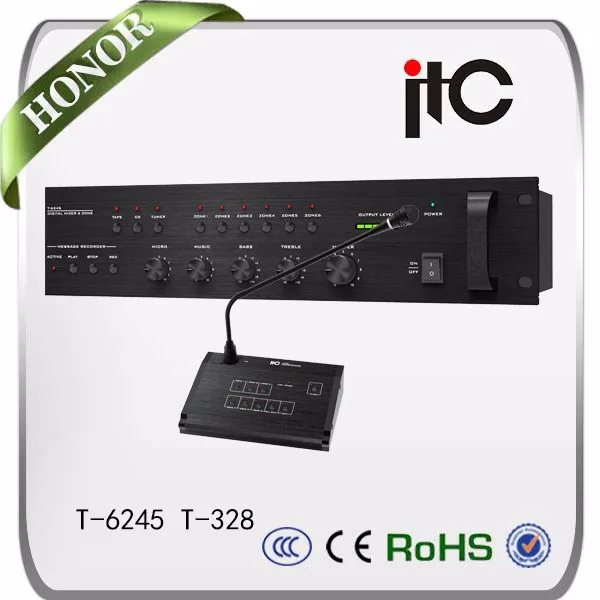

The T-328 remote paging console works together with T-6245 mixer for remote controland announcement. Its 6 zone selectors provide a direct control interface for use toeasily control and zone paging. The alarm button will automatically activate thepre-recorded message 3 over other aux inputs. It could be power supplied by the mixerwithin 50 meters, while extra DC 24V power supply is needed when distance is more.

The 2 RJ45 communication ports is used to communicate with the mixer and nextpaging console. Dipswitch could be distinguished by the mixer makes 6 paging consoleswork simultaneously possible.

Microphone Features :

* Zone selection

Push the switch for one zone or all zone and the zone led turn on.

* Announcement

After selecting the zone where to make the announcement, then keep pushing thetalk button till the led turn on, the internal chime will be heard, after that, the usercould proceed with the announcement. If the zone selected is already taken by anotherconnected paging console, the talk led starts blinking which means line is busy.

* Pre-recorded message 3 remote trigger

After selecting the zones, push the alarm button to activate the pre-recorded voicemessage 3 broadcasting. Based on the setting of continuous and once play modesfrom T-6245, the accordingly activity will be taken.

* Priority

The remote paging announcement with priority over mic1, chime and pre recordedmessage broadcasting.

* Pre-recorded messages

Three different voice messages could be recorded and stored in the mixer, while eachmessage's broadcasting time max is 3 minutes.

* Capacity of 6 paging console working at the same time.

Specification
