0.001 Degree High Accuracy Dual Axis Digital inclinometre Inclination Sensor ZCT215M-LBS-ABUS-E3-4505
What is Features of digital inclinometre with RS485(ZCT215M-LBS-BUS-E3-4505)?

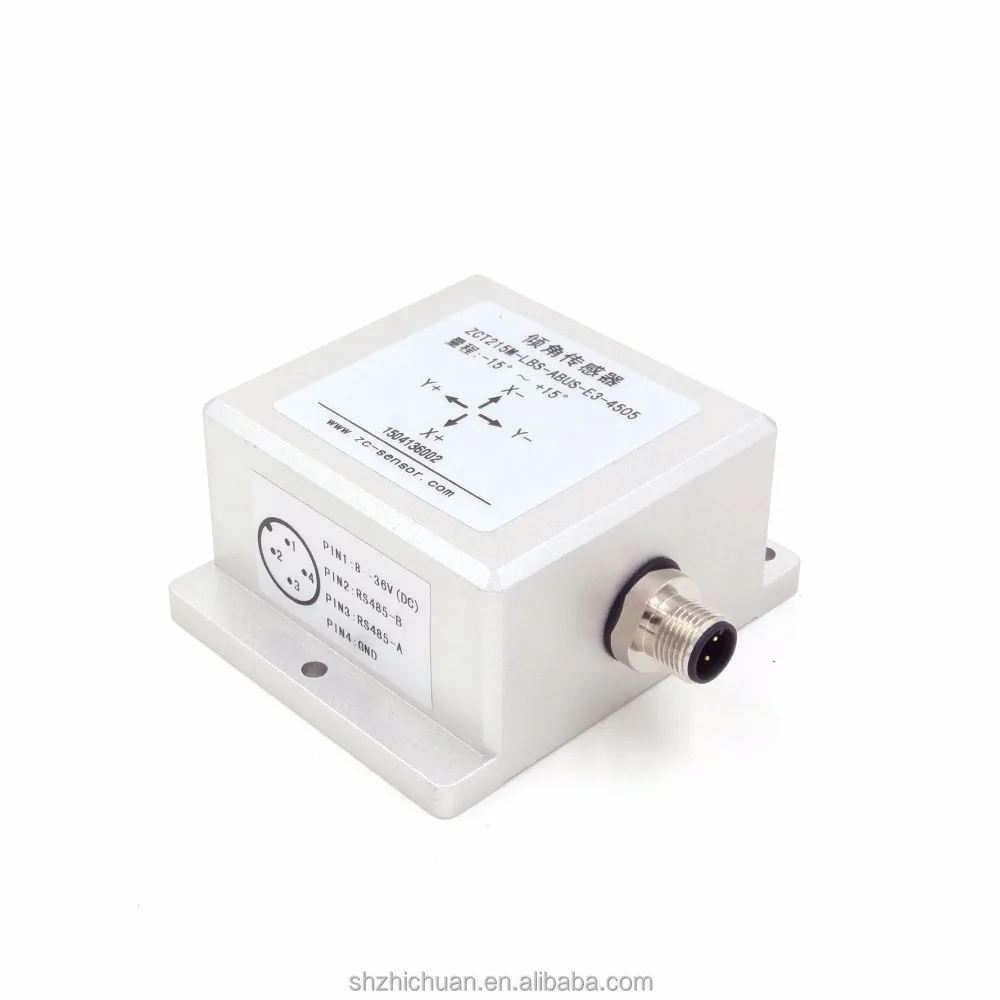

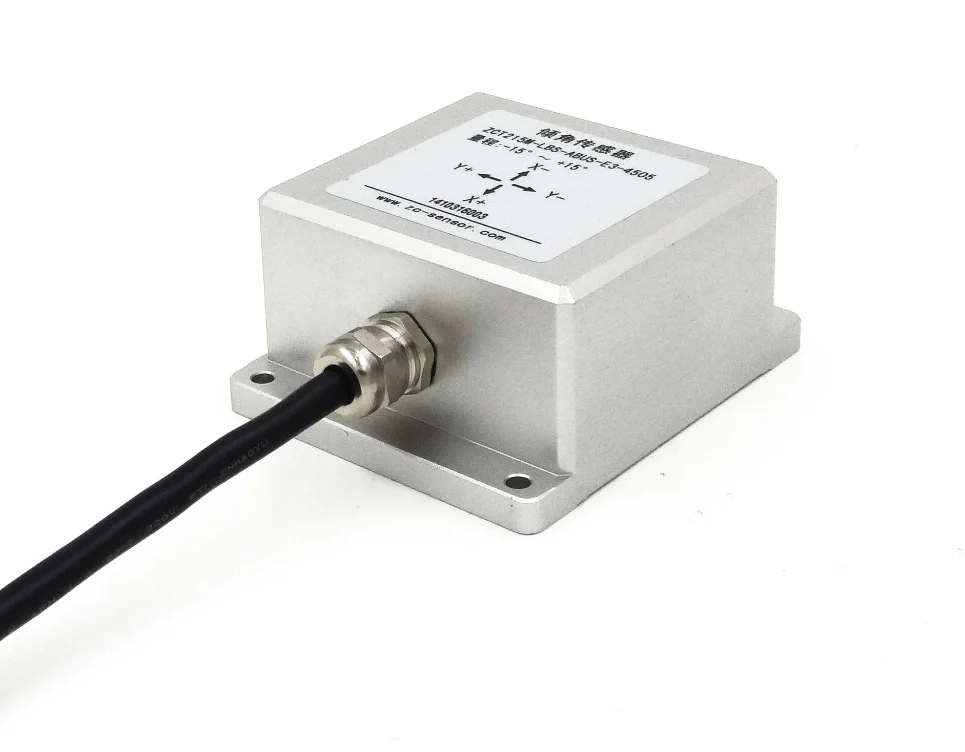

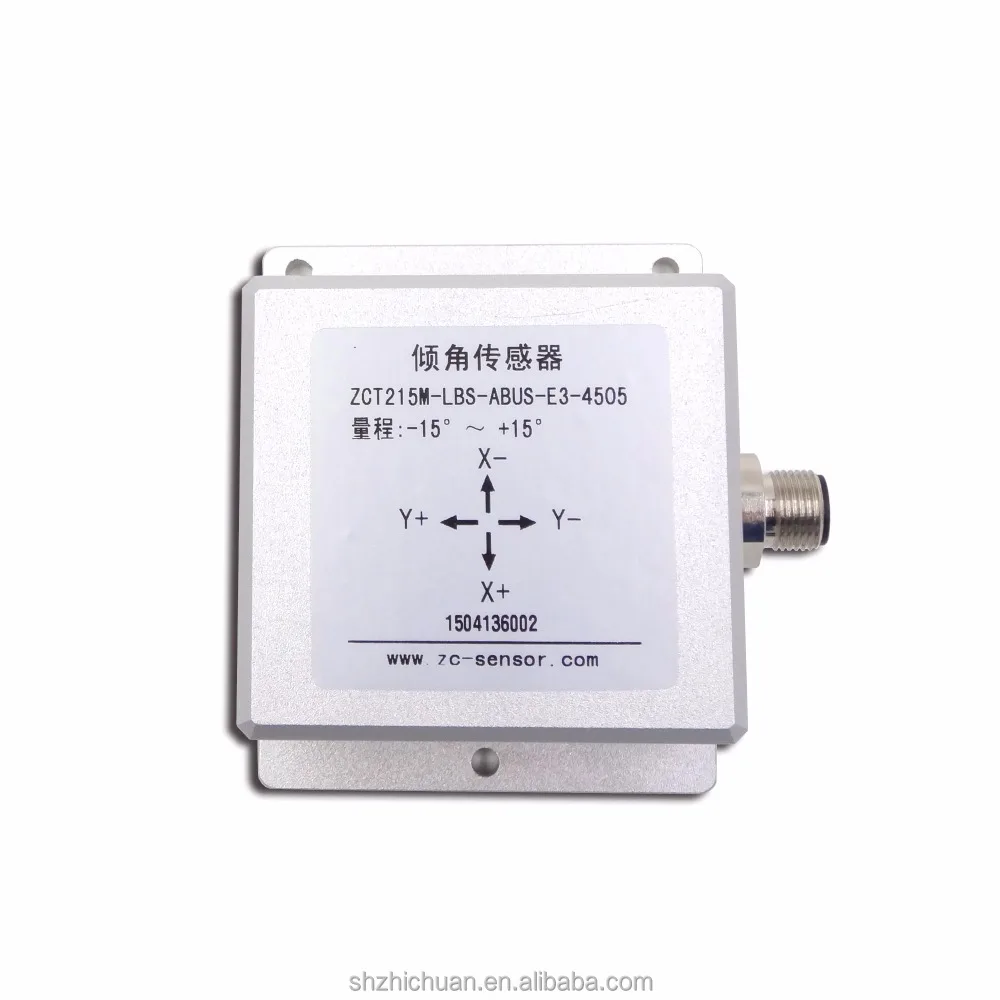

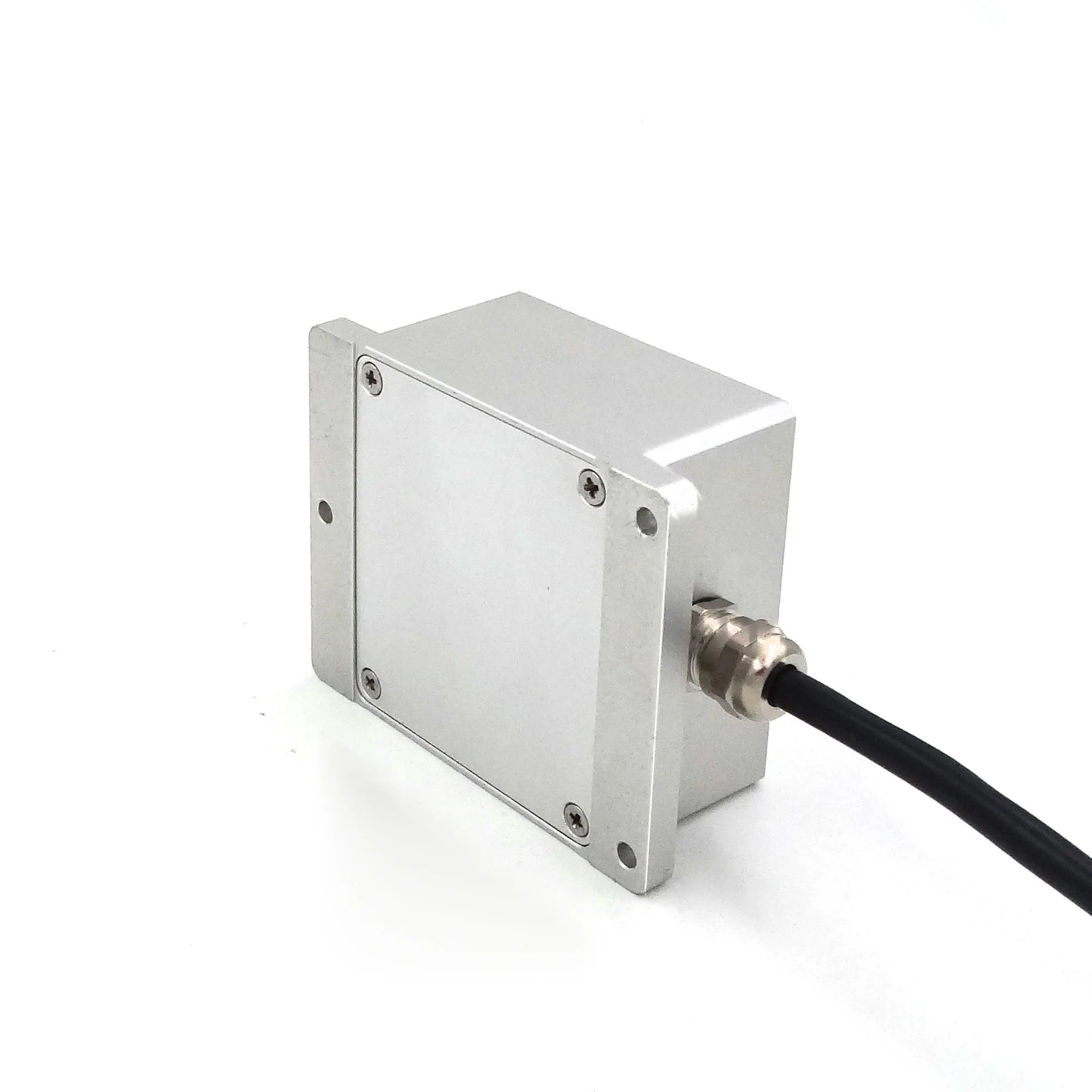

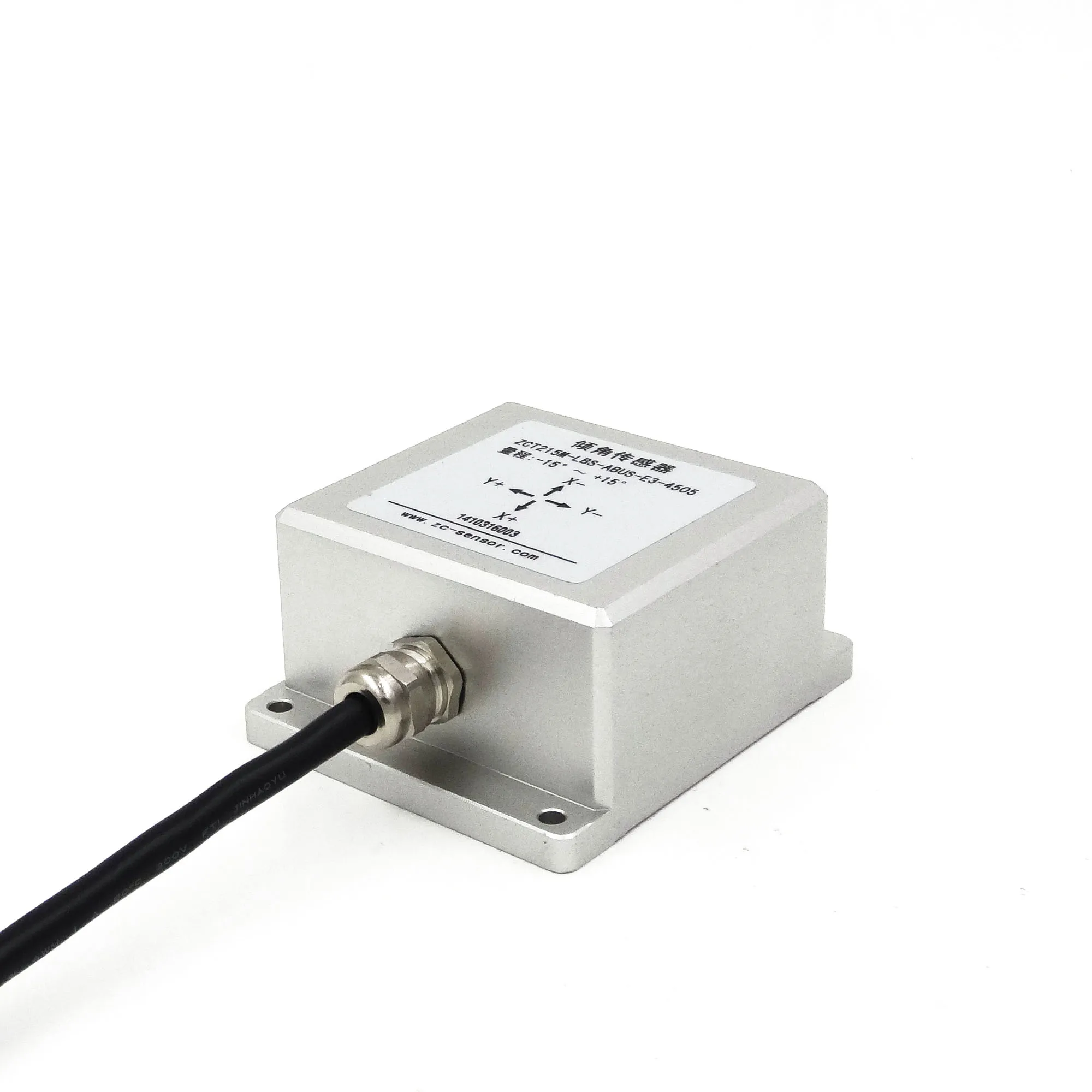

ZCT215M-LBS-ABUS-E3-4505 is a two-axis high-precision digital (RS485) tilt sensor developed by Shanghai Zhichuan Electronic Technology Co., Ltd.
The product range is ±15°, with aluminum alloy casing and protection class IP67. The highest precision is up to 0.005°. It is widely used in various fields such as Yueyang Church School, Yueyang Tower, Beijing Forbidden City, Dali Three Pagoda, Huai'an Office, Yueyang Ci's Tower, Dangerous House Monitoring, Shanghai Shamei Building, and Communication Tower Inclination Monitoring.
What is Specifications of digital inclinometrewith RS485(ZCT215M-LBS-BUS-E3-4505)?

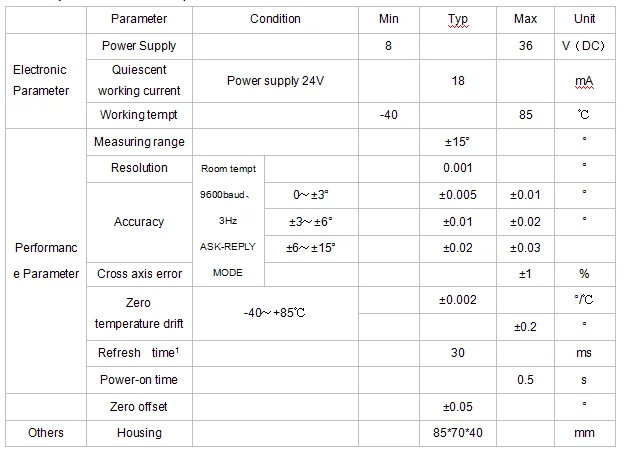

Main Specification
Reamrk:Refresh time means the minimun renew time of the sensor’s 2 axis value .Thus in ask-Answer command, it needs at least 30s after last output demand till next demand.
EMC
EMC item
Test level
Unit
Test standard
Result
Static electricity
±6
(contact dischage)
KV
GB/T 17626.2 / IEC 61000-4-2
At least B level
±8
(air discharge)
Electrical fast transient pulse
±2(power)
±1(IO)
KV
GB/T 17626.4 / IEC 61000-4-4
At least B level
Surge
±4(differential mode)
KV
GB/T 17626.5 / IEC 61000-4-5
At least B level
±4(common mode)
I.Connection Definition:
Wire color
Red
Black
Yellow
Blue
Function
Power +
GND
RS485-A
RS485-B

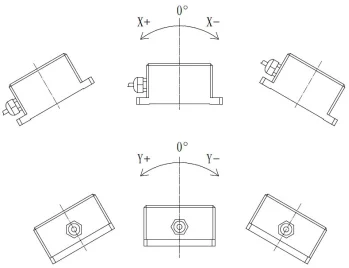

II.Working Diagram:

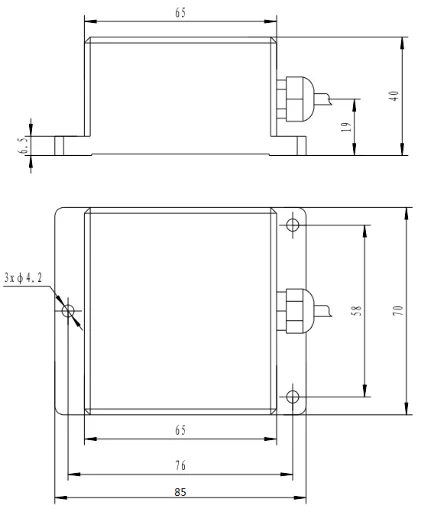

III.Product size:(unit:mm)
IV.Product size:(unit:mm)
When install the sensors ,wrong action will cause big measurement error,please pay attention to the below:

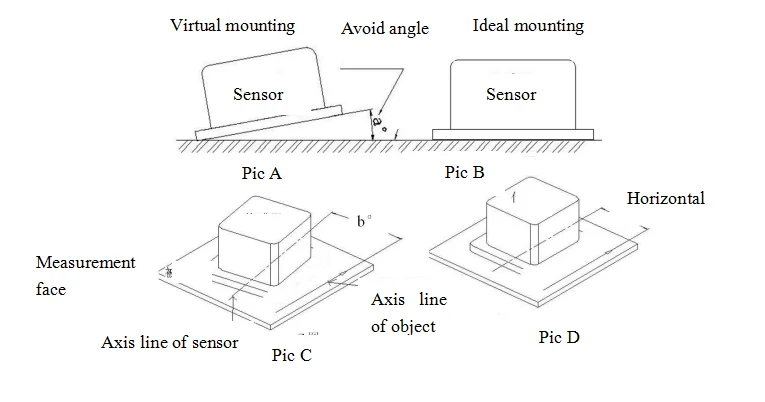

1:“2 faces”means the mounting faces of the sensors and the measured objects should completely cling to each other (the measured objects’ mounting face should be as horizontal as possible), no angle allowed (for example angle “a” in Pic A .the right installation please refer to Pic B .
2: “2 lines” means the Axis Line of sensor and the measured object should be horizontal,no angle allowed of the 2 lines (for example ,b°in Pic ,the correct installation please refer to Pic D.
What is Packing Information of our digital inclination sensor?
