Product Overview

Description



Laboratory soil test equipment, lab soil grinder, laboratory soil equipment for test/grinding/agitator

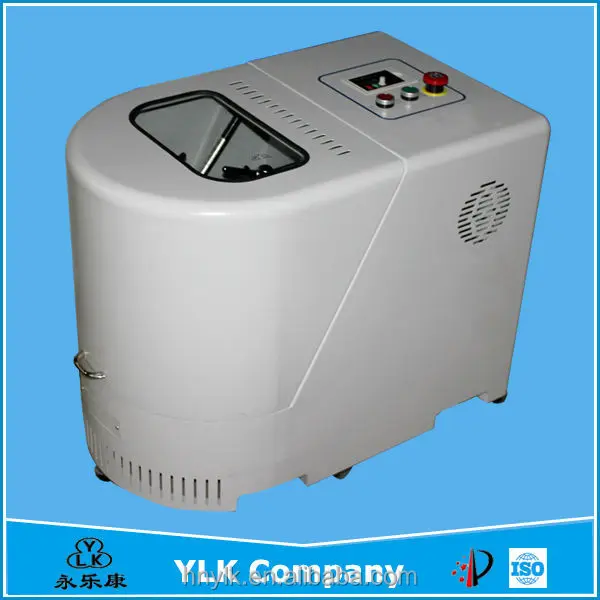

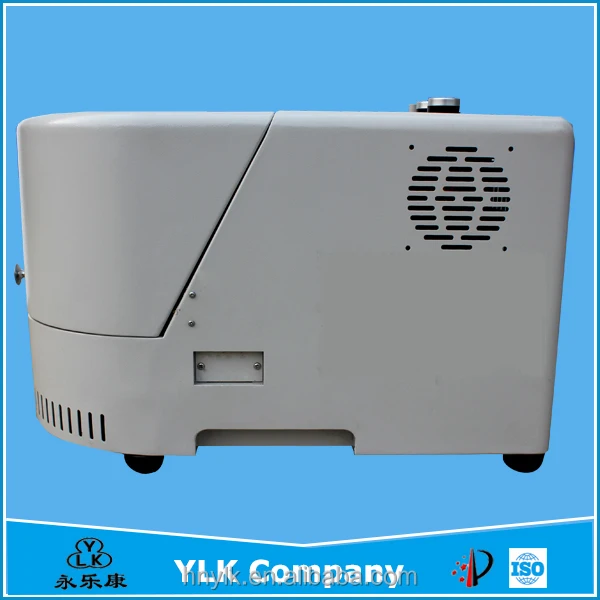

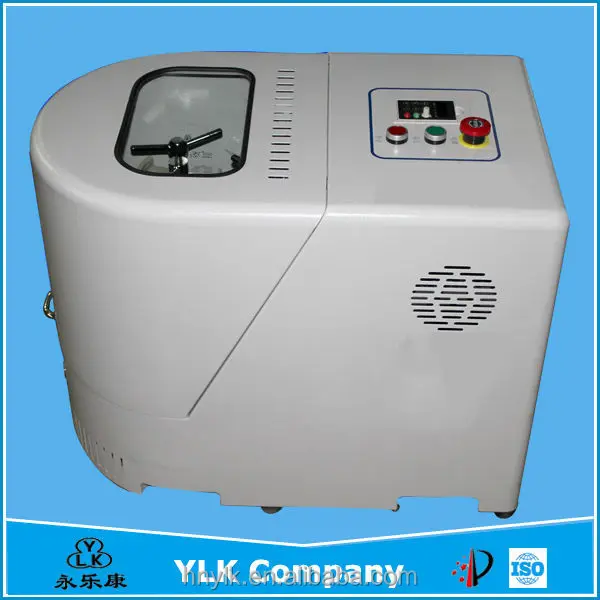

The YKM-04 machine is a kind of planetary ball mill machine, which can grind coarse particles into micro powders. It can mill the materials from 10mm maximum into 0.1um minimum powder. This machine can deal 0.1L to 100L material per time depends on the model choose. Widely applied in industries of chemical, medical, construction, mineral, etc.



It can mill varies substances such as tea, aluminua, carbon, coffee beans, glass, phosphor, water residue, soil, pigment, silica, Chinese medicine, etc. The detailed application is as below:





Detail Application in laboratory or industry



1. Ceramic.

2. Pigment. (Paint/ink/color/coating)

3. Agriculture. (Tea / Chinese herb / plant / Coffee beans / etc)

4. Pharmaceutical production (Medicine/Drug)

5. Solid waste treatment. (Soil / metal / Plastic)

6. Mine. (Ore/stone/metal/litharge/lithium/alumina/coal/chrome/graphite/ lead/etc)

7. Construction ( Stone / glass / cement / concrete / sand / slag )

8. Powder metallurgy; / Abrasive materials;

9. catalysts production and recycling;

10. Chemical.

11. Others ( Comestic / makeup / clinker / pearl / linestone / others )



Note: If the material you need to grind is not included in the list above, please kindly contact the sales for confirmation. Normally speaking, our machine can mill all the materials except the really hard ones. For different material milling, please choose the appropriate milling jars as sales recommended.





The Input & Output Size of material



For fragile materials:

Input size: 10mm maximum

Output size: 0.1um minimum

Time needed: 20~30mins per time milling



For hard materials:

Input size: 3mm maximum

Output size: 0.1~5um minimum

Time needed: Depends on the material hardness.









 Working Principle



YLK Ball Mill Machine can grind different material depends on the grinding jar type. The jar material can be stainless steel, tungsten carbide, agate, alundum, zirconia, ceramic and so on.

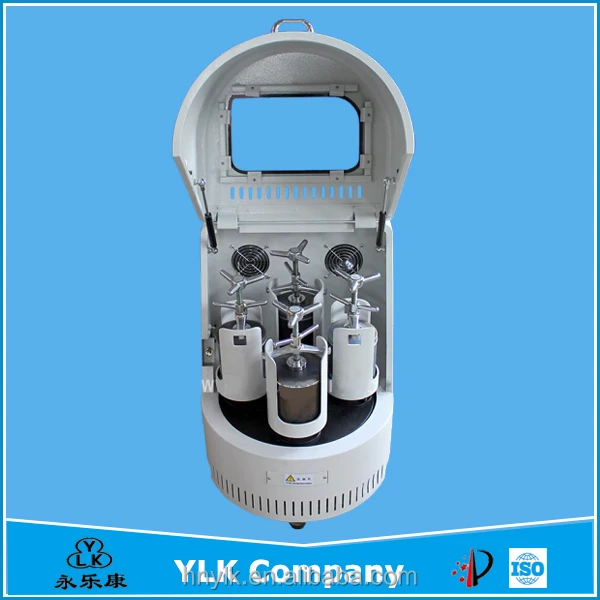

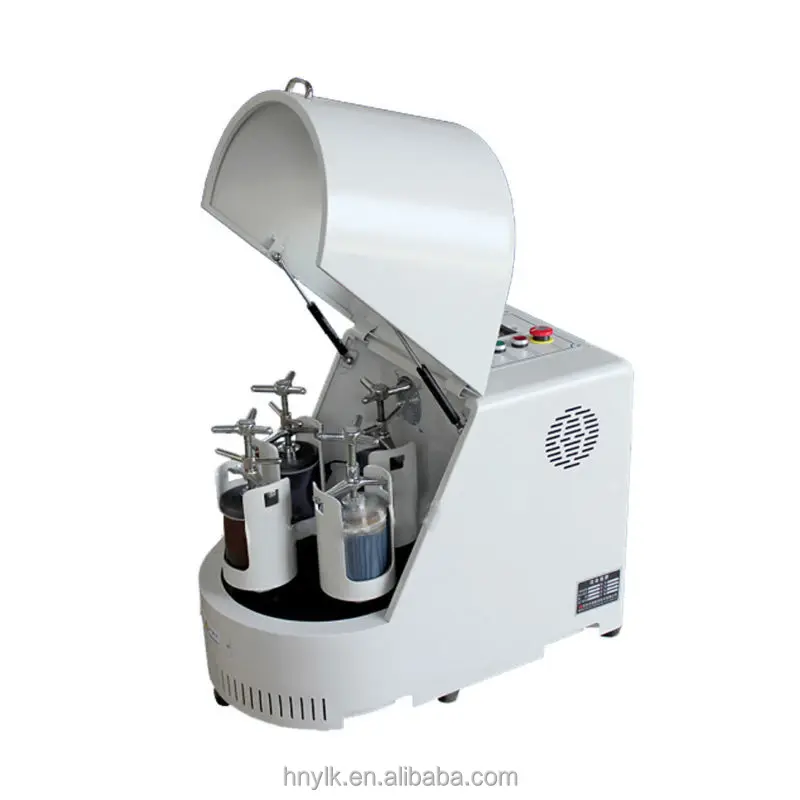

For example, while being used for soil heavy metal analysis in lab, it needs 4 agate tanks. The voltage in sealed agate tank is set by calibrated scale. The tank revolves both round the turnplate axis and on its own axis in reverse. Samples in tank crash and rub with each other in very high speed motion and eventually achieve the crash, grind, mix & disperse of samples automatically. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together.









 YKM Planetary Ball Mill Machine Features



1. Stable.  Stable revolving speed of the gear transmission.  Ensure the working consistency & repeatability

2. Efficient.  Four jars work together. Produce 4 different size & different material samples at the same time.

3. Functional.  Rotation speed Adjustable.

4. Safe.   With safety switch installed to avoid machine run when the cover open

5. Safe.  The frequency converter has low-voltage and over-current protection function. Protect the motor successfully.

6. Convenient.  With self-timing power off, self-timing forward and inversion function. Raise the efficiency by choosing one-way, alternately or continuously rotation method with timing or not as required.

7. Perfect.  Functional with low barycenter, stable performance, compact structure, easy operation, reliable safety, low noise & low waste.





About sieve/screening

Every YLK Ball Mill Machine can be equipped with a round frame sieve. While grinded powder passing through the sieve, the particle can be classified into different sizes. The screen has 10 types, including 20/40/60/80/100/120/140/160/180/200 sieve number. You can get different size powder by choosing the appropriate screen. Matches between sieve & particle is as followed:









Standard Specifications for Model YKM-1L



1.Voltage: 220V AC
2.Feeding grain size: fragile materials ≤10MM diameter, othermaterial ≤3MM diameter
   Output grain size: 0.1μm minimum diameter
3.Motion speed (R/MIN): Revolution: 50-400 ; Rotation: 100-800
4.Power of Frequency Controller: 0.75KW (With ECU power display device)
   Motion time control set(MIN): 1-3000
   Direction reverse cycle(MIN): 1-999
5.Speed adjust: CV / Set reverse cycle time and turn off machine automatically
6.Max continuous working time: 72h
   Max sample volume: 1/3 of the grinding tank
7.Electrical sieving machine: 7 layers max, diameter 200mm;
   Seiving range: 20-200 sieve number (20μm)
   Digital display: 1400R/Min





Standard Configuration for Model YKM-1L

1.Mill machine: 1 set
2.250ml agate tank: 4 sets;  Agate ball: 400PCS
3.Electrical sieving machine: 1 set
4.Round frame sieve: 1 set with 20/40/60/80/100/120/140/160/180/200 sieve number;
Base support:: 1 set
5.Operation Manual
6.Product Qualification Certification











Other Jar/Tank Type for CHOOSE:

 For different Material Application





Other Machine Models for CHOOSE

For Different Material Capacity



Model	Total Jar  Volume  (L)	Matchable  Jar Volume	Power  (KW)	Working  Time  (min)	Material  Capacity  (L)
YKM-0.4L	0.4	50-100ml	0.25	1-9999	0.13
YKM-1L	1	50-250ml	0.75	1-9999	0.3
YKM-2L	2	50-500ml	0.75	1-9999	0.6
YKM-4L	4	250-1000ml	0.75	1-9999	1.3
YKM-8L	8	1-2L	1.5	1-9999	2.6
YKM12L	12	1-3L	1.5	1-9999	4
YKM-16L	16	2-4L	3	1-9999	5.3
YKM-20L	20	2-5L	4	1-9999	6.6
YKM-40L	40	5-10L	5.5	1-9999	13
YKM-60L	60	10-15L	7.5	1-9999	20
YKM-100L	100	20-25L	11	1-9999	33





 Detail Specifications for Different Models



Model	Total Jar Volume (L)	Matchable  Jar Volume	Power  (KW)	Working  Time (min)	Material  Capacity  (L)
YKM-0.4L	0.4	50-100ml	0.25	1-9999	0.13
YKM-1L	1	50-250ml	0.75	1-9999	0.3
YKM-2L	2	50-500ml	0.75	1-9999	0.6
YKM-4L	4	250-1000ml	0.75	1-9999	1.3
YKM-8L	8	1-2L	1.5	1-9999	2.6
YKM12L	12	1-3L	1.5	1-9999	4
YKM-16L	16	2-4L	3	1-9999	5.3
YKM-20L	20	2-5L	4	1-9999	6.6
YKM-40L	40	5-10L	5.5	1-9999	13
YKM-60L	60	10-15L	7.5	1-9999	20
YKM-100L	100	20-25L	11	1-9999	33













































 The Advantages of YLK:



1. With 8 years self research & manufacture experience;
2. National innovation fund supported with 47 patents;

3. CE/ISO Certificated. Good quality machines.
4. Lab pretreatment machines stipulated by Chinese standard HJ637-2012, HJ/T300-2007, American EPA 1311.
5. Reasonable price for customer.
6. Warm service.





Profile of YLK





YLK company was founded in 2006, specialized in researching & manufacturing varies laboratory pretreatment equipment. As one of Chinese National Innovation Fund Support Enterprise, we insist on self-innovation and have successfully broken up the foreign companies monopoly in China by inventing varies laboratory equipment, such as automatic rotation agitator, zero head space extractor, automatic digestion equipment, planetary ball mill machine, etc.



During 10 years developing, we have successfully met varies requirements from customers and owned great reputation from Chinese Academy of Sciences, Tsinghua University, Guangdong Environmental Monitoring Center, Centre Testing International, Zijin Mining Group Company Limited, etc.



The members of YLK researching & technical support team are all with bachelor above degree & 5 years above working experience. And all the products are with independent intellectual property, including 2 patents and 45 utility models.
