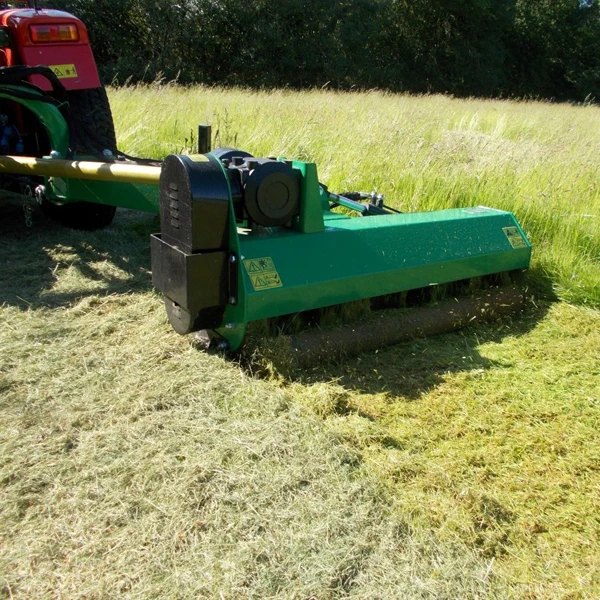

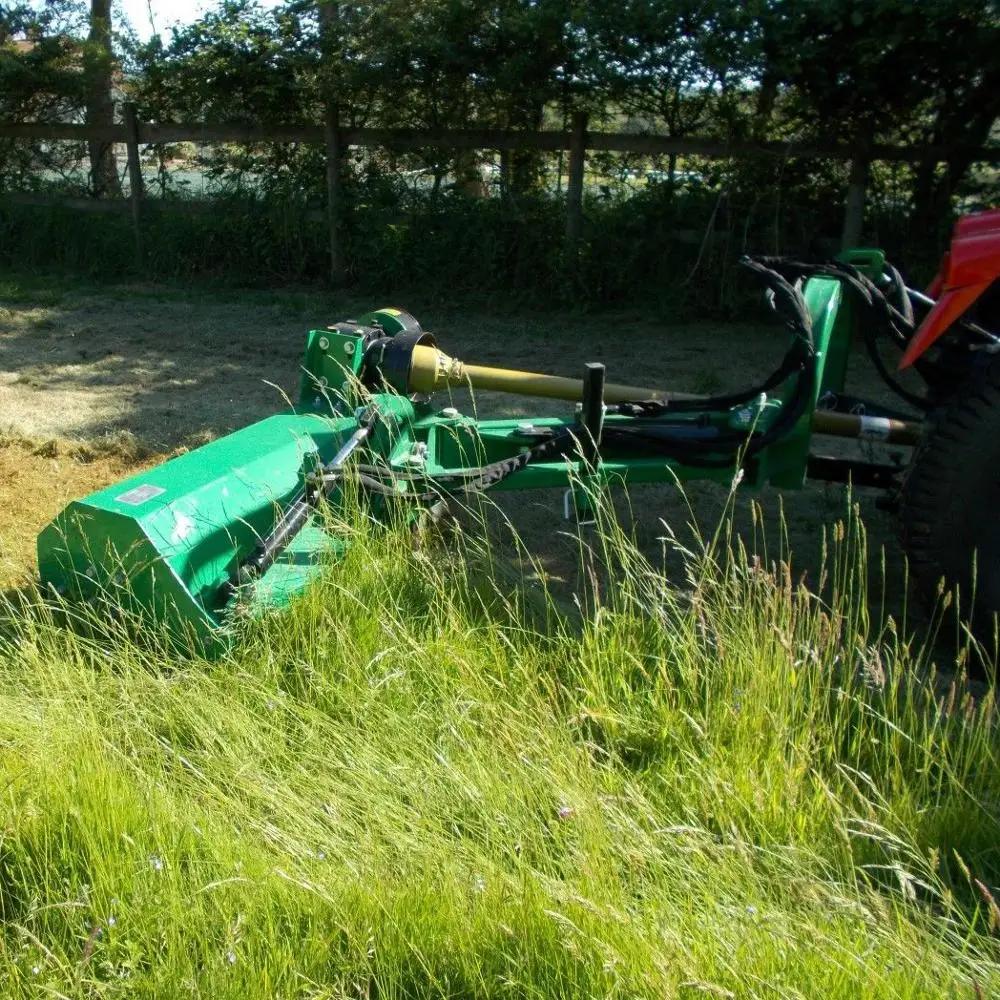

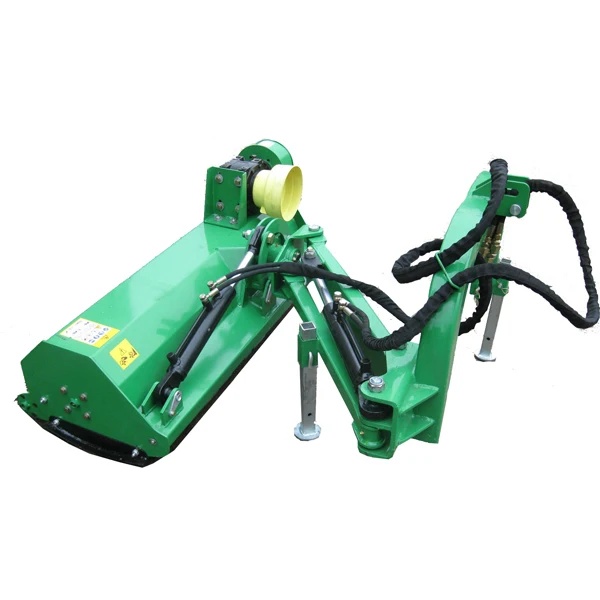

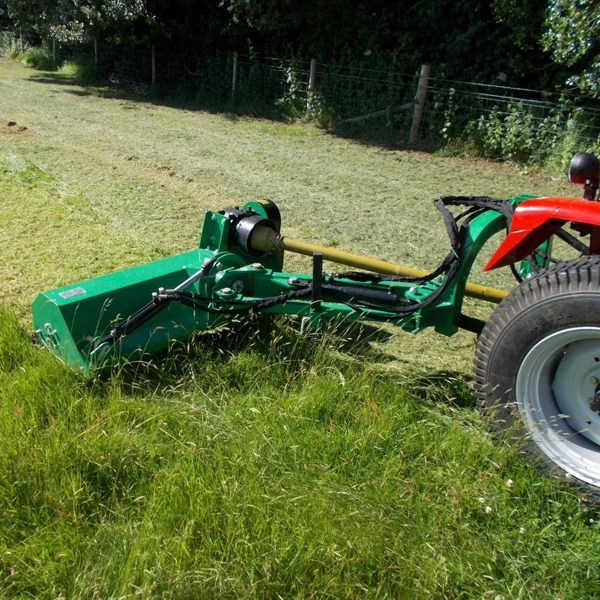

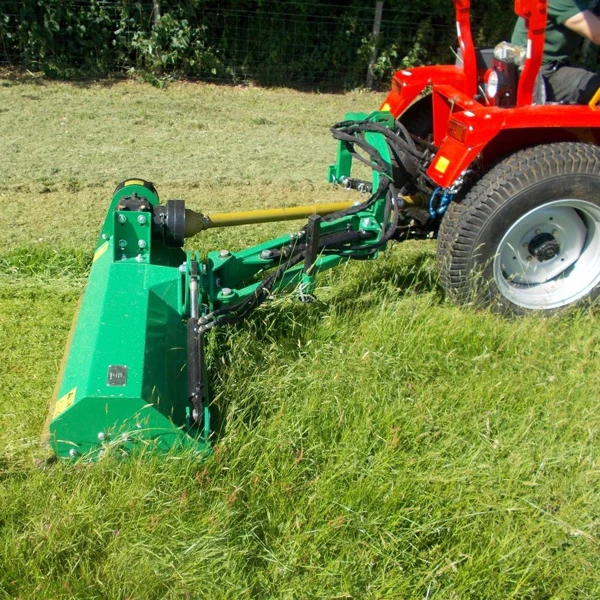

1. Standard 3Pt. Category 1 hitch mount. Designed for 30HP+ Rated Tractors 2.This Ditch Bank Flail Mower is designed for those ditch banks that just don't look right after you've mowed because the deck doesn't sit flat 3.Designed for cutting grass & brush and it's great for eating blackberries and other roadside applications like triming the hedges 4.Works well on the flatland, comes with Grass Blades with precise blade overlap or Upgrade to Hammer/Mulching to Destroy up to 2"~3" saplings and Brush 5.Horizontal Pivot Offset to the right is 44" & Vertical Pivot is 140 degrees, see spec details below 6.Adjustable finished cutting height 7.Balanced Rotor and Shaft 8.Comes with Standard 6 Spline 540rpmPTO Shaft w/ Shear Bolt
MODEL
AGL-125
AGL-145
SPECIFICATION
Inch
Metric
Inch
Metric
Structure Weight
551lb
250kg
595lb
270kg
Tilt-Up Angle
90°
90°
Tilt-Down Angle
55°
55°
Cutting Width
4.10'
1250mm
4.75'
1450mm
Flail Type
Hammer
Number Of Flails
Hammer: 20 / Y Blade: 40
Hammer: 24 / Y Blade: 48
Vertical Extending Distance
4.64'
1415mm
4.64'
1415mm
Horizontal Extending Distance
6.14'
1870mm
6.79'
2070mm
PTO Speed
540r/min
Tractor HP
20-40hp
30-50hp
Company Information
Yancheng Newbang Machinery Co., Ltd. is one of the major tractor implement and ATV implement manufacturers in China.
Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on (30 series and more than 200 models).
Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America, Europe, Asia, etc. We get a good reputation from the worldwide customers.
