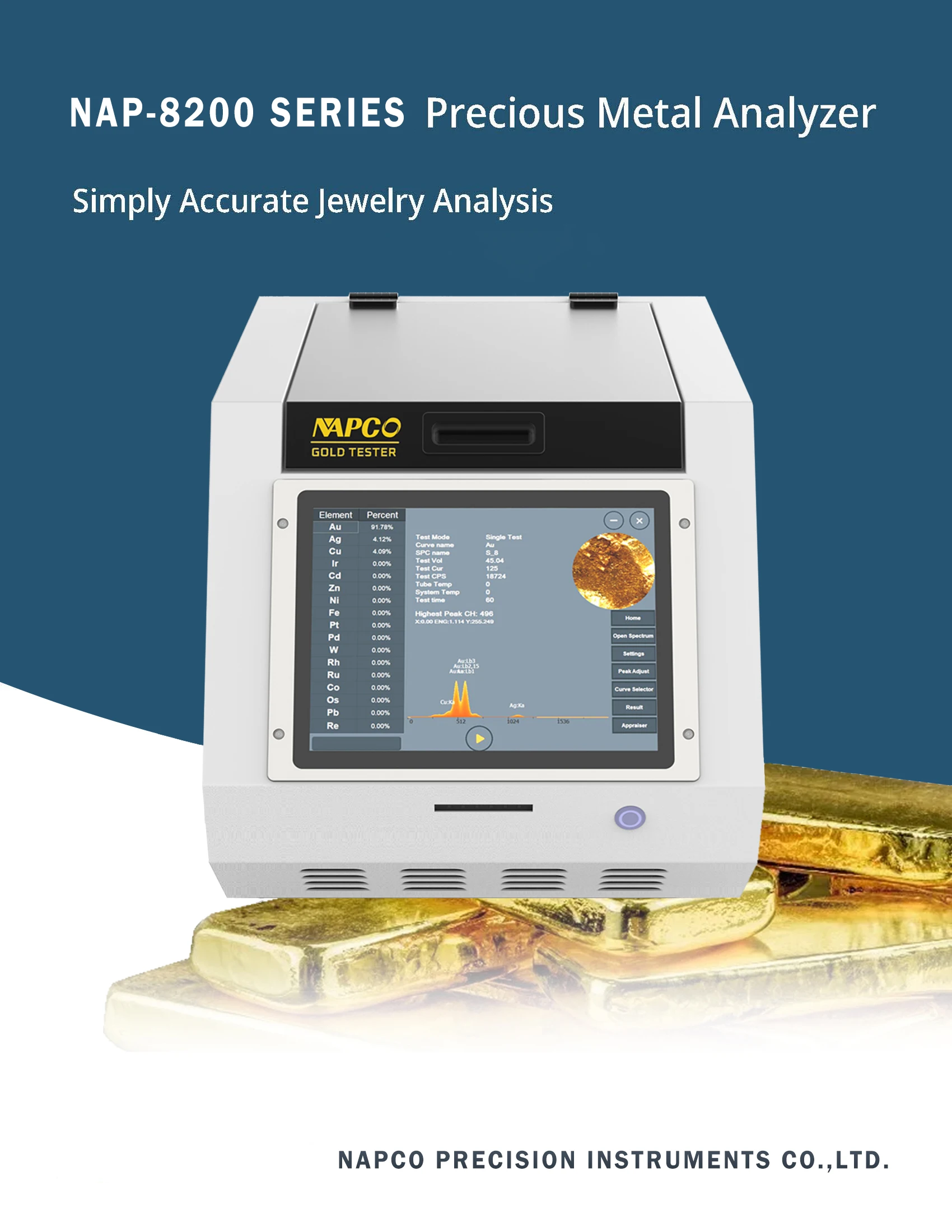

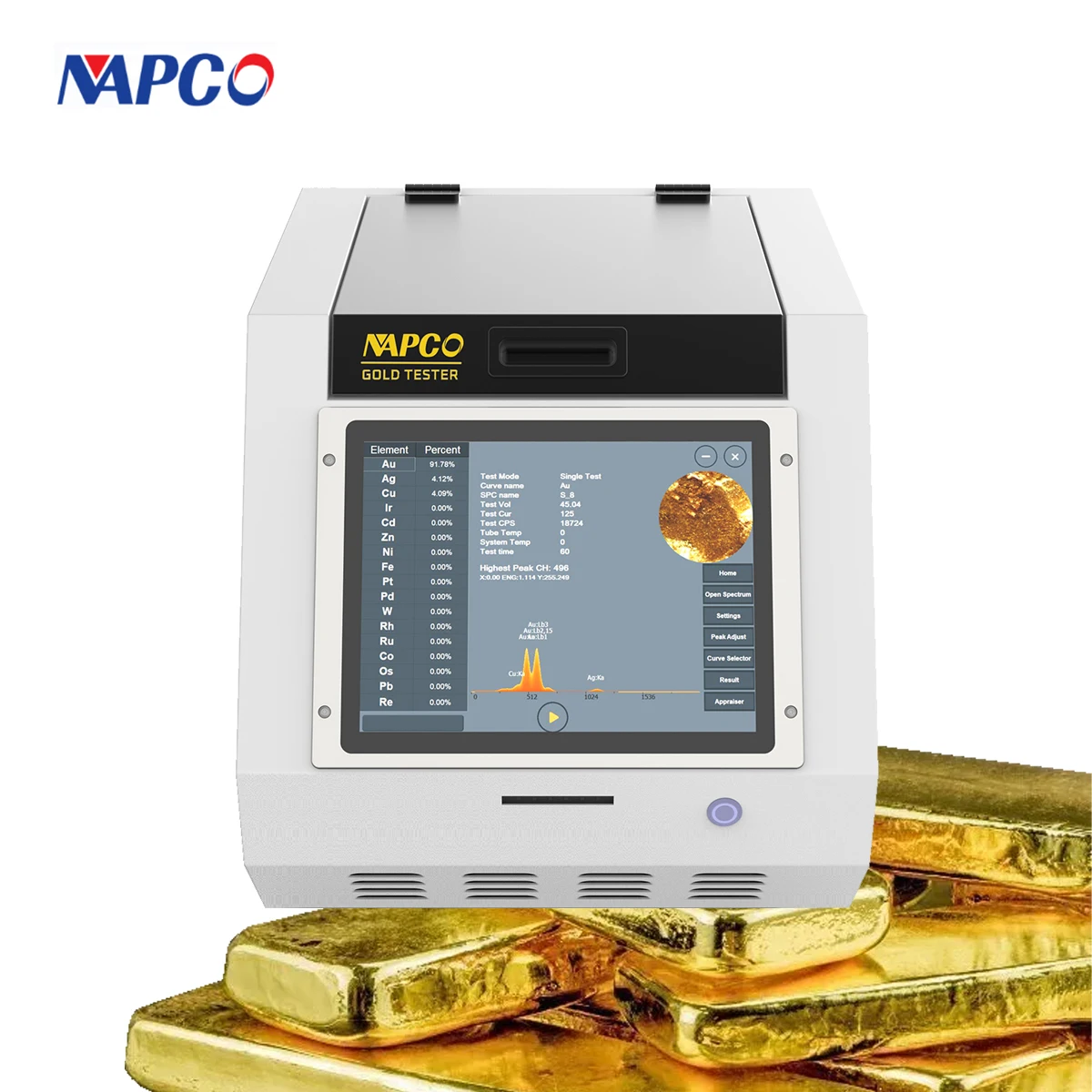

NAP-8200E

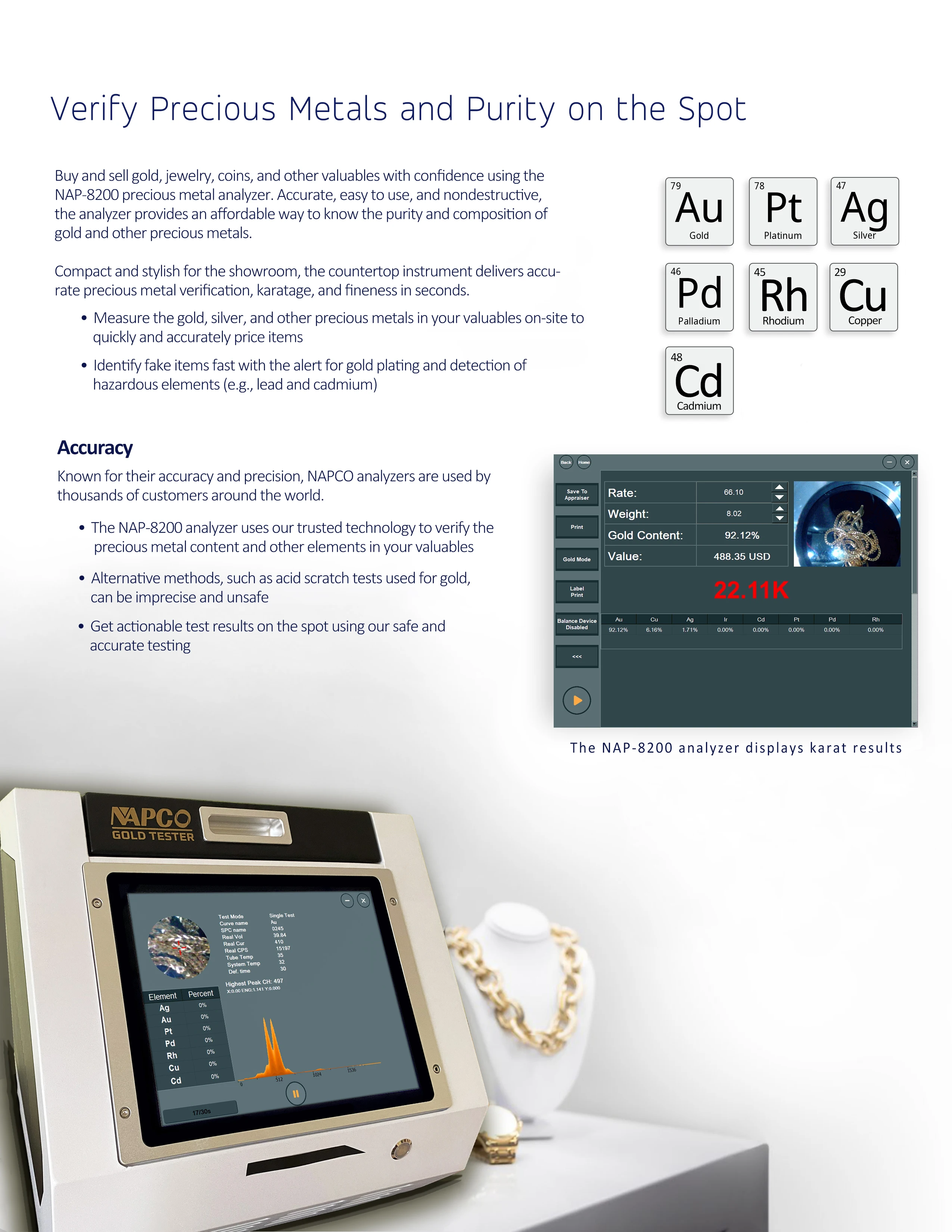

The new advanced gold XRF testing machine is the ultimate verification instrument for gold, silver, platinum, and palladium testing. This state-of-the-art tester has exceptional precision and nondestructive. It is simple to use and in seconds provides accurate results showing both the digital karat value and percentages of all metals in the sample.
This gold tester is integrated an industrial computer with industrial motherboard & multi-point hand touch. Providing the best operational experience. It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection.

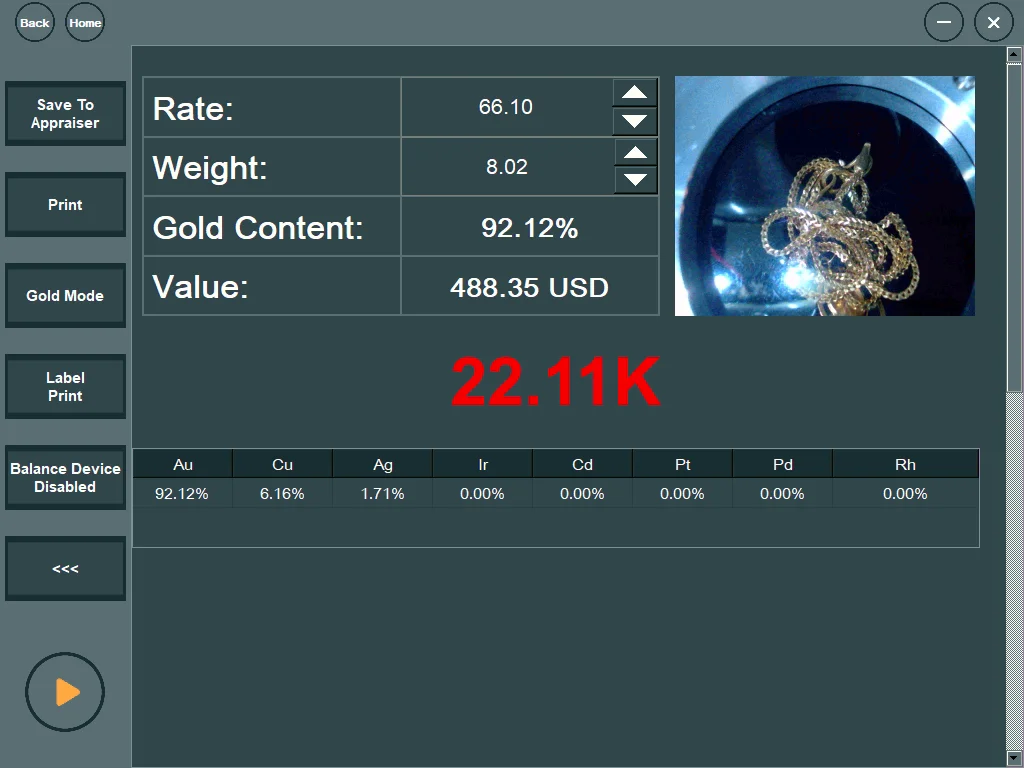

Measurement Results in Karat and %
Get full information about the jewelry item including a plating presence
Camera and Collimators
Easy select the analyzed spot size and position the sample

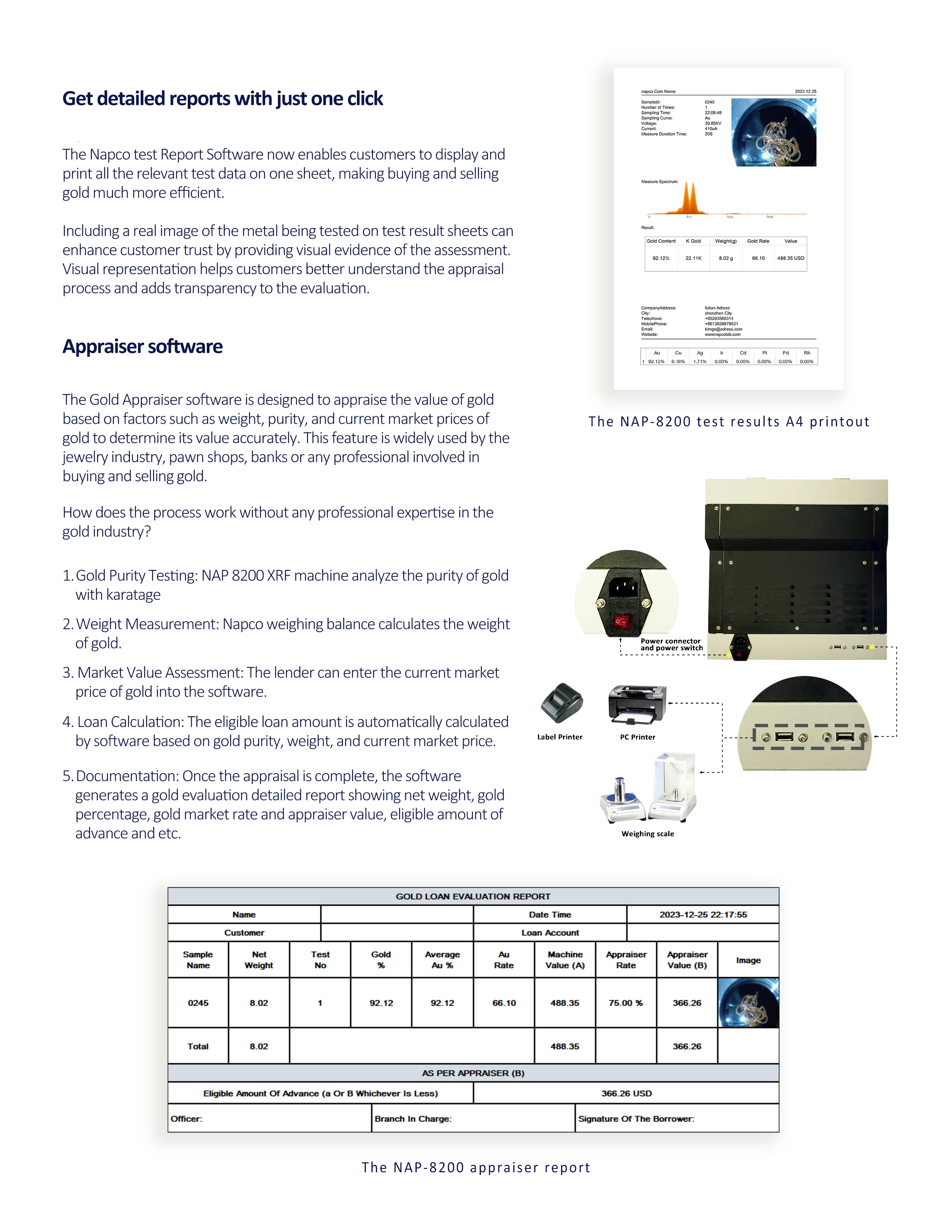

Portable Printer
Instantly print the assay results for the customer
Features
* Tests all colors of gold from 1% to 99.99% and silver, platinum, and palladium.
* Hand-tough display shows both karat value and all percentages do metals.
* Easy one-step calibration using pure silver.
* Easy and safe to operate it (don’t need any professional person)
* All data can be stored on the computer.
* Reports can be printed out with A4/A5 and label form.

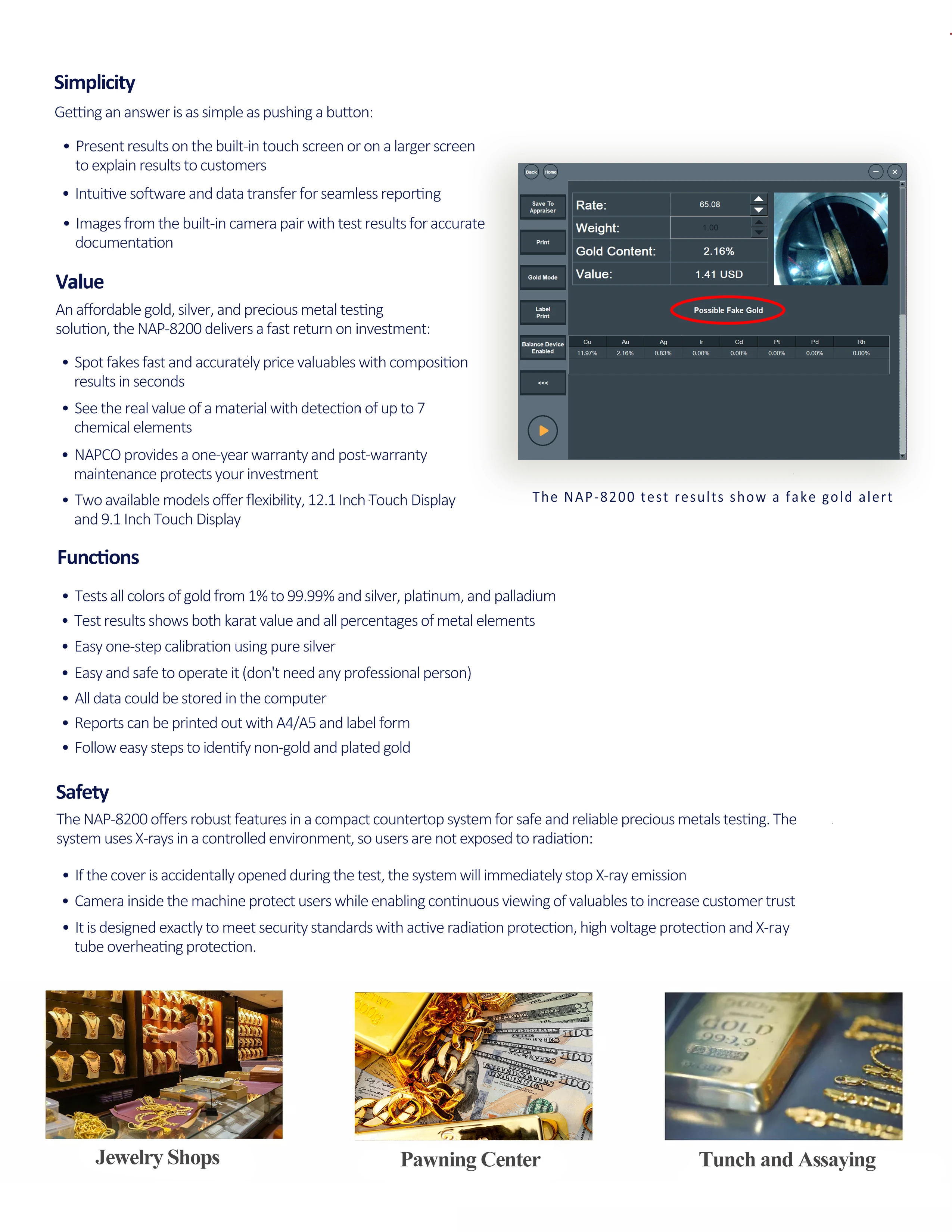

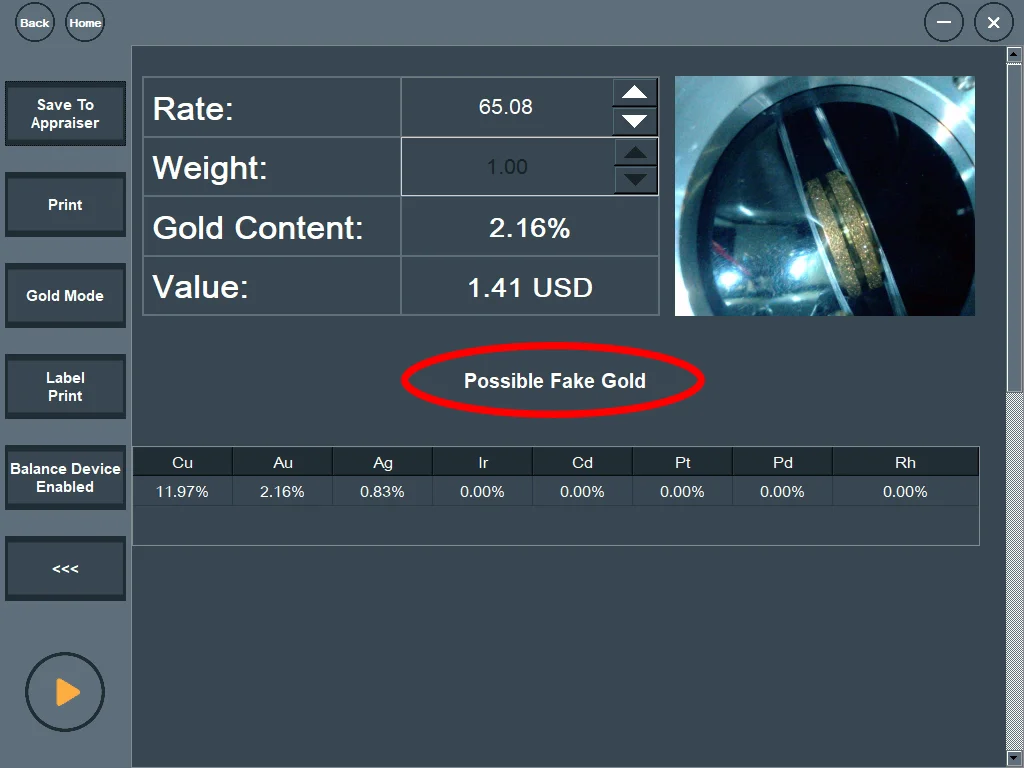

* Follow easy steps to identify non-gold and plated gold.
* Hand-tough display shows both karat value and all percentages do metals.
* Easy one-step calibration using pure silver.
* Easy and safe to operate it (don’t need any professional person)
* All data can be stored on the computer.
* Reports can be printed out with A4/A5 and label form.
* Follow easy steps to identify non-gold and plated gold.

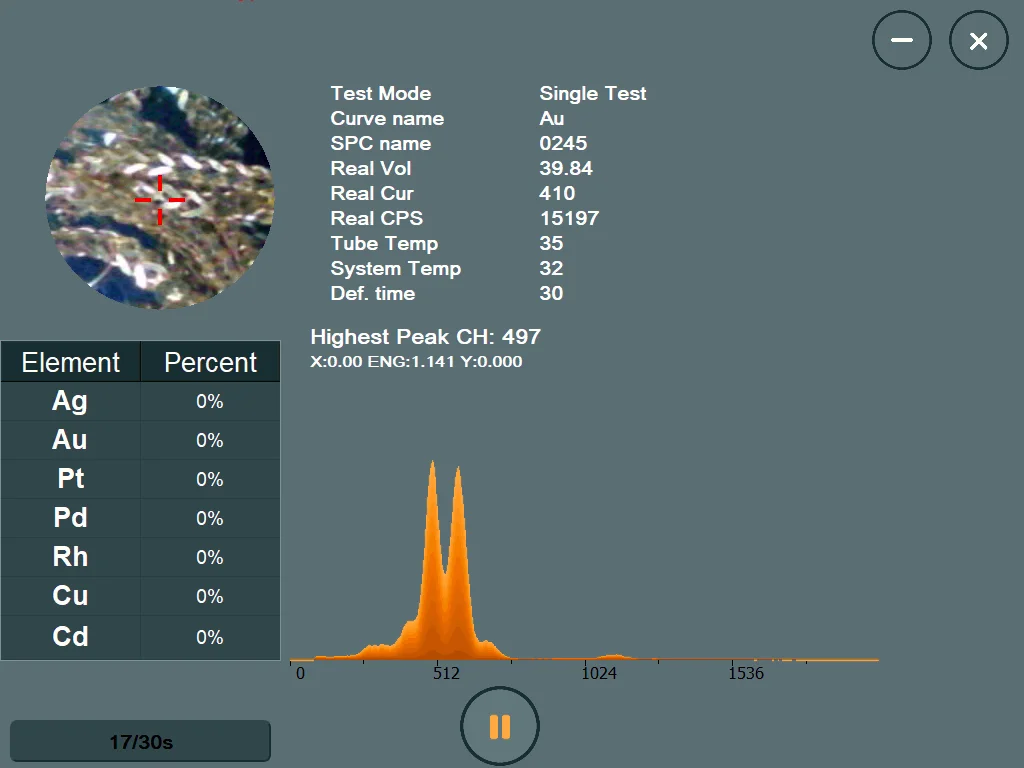

Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability. Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.
Accuracy
Analysis accuracy of precious metals and jewelry is better than 0.1%
Speed
The whole measurement process takes only several seconds
Stability
NAP8200E offers long-life reproducibility of the analysis without the need to re-calibrate the system
Advantages
* High speed and accuracy
* Intuitive interface
* Autonomous operation as well as connected to a PC
* Compact, doesn’t take much space on a desk or a counter
* Ergonomic design looks very nice in a jewelry shop
* Customer display – Chemical composition can be seen by customer during measurement
* Radiation protection
* High Voltage protection
* X-ray Tube overheating protection
* Inbuilt industrial motherboard & multi-point hand touch
* FCC, CE, RoHS approved
* Tests jewelry and metal samples of any size, shape, or weight
* Intuitive interface
* Autonomous operation as well as connected to a PC
* Compact, doesn’t take much space on a desk or a counter
* Ergonomic design looks very nice in a jewelry shop
* Customer display – Chemical composition can be seen by customer during measurement
* Radiation protection
* High Voltage protection
* X-ray Tube overheating protection
* Inbuilt industrial motherboard & multi-point hand touch
* FCC, CE, RoHS approved
* Tests jewelry and metal samples of any size, shape, or weight
Specifications
Overall Dimensions - Machine | Closed: 46 cm × 39 cm × 40 cm (18.11 in. × 15.35 in. × 15.75 in.) Open: 46 cm × 39 cm × 60 cm (18.11 in. × 15.35 in. × 23.62 in.) |
Sample Chamber Dimensions | 25 cm × 25 cm × 7.5 cm (9.84 in. × 9.84 in. × 2.95 in.) |
Weight - Machine | 33 kg (72.75 lb) |
Working Principle | Energy Dispersive X-ray Fluorescence |
Detector | Gas Proportional Detector |
Precision | ±10ppm~0.1% |
Analysis Range | 1% - 99.99% |
Detection limit: | 100ppm Best substance effect |
Testable Elements: | Au, Ag, Cu, Pt, Pd, Ir, Cd, ect. |
Power | 220 volt 50Hz |
PC Or Laptop interface | Integrated PC with touch screen, Wireless LAN, USB interfaces, HD camera |
Main Structure | High-strength metal frame and industry plastic shell |
Operating Environment | Temperature 0-28℃ Humidity ≤70% |
Operating System | Windows 10 Application software: Napco Precious Metal Analyzer |
Measurement Time | 30 seconds Auto mode |
Camera | Full-color camera |
Warranty | One-year standard warranty with lifetime free software upgrade |
Standard Accessories | AC power adapter, Silver calibrator, WiFi adapter, Film protective stickers, Ring holder |
Connectivity | 2 USB Ports |
Package Size | 59 cm × 55.5 cm × 53 cm (23.22 in. × 21.85 in. × 17.32 in.) |
Package Weight | 48 kg (105.82 lb) |
Display | 12.1 inches bigger display with full color touch-screen or 9.1 inches bigger display with full color touch-screen |
Recommend Users
Packaging and Shipping
Why Choose Us
Exhibition and Cooperation
Warranty and Service
You have selected a NAPCO XRF spectrometer or a Precious Metal analyzer, so this step is unnecessary. Nevertheless, even the most dependable equipment may require maintenance.
NAPCO provides a one-year warranty and post-warranty maintenance on XRF spectrometers and Precious Metal analyzers at its service facility in Shenzhen, in addition to authorized service facilities of our representatives in several countries.
The maintenance and repair of our XRF spectrometers is not the core of NAPCO's business model, but rather a client retention initiative. In a timely, efficient, and non-profit manner, service is rendered. This method simultaneously minimizes the cost of utilizing our XRF spectrometers and analyzers and maximizes client comfort.
NAPCO provides a one-year warranty and post-warranty maintenance on XRF spectrometers and Precious Metal analyzers at its service facility in Shenzhen, in addition to authorized service facilities of our representatives in several countries.
The maintenance and repair of our XRF spectrometers is not the core of NAPCO's business model, but rather a client retention initiative. In a timely, efficient, and non-profit manner, service is rendered. This method simultaneously minimizes the cost of utilizing our XRF spectrometers and analyzers and maximizes client comfort.
Payment and Delivery
NAPCO deliver its XRF spectrometers and Precious Metal analyzers to clients from all over the globe. Courier services deliver products straight from our company under CIF, FOB, and DDP terms.
The delivery period ranges from one to four weeks, depending on the type of spectrometer, the necessary calibrations, and the stock of finished instruments.
Typically, the equipment is shipped after receiving full payment to our bank account or via Alibaba. Individual payment arrangements are given for recurring partners and dealers.
The delivery period ranges from one to four weeks, depending on the type of spectrometer, the necessary calibrations, and the stock of finished instruments.
Typically, the equipment is shipped after receiving full payment to our bank account or via Alibaba. Individual payment arrangements are given for recurring partners and dealers.
FAQ
Q1: Are you the factory? Can you make the equipment according to our requirements?
A1: Yes. We are a factory. We have the right to export directly. Some trading companies take goods from our factory. Our company has its own R & D team, can provide OEM & ODM & OBM.
Q2When can I get a quotation?
A2: We usually quote within 24 hours after receiving your inquiry. If you are eager to get the price, please call us or let us know in your email so that we can give priority to your inquiry.
Q3: What is the delivery time?
A3: Mostly, the lead time is 1~7 days and will arrive within 7 working days. Mass production 15 to 40 days after receipt of deposit depends on the order quantity.
Q4: If I place an order with you, how should I pay?
A4: Generally, PayPal, T / T, visa, West Union and other payment methods are acceptable.
Q5: What kind of delivery methods can we use?
A5: By sea, by air or express are all acceptable. It depends on your will. And we will recommend the best way to you.
Q6: How about the shipping costs and tax?
A5: The cost of delivery depends on the mode, destination and weight. The tax depends on your local customs.
Q7: About setup and training: Is the technician needed here? What does it cost?
A7: User manual will be attached. Engineers can give you the training remotely. It is free. Moreover, the machine can work dependently. Don't need to connect with any other device. Easy to set up.
Q8: How is your after-sale service?
A8: We have a professional engineering team to do it. All problems will be responded within 12 hours. We provide life-long service. Any problem, we will arrange for an engineer to check for you remotely.
A1: Yes. We are a factory. We have the right to export directly. Some trading companies take goods from our factory. Our company has its own R & D team, can provide OEM & ODM & OBM.
Q2When can I get a quotation?
A2: We usually quote within 24 hours after receiving your inquiry. If you are eager to get the price, please call us or let us know in your email so that we can give priority to your inquiry.
Q3: What is the delivery time?
A3: Mostly, the lead time is 1~7 days and will arrive within 7 working days. Mass production 15 to 40 days after receipt of deposit depends on the order quantity.
Q4: If I place an order with you, how should I pay?
A4: Generally, PayPal, T / T, visa, West Union and other payment methods are acceptable.
Q5: What kind of delivery methods can we use?
A5: By sea, by air or express are all acceptable. It depends on your will. And we will recommend the best way to you.
Q6: How about the shipping costs and tax?
A5: The cost of delivery depends on the mode, destination and weight. The tax depends on your local customs.
Q7: About setup and training: Is the technician needed here? What does it cost?
A7: User manual will be attached. Engineers can give you the training remotely. It is free. Moreover, the machine can work dependently. Don't need to connect with any other device. Easy to set up.
Q8: How is your after-sale service?
A8: We have a professional engineering team to do it. All problems will be responded within 12 hours. We provide life-long service. Any problem, we will arrange for an engineer to check for you remotely.
