Laundromat Automatic Washing Machine for laundry machine curtains wash machine clothing used

Product Overview

Description

Automatic Washing Machine for laundry machinery curtains wash machine clothing used

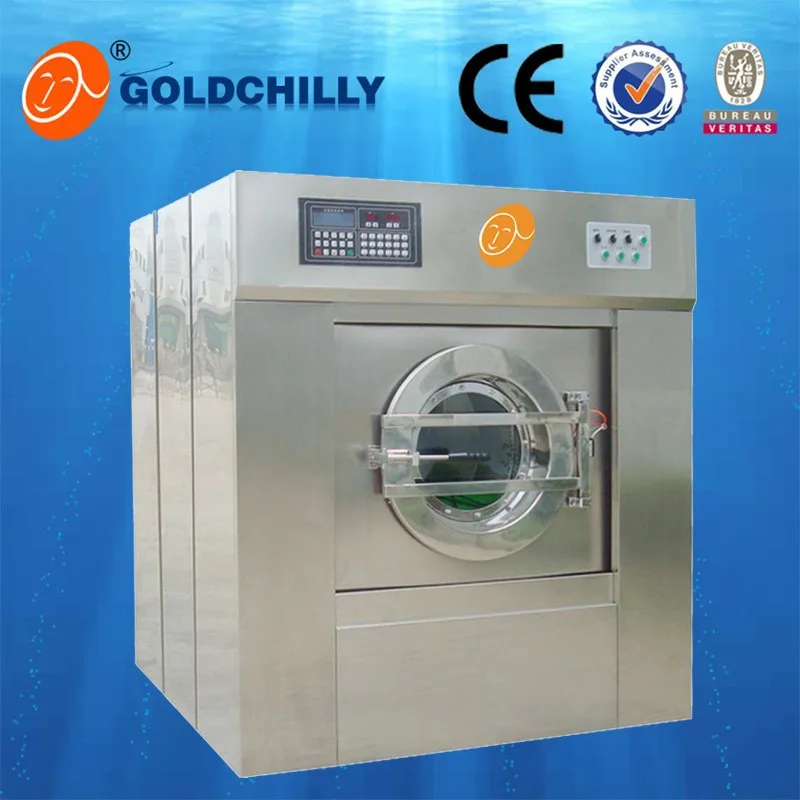

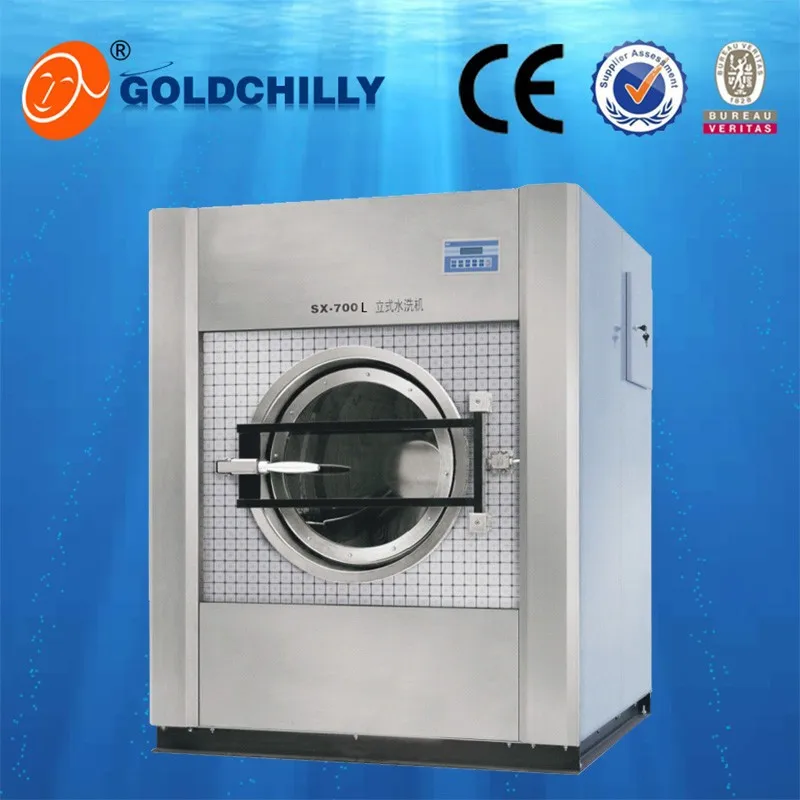

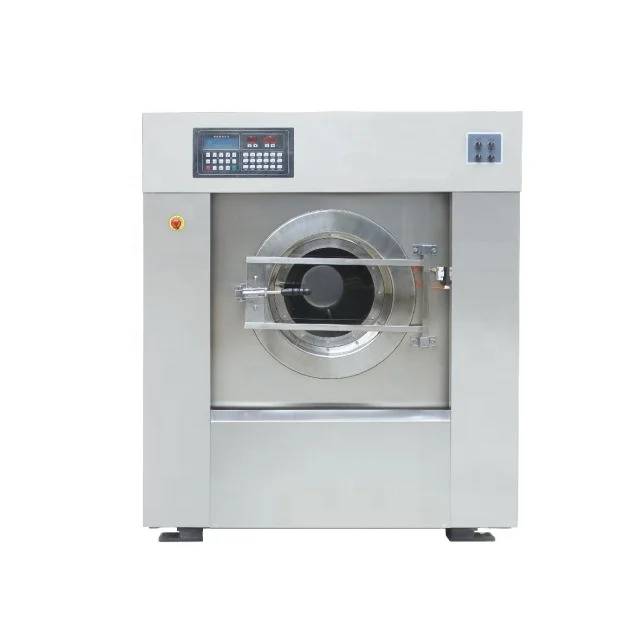

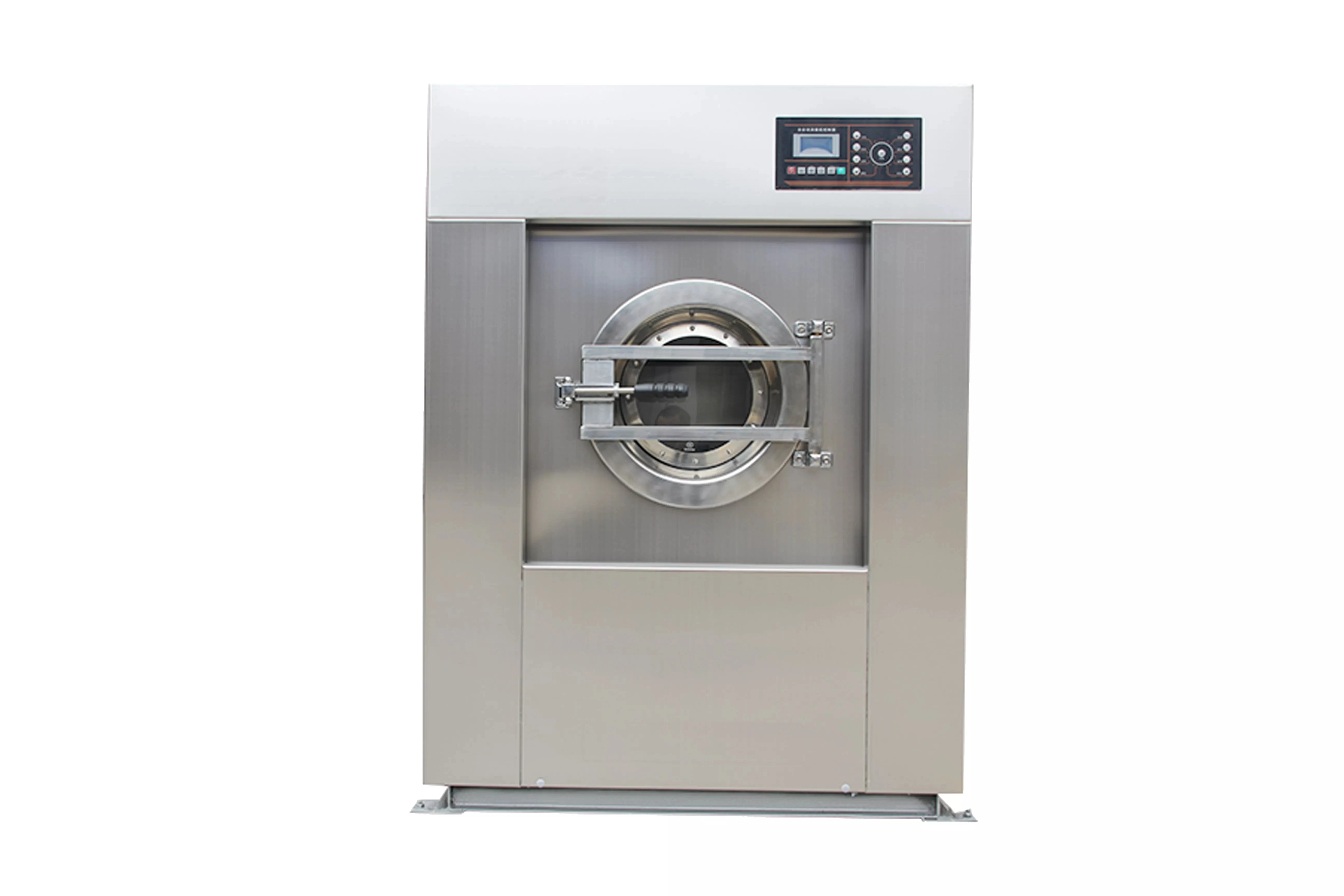

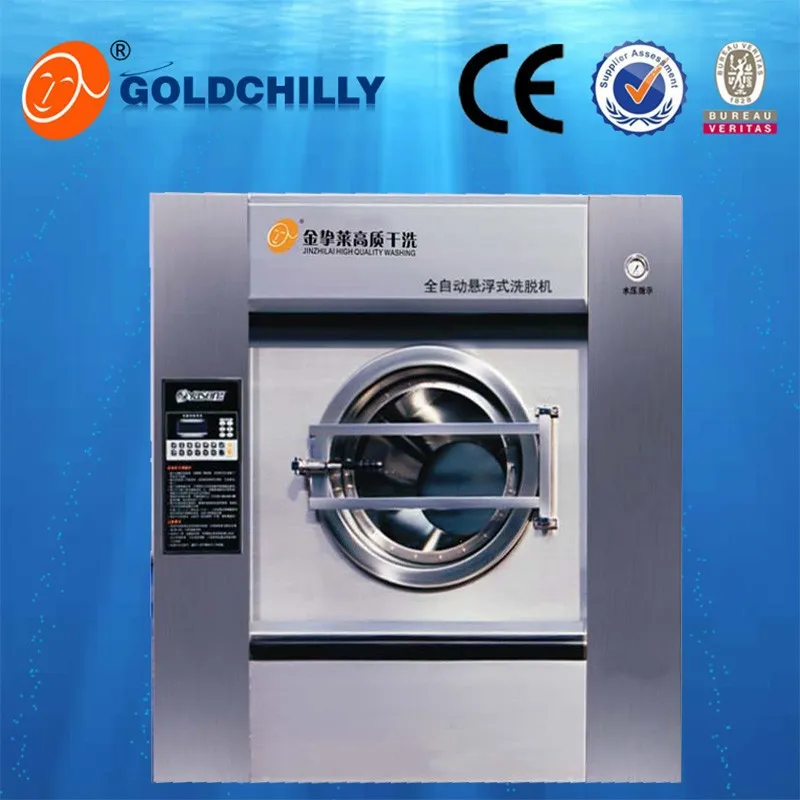

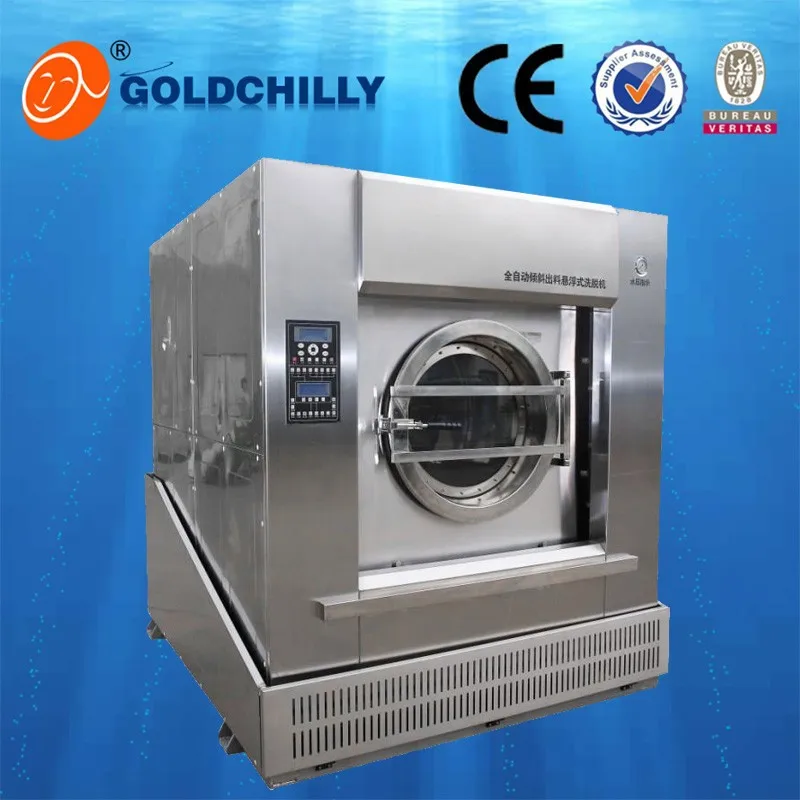

XGQ series washing machine



XGQ  Series Washer-extractor is suitable for hotel, restaurant, garment factory, industry-mining enterprise as well as individual washing-dyeing. It is used for washing cotton, wool, woolen, chemical fiber and other fabrics.



Specification: laundry washing machine



Specification		XGQ-25	XGQ-35	XGQ-50	XGQ-70	XGQ-100
	Unit
Rated Capacity	kg	25	30	50	70	100
Dimeter	mm	785	900	970	1200	1200
Dimeter depth	mm	500	470	650	620	840
Washing	rpm	45	40	40	35	35
Low/High Extraction	rpm	770	770	740	670	670
Power Supply	v/p/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Motor Power	kW	4	4	4	7.5	7.5
Power sumption of each car	Kw.h	1.8	1.8	2	2.6	4
Water sumption of each car	Kg	600	600	1000	1400	2000
Steam sumption of each car	Kg	25	25	45	63	90
Electricity heating power	Kw	25	25	45	63	90
Heating Type		Electricity Heating	Electricity Heating	Electricity Heating	Electricity Heating	Electricity Heating
		/Steam Heating	/Steam Heating	/Steam Heating	/Steam Heating	/Steam Heating
Steam Pipe	inch	G1''	G1''	G1''	G1''	G1''
Steam Pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Cool/Hot Water Pipe	inch	G1''	G1''	G1½''	G1½''	G1½''
Tap Water Pressure	MPa	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Drainage	mm	Φ80	Φ80	Φ90	Φ127	Φ127
Work Pressure of Compressed Air	MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Noise	dB(A)	≤78	≤78	≤78	≤78	≤78
Machine Weight	kg	1000	1500	2200	2800	3200
Dimension	mm	1300*1040	1340*1380	1570*1455	1750*1800	1920*1855
		*1680	*1700	*1780	*1980	*2012



Short introduction:  laundry washing machine



1,Full-automatic control by computer control system



Washer-extractor has professional computer control system, excellent capacity and super function, it contains programmable procedures and standard programs,large-screen LCD, and all design in near to human feature.



2,High strength,long durability



Steal technology of major shaft have acquired state invention patent, excellent stainless steel ensures, the outer vat designed by finite element optimal, different design of high-strength big shaft-pedestal and high-accuracy short shaft ,ensure that machine's lifespan is prolonged during overload situation.



3,Leading slight vibration of industry washer



Because of scientifically adding weight at the front of suspended object, so that reach perfect balance of suspended object. Spring of vibration proof system adopt special design of recovery moment according to different vibration of suspended object front and back, so that finish the best vibration proof efficiency and effective vibration-reducing rate to 98%.



4,Excellent design and fine production



Frequency-conversion drives and endless speed adjusting stable, high-quality bearing, quietly rum.

Imported seal material of major shaft, stainless steel panel, unique material feeding system, effectively against the high temperature and strong acid conditions. Safe door-lock union device of patent technology ensure safety; Larger diameter loading door and human design conveniently load and unload, so that reduces labor strength.

Advantage: laundry washing machine

1.full stainless steel 304

2.two years warranty

3. Inner hole size:6mm

4.full automatic suspension system



Payment: laundry washing machine



West Union	Money Gram	Paypal	T/T	L/C	D/A	D/P
YES	YES	NO	YES	YES	NO	NO
