Plastic Yoghurt Cup Thermoforming Machine
- Category: Plastic Product Making Machinery >>>
- Supplier: Zhejiang Fuxinlong Machinery Co. Ltd.
Share on (60145264878):
Product Overview
Description
Hot Product
Specification:
Max. Forming Area:650*320mm
Max. Forming Speed:15-30 times up to your products.
Pillars number:4 pcs
Max.Height:150mm(Special height,such as 180mm, can be customized)

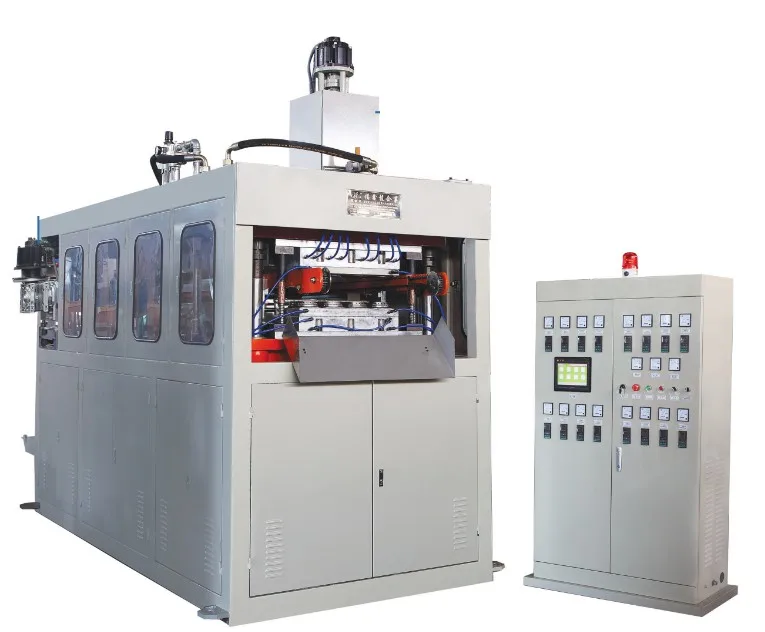

FJL-SZ-680II Plastic Cup Thermoforming Machine
Product Description
Usage

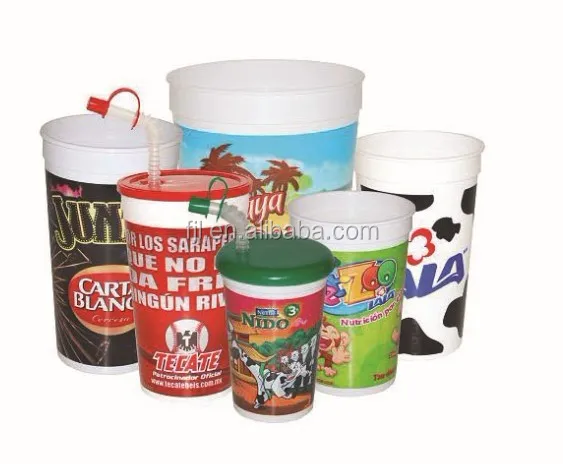

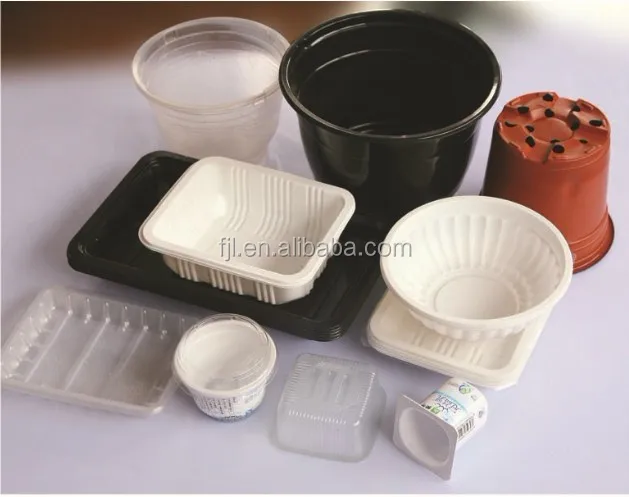

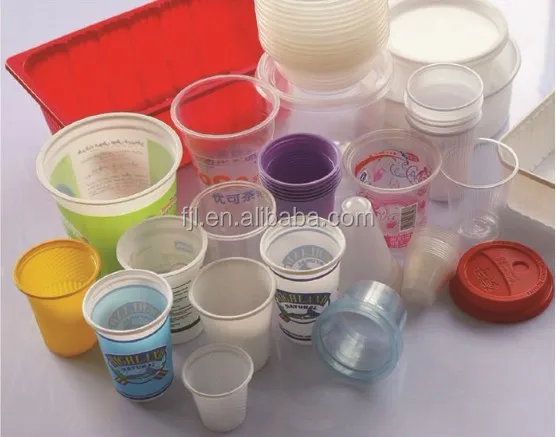

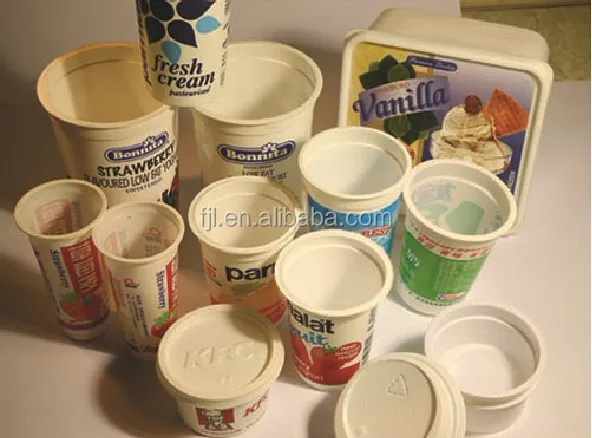

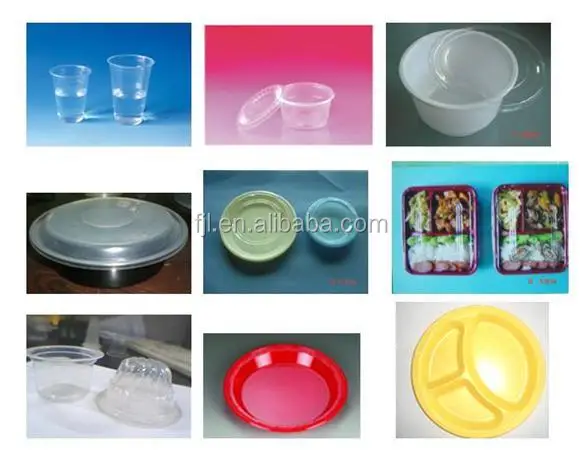

This series mainly used for making different kinds of plastic cups, such as water drinking cups, jelly cups, yogurt cups, coffee cups, it can also
make flower pots, disposable bowls, lids, plates, trays and ect.
Major Construction Featurus
The operation is controlled by PLC with touch screen.
Adopt four pillars to fix the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming, in-mould
cutting (and in-mould holing) in one stroke.
Convenient operation, outstanding performance, low noise and high quality.
| Model | FJL-SZ-680| | FJL-SZ-680|| | FJL-SZ-750| | FJL-SZ-750|| |
| Max.Forming Area | 650*320mm | 750*420mm | ||
| Max.No-Load Speed | 35Cycles/min | |||
| Running Pattern | Hydraulic | |||
| Oil Pump Motor Power | 7.5KW Double Pump | 15KW Double Pump | ||
| Cutting Pattern | In mould automatic | |||
| Feeding Pattern | Motor With Encode | Servomotor | Motor With Encode | Servomotor |
| Stretching Pattern | Air Cylinder | Servomotor | Air Cylinder | Servomotor |
| Sheet Material | PP.PS.HIPS.PET.PVC | |||
| Sheet Thickness Range | 0.2-2mm | |||
| Max.forming Depth,Sample Height | 120mm | 150mm | ||
| Max.Sheet Roll Dia | 800mm | |||
| Heater Arrangement | (120Pieces,650W)Top+Bottom Heating With IR Ceramic Heater | (152Pieces,650W)Top+Bottom Heating With IR Ceramic Heater | ||
| Temperature Controller&Thermocouple | PID K-Type | |||
| Electrical Consumption | 40KW/h | 45KW/h | 50KW/h | 55KW/h |
| Overall Power | 100KW | 110KW | 120KW | 130KW |
| Air Consumption | 1.5-1.8m3/min,0.6-0.8 Mpa | 2-2.5m3/min,0.6-0.8 Mpa | ||
| Dimension | L3650*W1590*H2500mm | L4000*W1730*H2600mm | ||
| Weight | 4.4T | 4.5T | 4.8T | 5T |
| Power Supply | 380V/50HZ Three phase four wires | |||
