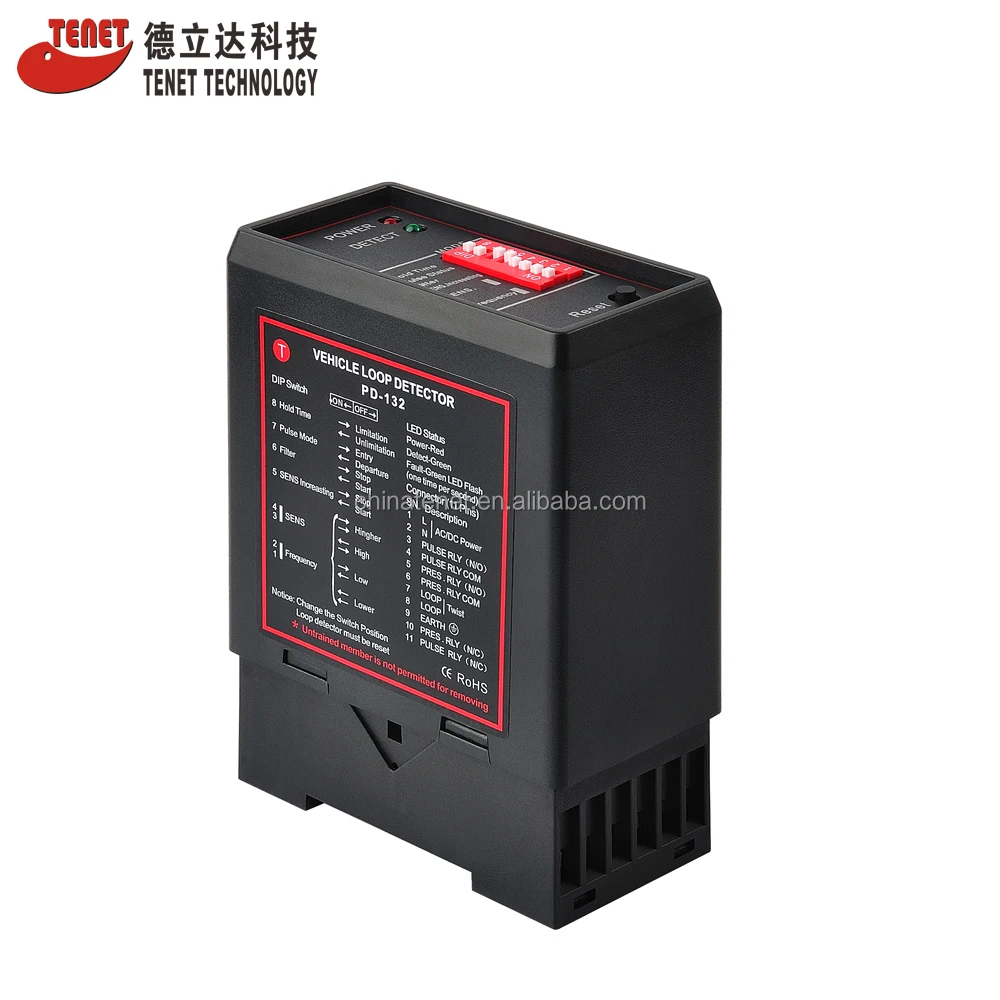

PD 132 SINGLE LOOP DETECTOR for Door Access Control

Product Overview

Description



                            PD-132 SINGLE LOOP DETECTOR  for Door Access Control



Technical Data



Operating voltage  220V AC ±10%

Power Consumption:  ≥5VA

Output relays:       240V/5A AC

Frequency range:    20 kHz to 170 kHz

Reaction time:      10ms

Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes

Sensitivity:          adjustable in 8 increments

Wiring:             50μH and 300μH. Ideal is 150μH

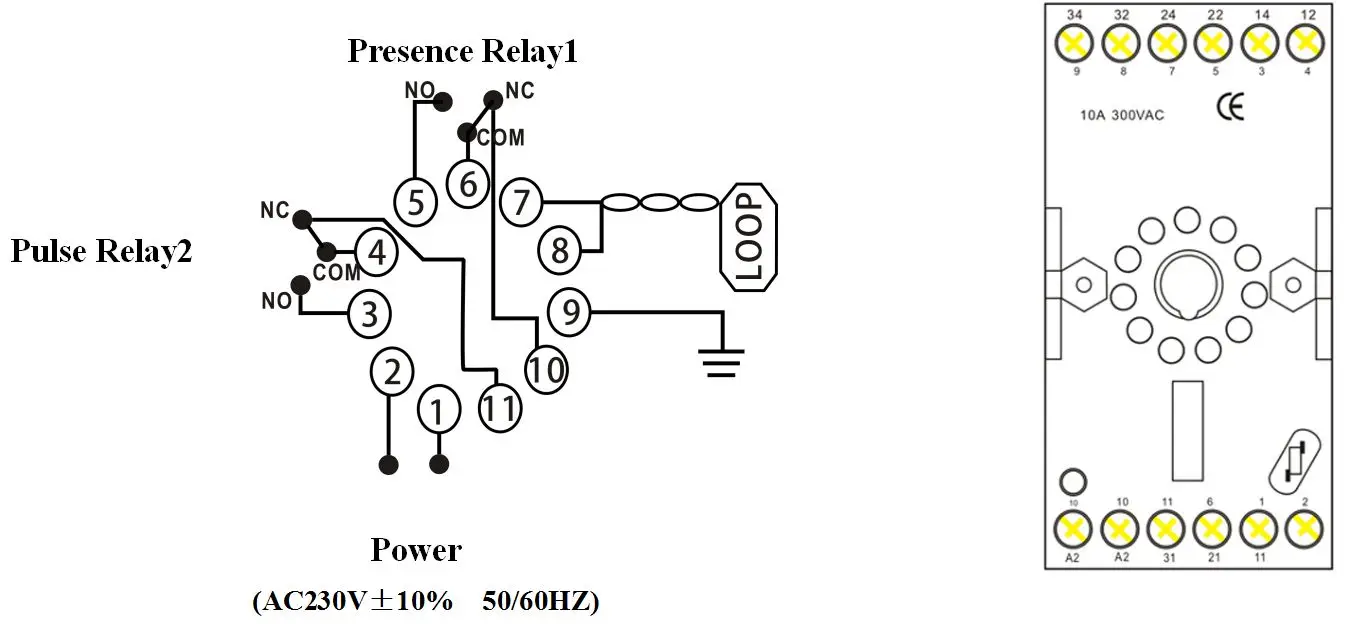

Loop connection wiring: Maximum length 200 meters,

                          twisted at least 20 times per meter

Autocorrecting time:   1to 2seconds

Operating temperature: -20°C to +65°C

Storage temperature:  -40°C to +85°C

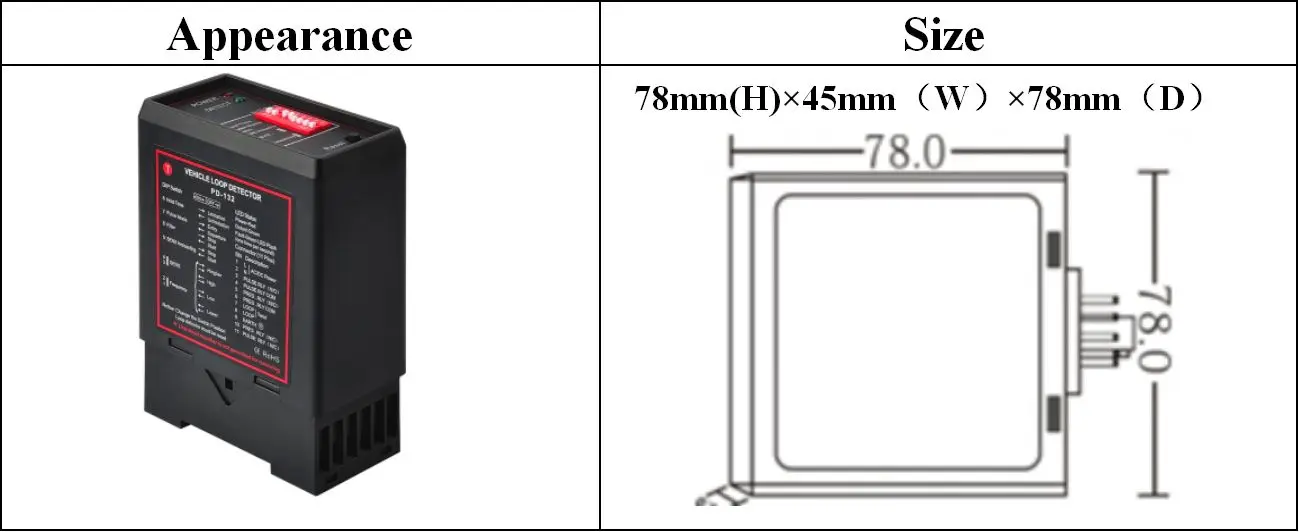

Dimensions (include pedestal ): 78x40x108 mm (L x W x H)

Net Weight include pedestal: 265g
