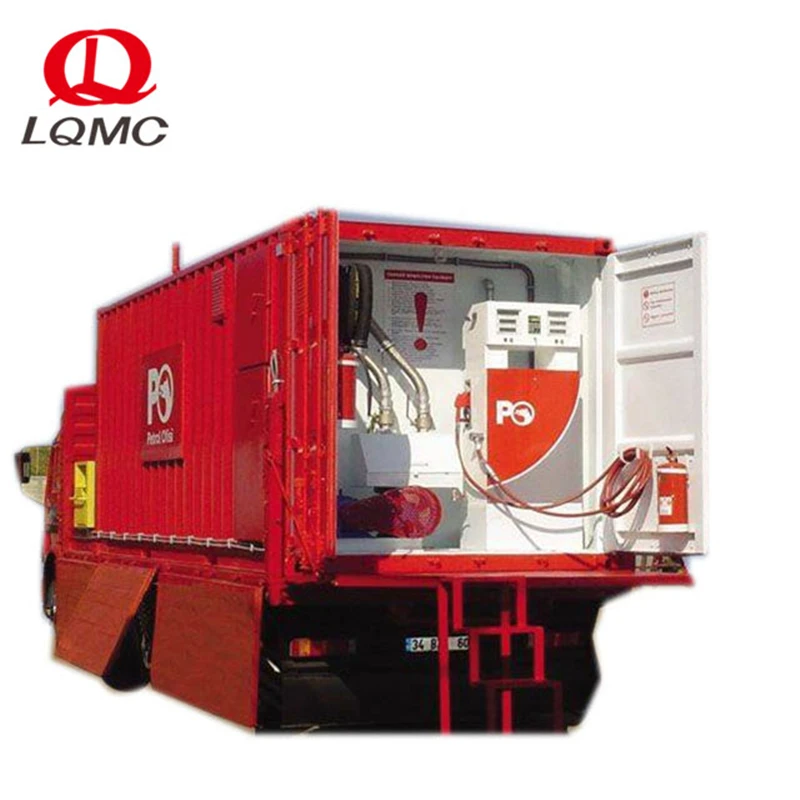

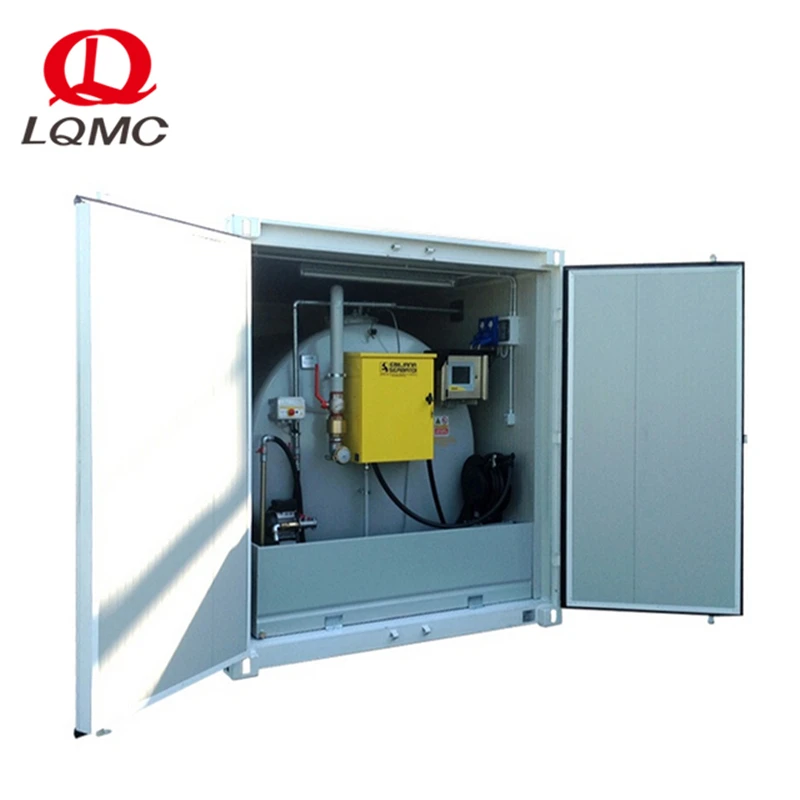

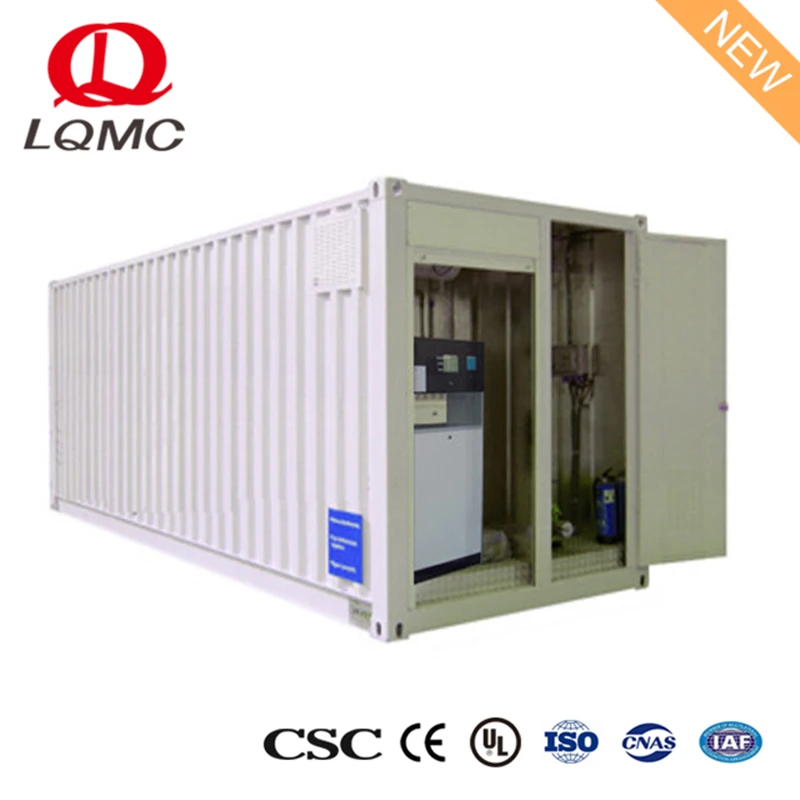

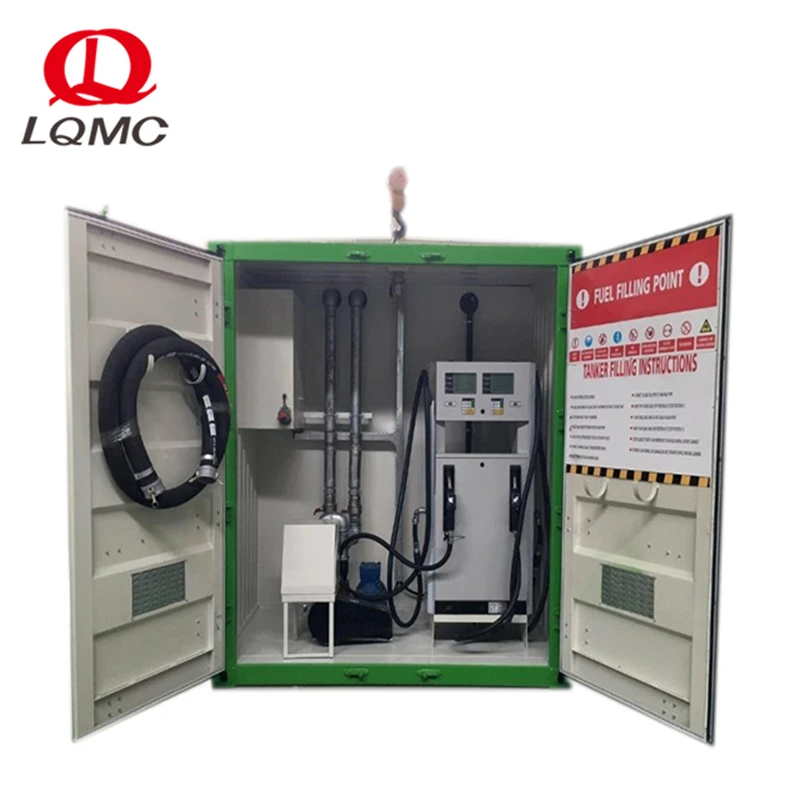

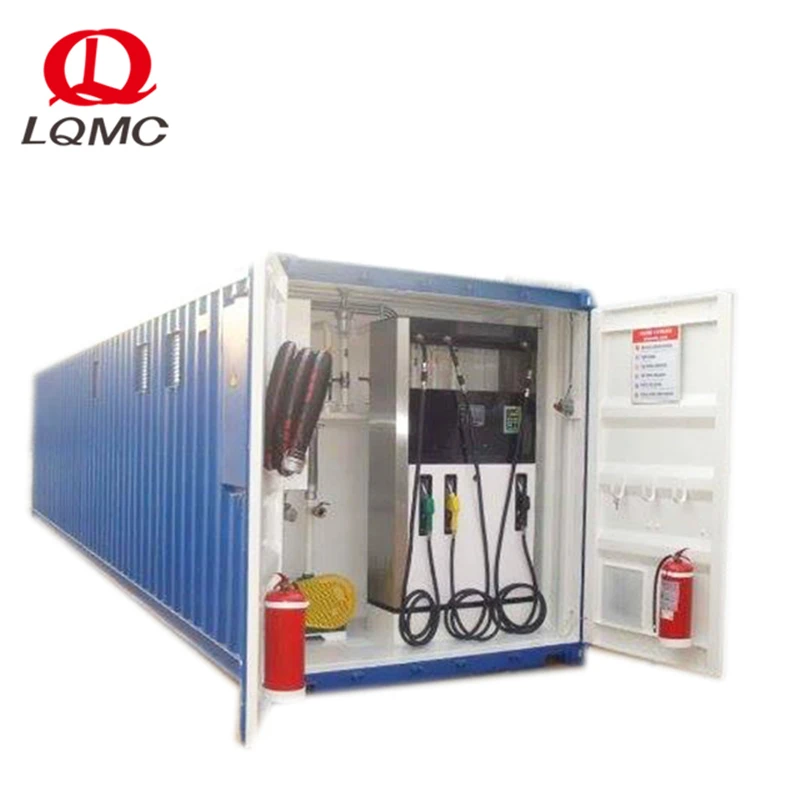

Mobile fuel tank container station with favorable price

Product Overview

Description



Standard Specification Of Container petrol filling station

Model	Total volume (Liter)	Container inner dimension(mm)	Inside tank dimension(mm)	Total weight(ton)
20feet mobile fuel station	10,000	5895x2350x2390	4500x1500x1500	4.23
	15000	5895x2350x2390	4300x2200x2200	4.55
	16000	5895x2350x2390	4500x2200x2200	4.74
	20,000	5895x2350x2390	4500x2150x2150	4.93
40feet mobile fuel station	30,000	12029x2350x2390	6800x2250x2000	6.95
	36,000	12029x2350x2390	8150x2250x2000	7.25
	40,000	12029x2350x2390	8800x2280x2000	7.75
	50,000	12029x2350x2697	10500x2250x2150	8.39
	55000	12029x2350x2697	10500x2280x2300	9.35

Standard equipment

• Dispensing unit
• Leakage indicator
• Control panel
• Thermal insulating materials
• Sight glass
• Thermometer
• Pump
• CIP universal cleaning device
• Static pressure transmitter
• liquid inlets and outlets
• Ventilation
• Liquid level meter

  Tank details:

  1. 6 mm steel inner tank / 5 mm steel outer tank (double or single wall tank)

  2. Brand fuel dispenser, oil gun, rotary joint and oil tank

  3. Bottom loading system:

     60 mm fast unloading connector with cover

     50 mm * 10 detachable filter

     Overflow proof valve

      Drainage system

  4. Support and tank anti-skid system

  5. Emergency ventilation system (each compartment)

  6. Vacuum pressure valve and the pipeline

  7. Emergency cut-off valve

  8. Siphon preventing valve

  9. Adjustable pressure pump

  10. Oil cavity

  11. Fuel dispenser installed base

  12. Explosion-proof hose and wiring

  13. Spill-proof alarm

  14. Tank manhole covers

  15. The lifting rings (on request)

       Tank high solid base coating

       Tank high quality finishing paint

       Tank customized logos or labels

  Optional equipments

  378 LPM/GPM oil drain pump

  Oil discharge flow meter

  External level gauge (one oil)

  External level gauge (double oil)

  Explosion-proof tank block device

•
