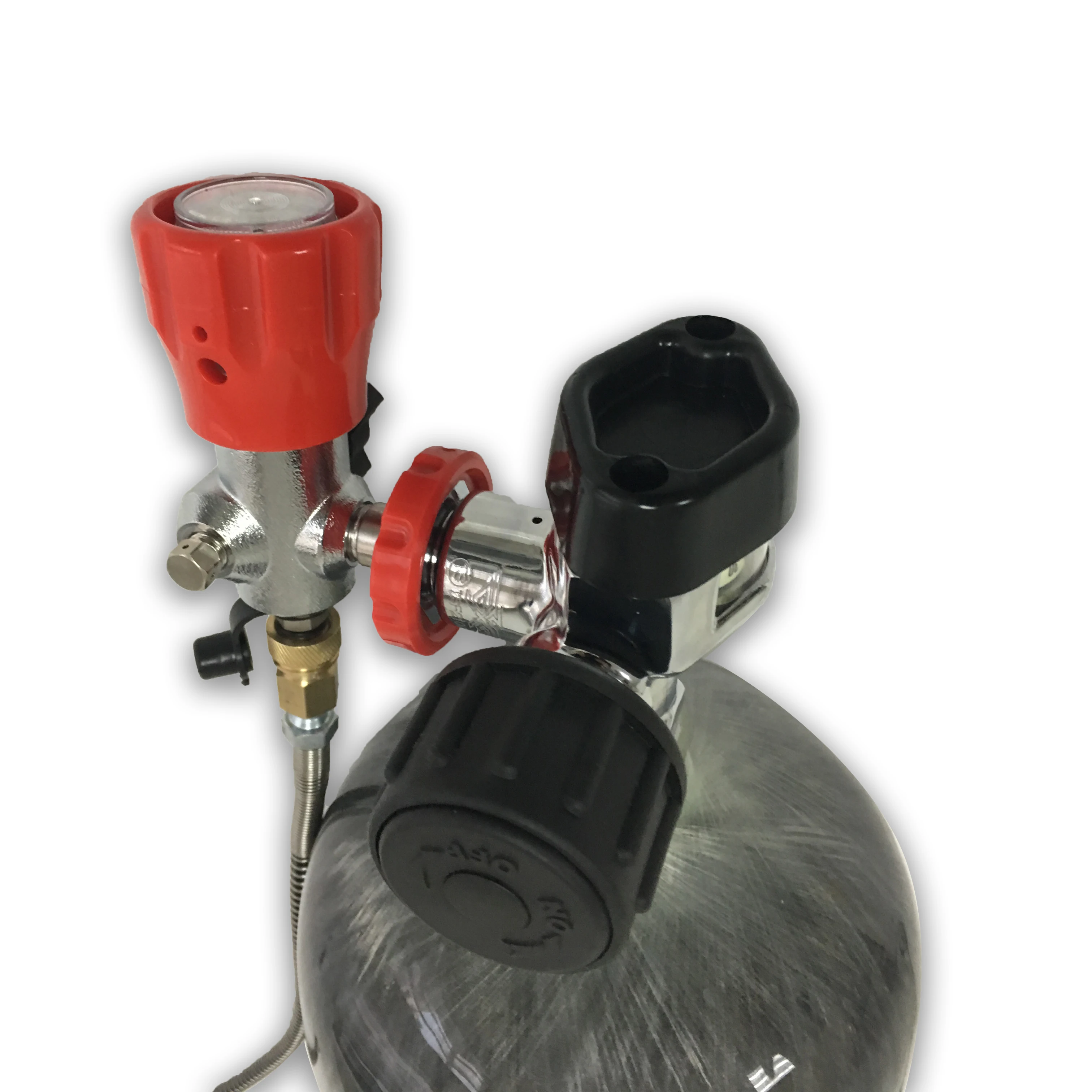

  • wholesale 9L CE 300bar 4500psi Carbon fiber cylinder for Paintball PCP Hpa Tank with Gauge Valve and Filling Station

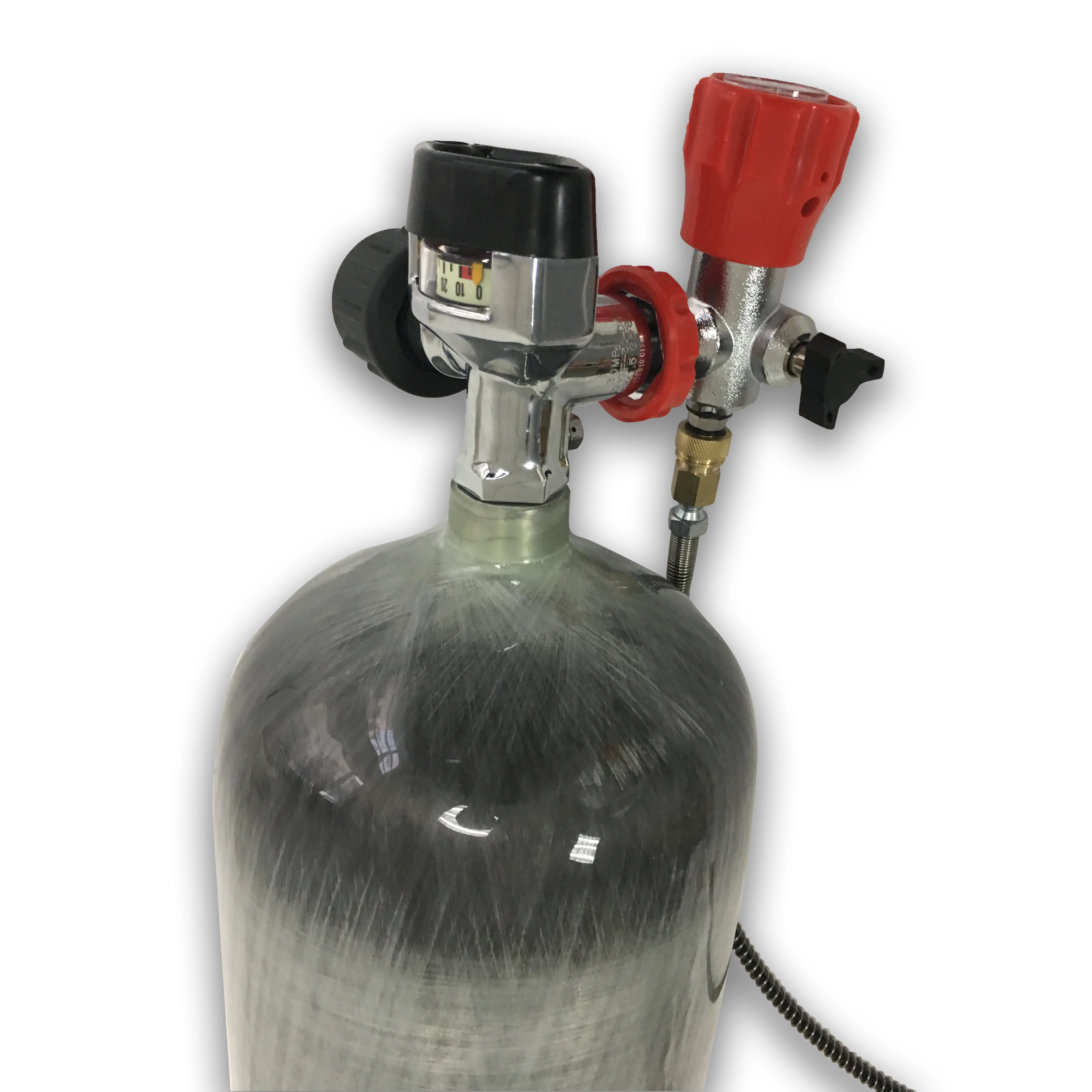

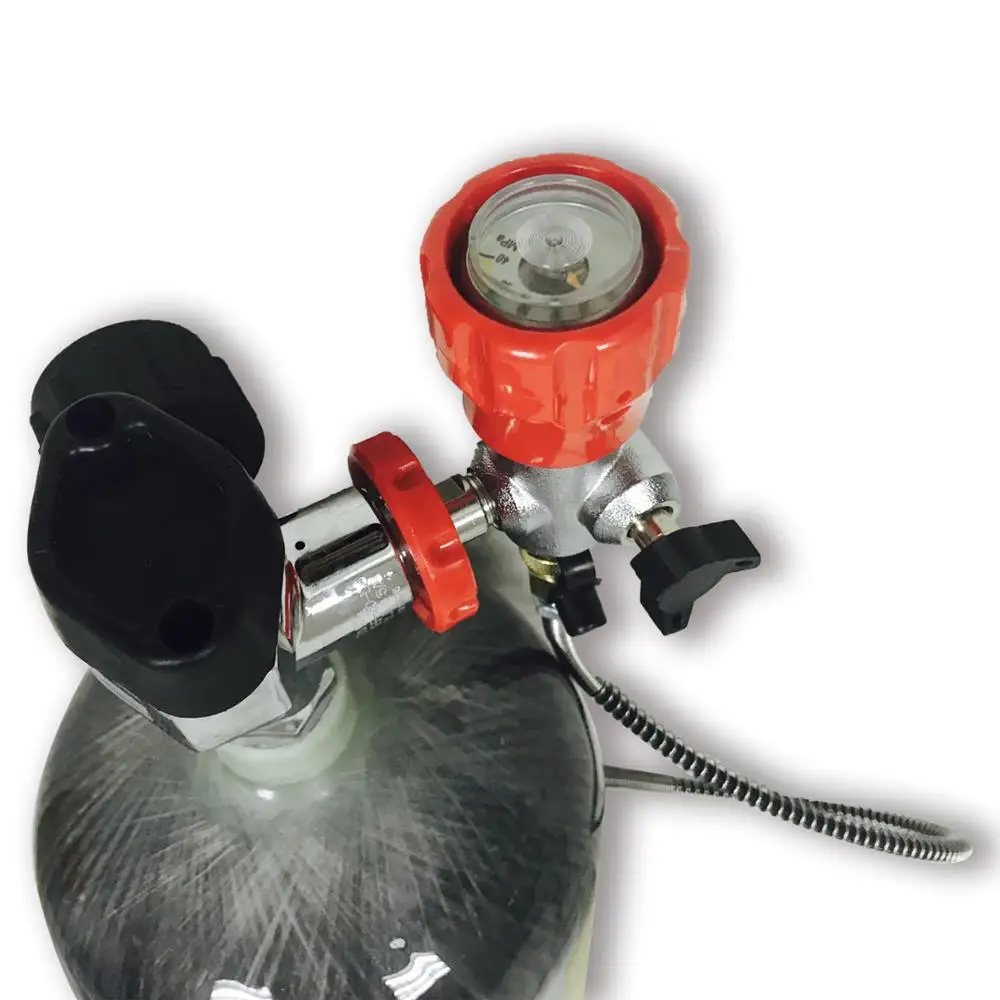

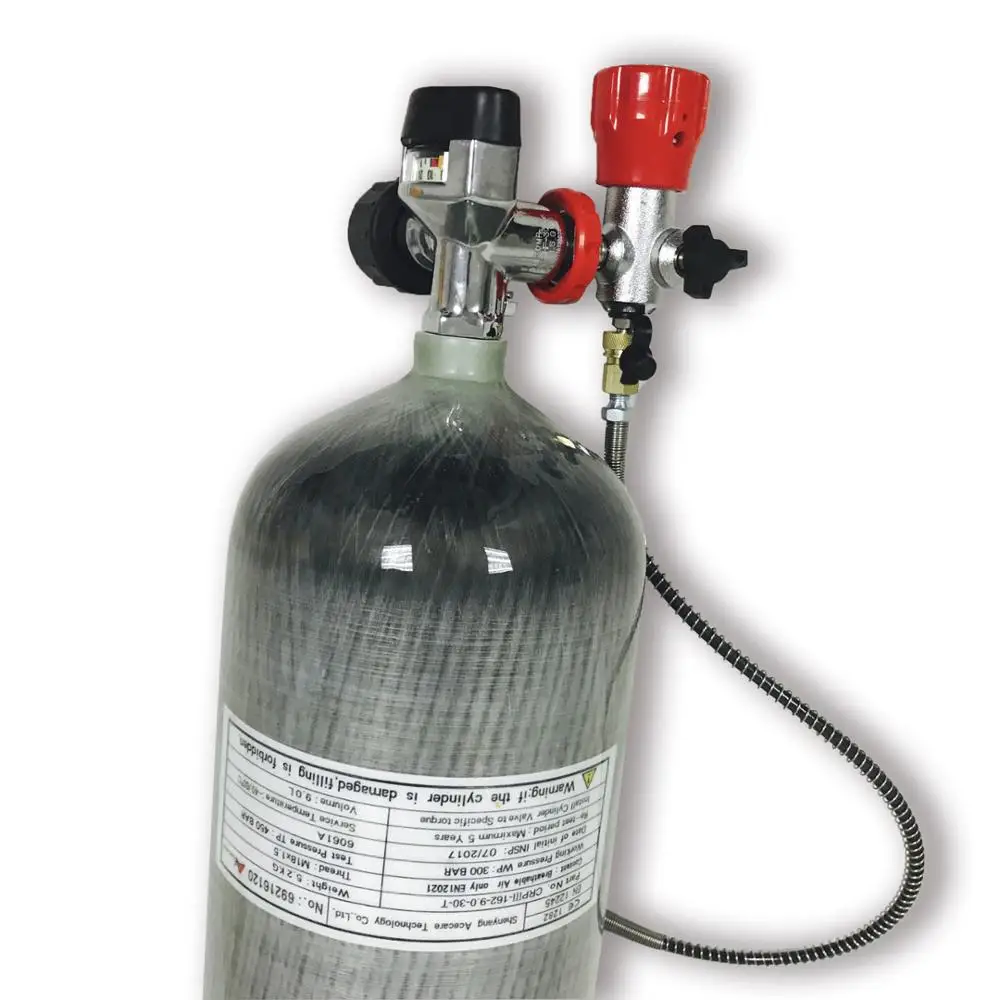

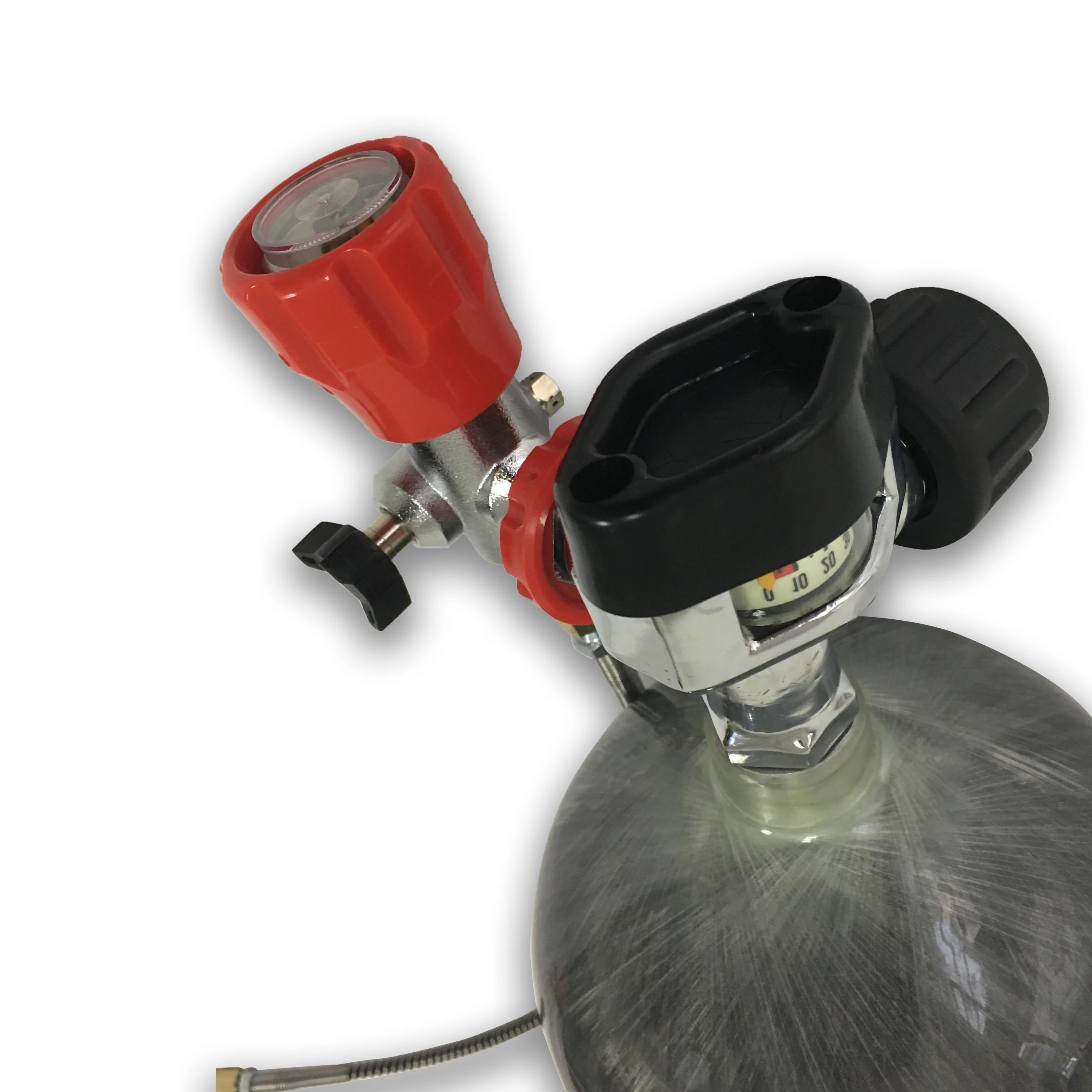

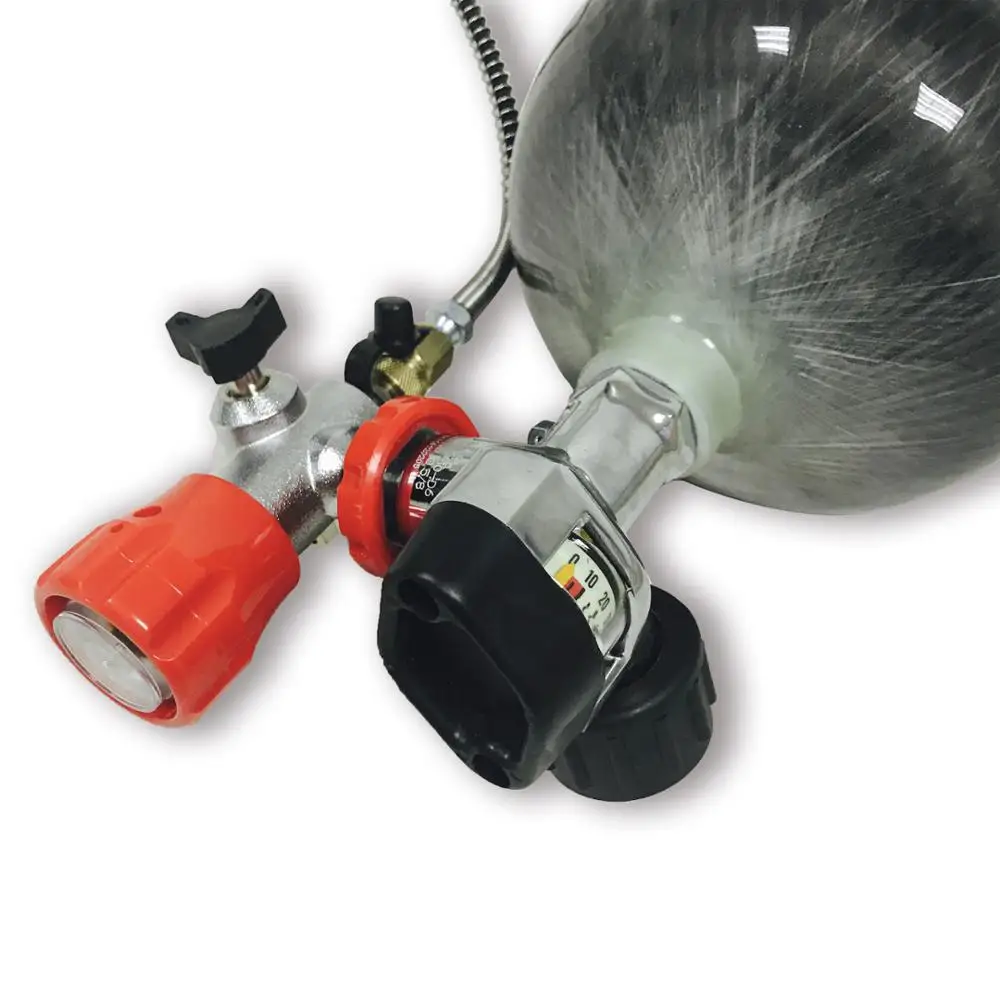

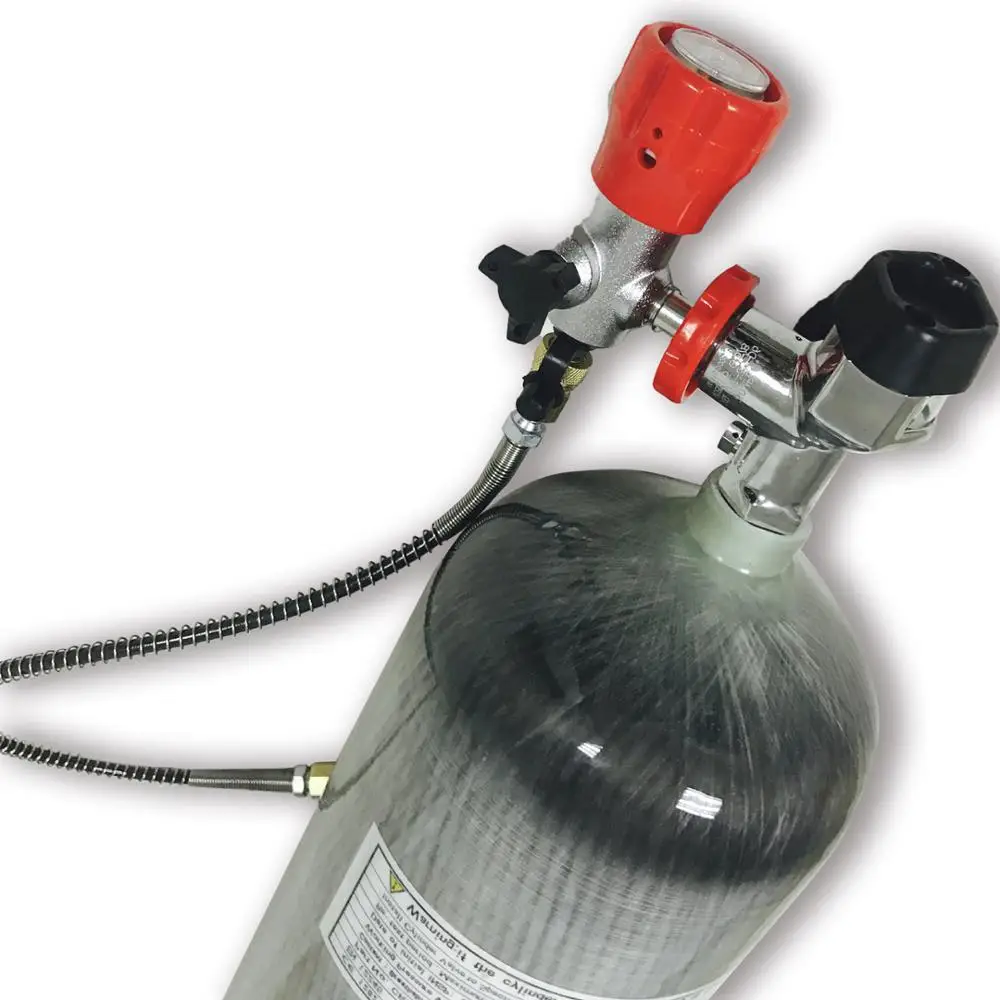

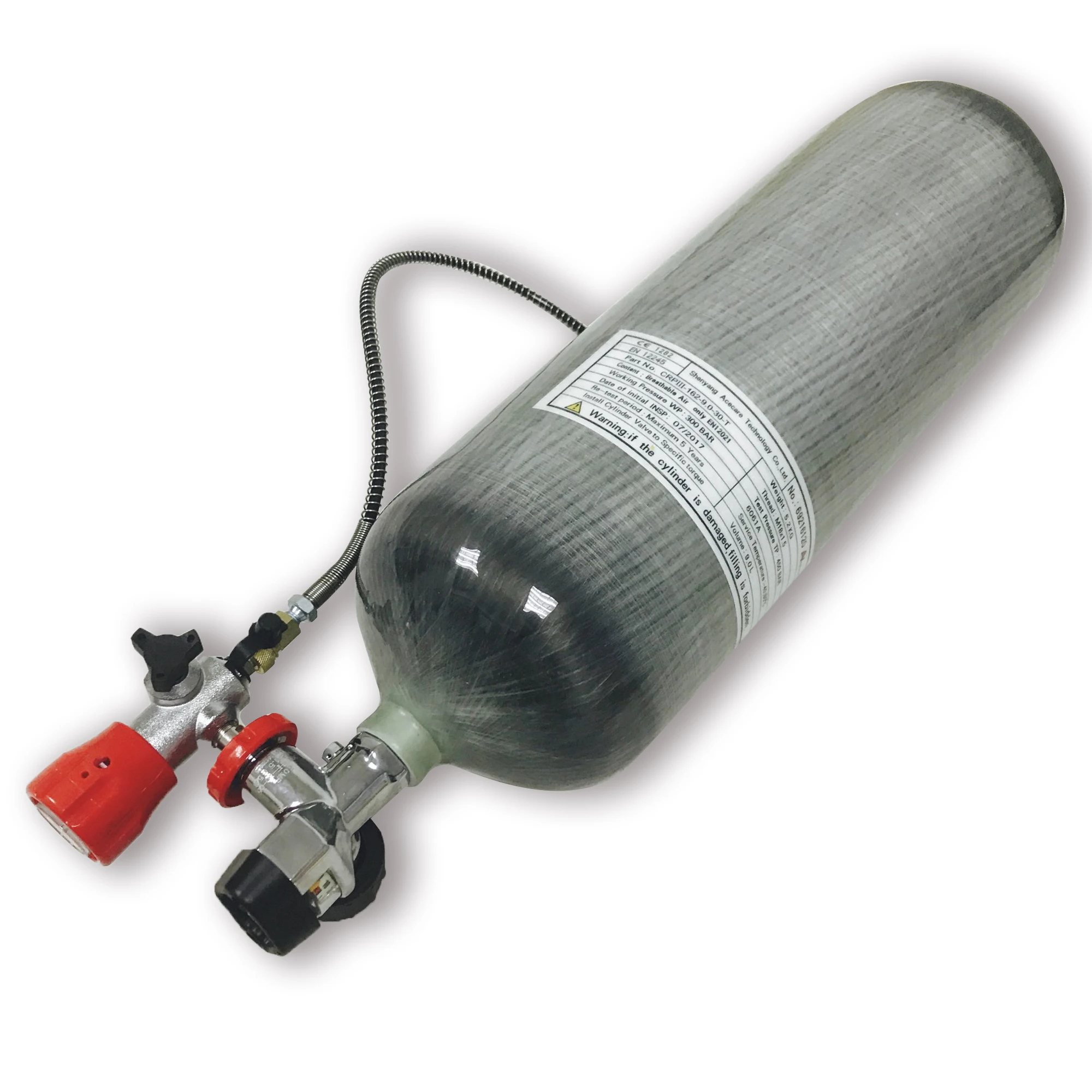

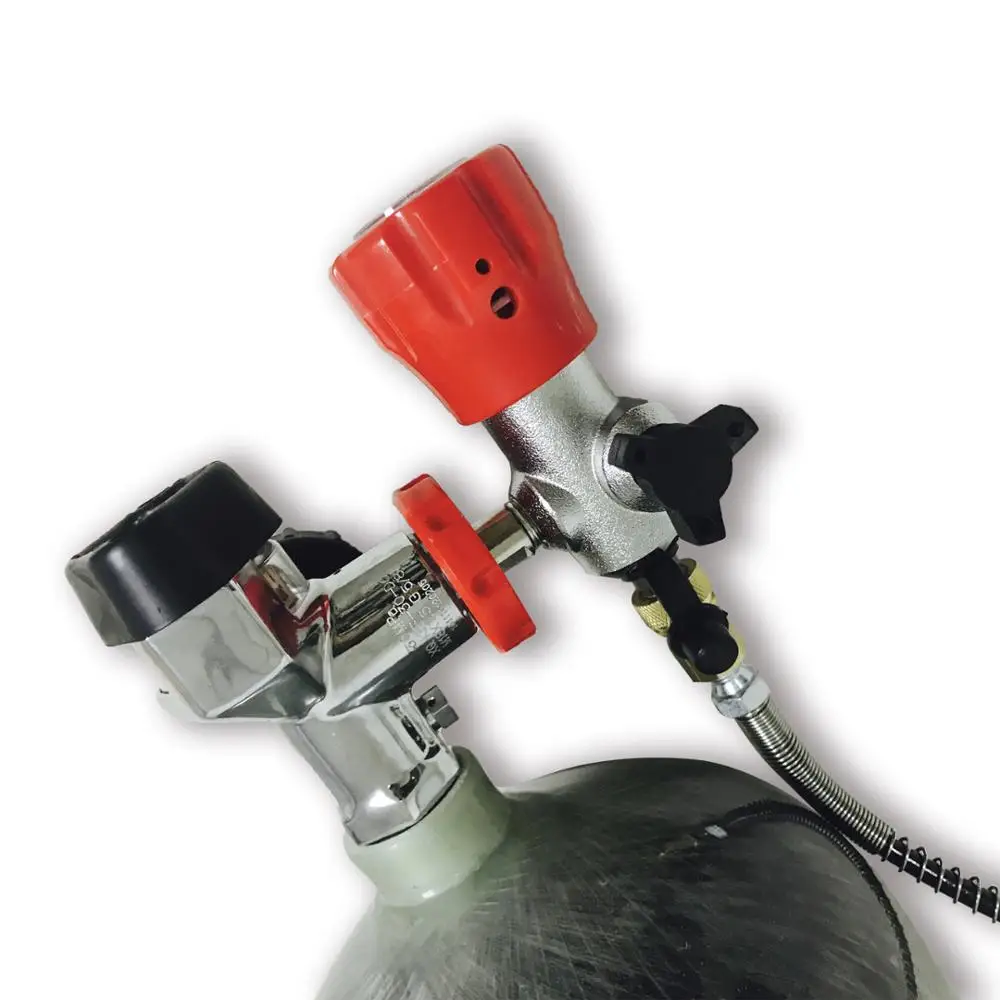

wholesale 9L CE 300bar 4500psi Carbon fiber cylinder for Paintball PCP Hpa Tank with Gauge Valve and Filling Station
wholesale 9L CE 300bar 4500psi Carbon fiber cylinder for Paintball PCP Hpa Tank with Gauge Valve and Filling Station
wholesale 9L CE 300bar 4500psi Carbon fiber cylinder for Paintball PCP Hpa Tank with Gauge Valve and Filling Station
wholesale 9L CE 300bar 4500psi Carbon fiber cylinder for Paintball PCP Hpa Tank with Gauge Valve and Filling Station
wholesale 9L CE 300bar 4500psi Carbon fiber cylinder for Paintball PCP Hpa Tank with Gauge Valve and Filling Station
wholesale 9L CE 300bar 4500psi Carbon fiber cylinder for Paintball PCP Hpa Tank with Gauge Valve and Filling Station
wholesale 9L CE 300bar 4500psi Carbon fiber cylinder for Paintball PCP Hpa Tank with Gauge Valve and Filling Station

wholesale 9L CE 300bar 4500psi Carbon fiber cylinder for Paintball PCP Hpa Tank with Gauge Valve and Filling Station

Share on (60145544608):


Price:$234.60 - $255.00

Quantity:


Product Overview

Description



\t\t\t\t\t\t\t\t\tProduct \t\t\t\t\t\t\t










Gas cylinder


      Gas cylinder liners are made of high quality 6061 aluminium alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of shoulder and base are produced with high precision and consistency.
1. 15-year lifetime warranty;
2. 5-year requalification period; 15-year life;
3. Smooth, high quality, easy-care exterior finish.



Carbon Fiber Composite Cylinder lined with
Aluminium Alloy
Standard
Part
No.
Thread size
Water
Capacity
 (liters)
Empty
Weight
(kg)
Diameter

(mm)
Length

(mm)
Working
Pressure
(Mpa)
GB
CRPIII-55-0.35-30-T
M18*1.5
0.35
0.45
61
235
30
CRPIII-55-0.5-30-T
M18*1.5
0.50
0.65
61
295
30
CRPIII-79-1.1-30-T
M18*1.5
1.10
1.10
85.5
315
30
CRPIII-101-1.5-20-T
M18*1.5
1.50
1.0
108
207
20
CRPIII-105-1.6-20-T
M18*1.5
1.60
1.20
112
268
20
CRPIII-88-2.0-30-T
M18*1.5
2.0
1.50
96
433
30
CRPIII-120-2.17-30-T
M18*1.5
2.17
1.5
112
380
30
CRP-III-120-2.4-20-T
M18*1.5
2.40
1.70
128
307
20
CRPIII-120-2.5-20-T
M18*1.5
2.50
1.80
128
312
20
CRPIII-125-2.7-20-T
M18*1.5
2.70
1.90
133
308
20
CRPIII-125-4.7-30-T
M18*1.5
4.70
3.0
137
492
30
CRPIII-145-6.8-30-T
M18*1.5
6.80
4.10
157
528
30
CRPIII-161-9.0-30-T
M18*1.5
9.0
5.20
174
560
30
CRPIII-192-12-30-T
M18*1.5
12.0
6.80
208
575
30
CRPIII-220-20-30-T
M18*1.5
20.0
12.0
222
770
30
CE
CRPIII-105-3.0-30-T
M18*1.5
3.0
2.10
114
446
30
CRPIII-144-6.8-30-T
M18*1.5
6.80
3.90
157
530
30
CRPIII-162-9.0-30-T
M18*1.5
9.0
5.30
175
560
30
DOT
TC 6.8L-30MPA
ISO M18*1.5
6.8
3.90
157


/
30
TC 4.7L-31MPA
0.875-14UNF-2B
4.7
2.90
140.4
31
TC 6.8L-31MPA
0.875-14UNF-2B
6.8
3.90
172.5
31
TC 8.5L-15MPA
0.750-16UNF-2B
8.5
3.10
166.8
15
TC 9.0L-31MPA
0.875-14UNF-2B
9.0
4.90
174.3
31


\t\t\t\t\t\t\t\t\tRelated products \t\t\t\t\t\t\t
















\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t




Shenyang Acecare Technology Co,,Ltd.is located in Shenyang which is the capital and the largest city of Liaoning province in northeast CHINA. ACECARE TECH is engaged in the manufacture of high pressure gas cylinders products,machinery & equipments.





\t\t\t\t\t\t\t\t\tPacking and Delivery \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t


We care more than what you care.

Enquiry: Contact us by email, Trademanager, WhatsApp

WhatsApp: +8615909836640



FAQ


1. What is the use life of the carbon fiber composite cylinder?
A: The use life is 15 years, and a retest will be needed after every 3-5 years.

2. How to fill the carbon fiber composite cylinder?
A: For the carbon fiber composite cylinders, we have filling stations to connect the compressor, in this way, the carbon fiber composite cylinders can be filled. If you need the filling station, you can purchase it yourself or you may also contact us.

3. What is the test pressure of the carbon fiber composite cylinder?
A: Under GB 28053, the test pressure we normally mean two type of tests. One is called hydraulic test pressure, for carbon fiber cylinder, it could reach to 50 Mpa. And the other one is called minimum burst pressure, for carbon fiber cylinder, it could reach to 102 Mpa.

4. Why it is expensive than aluminum cylinder?
A: Carbon fiber composite cylinder is made of aluminum alloy liner, wrapped with carbon fiber and glass fiber and produced with advanced and complicated technology, which makes it lighter and safer. The higher working pressure enable it to fill in more gases. That is why it is expensive than aluminum cylinder and still becoming more and more popular in these years.
