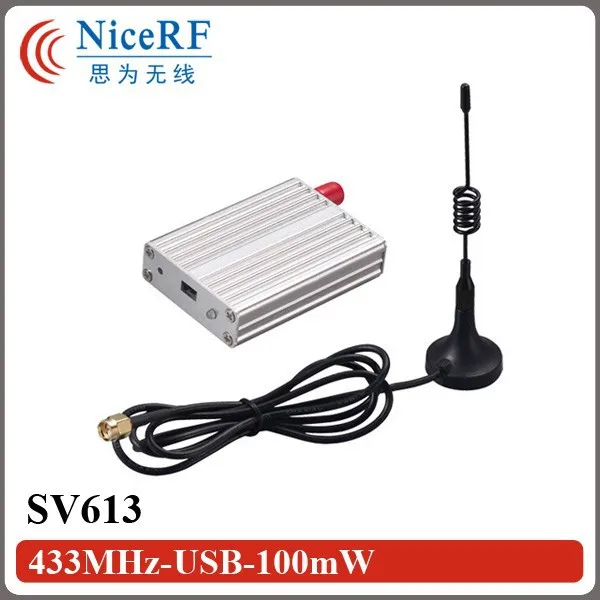

G NiceRF SV613 1.4km 433mhz usb wireless rf transmitter and receiver module
- Category: >>>
- Supplier: NiceRF Wireless Technology Co. Limited
Share on (60145641283):
Product Overview
Description

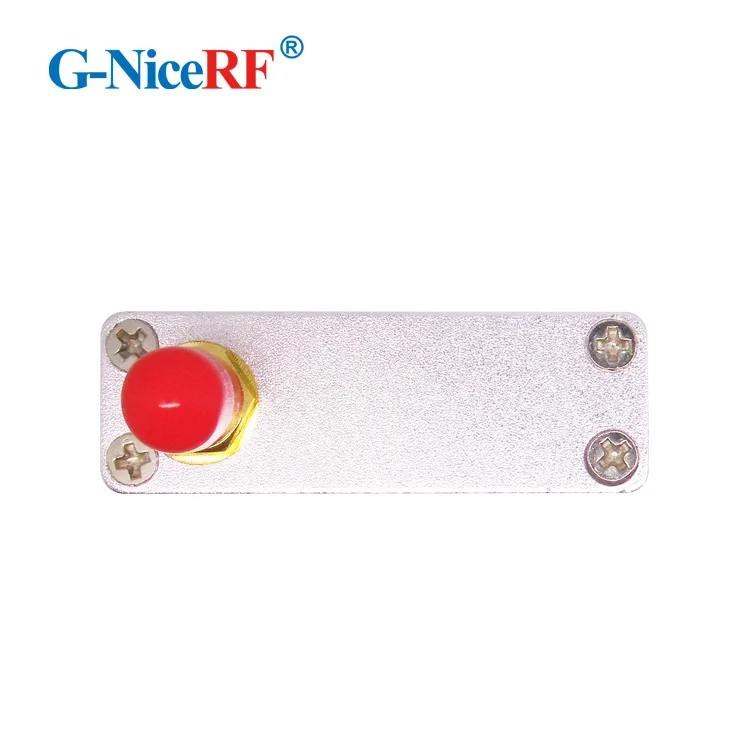

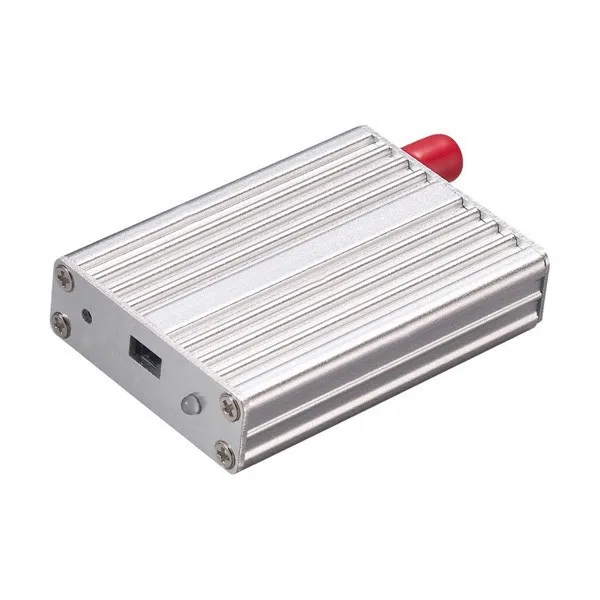

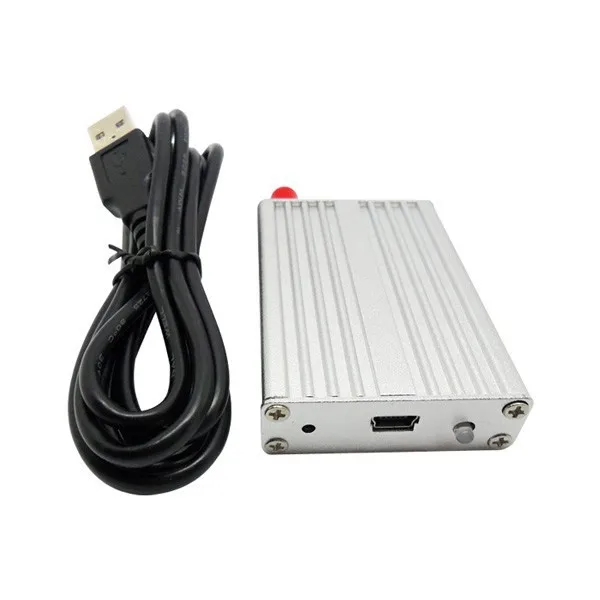

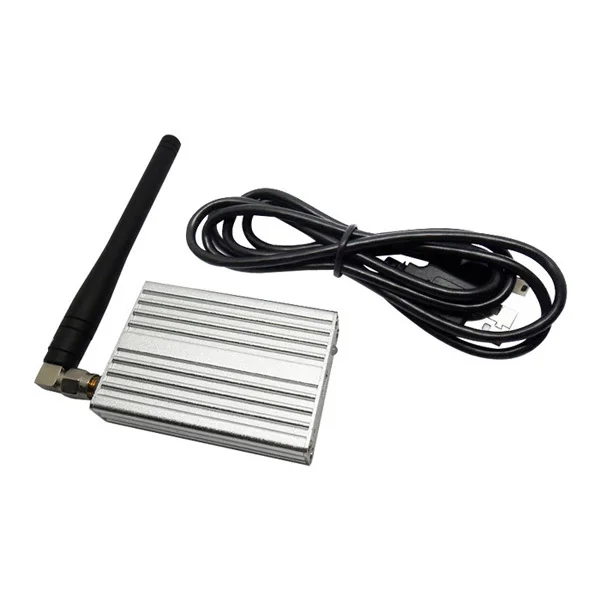

Original factory! SV613 - 1.4km 433mhz usb wireless rf transmitter and receiver module
Product Description
SV613 is a USB interface integrated wireless data transmission module, using high-performance Silicon Lab Si4432 RF chip. Low receiver sensitivity, coupled with industry-leading output power of 100 mW guarantee expand the scope and improve the link performance. Module provides a multi-band multi-channel and network ID to reduce interference during transmission to improve the transmission performance. Users can modify the software or online via PC serial port settings and the RF parameters.

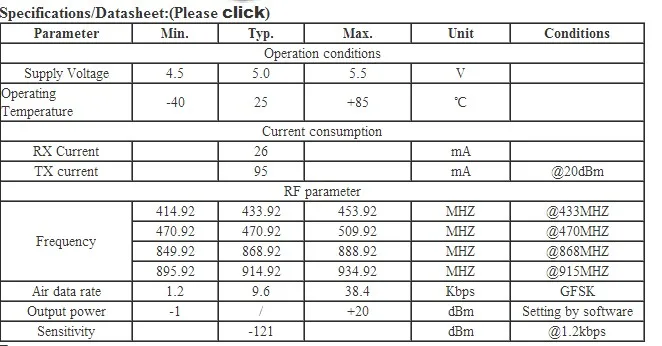

Specifications:
Feature:
*1400m RF line-in-sight distance @ 1.2kbps
*433/470/868/915 MHz
*40 channels
*4 bytes net ID
*2 bytes node ID
*Multiple air data rate
*GFSK modulation
*Antenna match automatically and bi-direction switch control
*Support Serial port parameter setting

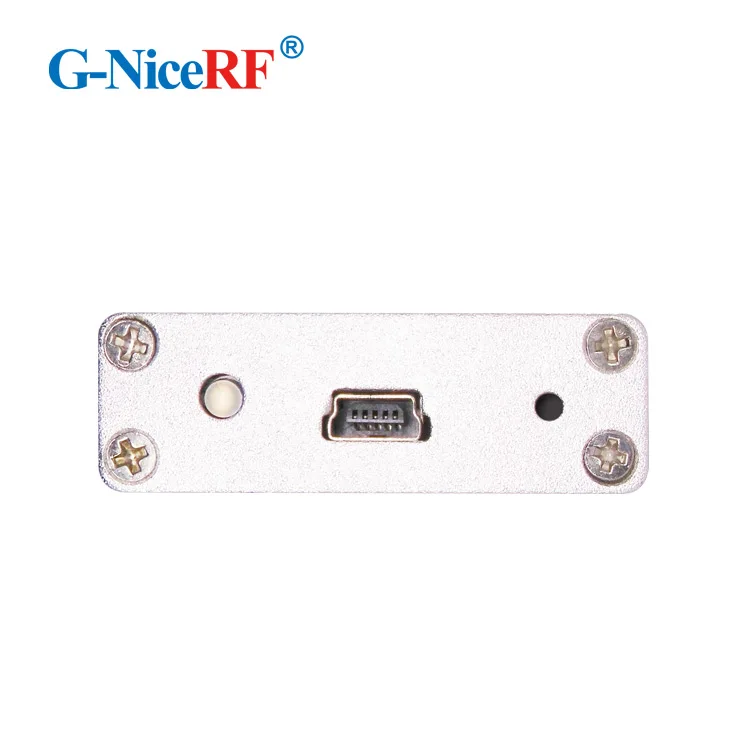

*USB port
*Sensitivity: -121 dBm
*Max output power:100 mW
*Voltage:4.5 ~ 5.5 V
*Temperature:-40 ~ +85 °C
Application:
*Remote telemetry
*Auto meter reading
*Security systems
*Data logger
*Wireless data communication
*Building residential automation and security
*Healthy monitoring
*Wireless PC peripherals
*Access Control System
*Robot control
Related Products
Product type | Product | Seal | Interface | MCU | Frequency | Power | Sensitivity | Voltage | Distance (Meter) | Volume (mm) |
(MHz) | (dBm) | (V) | ||||||||
Wireless data transceiver
Wireless network transceiver | SV610 | Module only | TTL | Yes | 433/470/868/915 | 100 mw | -121 | 2.8~6.0 | 1400 | 26.8*16*2.4 |
| SNR610 | -1~+20dBm | |||||||||
| SV611 | shielding case | TTL | Yes | 433/470/868/915 | 100 mw | -121 | 2.8~6.0(TTL) | 1400 | 43.25*26.45*9.4 | |
| SNR611 | RS232 | -1~+20dBm | 4.5~5.5V(232) | |||||||
| RS485 | 4.5~5.5V(485) | |||||||||
| SV612 | Aluminum | TTL | Yes | 433/470/868/915 | 100 mw | -121 | 2.8~6.0(TTL) | 1400 | 62.5*43.2*14.3 | |
| SNR612 | RS232 | -1~+20dBm | 4.5~5.5V(232) | |||||||
| RS485 | 4.5~5.5V(485) | |||||||||
| SV613 | Aluminum | USB | Yes | 433/470/868/915 | 100 mw | -121 | 4.5~5.5 | 1400 | 62.5*43.2*14.3 | |
| SNR613 | -1~+20dBm | |||||||||
| SV614 | Aluminum | RS232 | Yes | 433/470/868/915 | 100 mw | -121 | 4.5~5.5 | 1400 | 62.5*43.2*14.3 | |
| SNR614 | -1~+20dBm | |||||||||
| SV650 | shielding case | TTL | Yes | 433/470/868/915 | 500 mw | -121 | 3.3~7.5 | 1400 | 38*20*4 | |
| SNR650 | 485 | 20~27dBm | ||||||||
| SV651 | shielding case | TTL | Yes | 433/470/868/915 | 500 mw | -121 | 2.8~6.0(TTL) | 3000 | 50.4*39*7.6 | |
| SNR651 | RS232 | 20~27dBm | 4.5~5.5V(232) | |||||||
| RS485 | 4.5~5.5V(485) | |||||||||
| SV652 | Aluminum | TTL | Yes | 433/470/868/915 | 500 mw | -121 | 2.8~6.0(TTL) | 3000 | 62.5*43.2*14.3 | |
| SNR652 | RS232 | 20~27dBm | 4.5~5.5V(232) | |||||||
| RS485 | 4.5~5.5V(485) | |||||||||
| SV653 | Aluminum | USB | Yes | 433/470/868/915 | 500 mw | -121 | 4.5~5.5 | 3000 | 62.5*43.2*14.3 | |
| SNR653 | 20~27dBm | |||||||||
| SV654 | Aluminum | RS232 | Yes | 433/470/868/915 | 500 mw | -121 | 4.5~5.5 | 3000 | 62.5*43.2*14.3 | |
| SNR654 | 20~27dBm | |||||||||
| SV6202 | Aluminum | TTL | Yes | 433/470/868/915 | 2 W | -121 | 4.5~6.5(TTL) | 5000 | 62.5*43.2*14.3 | |
| SNR6202 | RS232 | 13~33dBm | 4.5~5.5(232) | |||||||
| RS485 | 4.5~5.5(485) | |||||||||
| SV6300 | Aluminum | TTL | Yes | 433/470/868/915 | 3 W | -121 | 9~18 | 6000 | 93*84*26 | |
| SNR6300 | RS232 | 15~35dBm | ||||||||
| RS485 | ||||||||||
| SV6500 | Aluminum | TTL | Yes | 433/470/868/915 | 5 W | -121 | 9~18 | 8000 | 93*84*26 | |
| SNR6500 | RS232 | 30~37dBm | ||||||||
| RS485 |
FAQ
A) Can’t communicate?
1) Check if the band, channel, data rate, NET ID is set correctly;
2) Check if the power supply is connected correctly ;
3) Check if CS is pull high or Leave Open;
4) Check if the antenna is connected correctly;
B) Communication distance is not so far as expected?
1) Check if the Power supply is stable ;
2) Check if the antenna well matched and install properly;
3) Check if the surrounding environment is good, if strong interference exist;
C) Data received incorrectly?
1) Check if serial data rate, parity and serial data bit are set correctly;
