1500l large industrial water tank ultrasonic cleaning machine

Product Overview

Description

1500l large industrial water tank ultrasonic cleaning machine



Skymen stainless steel ultrasonic cleaner,customized tank dimension and capacity

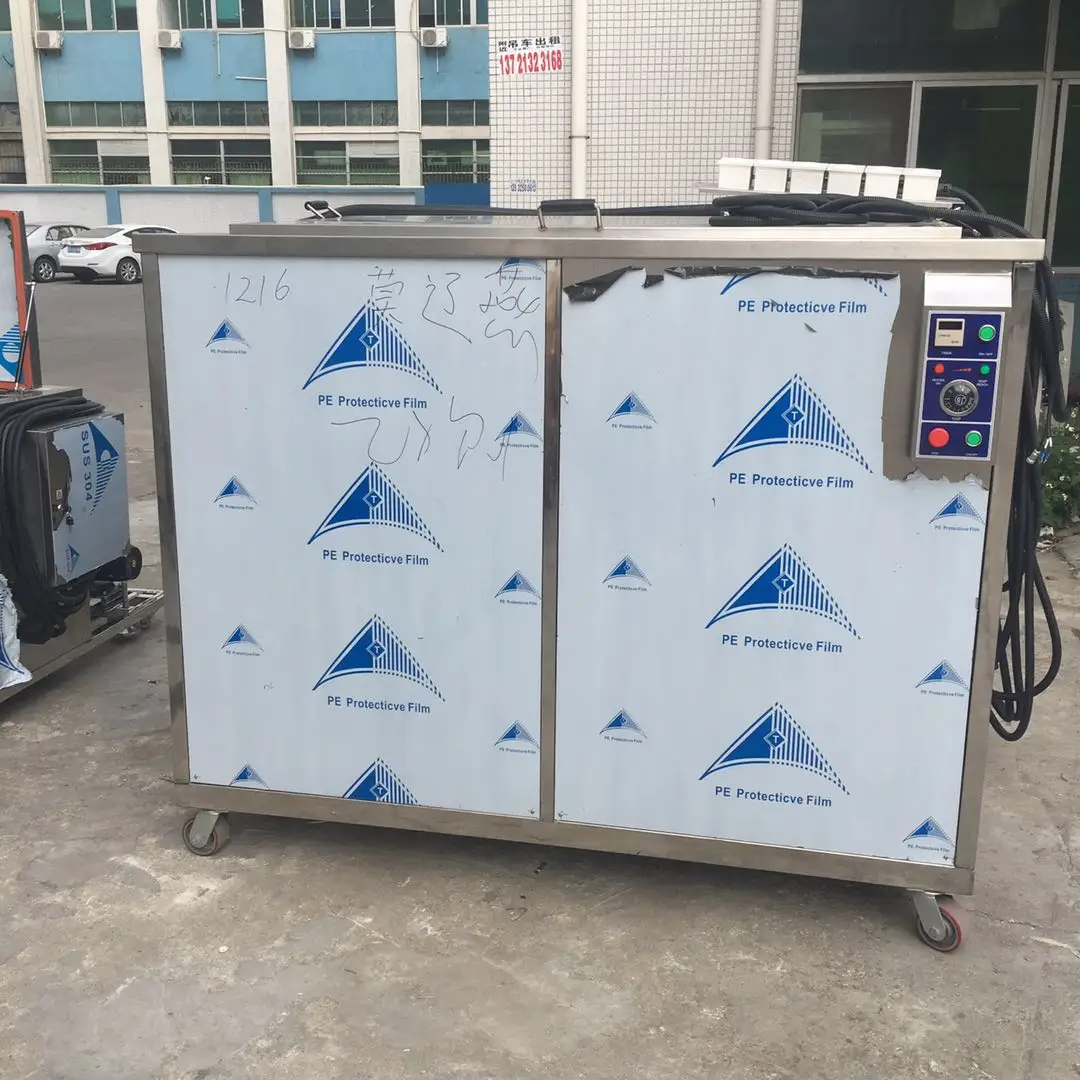

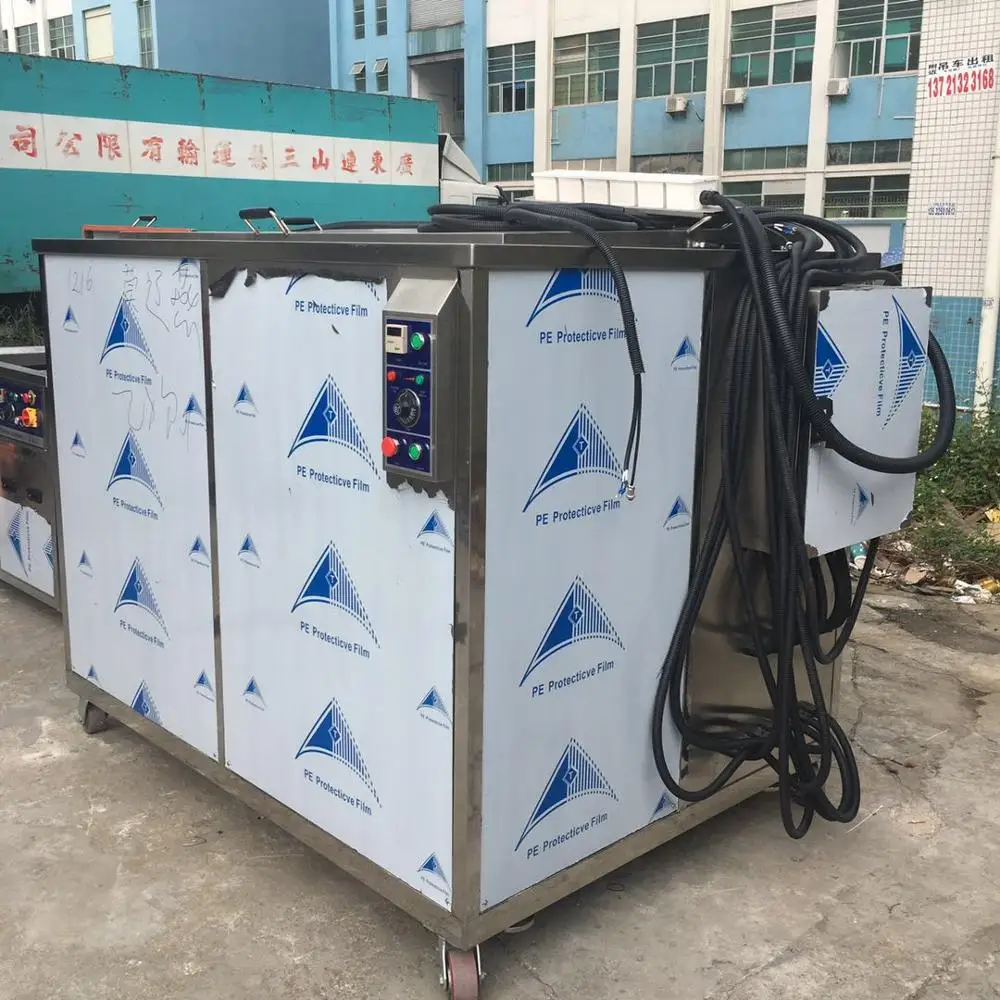

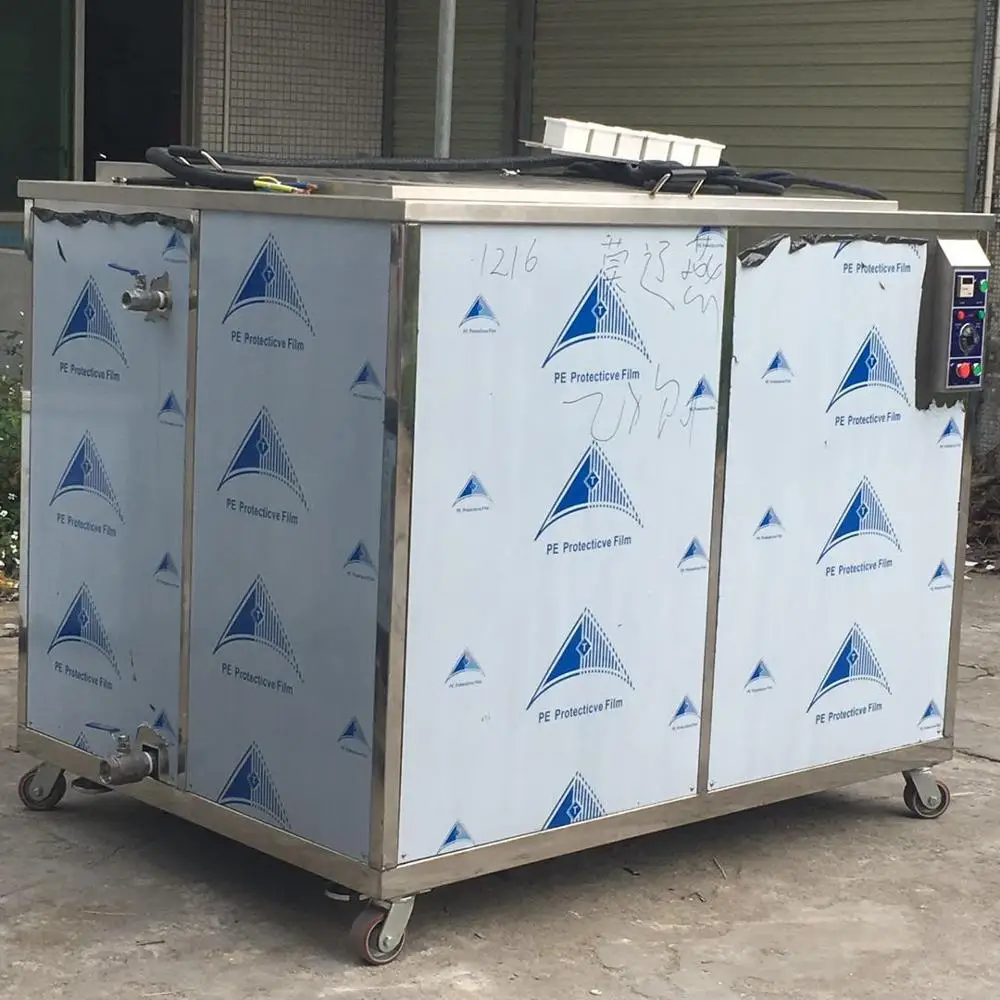

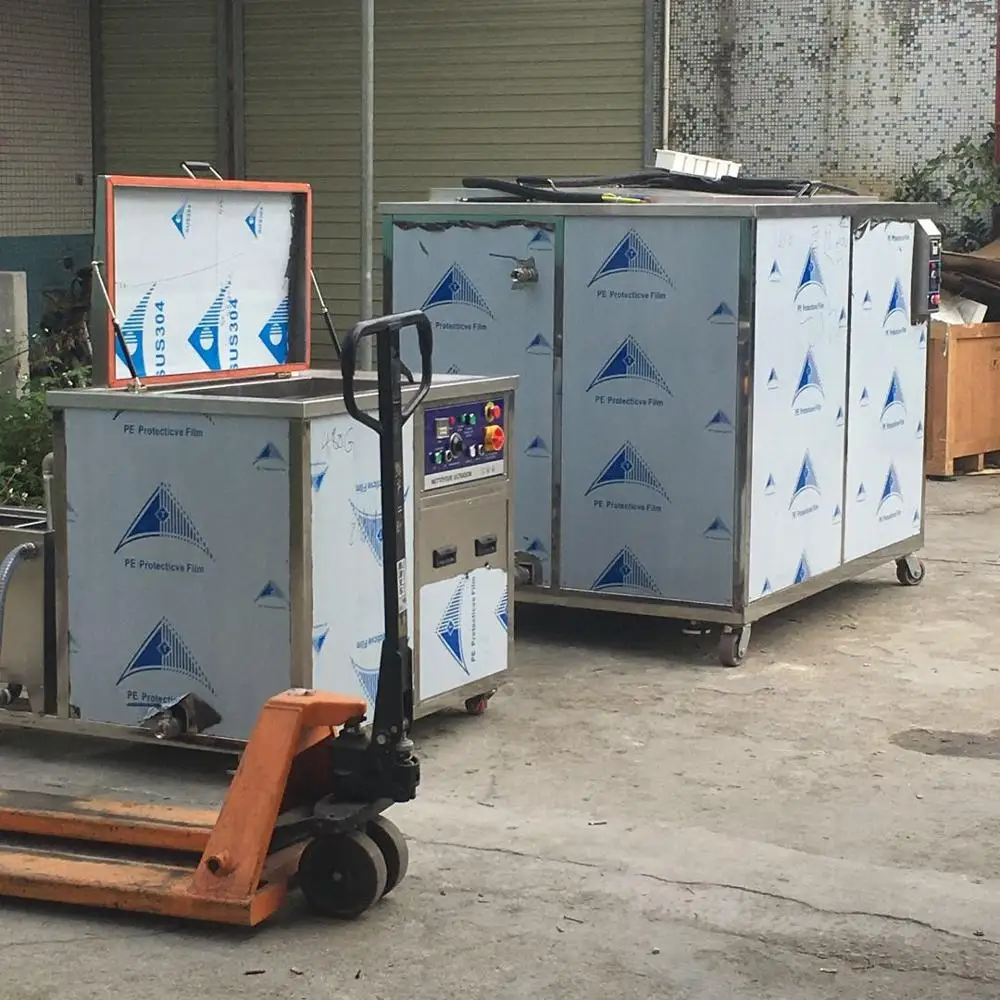

 large tank ultrasonic cleaning machinewe made for customer:

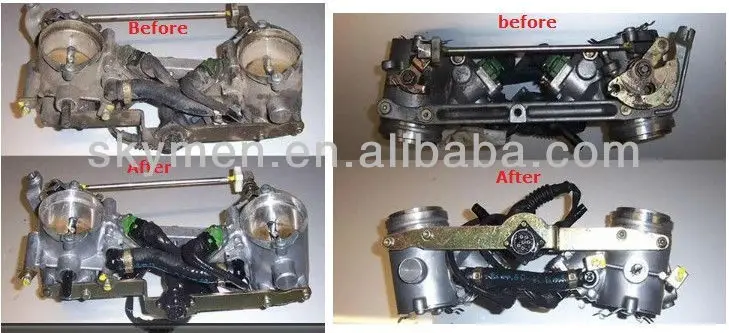

cleaning effect:



Features:

Adjustable ultrasonic power

Original BLT type transducer

SUS 316L stainless steel tank

Adaptable for continuous operation

Adjustable thermo controller

Adjustable ultrasonic power

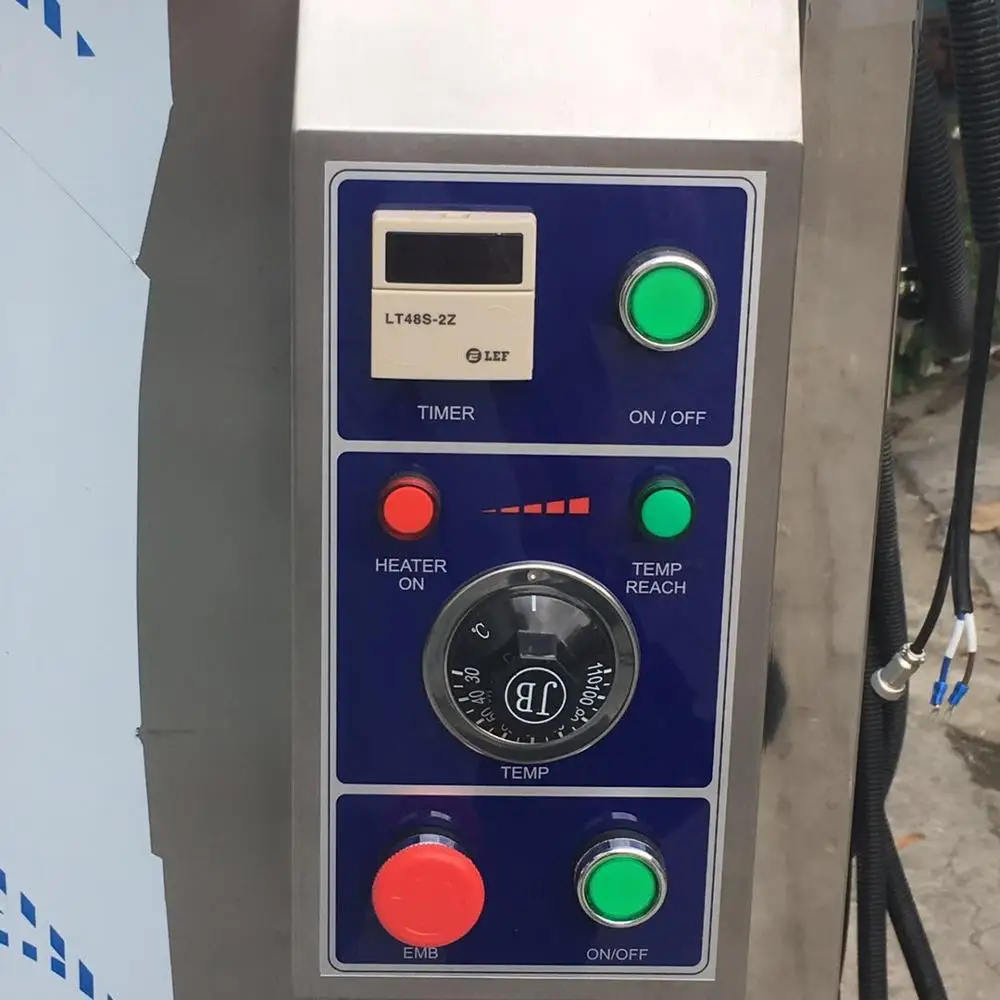

With separate control ultrasonic electronic generator

sweep mode control available

Adjustable timer & heating control

large tank ultrasonic cleaning machine



Specification details:

Model: Skymen™		JTS-1012	JTS-1018			JTS-1024	JTS-1030	JTS-1036	JTS-1072
TANK'S WORKING DIMENSION (mm)	L1	355	406			500	500	500	1000
	W1	305	305			355	406	460	600
	H1	355	460			500	500	550	600
OVERALL DIMENSION (mm)	L2	535	586			680	710	710	1320
	W2	485	485			535	586	640	780
	H2	750	680			720	720	770	820
TANK'S TOTAL CAPACITY		38L	56L			88L	101L	126L	369L
TANK'S MATERIAL		SUS304 / SUS316L
IN-TANK SURFACE FINISHING		Hard-Cr Plating Treatment ( 20+ microns )
HOUSING'S MATERIAL		Stainless steel
ULTRASONIC FREQUENCY*		28kHz / 40kHz
ULTRASONIC TRANSDUCER		12	18			24	30	36	72
ULTRASONIC OUTPUT POWER (MAX.)		600W	900W			1200W	1500W	1800W	3600W
ELECTRONIC GENERATOR		KG600	KG900			KG1200	KG1500	KG1800	KG3600
		Build-in	Separate
HEATER'S (HOT PLATE) POWER		1.5kW		3kW				4.5kW		9KW
CLEANING TANK’S POWER REQUIREMENT		AC 220V / 240V, 1, 15AMP						AC 220V / 240V, 1, 25AMP
GENERATOR’S POWER REQUIREMENT		----			AC 220V / 240V, 1, 13AMP
68kHz / 80kHz / 120kHz are also available







JTS series single tank ultrasonic cleaner equipment system includes replaceable transducer box and generator. The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load. Specification of tank dimension and transducer boxes are custom made available. large tank ultrasonic cleaning machine either for mould of parts cleaning can receive perfect cleaning efficiency.

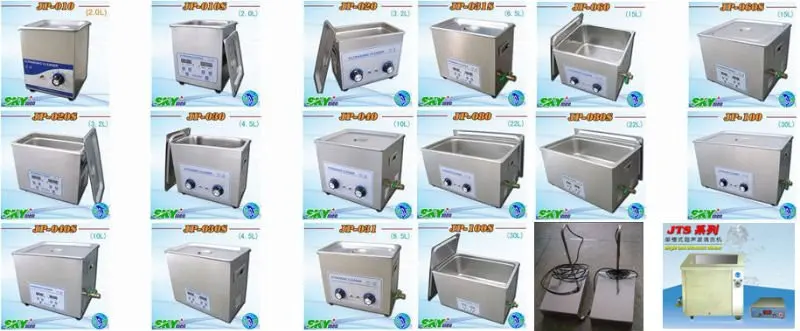

SKYMEN related products:
