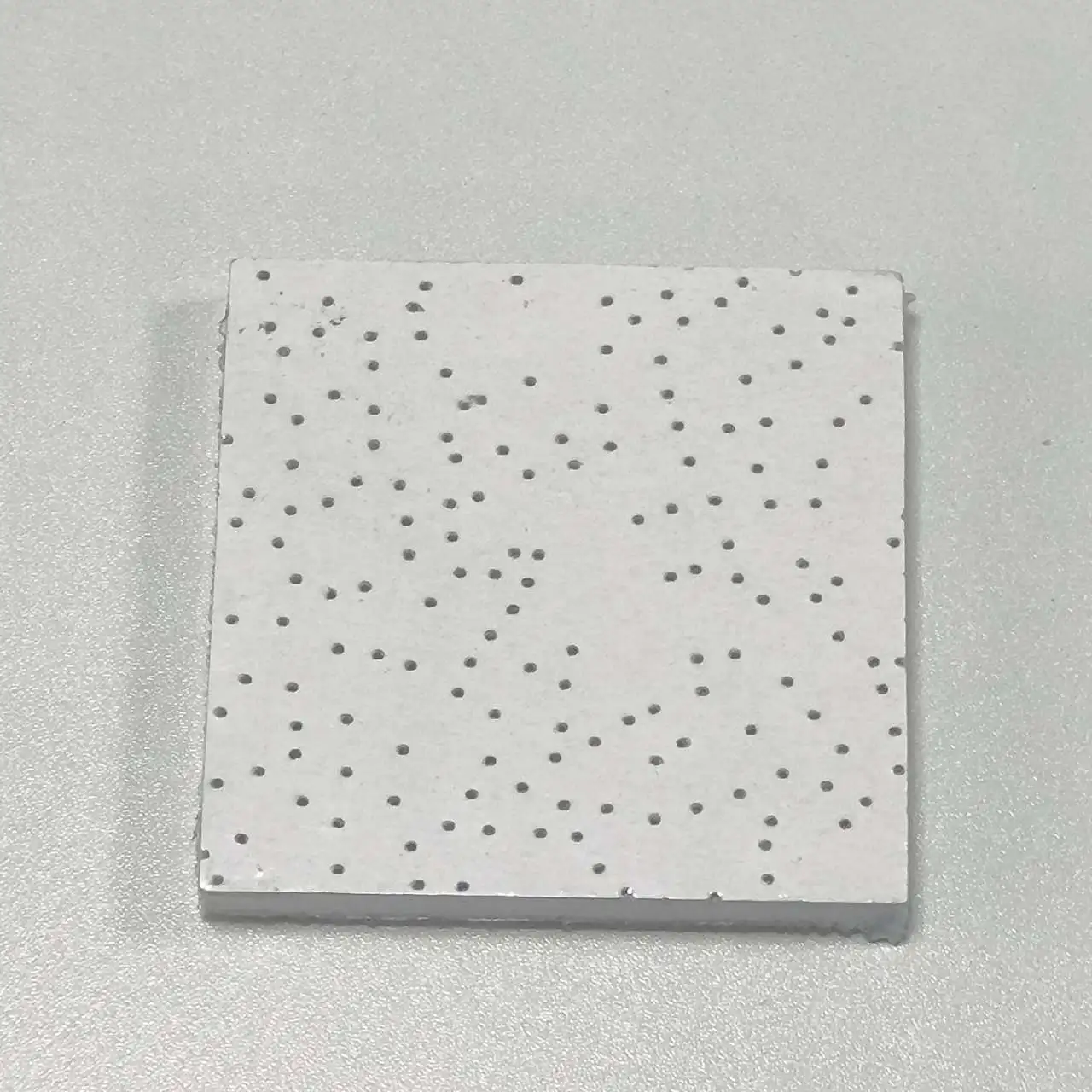

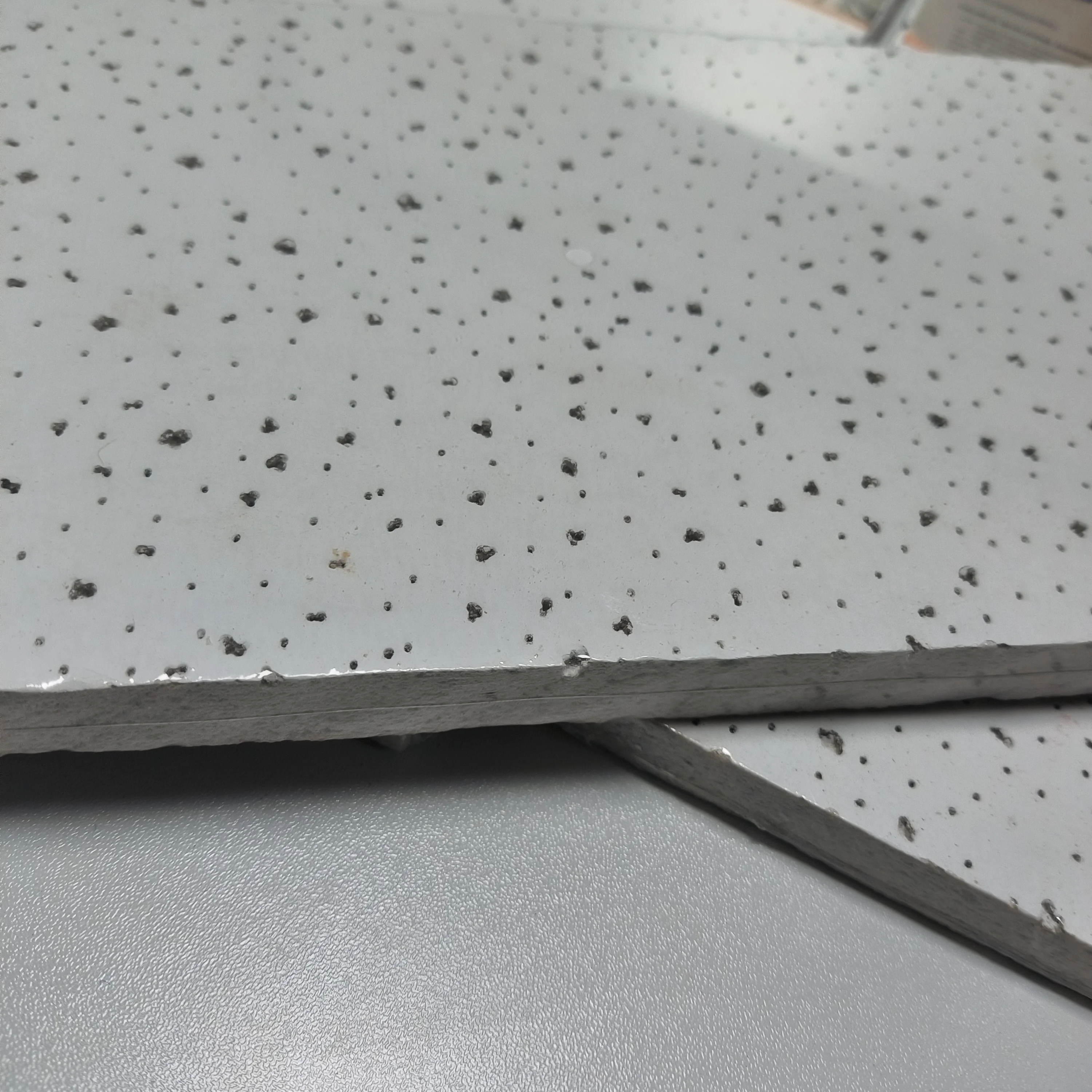

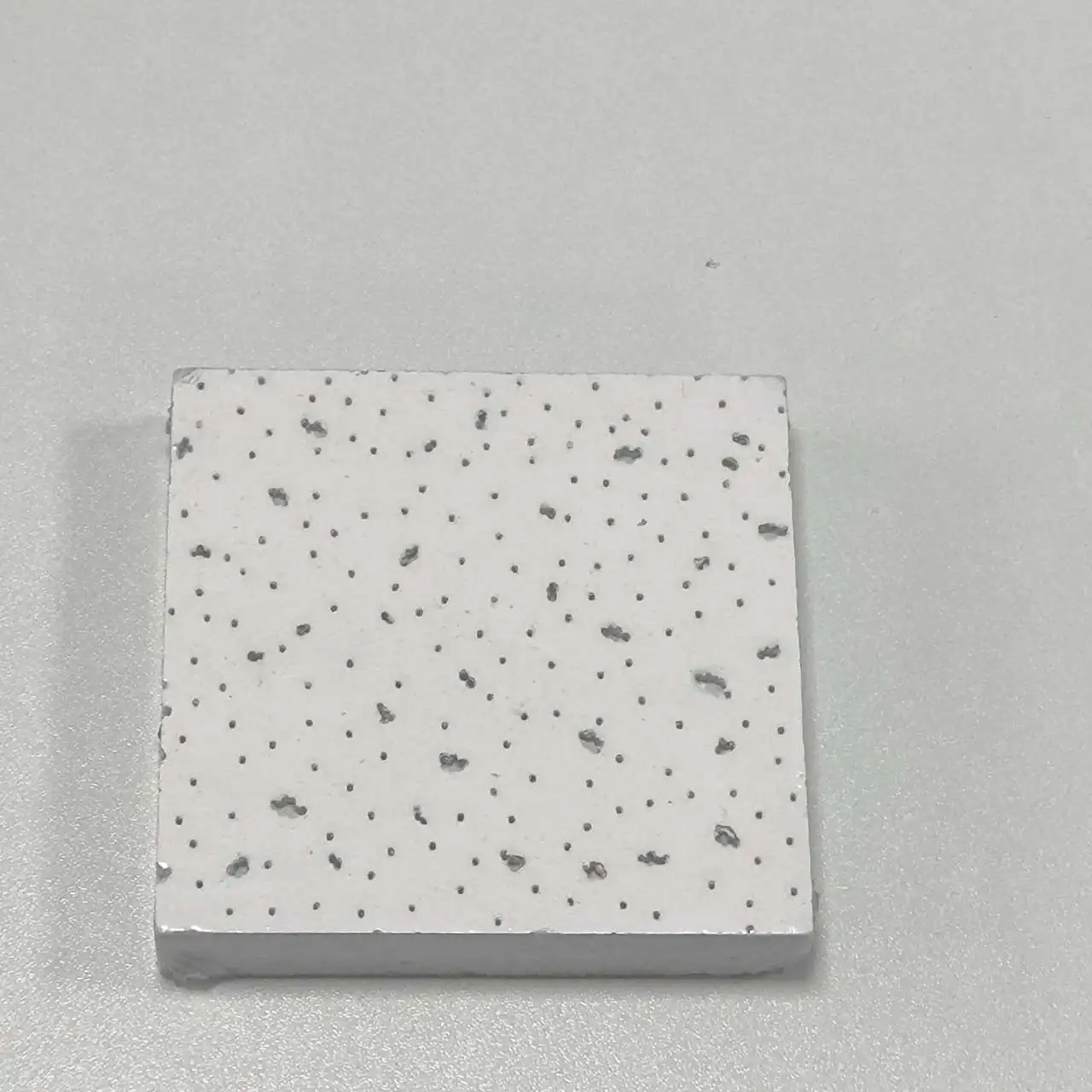

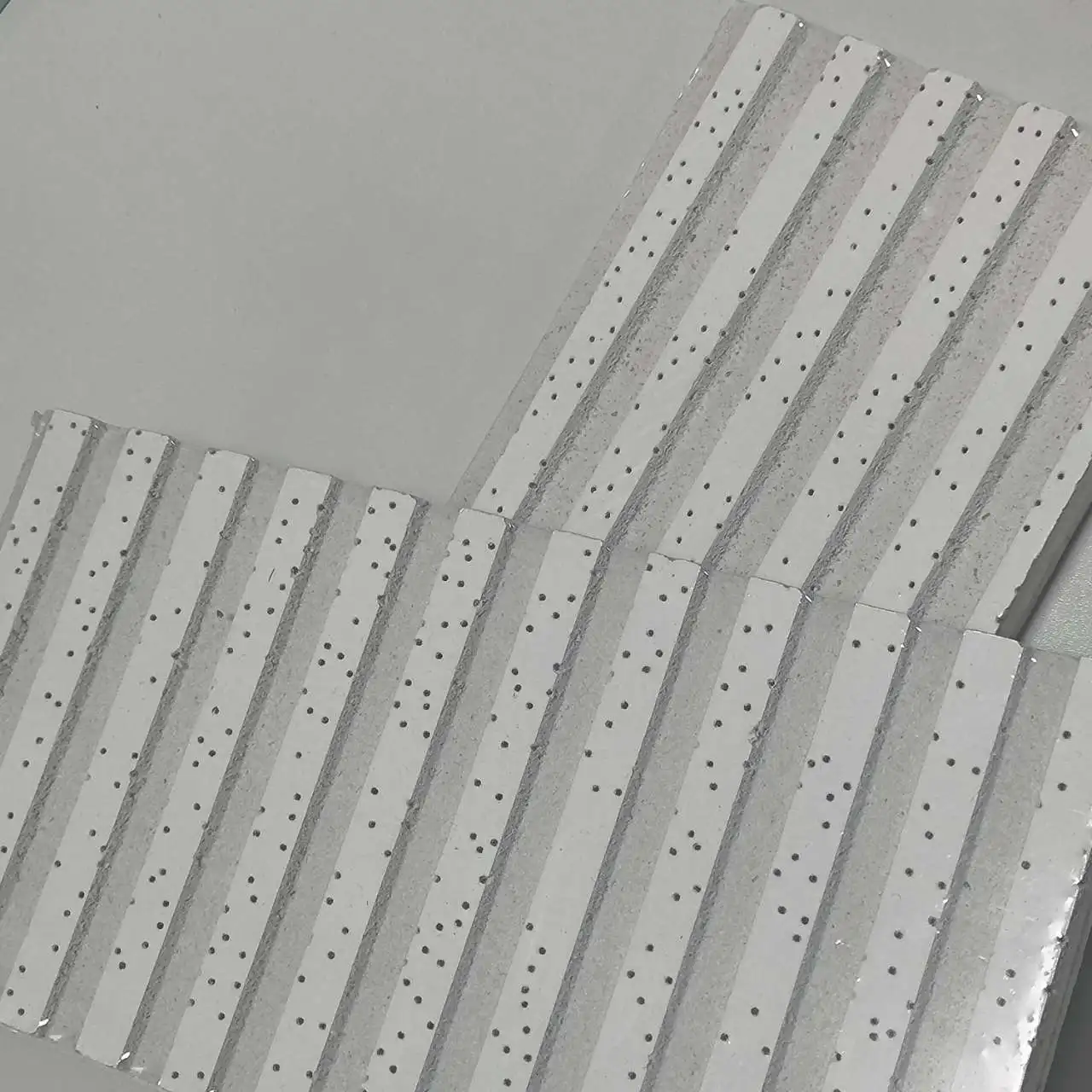

High Light Reflectance and Thermal Insulation Mineral Fiber Board Ceiling Board

Share on (60146103770):


Price:

Quantity:


Product Overview

Description





   MINERAL FIBER BOARD CEILING BOARD

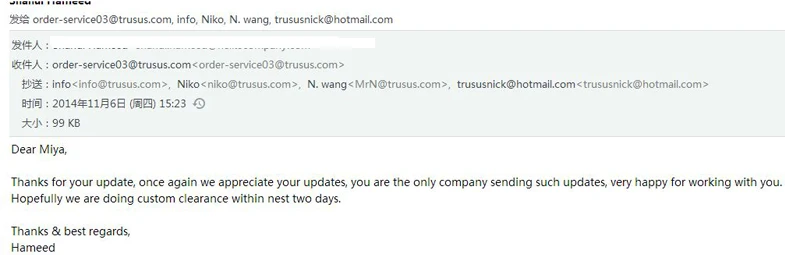

CUSTOMER FEEDBACK







OUR SERVICE





TRUSUS TEAM guarantees ' TRUSUS ' as following


Trust us from heart cooperation


Reasonable price


Unique quality


Schedule delivery on time


Updated technology and equipment


Service warmly

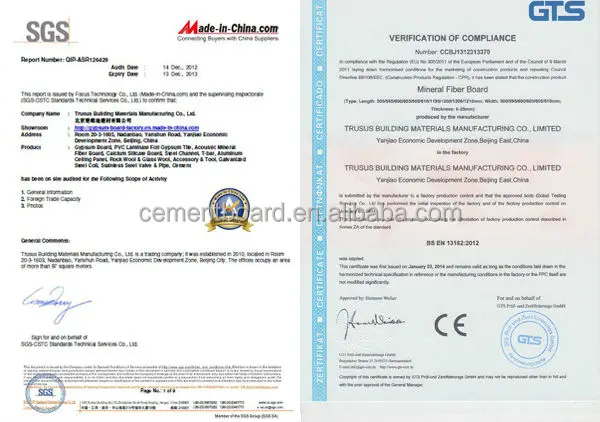

CERTIFICATION











DESCRIPTION





TRUSUS acoustic mineral fiber board is made from Wet-formed mineral fiber, mineral wool, expanded perlite, ATTA clay, scoria and starch,etc.


Non-asbestos and formaldehyde, Insulation moisture-proof, its belong to environmentally friendly product.





SPECIFICATION





Size: 595*595mm     600*600mm     603*603mm    600*1200mm


         610*610mm     610*1220mm   613*1213mm   300*1200mm


Thickness: 6mm-22mm


Pattern: Lovely worm, Litter star, Pinhole, Perforation, Glacier, Sanded, etc


Edge: Square, tegular/revealed, conceal and exceed conceal


NOTES: Other specification is available.





TECHNICAL DATA

























































ITEM



TEST RESULT



Resistant humidity



RH90/RH85



NRC



0.55



CAC



minimum 33



Water content



≤3%



Light reflectivity



Minimum LR 0.83



Sound absorption



EN20140-1994



Fire performance



GB8624-1997 Class B1



Thermal conductivity



0.065W/mk



Asbestos



free



Formaldehyde



free



Sagging resistance



plus-appropriate for high humidity interior applications up to 80% relative humidity , temperature up to 120F(40°C) no visible sag

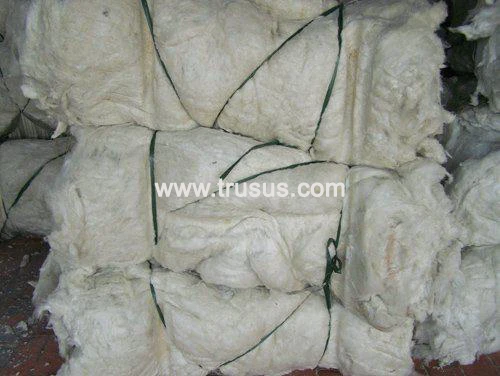

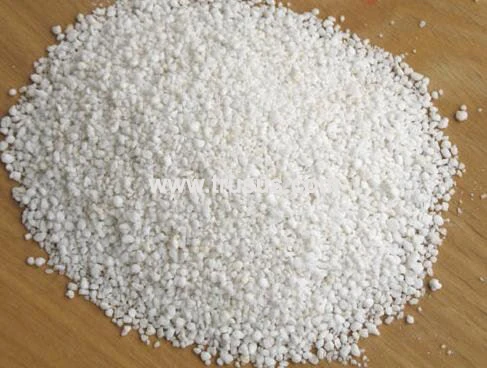

RAW MATERIALS

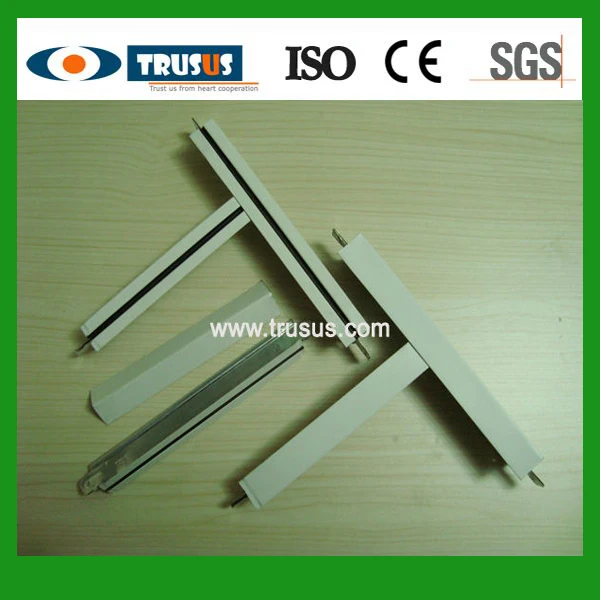

CEILING T-GRID





t grid.jpg





More detalis click here:


//preview.alibaba.com/product/60119299518-219190593/2015_Promotion_T_Grid_Ceiling_T_Grid_T_bar.html

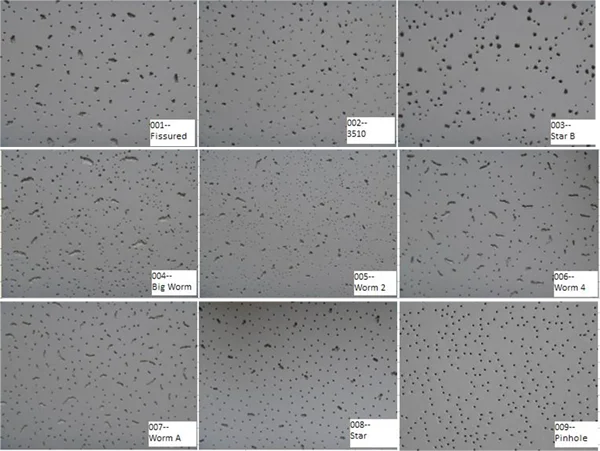

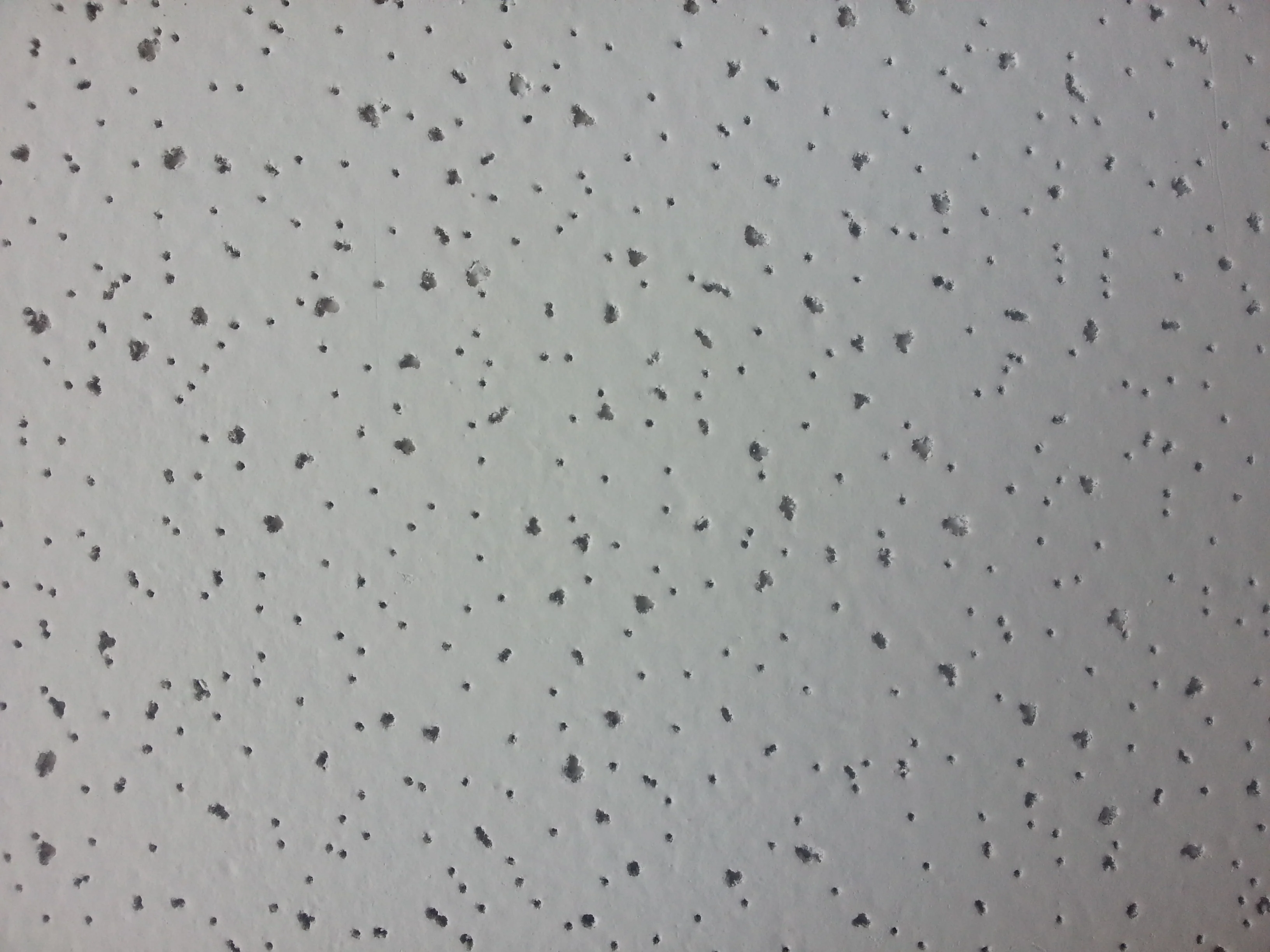

PATTERN





 Pattern--Mineral fiber board1.png

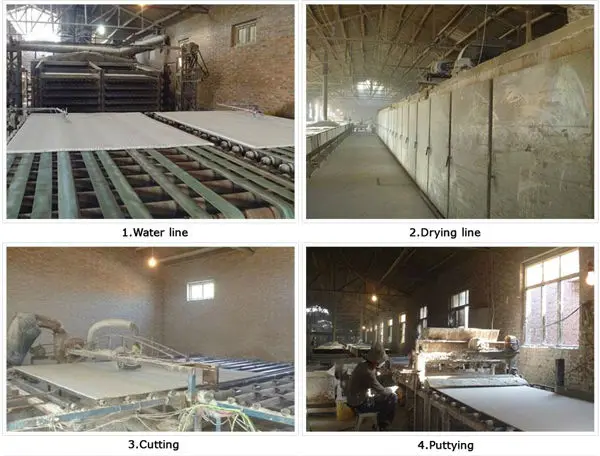

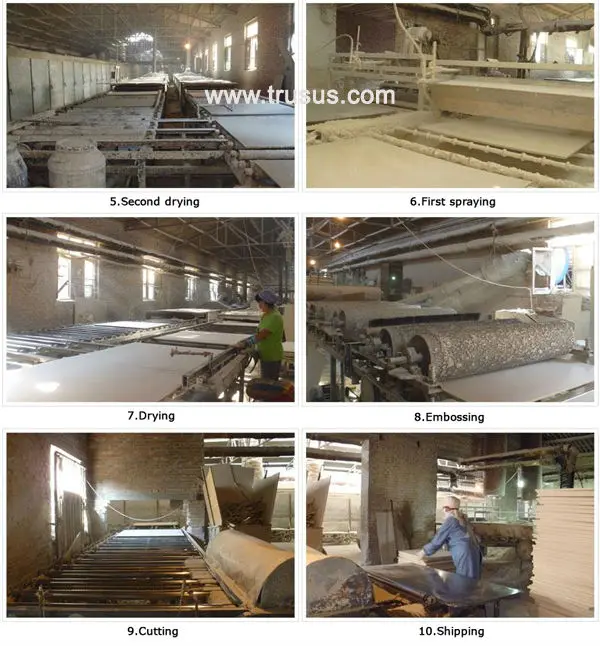

PRODUCTION LINE

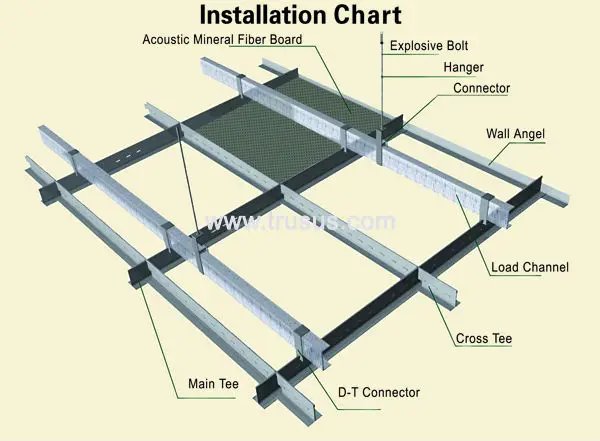

INSTALLATION

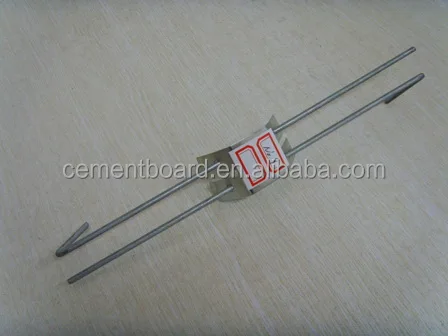

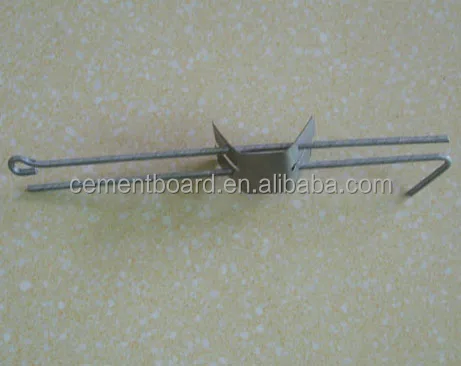

ADJUST CLIP

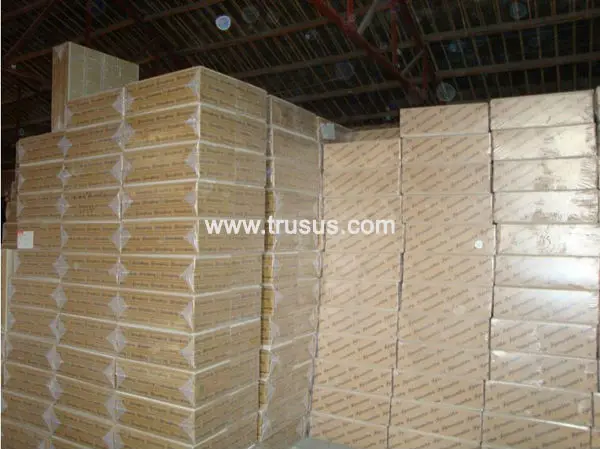

 PACKING

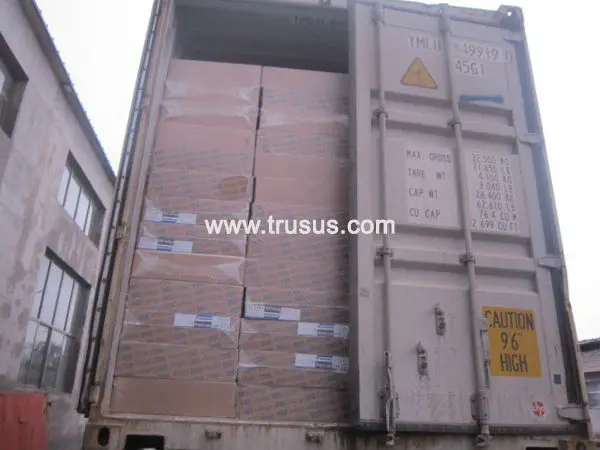

LOADING











 RECENT OVERSEAS EXHIBITION





















Feel free to contact us if you would like to know more details, we will reply you ASAP,


thanks a lot!


Welcome to visit our factory!
