Product Overview
Description

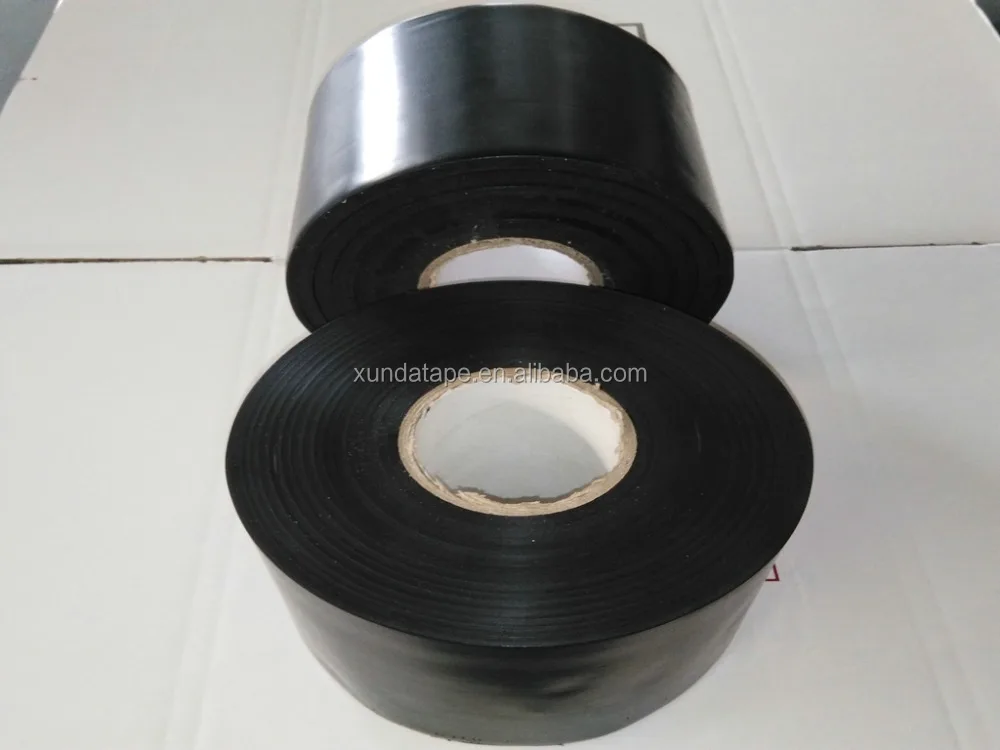

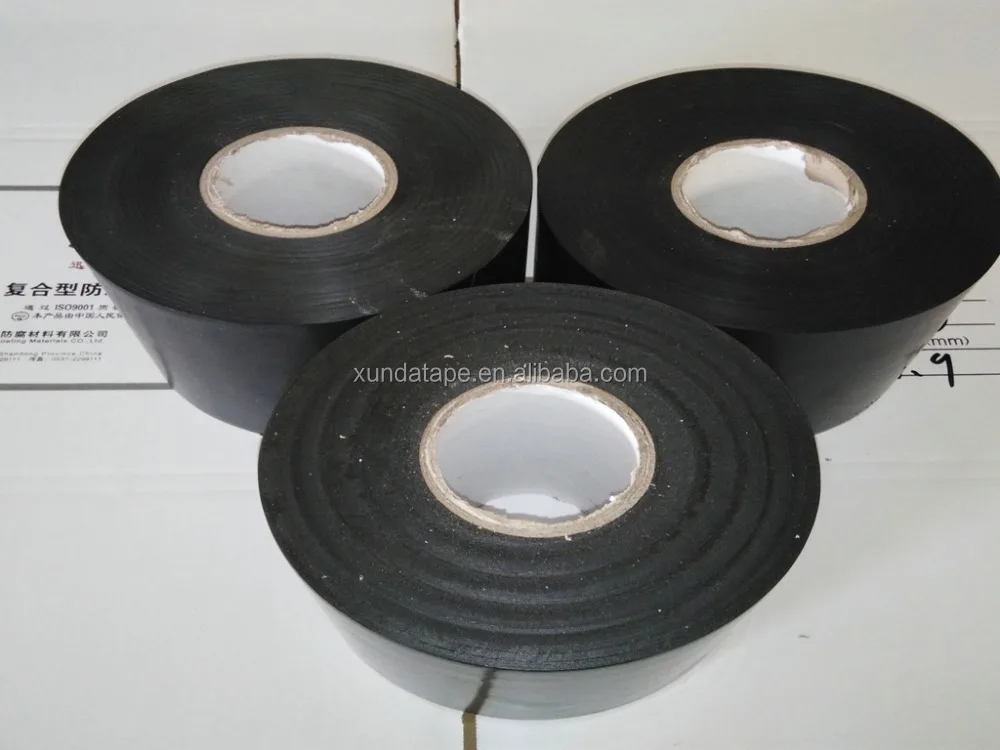

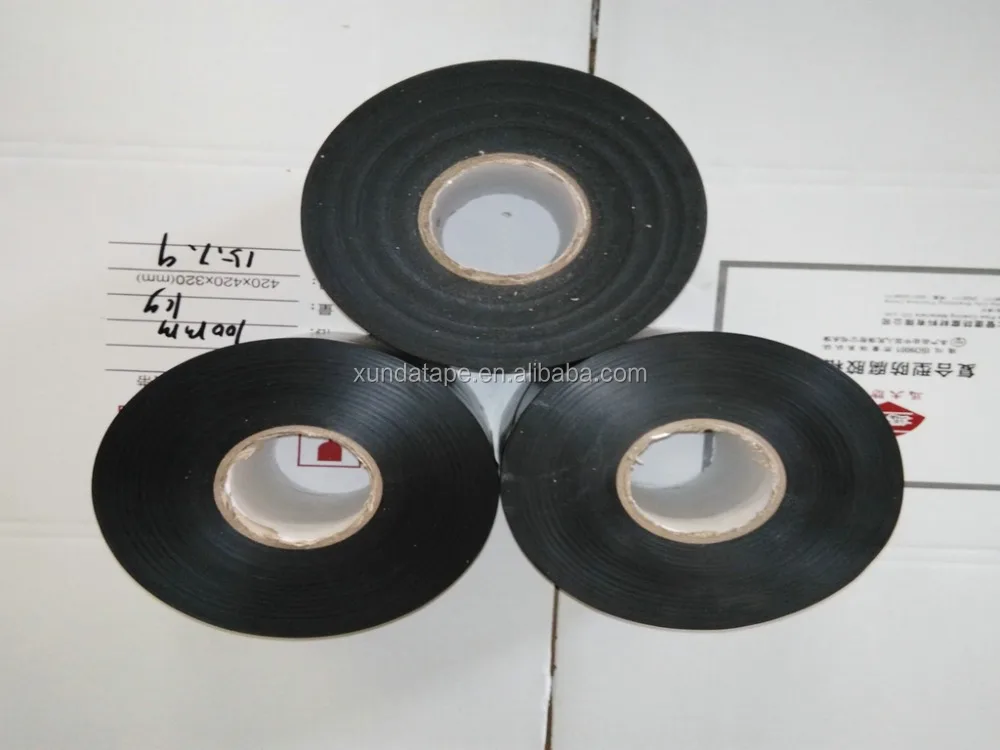

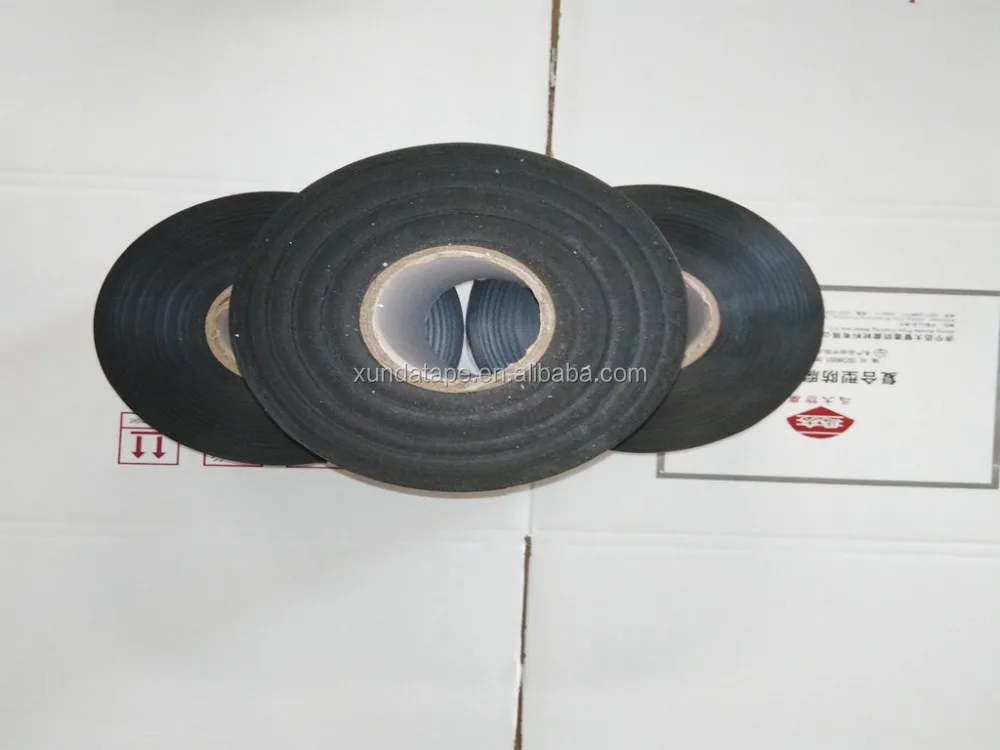

Compare to Alta Altene pipe wrap tape (Similar with Alta)
Product Description
Alta Altene pipe wrap tape 1. high adhesion to metal and self, 2. Match international standard 3 ISO 9001,14001 & OHSAS 18001
Alta Altene pipe wrap tape with high conformability and adhesion to metal and self, in combination with Alta Altene Primer and the special additives,
it ensures an excellent anti-corrosion protection; it guarantees an uniform thickness
Alta altene pipe wrap tape is engineered to assure a high bond to the primed surface with excellent conformability characteristics.
The mechanical protection layer Altene 109 Anti-Corrosion achieves a complete bond to the 109 inner layer,
providing maximum handling and in-service protection for the coating system. The adhesives in these and all Alta/Altene tape systems contain proven anti-microbial additives
Alta Altene pipe wrap tape technical data sheet :
PHISICAL PROPERTIES | TEST METHOD | ALTENE N 109-15 | ALTENE N 109-20 | ALTENE N 109-25 | ALTENE N 109-30 |
Total Thickness | ASTM D 1000 | 15mils(0.381mm) | 20 mils(0.508 mm ) | 25mils(0.635mm) | 30mils(0.762mm) |
Adhesive Thickness | ASTM D 1000 | 9mils(0.229mm) | 11 mils(0.279mm) | 15mils(0.381mm) | 16.5mils(0.419mm) |
Backing Thickness | ASTM D 1000 | 6mils(0.152mm) | 9 mils(0.229mm) | 10mils(0.254mm) | 13.5mils(0.343mm) |
Tensile Strenght | ASTM D 1000 | 55N/cm width | 70N/cm width | 80N/cm | 90N/cm |
Elongation | ASTM D 1000 | 250% | 300 % | 350% | 400% |
Peel Strength (180°) |
|
|
|
|
|
To Primed steel | ASTM D 1000 | 22N/cm | 26N/cm | 30N/cm | 35N/cm |
To self | ASTM D 1000 | 5N/cm | 5N/cm | 6N/cm | 8N/cm |
MOISTURE RESISTANCE |
|
|
|
|
|
Water Absorptivity | ASTM D 570 | 0.1 % | 0.1 % | 0.1 % | 0.1 % |
Water Wapor Trasmission | ASTM E 96 | 0.2 g/ sqm/24 h | 0.2 g/ sqm/24 h | 0.2 g/ sqm/24 h | 0.2 g/ sqm/24 h |
ELECTRICAL RESISTANCE |
|
|
|
|
|
Insulation Resistance | ASTM D 257 | 10E6 MOhm | 10E6 MOhm | 10E8 MOhm | 10E12MOhm |
Dielectric Resistance | ASTM D 1000 | 36 Kv/mm | 40KV/mm | 420kv/mm | 45kv/mm |

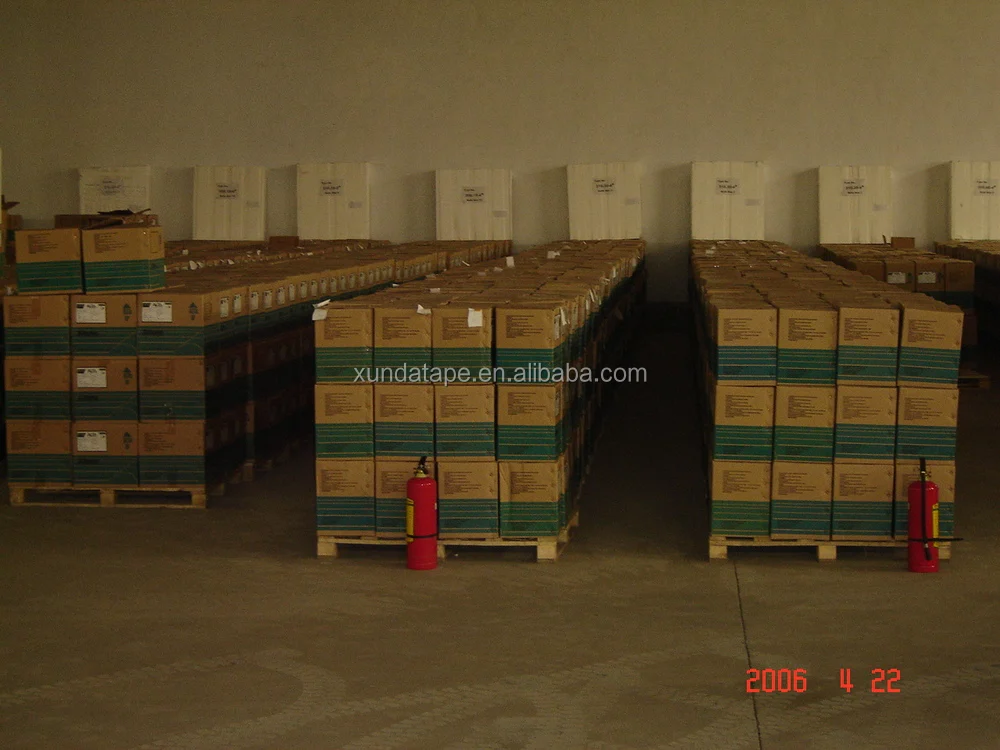

Packaging & Shipping
Our Services
Industries that We Serve
Oil, Gas and Water Transmission pipeline market
Oil and Gas distribution and utility markets
New pipeline construction markets
Rehabilitation and Reconditioning market
Offshore Industry
Refinery and Petrochemical Plant Industry
Manufacture of Polyethylene coatings utilizing Butyl based elastomeric adhesives, Polyethylene films and liquid adhesives for corrosion protection of steel pipe.
Provides corrosion protection with the inherent chemistry of Polyethylene and Butyl Adhesive for resistance to water and oxygen penetration. Oxygen and Water are prevented from reaching the metal substrate, which are necessary and sufficient conditions for corrosion.
Manufacture of conventional and specialty Polyethylene, Polypropylene and Polymeric Alloys and coating systems for pipe corrosion protection.
Manufactures PE coatings systems for applications for New Pipe Construction and Rehabilitation and Reconditioning
Approved to ISO 9001 and to other good manufacturing and technical standards and norms governed within the energy and pipeline industry.
Coating systems that have a broad range of temperature and shear resistance properties to meet the requirements of the pipeline and end-user.
Key Advantages
17 years of pipeline coating experience
Global presence in oil, gas and water industries
Total manufacturer of Polyethylene, Polypropylene coating systems
Innovative coatings, high temperature systems and niche coatings with first quality products
Multiple coating systems to meet end-user applications and requirements
Broad range of products to meet pipeline requirements
Tailor made products to specific application on demand by the end-user
High Quality products through innovative technology, manufacturing methodologies and first quality raw materials
ISO approved manufacturing protocol
Xunda products and coating systems approved to ASTMD1000,AWWA C 214,C 209,EN 12068,DIN 30672 and other standards
Standard manufacturing methodologies
State of the art quality control/assurance procedures and protocol
Technology/R&D programs for new products and new processes
Adaptable to manufacturing specific request within short time frames
Proven long-term performance and corrosion protection on operating pipelines
Coating applied in plant and over-the-ditch
Easy of application, consistent application and lower costs
Compatible with traditional and current corrosion coatings
Technical support
Just-in-Time delivery on a global basis
Achieving and exceeding Client requirements for products, packaging and shipment expectations
Meetings all International and In-Country transportation requirements
Girth weld coating applied in Bell-hole or out of the ditch
Type of Products/ Services Offered
Anticorrosion and Mechanical Protection Tape-2ply & 3ply
Primers
Fillers
Wrapping Machines
Technical Assistance
Coatings for the joint
Special products
Tape Coating Systems
Line travel, over-the-ditch coatings and application
Can be applied with a powered wrappers
Can be used for new pipeline construction
Can be used for pipeline rehabilitation/reconditionin
Used in the oil, gas and water pipeline industry
Offshore and Refinery coatings
Functionality to a Coating System
High adhesion strength
High shear resistance and shear strength
Cathodic disbonding resistance
Dielectric strength and electrical resistance
Resistance to impact and penetration forces and stresses
Stable to thermal and hydrolytic environments
Long term performance stability
Compatible with cathodic protection
Resistant to UV radiation
Mechanical protection
