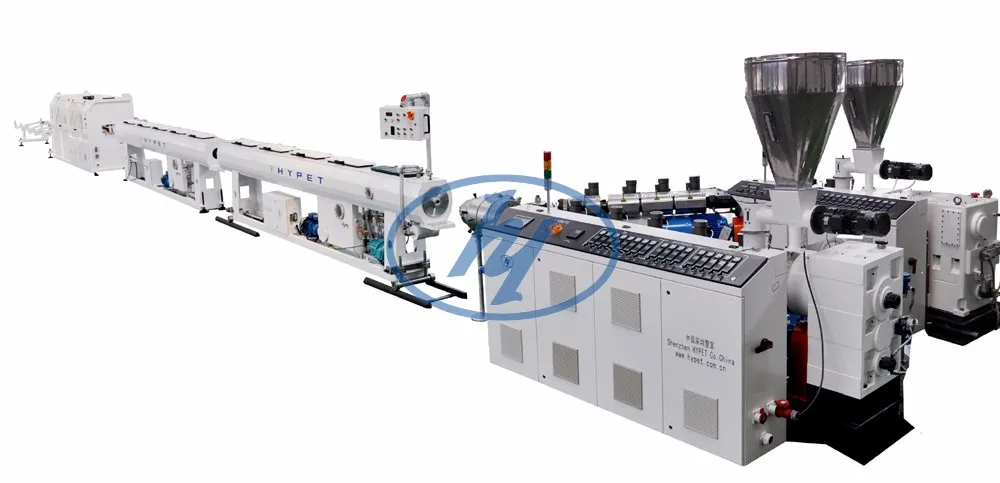

PVC New Formula Better Surface Conduit Extrusion Cable Making Machine

Main Parts:

  Auxiliary Machine:

 Specification:

1. HYZS 55/120 Conic Twin Screw Extruder

   Height in the center: 1100mm

   Max Output: 180-220 Kg/h

   Weight: 3000Kg

Screw

   Diameter:  ø55/120 mm

   Material: 38CrMoAlA

   Finish: Nitrogen-filled (0.50~0.70mm depth) and polish

   Rotate Speed: 0~40r/min

   Core of Screw: Temperture Auto Control

Barrel

   Material: 38CrMoAlA

   Inside Finish: Nitrogen-filled (0.50~0.70mm depth)

   Heating Control Area: 4 areas

   Heating Way: Ceramic heaters (Cast Aluminium for Option)

   Heating Power: 30Kw

   Cooling System: Barrel Fan Cooling, Low-noisy

   Cooling Power: 0.3Kw×3

Gear Case

   Case Material: QT450

   Gear Material: 20CrMnTi

   Gears: Harden and ground in High Precision

   Axis Material: 40Cr

Quantitative Supply Material Device

   Supplying Material Motor: 1.1Kw

   Speed range: 1-50 rpm

Vacuum Deflating Humidity

   High-point Vacuum Degree: -0.004Mpa

   Motor Power: 1.5kw

Driving Motor

   AC motor: 30 Kw

   AC inverter controller: ABB inverter

Electrical Control Equipment

   Control panel: Digital Display, Adjusting Knobs

   Other electric components: world famous components

   Electric components and wires are well organized

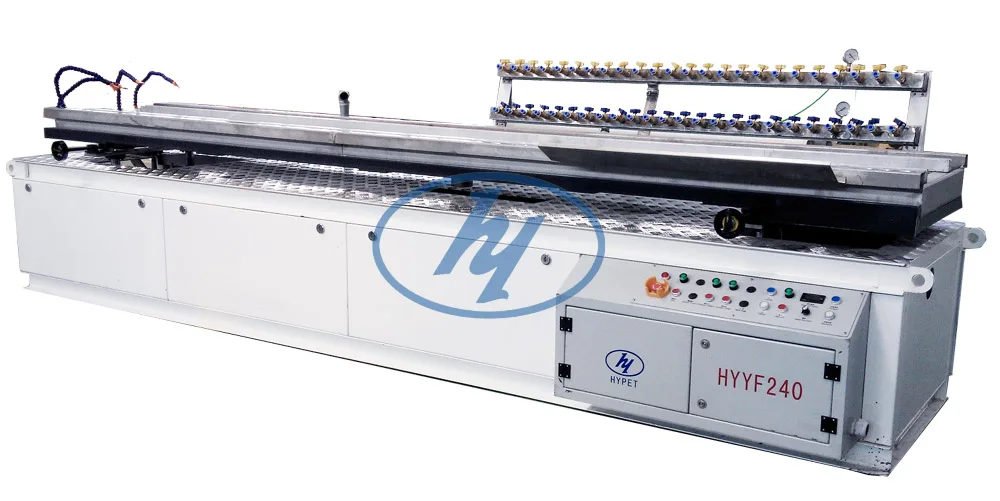

2.  Calibrating and Cooling Table

  Effective Length: 4000mm

  Material of Cooling Trough: Stainless Steel

  Vacuum Pump: 3.2Kw * 2

  Water Pump: 3.2Kw * 2

  Forward and backward, left and right, upper and down three dimentional adjusting

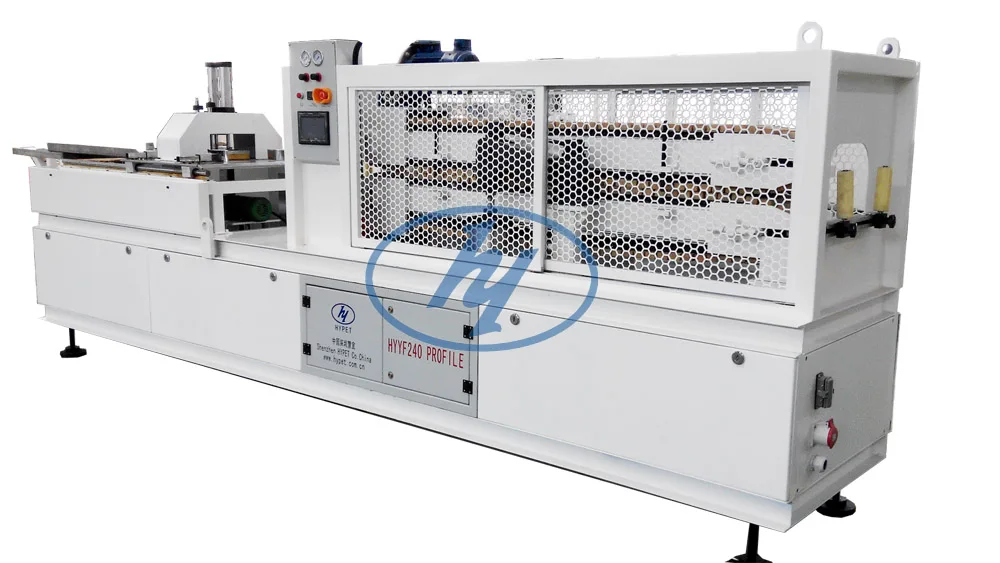

3. Haul off device

  Haul off rubber with high quality

  Effective Compacting Length: 1200mm

  Haul off Speed: 8 - 10 m/min

  Haul off Motor: 1.5Kw * 2

  Pressing function could be adjust by lifting device automatically

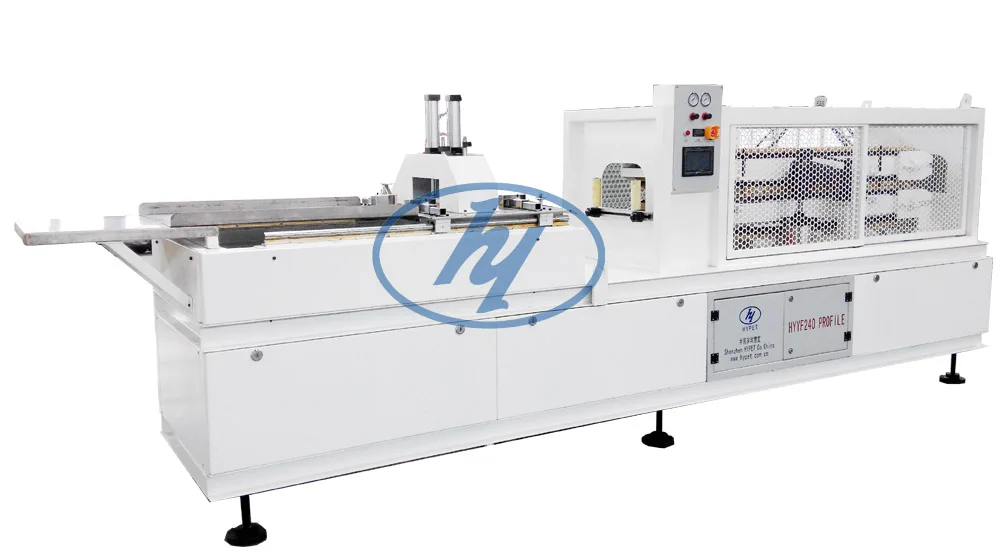

4. Cutting device

  Cutting length controlled by position electric switch, reliable.

  Cutting Motor: 0.75Kw

  Dust absorbing device: 1 Set

5. Staker length is 4000mm

1. Owns more than 30 years in extrusion field
2. Introduction from German tech and experience for the design and making twin screw extruders. And leaded by Germany experts Mr. Youcef and Mr. Elben for the long time
3. Designed and produced twin conical screw extruder, twin parallel screw extruder, and transfer the technology to the biggest gears factory in India
4. Own a high professional design team
5. A base combined with designing, making, studying ....etc. in extrusion industrial.
6. Our aim is to learn advanced technology, make the best suitable machine, best efficient machine and lines.

Our products and services range:
1. extruders in single or twin screw, parallel or conic
2. kinds of pipe production line, like rigid PVC, soft PVC, conduit, cable,PE water supplier pipes, PPR pipes....etc.
3. kinds of profile producton line, such as PVC windows production lines, PVC profile lines, PVC ceiling lines, PVC roof lines, WPC profile lines..etc
4. kinds of sheet, board production lines, such PVC foaming board/sheet production lines, PVC door production lines, WPC door production lines, WPC foaming board lines....etc.
5. kinds of granulating, pelletizing lines
6. all the auxiliary machine of above lines and spare parts, such as screw barrel, mixer, miller, crusher, cooling tower, cooler, shredder, inverter, molds...etc
7. all the techical data and tecknology of above machines
8. Wood and Plastic Composite decorational profiles and door, such as WPC ceiling, wallboard, floor board, deck board, blind, doors ....etc.

How is HYPET doing in the market?

l  More than 30 years experience in the extrusion filed

l  Extrusion machinery factory located in wuhan , central of china

l  We focus on tailor made plan with exclusivity to each customer

l  We have vast resources which can be integrated as whole package service

l  We have accumulated vast sale network all over the world

What does HYPET offer to you ?

l  Tailor designing for your factory lay out

l  Tailor designing for water, electric ,and gas chart

l  Tailor made processing technology

l  Tailor made production line

l  Package pre & after services

l  On site installation and training

l  Free marketing consultation

Why you should corporate with HYPET ?

l  More than 30 years experience in extrusion, with years of international technical exchange experience;

l  A team of highly professional technical expert ensures you get the state of art technology;

l  Eruo technology ,designing, and processing application for twin screw extruder;

l  Optimized design for different material, based on vast successful practical experience;

l  HYPET set up separate laboratory with top equipment

l  Extrusion performance and capacity proven by trial commissioning for each order

l  Capable of providing on site technical training

l  Unique design ,same line, suitable for various products

l  Also provide various down stream and auxiliary machinery .

What are the HYPET services?

Each order tested before shipping and before payment;

Each order will meet the customer’s satisfaction before payment;

Deposit of Some machinery, if result not satisfied, can be refund;

A team of experience technical engineer can be sent for installation and training;

A standard of spare part will be also provide in each order.
