Injection Waterproof 12V SMD 2835 Square Cool White LED Modules for Signage Everlight With Super Flux 4 LEDs CE ROHS

Product Overview

Description

Injection Waterproof 12V SMD 2835 Square Cool White LED Modules for Signage Everlight With Super Flux 4 LEDs CE ROHS



Product feature

1.Everlight 2835 SMD led as light source,super luminous flux.

2.large viewing angle 160degree with even light shadow.

3. lower light decay and long life span up to 35000 hours.

4.Low cost against high performance, good color uniformity.

5.Energy saving,environment-friendly.

6.Suitable for backlighting to channel letters and light boxes.

7. Suitable for accent lighting, edge lighting

8. Waterproof, IP65, ideal for outdoor use

9. Easy installation and maintenance free.

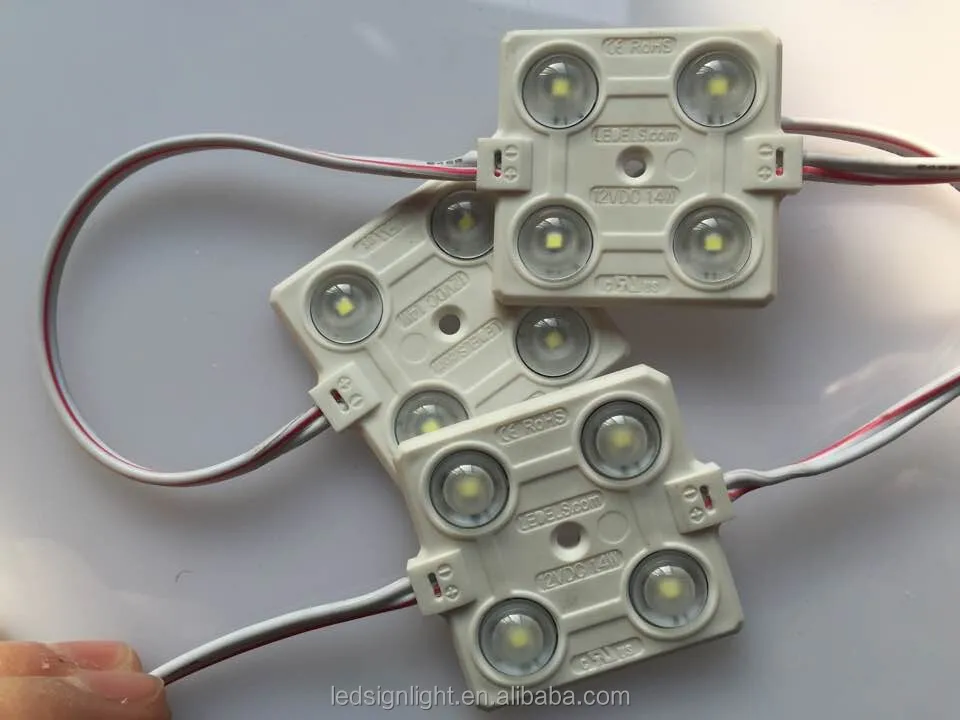

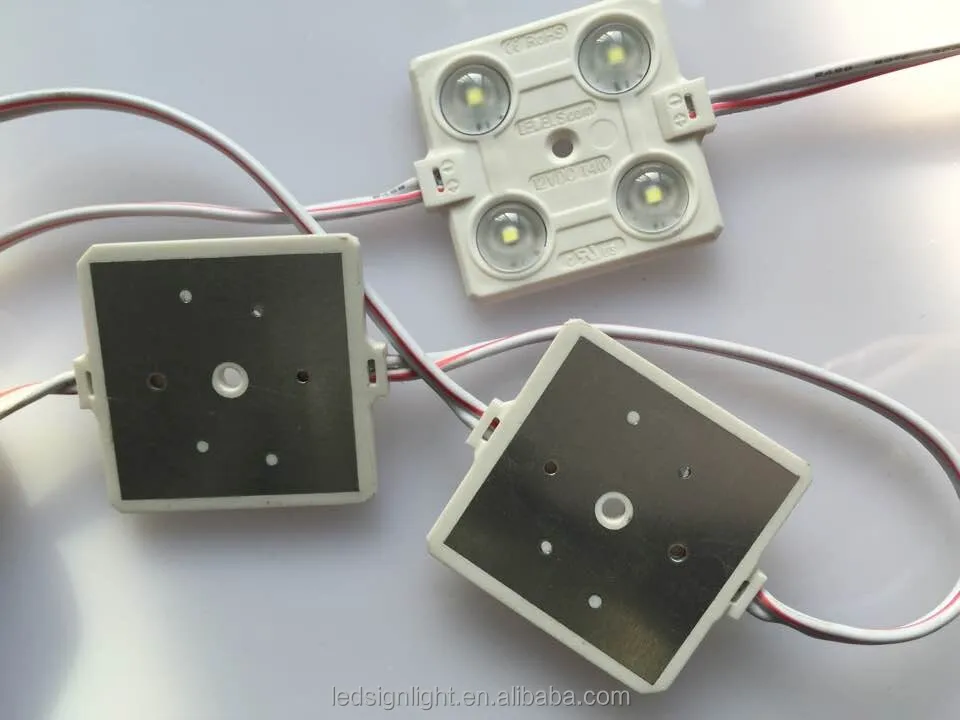

Product photos







Remark:

For internal illumination of channel letters or lightbox whose depth is 120mm to 150mm, cove lighting and edge lighting, long life span with lower power consumption, outdoor use.  Rated operating current is 150mA and rated power consumption is 0.5Watt with light flux at 40 lumens. Total light output of the module is 80~90 lumens. Powered by Everlight SMD2835 Top LED.



Electrical characteristics;



model no.	LL-F12T5353W4AEL
LED TYPE	Everlight SMD2835 LED
BEAM ANGLE	160 degrees
Emitting color	white
luminous flux (lm)	80-90LM
color temperature	6000-7000k
operating voltage	12VDC+-0.5
operating current	120MA
Power	1.4watt



Physical Parameters:



led number	4pcs SMD2835 LEDs from Everlight
pcs per link	20pcs per string
ip grade	IP65
shell material	ABS injection&Aluminum PCB
driven by	constant voltage
positioning	screw&autoadhesive tape
Physical dimension	53mm*53mm*8mm
Application	Backlights to letter signs and lightbox





Installation



Quality control

We have already mentioned it, but we have not detailed it yet. We can offer warranties of 5 years due to the great resistance of materials and intelligent design used. Schematically explained in the following points>

  • We only work with leds from the top5 led suppliers in the world.

  • Each led works in parallel and individually within each module.
  • The base material of integrated circuits is resistant to heat and moisture.
  • Components are assembled with a double seal with anti-vibration protection.
  • The exteral housing is fireproof, thick and tight.
  • Our resine is ultra-transparent, long life and high resistance, keeping each module hermetic.

  • Each module is shipped pre-tested.

  • We have CE and RoHS certificates, and any other test certificate can be performed.



Application

a. Widely Used in Household Lighting.
b. Backlighting for Advertisement ,Signboard and Billboard.
c. Backlighting for Lightingbox .
d. Signal Lamp for mini & slim Letter Channel.
e. Emergency / rescue signs
f. Edge lighting of transparent diffused materials







Why Choose LEDELS Lighting Co Ltd?

Quality Control: 100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.

 Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.

Over 12 years experience in this industry,own lots of customer in home and abroad.good quality and innovation win good reputation.

High Quality:  5 years warranty

Packing Details:





Characteristics of Channel Letter sign Led Module:



·Highest Brightness: 80~90Lm



·Easy Installation

LED Modules can be easily installed with 3M double-sided sticking tape.



·Extended Life

LED Modules have a life time of more than 50,000 hours.



·Totally waterproof

LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.



·Friendly environment

Pb free. With CE/RoHS certificate and C/UL Listed,  Waterproof LED Modules are up to 60% more energy efficient than neon.



·Safe Application

Low voltage DC12V, safety and stable. Free maintenance



·Cost Effective (10-12cm depth)

It is 18 pieces/square meter on Lightbox and Channel letter sign.

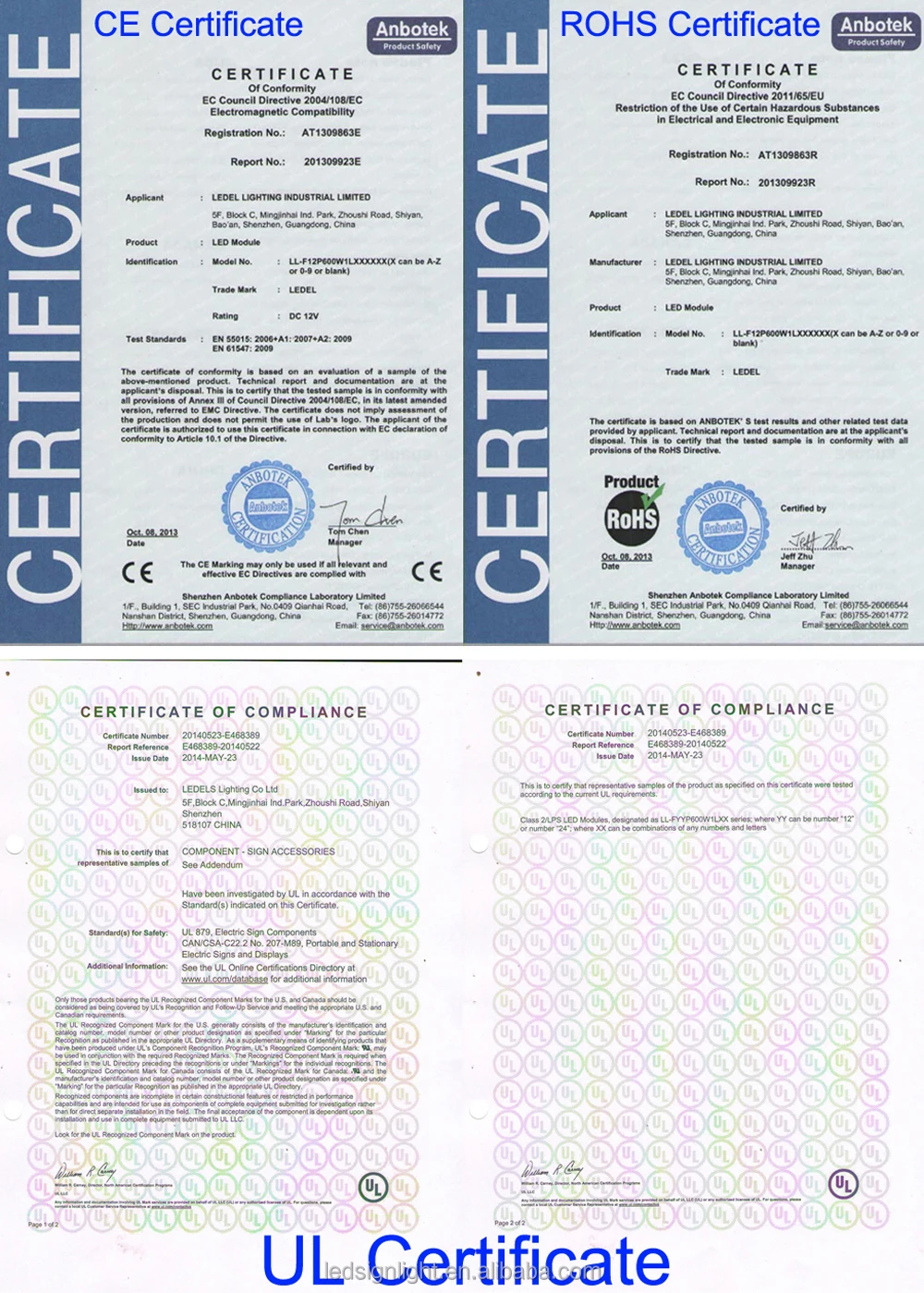

Product Certification:







Order details:



MOQ: 100pcs



Trade term: FOB Shenzhen



Delivery time: 3-5 working days for sample order, 7-10 working days for mass order



Warranty: 5 years since the date of purchase.Welcome to send an inquiry to us.
