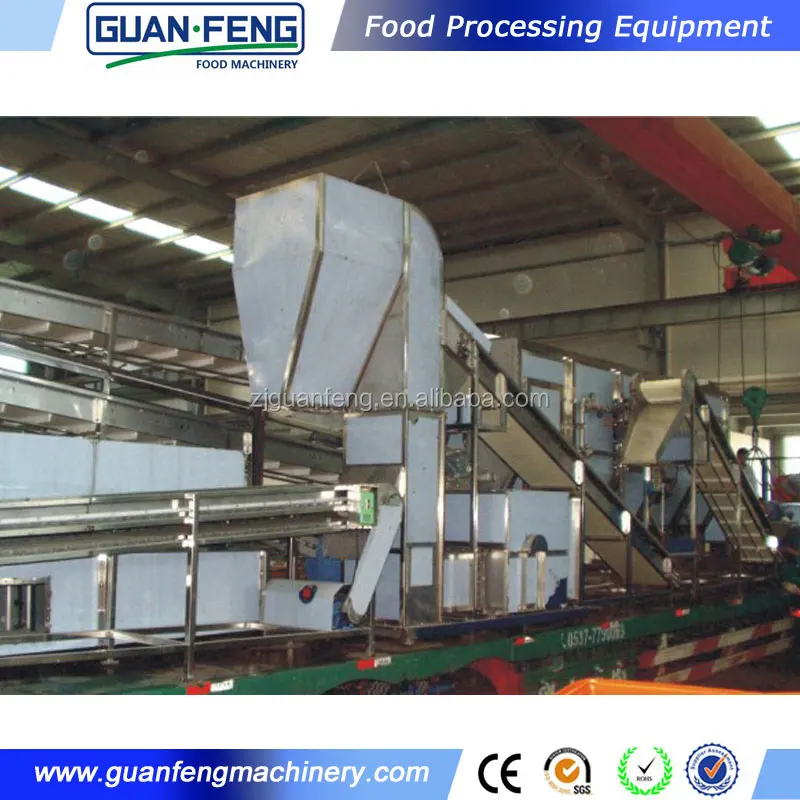

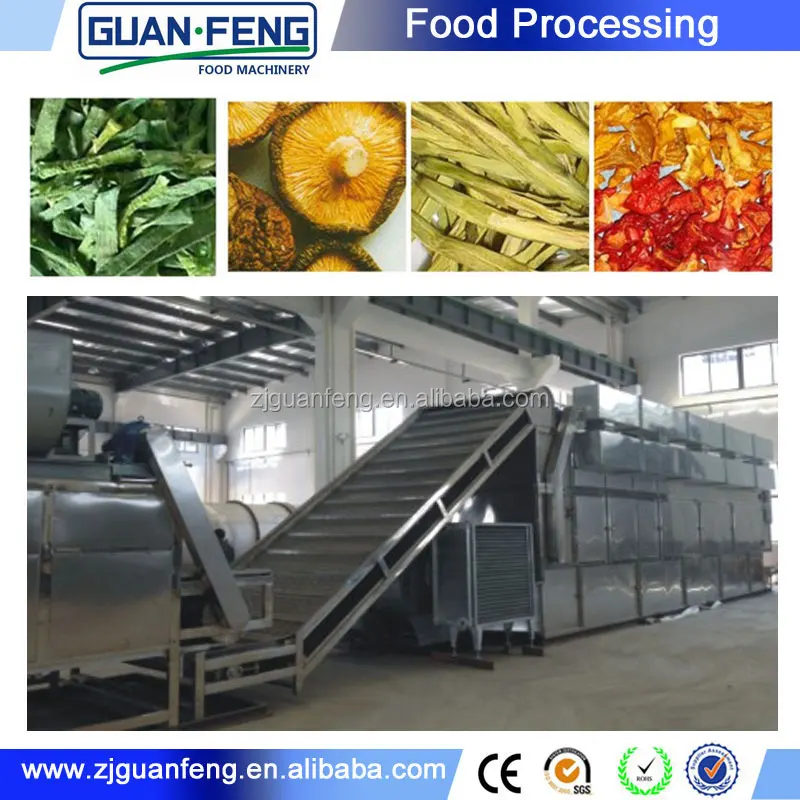

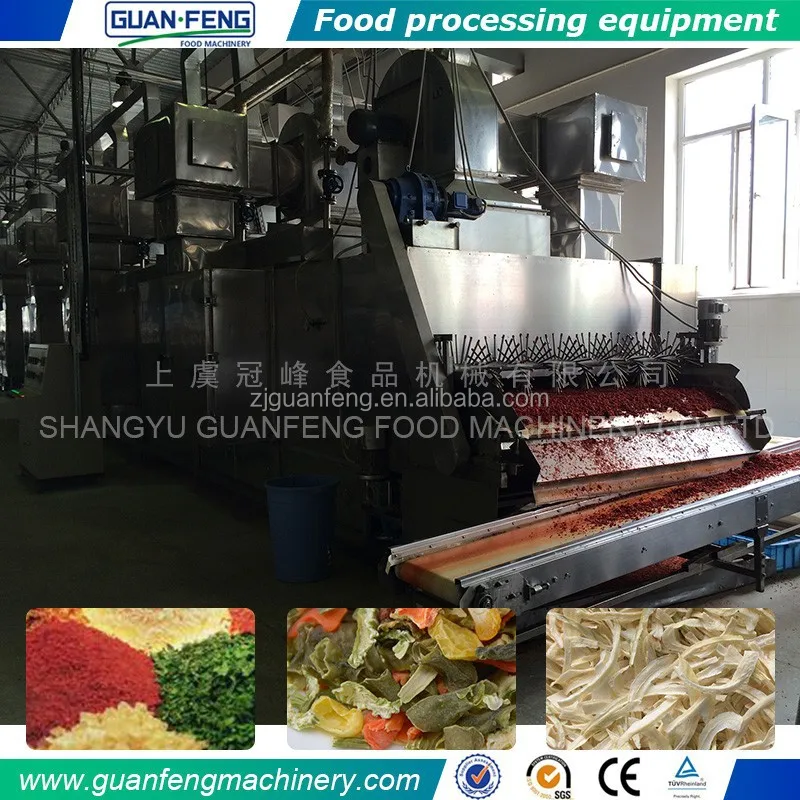

Vegetables and fruits dehydrator spring onion drying line
- Category: >>>
- Supplier: Zhejiang Guanfeng Food Machinery Co. Ltd.
Share on (60146613389):
Product Overview
Description
Click to HOME >> Product Categories >>
Wide range of application
Belt dryer are widely used in the processing of snack food, granola cereals, dehydrated vegetables and fruits, synthetic rubber, polymers, and many other industrial products. Such as potato, carrot, onion, eggplant, bean, scallion, tomato, mushroom, tea and other agricultural products, or material which shape is slice, strip especially used in the material that dehydration rate is slow.
Technical parameters
| ITEM | GBJ-16 | GBJ-24 | GBJ-32 |
| Dimensions (mm) | 10860(9860)x3160x3600 | 14860(13860)x3160x3600 | 18860(17860)x3160x3600 |
| Effective drying area (m2) | 16 | 24 | 32 |
| Installed power | 33.75kw | 48.75kw | 64.50kw |
| Processing capacity | 600~800 kg/h | 1000 ~ 1200 kg/h | 1400 ~ 1600 kg/h |
| Belt center width | 2000mm | 2000mm | 2000mm |
| Heating method | Heating by steam (the steam boiler is provided separately) | ||
| Steam pressure requirement | 0.5 ~ 0.8 Mpa | ||
| Steam consumption | 200 ~ 500 kg/h | 300 ~ 750 kg/h | 500 ~ 1000 kg/h |

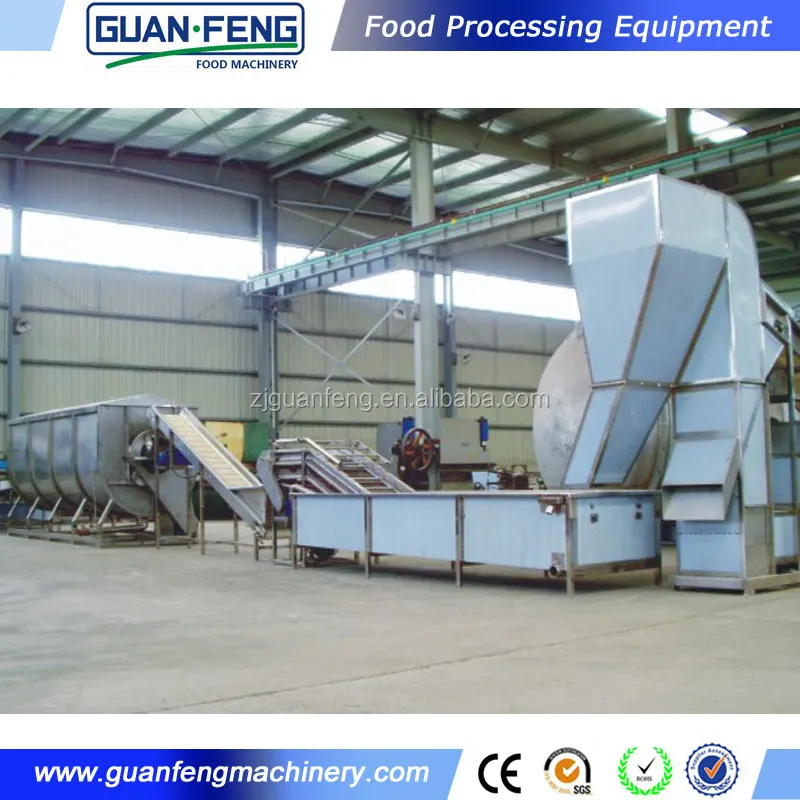

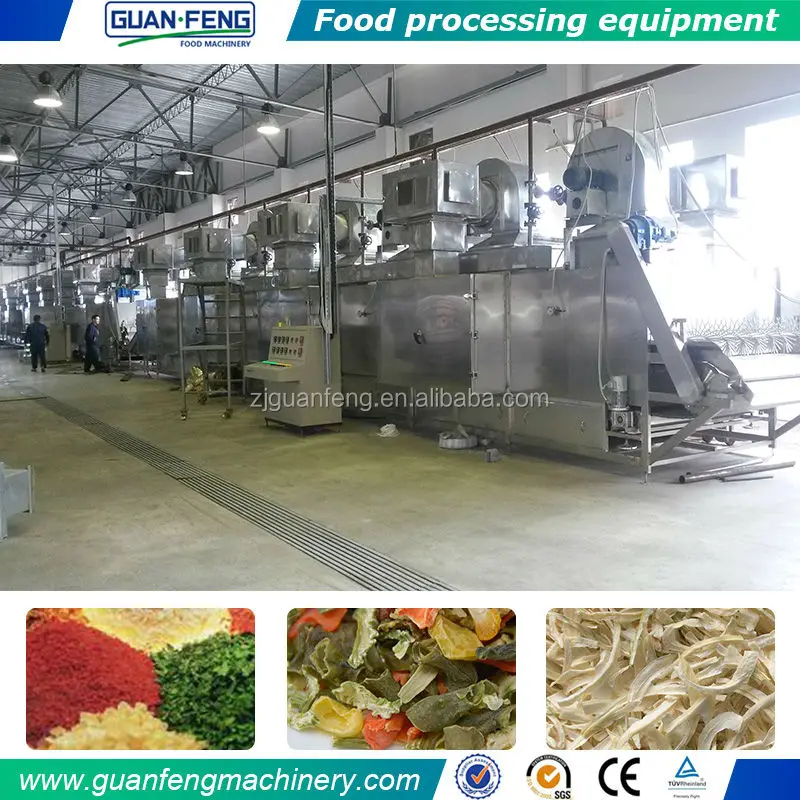

overseas customer site

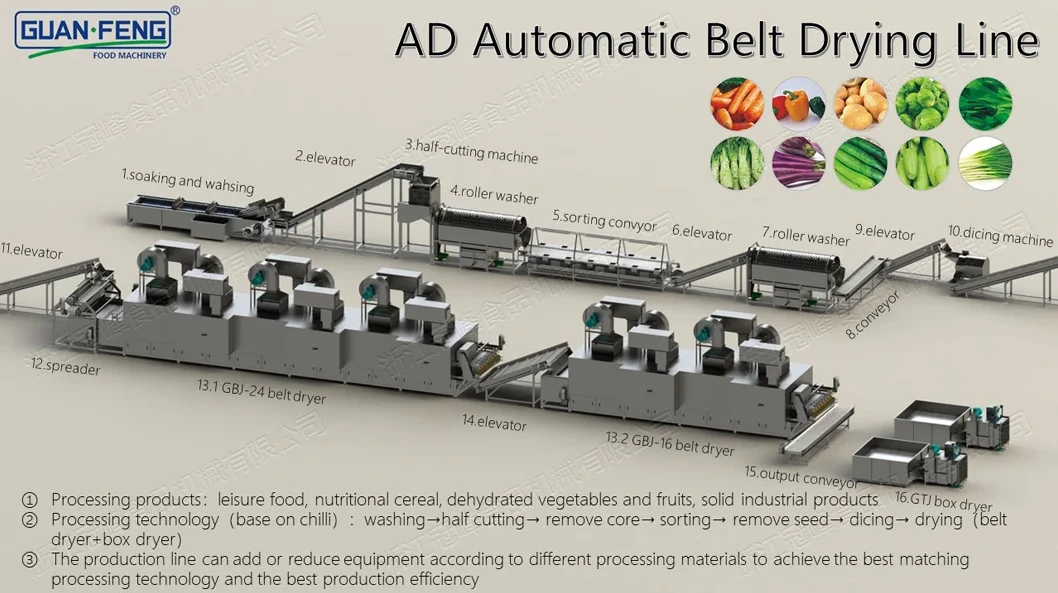

Design of belt drying line
Application
1.Are you A factory or A trading company?
A: We are factory manufacturing food processing machines and we provide OEM and after-sale service.
2.Where is your factory? How can I visit your factory?
A: Our factory is located on Shaoxing, it is near to Shanghai and Hangzhou. We are warmly welcome
you visit our factory.
3.Can you send me the video to show the machine works?
A: Certainly, we have made video of our machines and processing lines.
4.How can I pay my order?
A: We accept T/T and L/C payment.
5.Do you have a CE certificate?
A: For every model of machine, it has a CE certificates, and we also get ISO9001 and SGS certificates.
6.What is your advantages?
A: As a professional food processing machinery supplier, we can provide integrated solution for food
processing industry. We have got more than 50 patents.
