Description

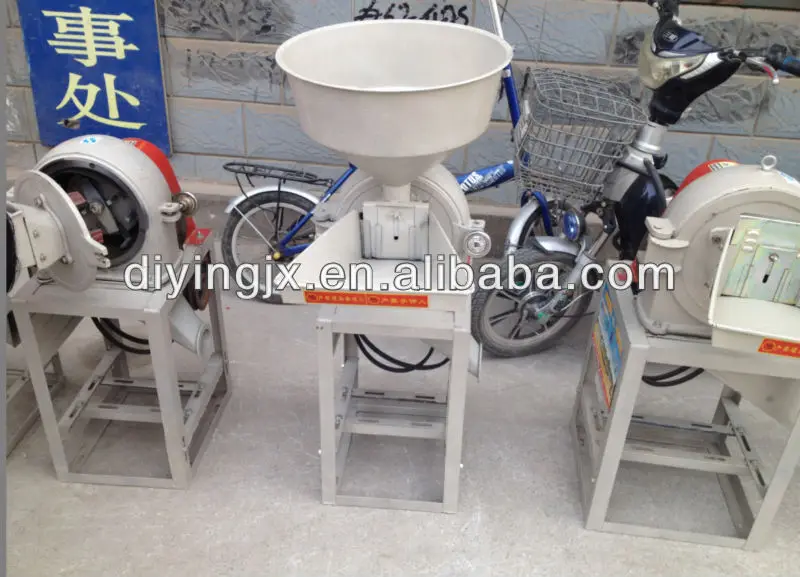

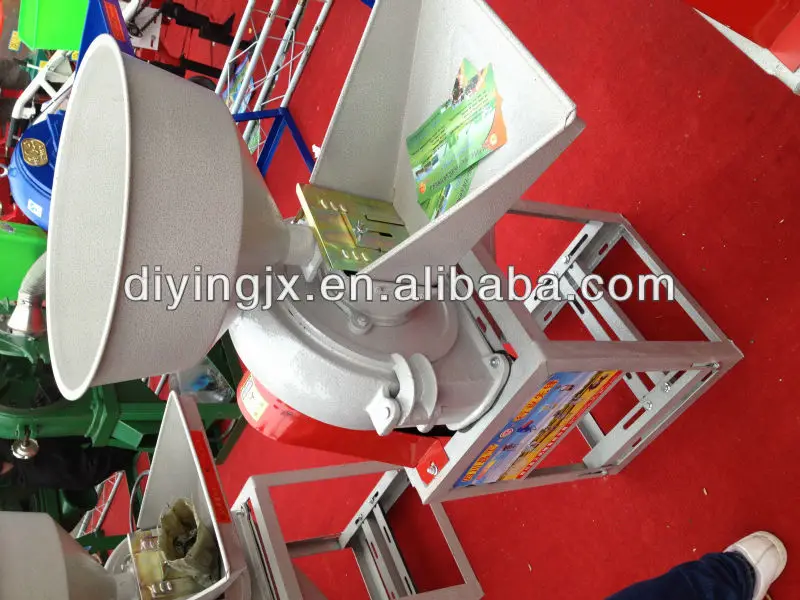

Fish bone grinder Mill



Main purpose of Fish bone grinder mill : This machine is suitable for pharmaceutical, chemical, food and other materials grinding.
How it works:
1.This machine use activities chainring and the fixed tooth plate relative speed between the operation, so that was crushed by the chainring impact, friction and collisions between the material and get crushed. Crushed material can be discharged directly from the grinding chamber, particle size is determined by the replacement of different mesh sieve decision.
2.The whole machine is made of stainless steel, inside the case (crush groove) all alveolar by precision machined so as to achieve a smooth surface, easy to clean, changing the general shredders rough wall, easy to accumulate dust, difficult to clean, thus making food, pharmaceuticals, chemicals and other production line with GMP requirements .



Model	DY9FZ-15	DY9FZ-19	DY9FZ-21	DY9FZ-23	DY9FZ-29	DY9FZ-35
Rotor Diameter	150mm	190mm	210mm	230mm	290mm	350mm
Speed	7200r/min	5600r/min	5500r/min	5000r/min	4500r/min	3500r/min
Power	<26kw.h/t	<26kw.h/t	<26kw.h/t	<26kw.h/t	<17kw.h/t	<17kw.h/t
Motor	0.75kw	1.1kw	2.2kw	2.2kw	4-5.5kw	7.5-11kw
Capacity	50-100kg/h	150-280kg/h	150-300kg/h	200-350kg/h	350-500kg/h	600-800kg/h
Screen Size	0.1-5mm	0.1-5mm	0.1-5mm	0.1-5mm	0.1-5mm	0.1-5mm
Size -mm	540*420*410	680*680*530	700*490*850	800*490*850	700*900*530	870*670*1100
Wight	18kg	22kg	28kg	40kg	52kg	93kg



















Also we have professional Wheat flour / Maize flour grinder mill
