Horizontal Ball Machine For Paint Ink Pigment Production nano mill sand mill dyno mill
- Category: >>>
- Supplier: Longxin(Changzhou) Smart Equipments Co. Ltd.
Share on (60146677948):
Product Overview
Description
Product Description

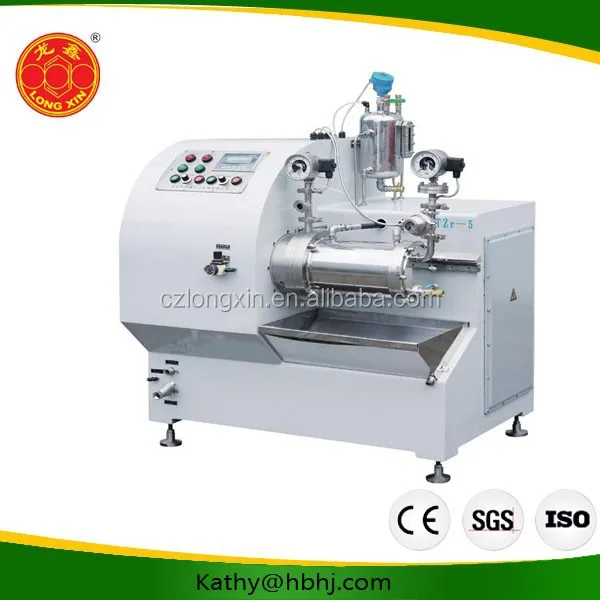

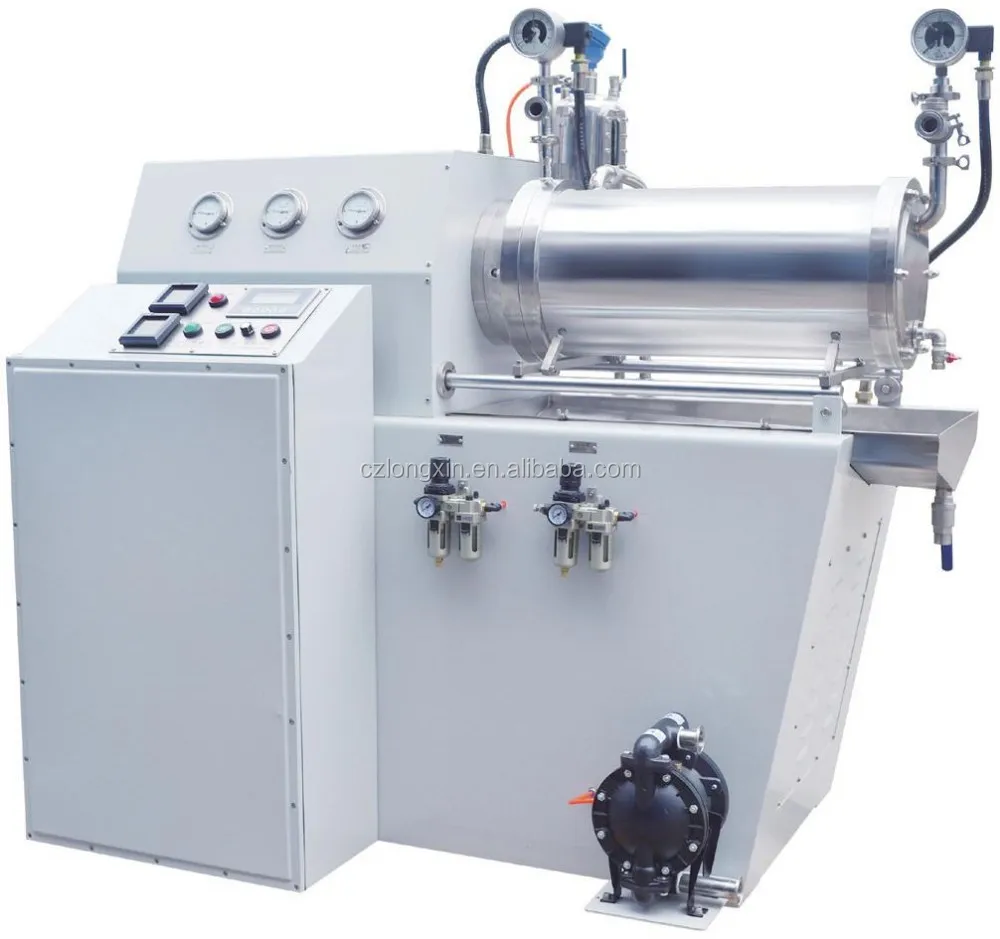

Longxin Hot Sales Bead Grinding Machine for sale, Sand Mill, Turbo Nano Sand Mill

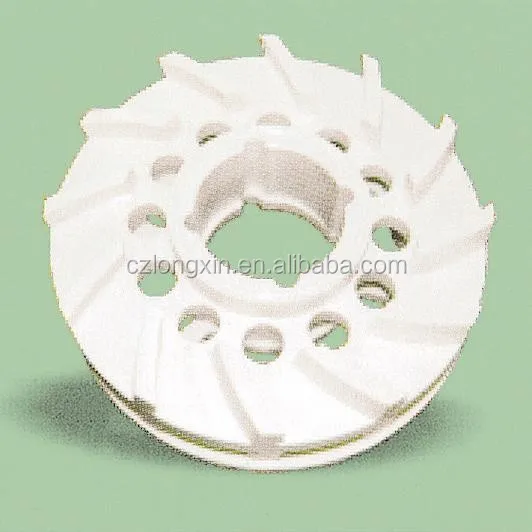

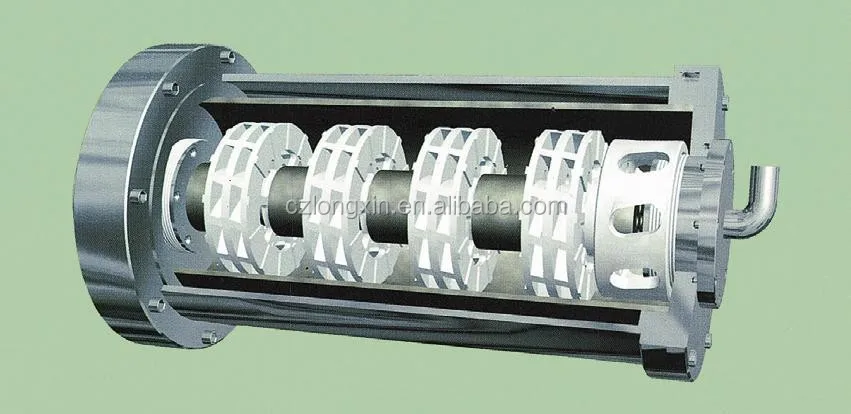

WST series turbo nano sand mill has high speed turbo disperser which can make axial movement particles switch along the circumference direction to form several particles flow. Compared with the traditional machines, it greatly increase the power for shearing and grinding.
The axial pressure difference of turbo disperser has the great spiral force, and makes the particles flow without intense contacting disperser, avoiding traditional structure which leading the great energy consuming. This wxtend the life of disperser.
WST series turbo nano sand mill has high speed turbo disperser which can make axial movement particles switch along the circumference direction to form several particles flow. Compared with the traditional machines, it greatly increase the power for shearing and grinding.
The axial pressure difference of turbo disperser has the great spiral force, and makes the particles flow without intense contacting disperser, avoiding traditional structure which leading the great energy consuming. This wxtend the life of disperser.
Production Line
WST series turbo nano sand mill is widely used in nano material wet grinding processing. It is widely used in nano new material such as battery industry, digital jet printing ink, alumina oxide, titanium pigment, pearl powder, etc. WST-15L turbo nano sand mill adopts SIEMENS PLC system, will well record the pressure, temperature. It is a good choices before huge production.
Technical Parameters
This is the technical parameters of WST series turbo nano sand mill. WST-5L turbo nano sand mill adopt
Dimens PLC system, will well record the pressure, temperature. It is a good choices before huge production.
Dimens PLC system, will well record the pressure, temperature. It is a good choices before huge production.
Model | WST-1 | WST-5 | WST-15 | WST-30 | WST-90 |
Volume(L) | 1 | 5 | 15 | 30 | 90 |
Beads(mm) | 0.1-1.2 | 0.1-1.2 | 0.3-1.2 | 0.3-1.2 | 0.3-1.2 |
Motor(KW) | 3-4 | 11-15 | 30-37 | 37-45 | 55-75 |
Speed(r/min) | 0-2800 | 0-2500 | 0-1800 | 0-1500 | 0-850 |
Output(L/h) | 1-30 | 200-450 | 300-800 | 500-1200 | 800-3000 |
Dimension(mm) | 600*400*500 | 1250*1050*1480 | 1550*1400*1900 | 1800*1400*1900 | 2300*1000*1700 |
