Стандартная Шестигранная пластиковая Шестигранная гайка
- Category: Nuts >>>
- Supplier: Shenzhen Haodate Electronics Co. Ltd.
Share on (60146940458):
Product Overview
Description

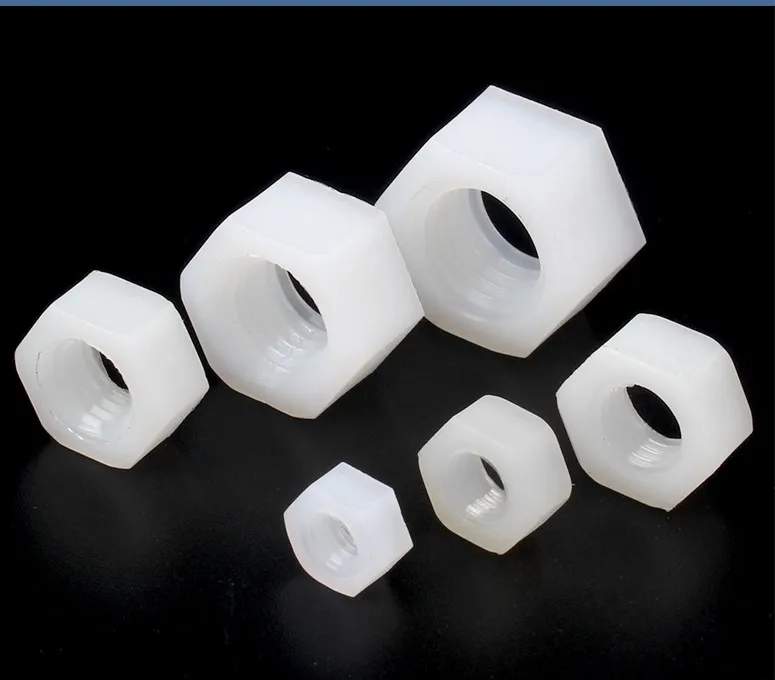

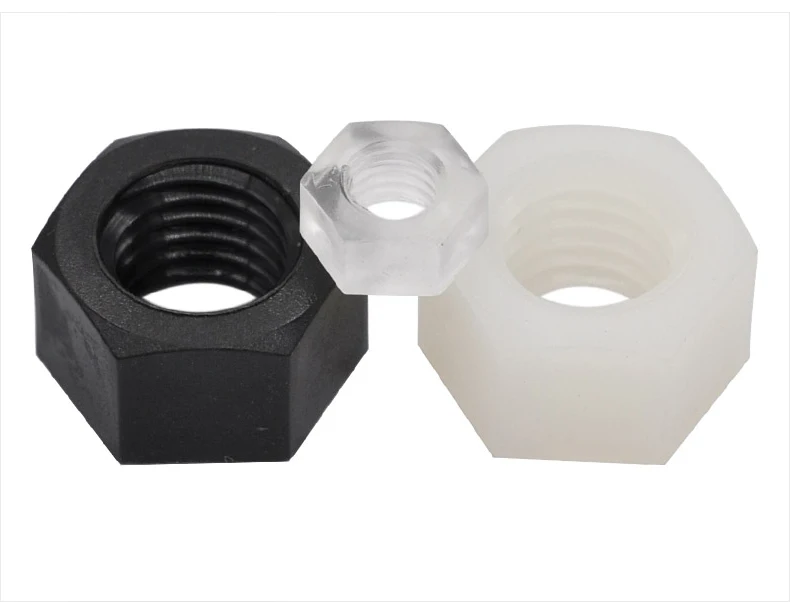

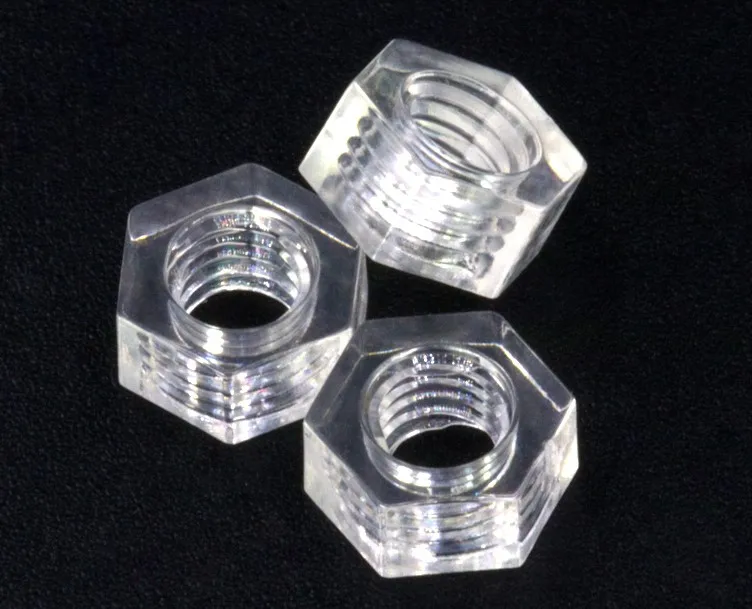

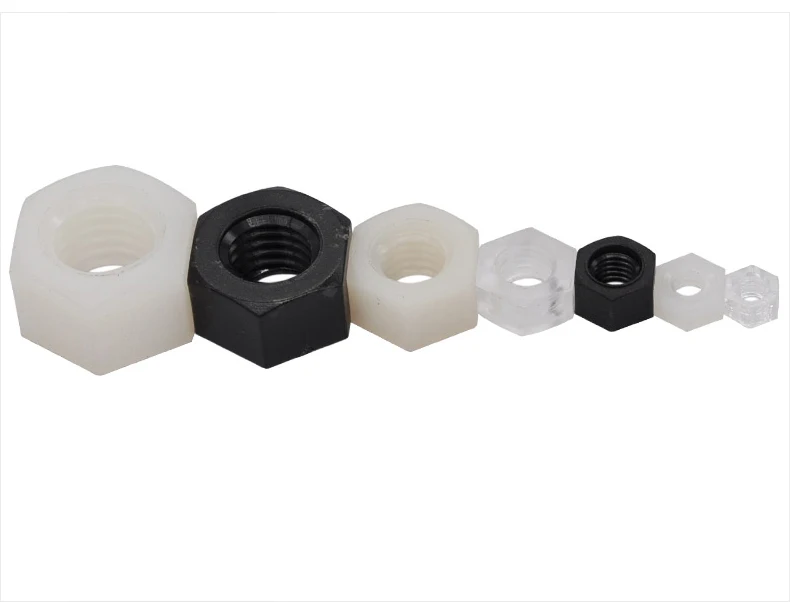

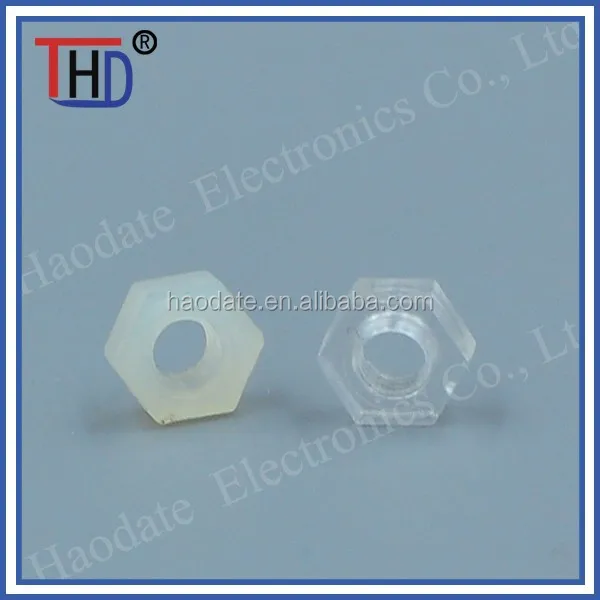

Plastic hex nut
Specifications
| Material | Nylon66/PC. |
| Color | White/Transparent |
| Flame Class | 94V-2 |
| Working Temperature | Nylon66(-20℃~120℃); PC(-20℃~110℃) |
| Usage | Good insulation, anti-rust,anti-corrosion and light weight. |

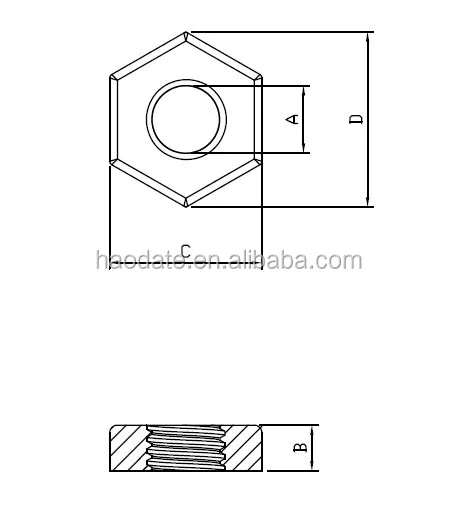

Drawing
Size List
| Part No. | A | B | C | Pitch | Package | ||
Nylon White | Nylon Black | PC | |||||
MN-2N | MN-2B | MN-2 | 2.0 | 1.2 | 3.9 | 0.4 | 1000pcs |
MN-2.5N | MN-2.5B | MN-2.5 | 2.5 | 2.0 | 5.0 | 0.45 | |
MN-3N | MN-3B | MN-3 | 3.0 | 2.4 | 5.6 | 0.5 | |
MN-4N | MN-4B | MN-4 | 4.0 | 3.2 | 7.0 | 0.7 | |
MN-5N | MN-5B | MN-5 | 5.0 | 4.0 | 8.0 | 0.8 | |
MN-6N | MN-6B | MN-6 | 6.0 | 5.0 | 10.0 | 1.0 | |
MN-8N | MN-8B | MN-8 | 8.0 | 6.5 | 12.8 | 1.25 | |

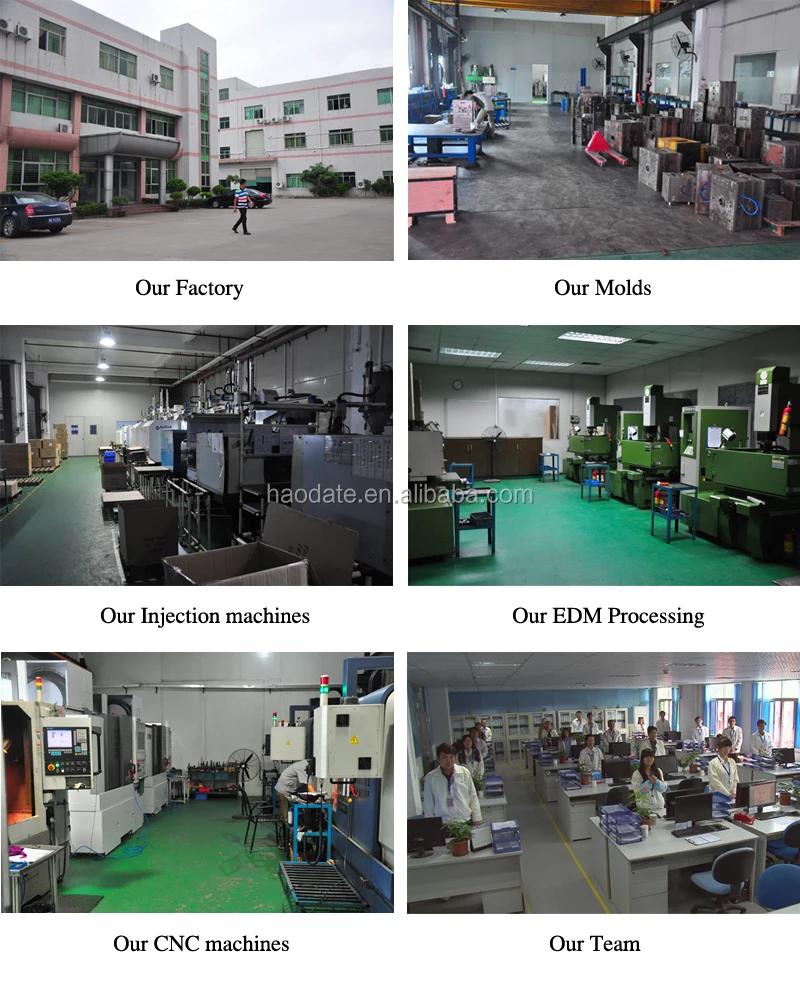

Factory Show
Our Promise:
Free samples can be provided.
For OEM products, payment can be paid after article samples confirmed.
