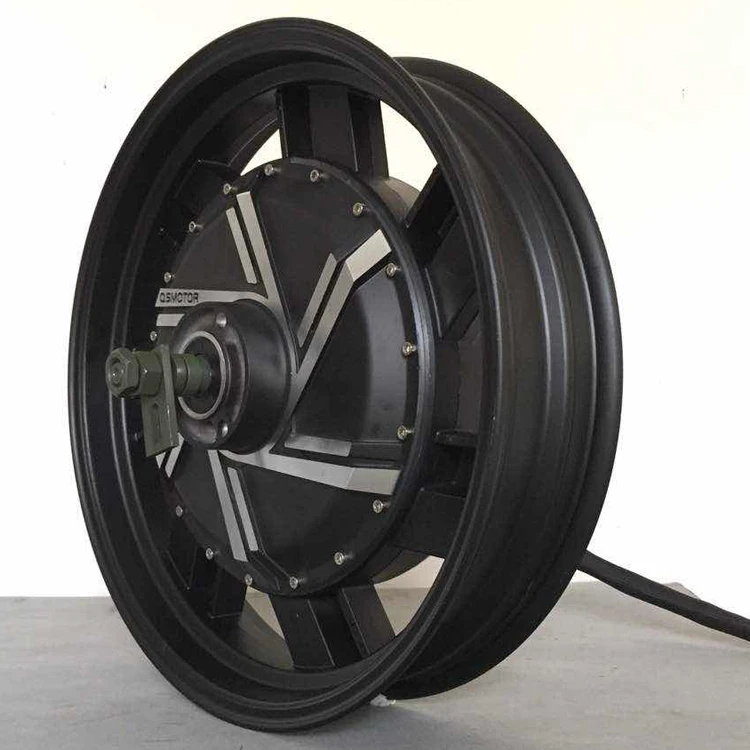

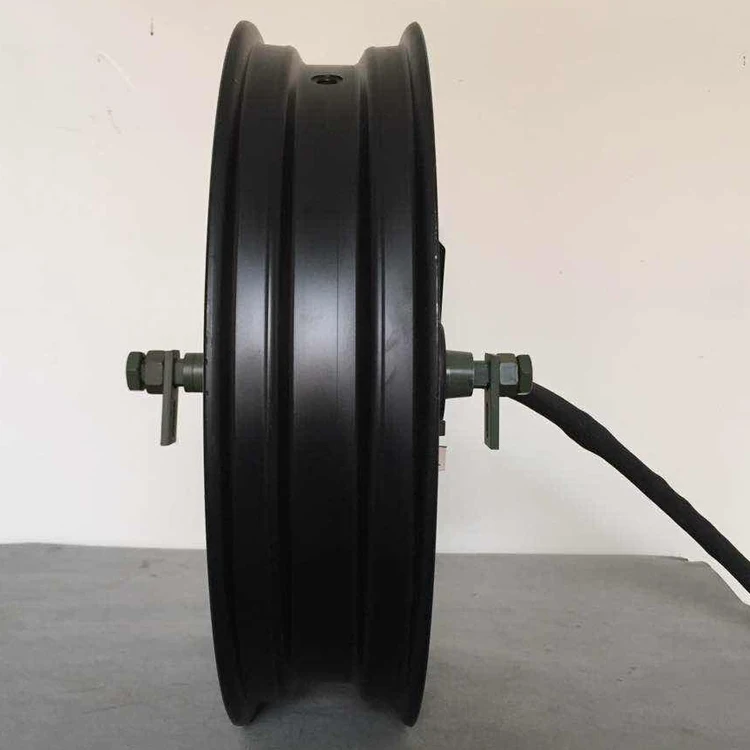

17inch 8000W 273 50H V3 20kW Peak Brushless DC Electric Scooter Motorcycle Hub Motor

Product Overview

Description

17inch 8000W 273 50H V3 20kW Peak Brushless DC Electric Scooter Motorcycle Hub Motor



QS Motor Specification

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor


• Brand: QS Motor,QSMOTOR


• Motor Design: Double axle with 17inch moped rim (integrated)


• Rim size: 17x3.5inch


• Magnet Height: 50mm, 16 pole pairs


• Stator: Aluminum Core


• Rated Power: 8000W


• Speed(customizable):

72v 45km/h~120km/h 880-1405RPM

96v 45km/h~120km/h 880-1405RPM

120v                           880-1405RPM

• Max Torque approx 350N.m


• KV(optional):


• 72V:6.01/9.00/12.98/12.77/14.88/12.65/18.06/19.44(optional)


• 96V:  9.31/12.99/14.38


• 120V:8.96/10.42/12.50


• Thermic Probe: KTY83-122 (as default, optional)


• Max Efficiency approx 88%


• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm


• Drop-outs: 200mm


• Dual Halls with waterproof connectos(One for spare, in case of damage)


• 16mm² Phase Wire


• Waterproof Grade: IP54


• Color: Black (as default), Yellow or White/Luminous
