Product Overview

Description

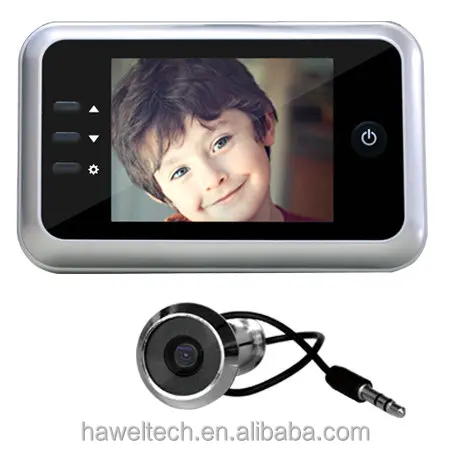

Product name :Digital Door Viewer
Item : HT-DM12(W)  Ip Door Viewer Optional
Details :

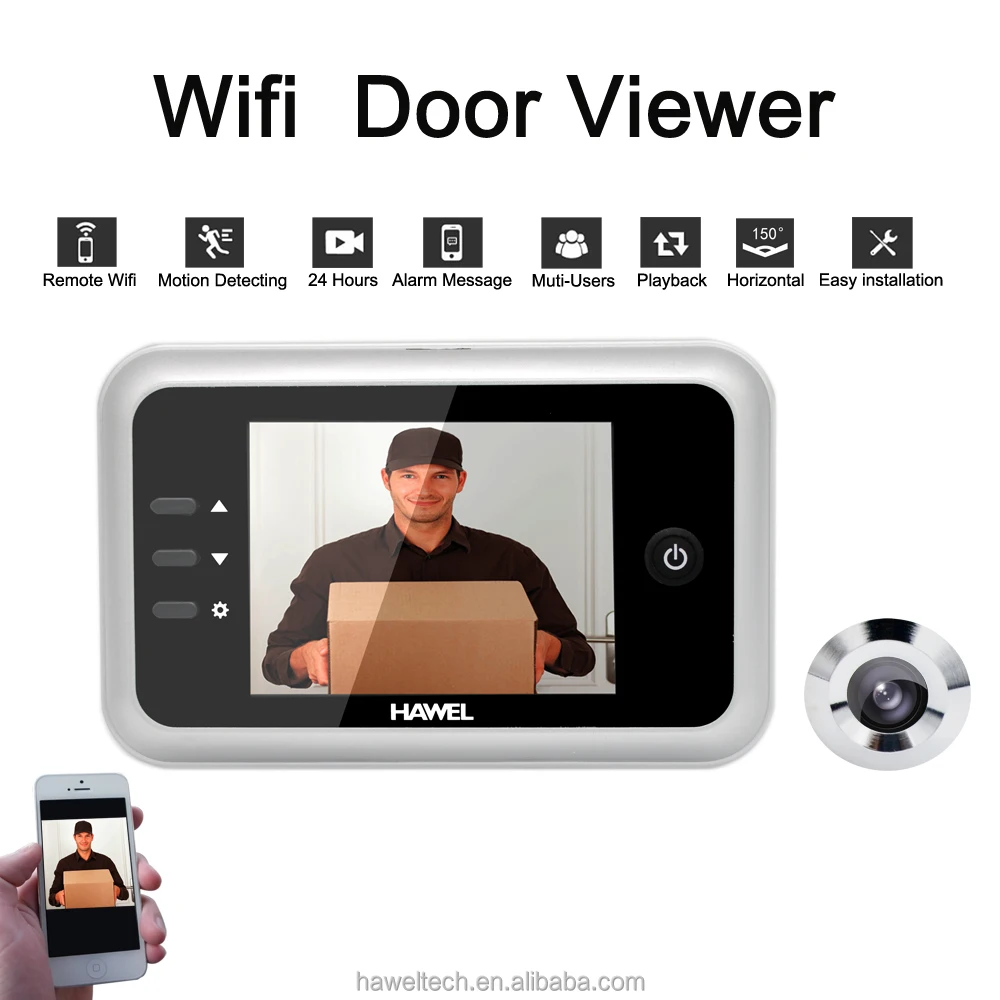

3.5 inch Digital Door Viewer (HT-DM12-RW) Remote wifi optional
Function & Features:



1. Super Clear Image (configured with High Definition Analog Video Camera)

2. Visible under ULTRA LOW light illumination

3. 3.5 inch Large & Full Color LCD Screen shows vivid images

4. Very easy operation, just one press on the main key lightly,DDV will turn on for 10 seconds.

5. Door Bell Function, Photo Snap, Video Recording, Internal memory and TF card slot available

Specification:

1. Door Thickness:  40-72mm, or 72-110mm

2. Barrel Diameter:  14-22mm

3. Full Color LCD Screen:  3.5" TFT

4. Sensor:    1.3M High Definition Analog Video Camera

5. View Angle:  150° (H) / 175° (D)

6. Power Source:  4pcs x AA 1.5V Batteries

7. Color optional:  Silver, Gold, Champagne or customization

8. Door Bell Function, Photo Snap, Video Recording, Internal memory and TF card slot available



User Manual,
    4pcs x AA Batteries (optional)

9. Size: 135*86*23.9mm

10. Weight: 230g

Packing info:


 QTYSIZEG.W
 COLOR BOX    1 pc    15x13x3.6cm  0.29KG
 OUT CARTON   40 pcs    39*32*28cm  12.5KG




Digital Peephole Door viewer

Model: HT-DB01



Specification:

Fits any door:40-110mm (1.57"-4.32") thickness



Fits any barrel hole: 12-23mm



Sensor: 1.3M High Definition Analog Video Camera



LCD screen: 3.5" TFT



Power source: 4 AA Batteries (good for approx. 2000 "peep")



View angle: 150 degree



Weight: 230g



Size:135(W)x86(H)x23.9(D)mm

Advantage of the item:

Clear big image



Easy operation: just press the button (DDV will be switched off in 10 seconds automatically)



Convenient for children and the elderly



Easy assembling or for replacement: No wires and no damage on the door



No shadow can be seen from outside, so as to protect privacy of the house owner

Operation:

1.Power Button:



Press and release the power button, then the unit will continue working for the next 10 seconds.



2.Light Indicator: If the light indicator turns on ,please replace the batteries.

Finish available:

Champange, Slive and Gold (or any color finishing you need for good order quantity 600pcs)

OEM Service

customer logo and box design also available for order quantity 600pcs

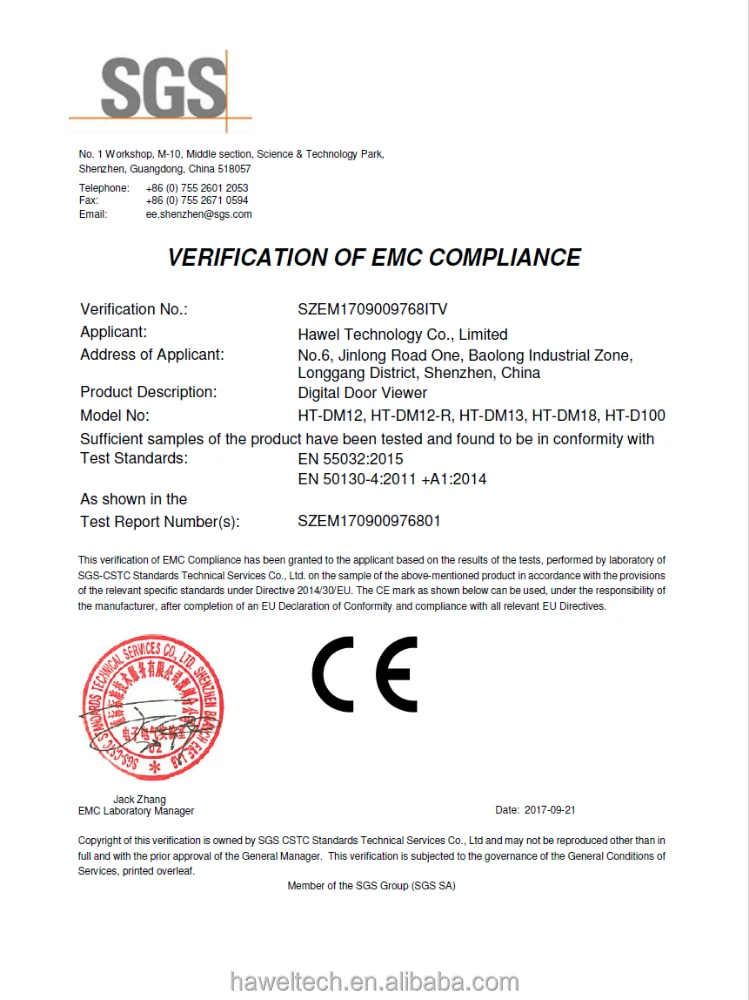

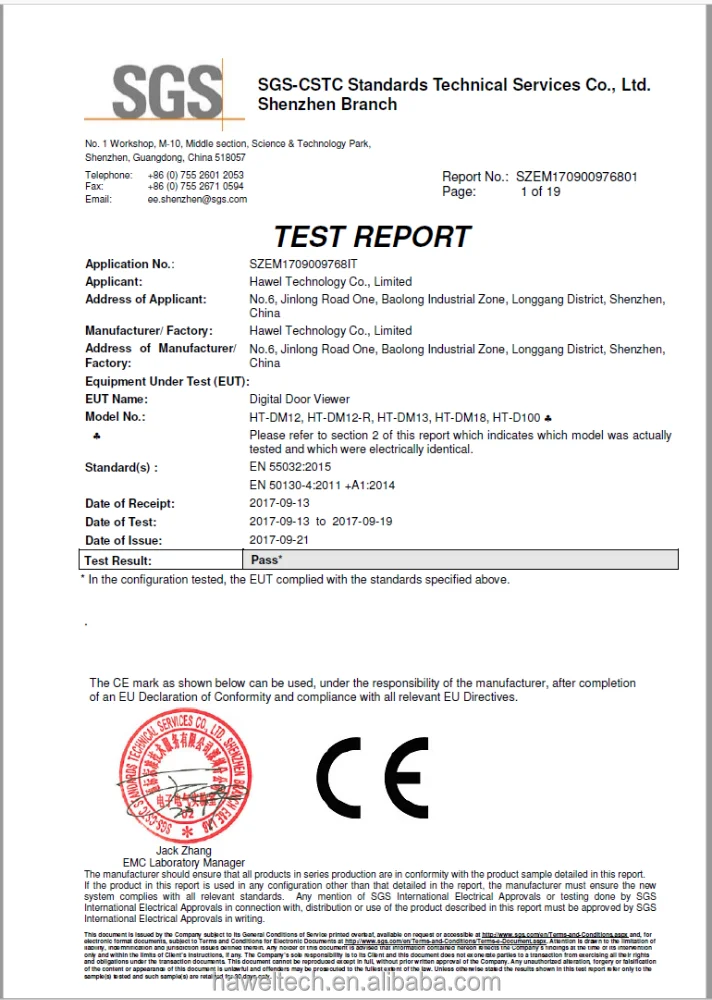

Certificate:

CE, FCC,ROHS

Guarantee:

18 months guarantee from ETD date

Packing:

1set in an individual gift box, Box size: 15*13*3.6cm

Master carton:

40sets in one master carton



Carton size:39*32*28cm, G.W.: 12.5kg

 Shipping photo together2.jpg
