Для системы обратного осмоса для очистки солоноватой воды и скважин, цена на завод по очистке воды

Product Overview

Description

YOUBER Hot Sales water purification system

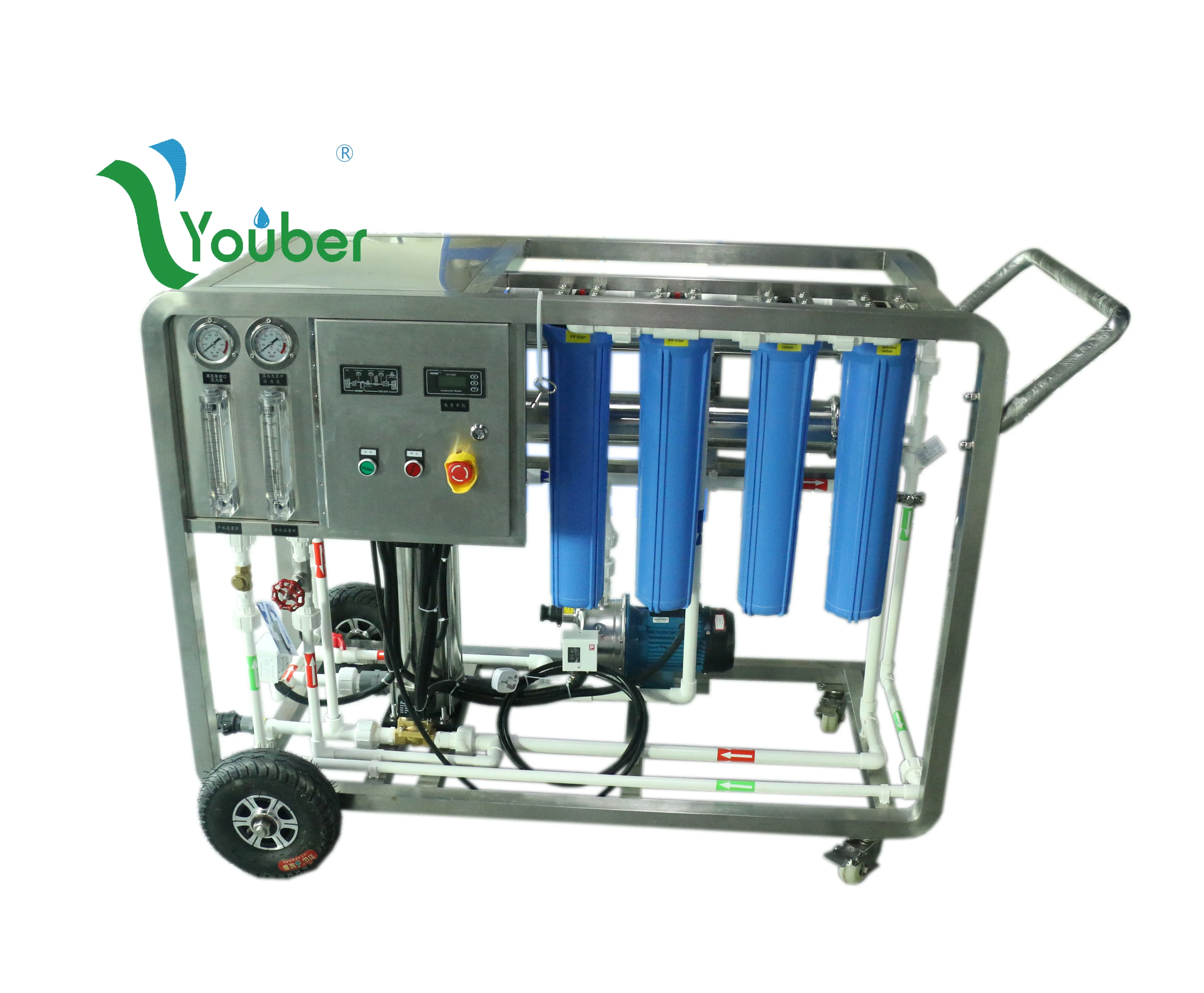

       Hand push RO system                     Suitcase RO system              Seawater Desalination RO system



YOUBER RO Water Purification System Diagram Introduction:

Raw water tank--- Raw water pump---Sand filter---Carbon filter---Softener (optional)---Cartridge filter----High pressure pump---RO system---UV system(optional) ---Pure water tank

2000L/H RO system main technical parameters:

Pretreatment parts
1	Raw water pump		1unit
	Power		1.5KW
	Voltage		220V  50HZ
2	Multimedia filter		1set
	Operation mode		Automatic control
2-1	Sand filter		1set
2-2	Activated carbon filter		1set
3	Cartridge filter		1set
	Model		7-20inch
	Material		Stainless steel
RO Part
1		High pressure pump	1unit
		Power	3.0KW
		Voltage	220V   50HZ
2		RO
2-1		RO membrane housing	4pcs
		Material	Stainless steel
2-2		RO membrane	8pcs
		Brand	Vontron
3		Instrument and meters	1batch
4		Piping system	1set
5		Electric system	1set
6		Frame	SS304,with wheels
7		Material	Stainless steel
8		Packing	Standard plywood case for exports



RO system Process flow Diagram:



Introduction for RO system each stages:

• Quartz Sand filter:
  The quartz sanf filter is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc.


• Active Carbon filter
  The active-carbon filter is commonly used for removal of organic substance and heavy metal element, suspended solids, residual chlorine and etc. It can effectively reduce the level of COD and improve the taste of water.


• Softener (Optional if need):
  Ion exchange resin is used in water softening system for Ca+,Mg+ and other cation exchange . To prevent undissolved salt from depositing in the surface of reverse osmosis membrane ,the resin which ensures well permeable ability of membrane module after it works a long time and extends
  lifetime of membranes , enhances quality stability of ro purified water .  (If raw water hardness is too high, softener is recommended to add to the system)

• Cartridge filter:
  The cartridge filter is most commonly used for treat water. The whole system adopts one set of stainless filter. filtering the vast majority of particles in the water, which eases the load of RO membrane. This process of filtration benefits to the filter cartridge and prolongs its lifetime in the system.


• Reverse Osmosis System( RO)
  RO system is the key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.



The RO water purification system can be waidely used in the following fields:

• Boiler water treatment in power generation industry


• Ultrapure water preparation in electronics and semiconductor industry


• Purified water used for pharmaceutical industry


• Pure water for food and beverage industry


• RO Water System For Seawater Desalination and brackish water desalination


• Wastewater treatment for metallurgical industry, light industry, electroplating industry and leather manufacturing industry.





Packaging: Plywood case packing for exports.



Shipping: By sea is recommended, Customers can use own shipping agent or our shipping agent. We can ship all over the world.

YOUBER service:

• YOUBER is specailized in making RO system, Seawater Desalination RO system, UF system and other water purification system over 10years now.


• YOUBER can make RO system and other water treatment machine capacity from small to large, like 100L/H, 500L/H, 1000L/H, 5T/H, 10T/H, 20T/H, 50T/H, 100T/H.


• YOUBER can provide OEM, ODM service based on customers' need, like water quality report, project information to satisfy customers' requirements.


• Youber can provide design and consultant service for different projects.

                                      50T/day Seawater Desalination RO system

                                    Use for island resorts, hotels, drinking water



Customized Nano+ Ro system



Testing report for drinking water:





Shenzhen Youber Company Introduction:

Shenzhen Youber technology Co., LTD is concentrating on membrane technology as the core, and specialized in the outdoor water purification products R&D, production and sales.

YOUBER owns the outdoor water purifier production factory, and also owns R&D team, in the past ten years, we are mainly focus on R&D of the membrane technology and the outdoor water purification products, and get multiterm patents, the most advantaged and well-compliment from customers are our portable outdoor water filter, portable seawater desalination RO machine and other small size integrated water purification equipment. These products are mainly to solve the drinking water and domestic water problem in the outdoor or the municipal water shortage areas. Our customers come from all over the world, and mainly concentrated in North America, Europe, Middle East and Southeast Asia and other regions and countries, including several well-known enterprises in water purification industry. At least 50 million people in the world today are using YOUBER’s manufacturing outdoor water purification products.



Health clean water is one of the necessary conditions of human survival depends on, and in today's global development of industrialization, the world less and less available water resources, environmental pollution is more and more serious, Shenzhen Youber Technology CO., LTD aims to improve the global water as own duty, With science and technology innovation, the good faith management as the core competitiveness, Open our eyes to the whole world, YOUBER hopes to cooperate with the like-minded friends from all over the world, to contribute to the water environment of the human.



YOUBER Company Culture:



YOUBER Company Product Positioning: Outdoor water purification device
YOUBER Company Positioning: Professional manufacturer for outdoor water purification device
YOUBER Company Mission: To make safe drinking water available to everyone in the world anywhere
YOUBER Company Core Values: helping others is to achieve ourselves
YOUBER Company Vision: To become the world's first brand of outdoor water purification

The definition of YOUBER’s "outdoor water purification":
Although entering the 21st century, there are still many people in the world who do not have safe drinking water.The number of people who die every year without safe drinking water is about millions! YOUBER is committed to solving the problem of safe drinking water for people in areas where clean drinking water is not available. Therefore, we claim the corresponding water purification solution for those who cannot easily obtain safe drinking water is called “outdoor water purification”. These include: seawater desalination solutions, solar water purification solutions, gravity water purification solutions, manual water purification programs, etc., covering areas such as poor areas, poor sanitation, islands, offshore operations, drilling platform, desert, Gobi, traditional outdoor operators (outdoor exploration, outdoor construction), outdoor sports enthusiasts, and emergency rescue water purification equipment.
