KOMAY 1 тонна 3 тонны 10 тонн ручной подъемный рычаг цепной блок для строительного подъемника

Product Overview

Description

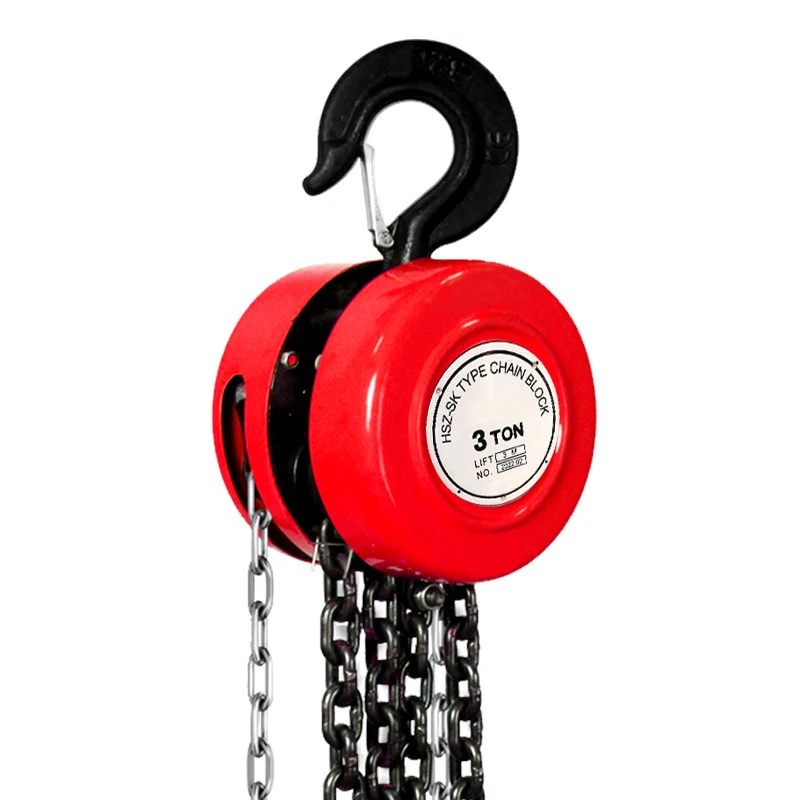

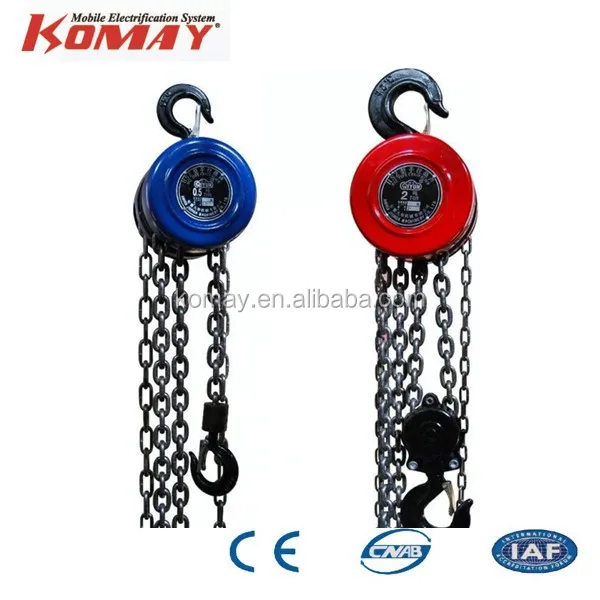

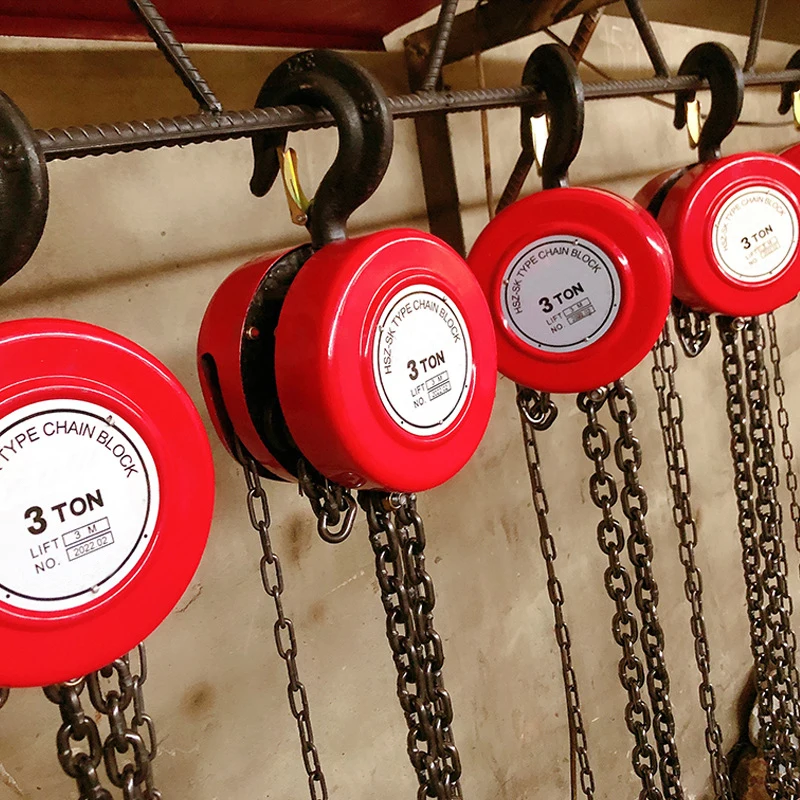

KOMAY High Quality Chain Block for Crane

Application:

HS series chain block is the handing hoisting machine simple to use, convenient to carry. It is suitable for factory, mine, construction sites, agricultural production and the dock, warehouse etc. It play a important role in installation of machinery, lifting goods an handing vehicle, pecially for the outdoor and no power operation. HS type chain block can be attached to a trolley of any type as a traveling chain block. It is suitable to monorail overhead conveying system, hand traveling crane and jib crane.

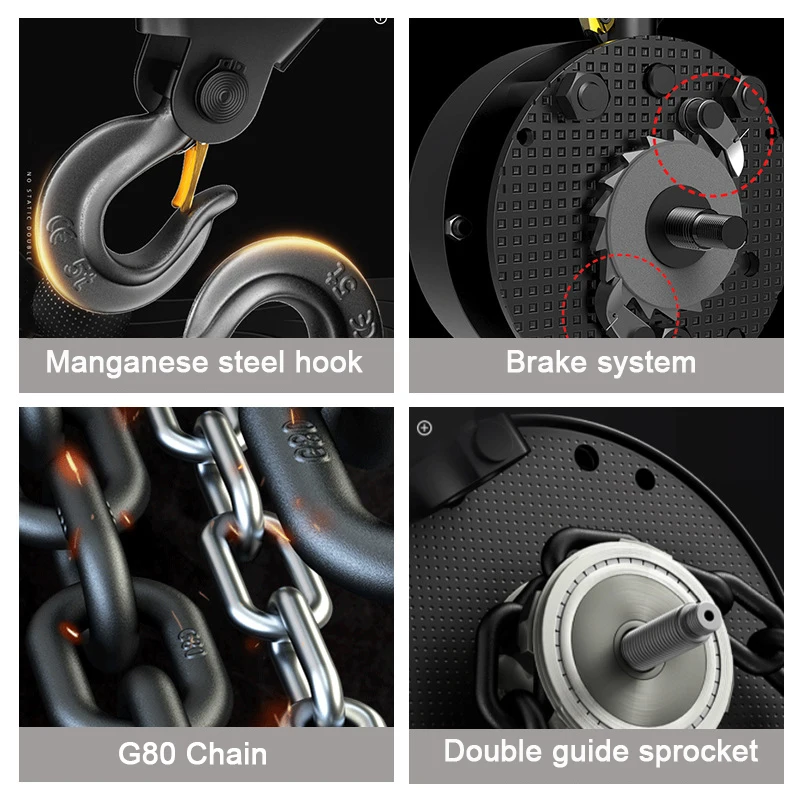

Feature:

1. Used safe, sample maintenance

2. Mechanical efficiency is high, the bracelet pull small

3. Light weight, easy for carry

4. Appearance beautiful, small in size

5. Durable



Type		HSZ1/2	HSZ1	HSZ11/2	HSZ2	HSZ3	HSZ5	HSZ10	HSZ20
Rated Capacity(T)		0.5	1	1.5	2	3	5	10	20
Standard lifting height(M)		2.5	2.5	2.5	2.5	3	3	3	3
Test load(Kn)		0.75	1.50	2.25	3.00	4.50	6.25	12.5	25.00
Min. distance between two hook		280	300	360	380	470	600	730	1000
Chain pull to full load(N)		16-17	31-34	36-39	31-34	36-39	39-42	39-42	39-42
No. of load chain fall lines		1	1	1	2	2	2	4	8
Diameter of load chain(mm)		6	6	8	6	8	10	10	10
Dimensions(mm)	A	142	142	178	142	178	210	358	580
	B	126	126	142	126	142	165	165	195
	C	18	22	27	28	34	44	55	75
	D	142	142	178	142	178	210	210	210
Net weight(kg)		9.5	10	15	14	24	36	68	150
Gross weight(kg)		10	10.5	15.7	14.5	24.8	37.3	79	173
Packing size(cm)		25×18×17	25×17×16	26×23×17	27×20×16	32×23×17	41×30×21	62×50×27	80×70×36
Etra weight per meter of etra lift(kg)		1.7	1.7	2.3	2.5	3.7	5.3	9.7	19.4
